Atdec Focus VF-AT-NP Installation Instructions page 2

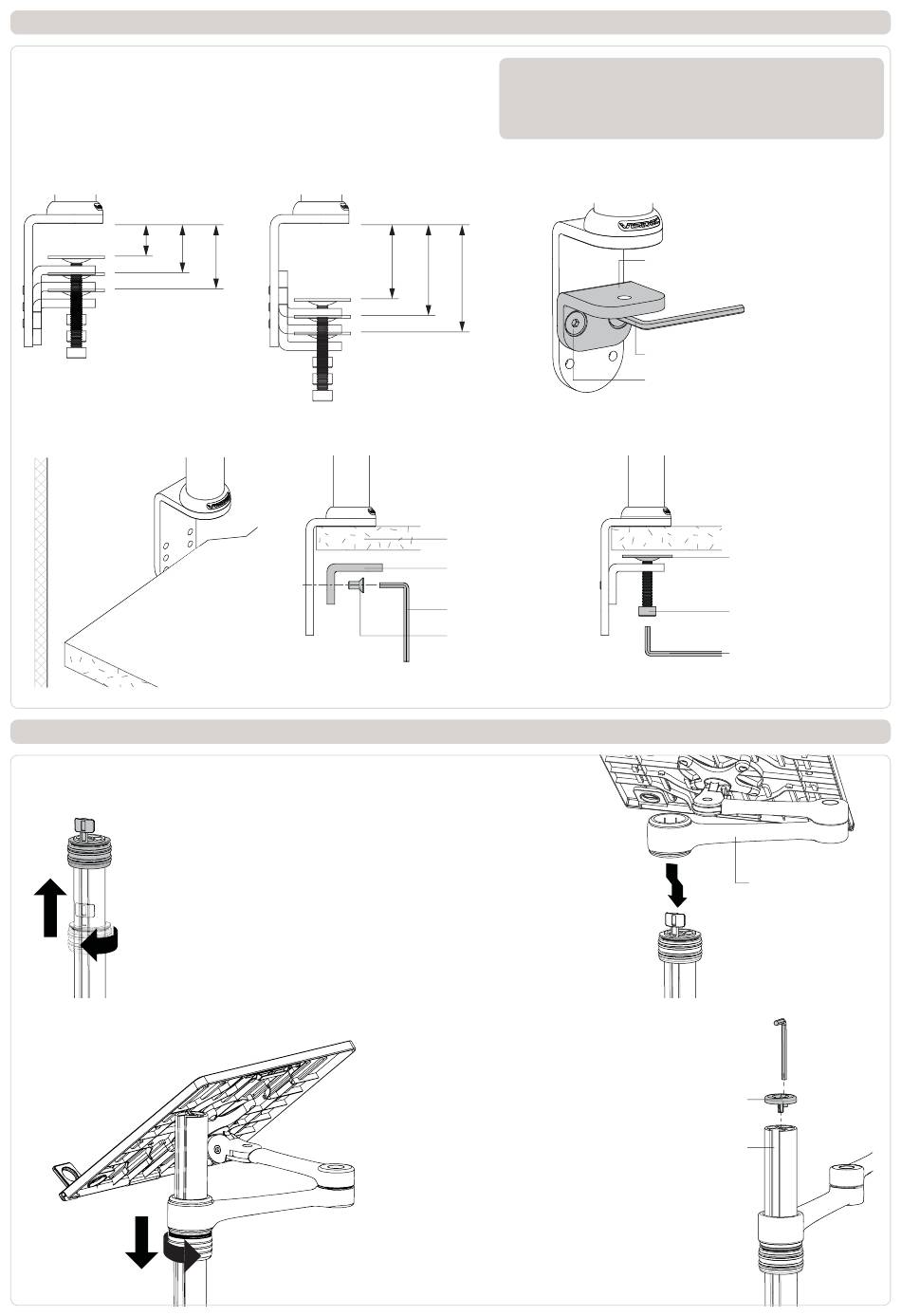

Step 2. Mount Pole Assembly (cont.)
2.3 The Desk Clamp bracket can be repositioned to suit different mounting
surface thicknesses. The maximum mounting surface thicknesses supported
are listed below from the Top to Middle and Bottom Screw Holes.
Top 0 - 32mm (default)
Middle 7 - 47mm
Bottom 22 - 62mm
T M
2.5 Place in desired
location.
Step 3. Mount Notebook Tray Arm
3.1 Unlock Handgrip
and raise so that the
Handgrip Tab protrudes.
Top 29 - 69mm
Middle 43 - 84mm
Bottom 59 - 99mm
B
3.3 Slide the Notebook Tray & Arm
Assembly and Handgrip down the
pole before locking the Handgrip at
the desired height.
If you need to reposition the desk clamp bracket or you have no
access to the rear of your table continue to Step 2.4.
If you DO NOT need to reposition the desk clamp bracket and
you have access to the rear of your table skip to Step 2.7.
2.4 Remove the M8 x 16mm Socket Head Countersunk
Screws to release the Desk Clamp Bracket.
T M B
2.6 Reattach Desk
Clamp Bracket.
Table Top
Desk Clamp Bracket
5mm Allen Key
M8 x 16mm Socket
Head Countersunk
Screw
3.2 Slip the Notebook Tray &
Arm Assembly over the Handgrip
Tab and then onto the Pole.
3.4 Insert Pole Top Cap into Pole. This
is also where the Allen Key is stored.
Desk Clamp Bracket
5mm Allen Key
M8 x 16mm Socket Head
Countersunk Screw
2.7 After positioning
your Pole Assembly,
screw Pressure Plate in
and Tighten Firmly.
Pressure Plate
M10 Desk Clamp Screw
5mm Allen Key
Notebook Tray &
Arm Assembly
5mm Allen Key
Pole Top Cap
