Moxa Technologies MC-7270-MP-T Series Quick Installation Manual

MC-7270-MP-T Series
Quick Installation Guide
First Edition, September 2014

Overview

Standard Moxa MC-7270-MP-T marine computers are powered by
® ™
the third generation Intel Core i CPU processor. With eight NMEA
0183 ports, four DB9 serial ports, four Gigabit Ethernet ports, six
USB 2.0 ports, two Super Speed USB 3.0 ports, and eight digital
I/O terminal blocks, this computer offers a full range of I/O
connectivity in a powerful, compact package. In addition, it also
has two PCI slots alongside a PCIe Gen 3 slot (x16), allowing even
more versatile peripheral expansion opportunities for industrial
applications.

Package Checklist

Before installing the MC-7270-MP-T, verify that the package
contains the following items:
• 1 MC-7270-MP-T marine computer
• 2 removable storage protection keys
• Wall mounting kit, with 8 screws
• 1 2-pin terminal block for DC power input
• 1 2-pin terminal block for Power ON/OFF switch
• 2 6-pin digital input terminal blocks
• 2 8-pin digital output terminal blocks
• 8 5-pin terminal blocks for NMEA 0183 ports
• Documentation and driver CD
• Quick installation guide
NOTE: Please notify your sales representative if any of the above
items are missing or damaged.

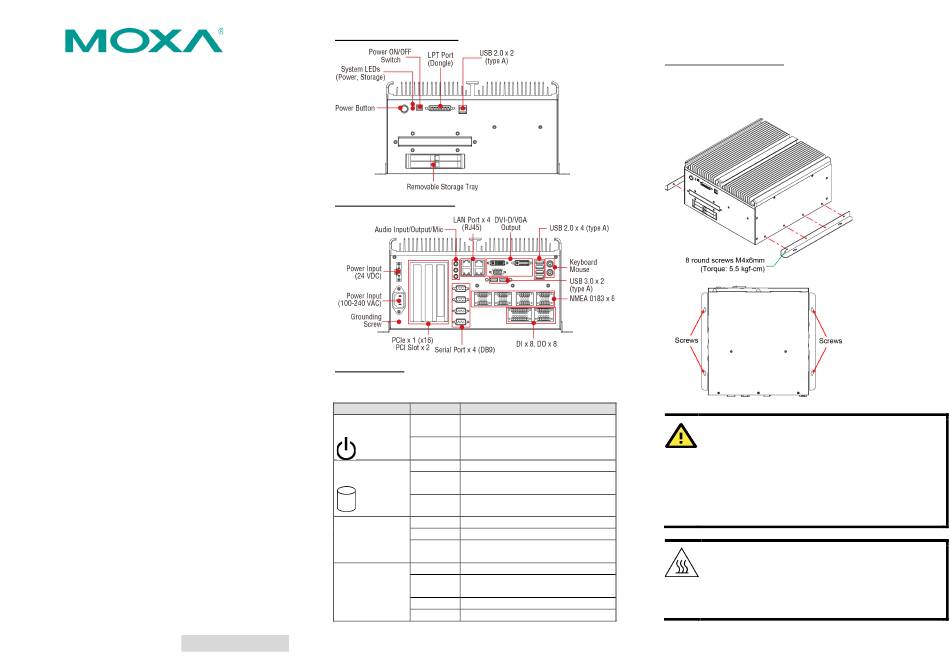

MC-7270-MP-T I/O Layout

The following figures show the I/O layout of the MC-7270-MP-T.
P/N: 1802072700021
– 1 –
MC-7270-MP-T Front View
MC-7270-MP-T Rear View

LED Indicators

The following table describes the LED indicators of the
MC-7270-MP-T.
LED Name LED Color LED Function
Power
Green Power is on and functioning normally
(on front panel)
Off Power is off or there is an error
Storage Red (on) Storage drive is functioning properly
(on front panel)
Red
Drive is accessing or writing data
(blinking)
Off No activity
Green 100 Mbps Ethernet mode
LAN Yellow 1000 Mbps (Gigabit) Ethernet mode
(on connectors)
No activity or 10 Mbps Ethernet
Off
mode
Red (on) Storage disk is functioning properly
Red
Storage disk is being accessed
Storage
(blinking)
(on storage tray)
Red (off) No activity
Blue (on) w/ SATA power
– 2 –

Installing the MC-7270-MP-T

Wall or Cabinet Mounting

The MC-7270-MP-T has brackets for both wall and cabinet
mounting. Attach one bracket on each side of the MC-7270-MP-T
and then use suitable screws to attach the brackets to the wall or
cabinet.

Restricted Access Location

This equipment is intended to be used in restricted access
locations, such as a computer room, with access limited to
service personnel or users who have been instructed on
how to handle the metal chassis of equipment that is so hot
that special protection may be needed before touching it.
The location should only be accessible with a key or
through a security identity system.

WARNING

External metal parts of this equipment are extremely hot!!
Before touching the equipment, you must take special
precautions to protect your hands and body from serious
injury.
