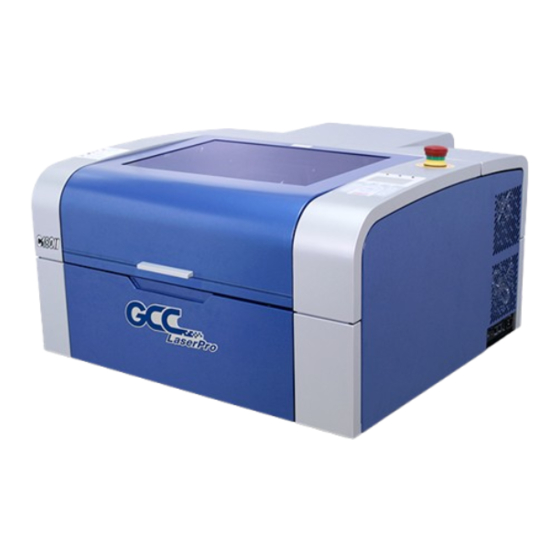

4F-1, 236, Fu-Te 2 Rd., His Chih, Taipei Hsien, 221, Taiwan TEL:886-2-6616-6692 2694-6687 FAX:886-2-2694-6875 2694-5097 C180 II Control Panel Changing Process Version: 1.0 May 20, 2014...
Page 2
Revision History: Version Date Page CONTENTS May, 20 2014 First release...
Page 3
1. Dismount two screws on the bottom of side panel (see red arrows below) 2. Dismount two screws of right-front cover (M3 *2)
Page 4
3. Dismount 4 screws of back cover (M3 *4) 4. Dismount right window cylinder...
Page 5
5. Dismount 4 screws of right top cover (where the control panel locates)
Page 6
6. Hanging the right top cover to the right side. 7. Dismount 5 screws for cover of control panel and ground cable screw...
Page 7
8. After control panel cover is removed, there are 4 screws needs to be removed and the four cables (in the red circle). Then the control panel can be removed and changed new one.
