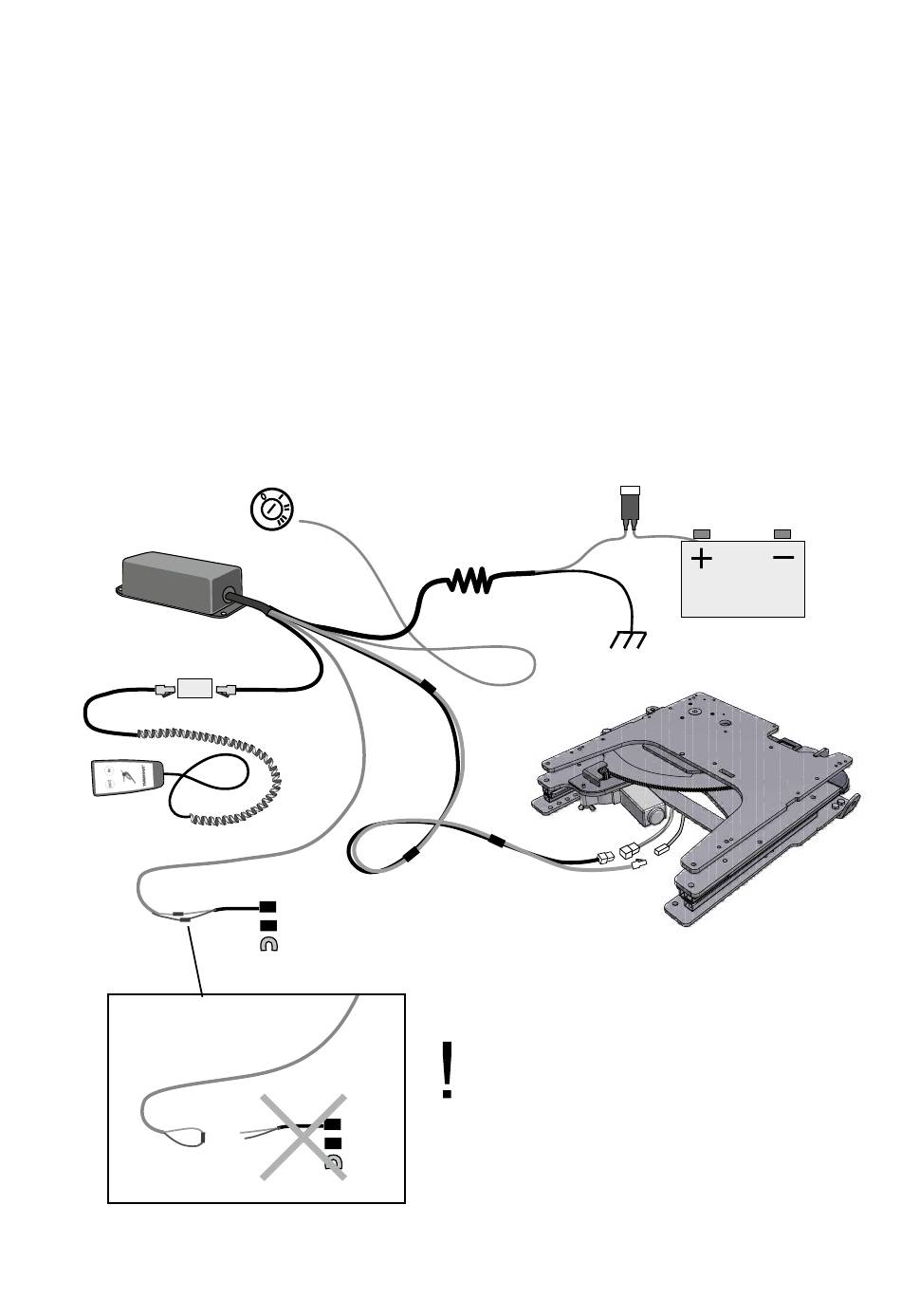

Electrical installation
• For Turnout 4E and 2E:
A. Mount the control box, for ex. behind the dashboard panel.
B. Connect the main control box cabling to the motor cable and micro switch cable of Turnout.
C. Install the safety switch, if this shall be installed, and connect the safety switch wire. If not used,
the two conductors for this switch shall be connected to one another.
D. Connect the ignition wire to 15+.
E. Connect the conductor joint, which is included in the package, to the hand control cable and the
cabling for Turnout.
Do not forget to mount the holder for the hand control, somewhere by the dashboard/A-pillar!
16
D
Ignition
15+
A
E
C
20 A
B
If a safety switch is not used, the
two conductors for this switch shall
be connected to one another.
