Prepare the mounting bracket
Mount following items on the mounting bracket before
it is mounted inside the vehicle:
• For all Turnout models:
The seatbelt receptacle is mounted on the L-shaped
attachment.
Seatbelt, if it has been mounted on the original seat,
(also possible seatbelt stretcher).
• For Turnout 4 and 4E:
Dismount the slewing bracket attachment from the
slewing bracket. The attachment shall then be mounted
on the mounting bracket, from underneath. Also dis-
mount the slewing bracket, which shall be remounted at
a later stage, when the Turnout is fixed to the mounting
bracket.
• For Turnout 4:
Mount the small protection profile, on the same side
as the seat belt receptacle.
Mounting to the vehicle floor
IMPORTANT! The original bolt holes for the seat must be used!
Mount the mounting bracket in the original seat bolt holes.
If a Universal mounting bracket is used: adjust the legs to the vehicle floor and coat them afterwards.
• For Turnout 4E:

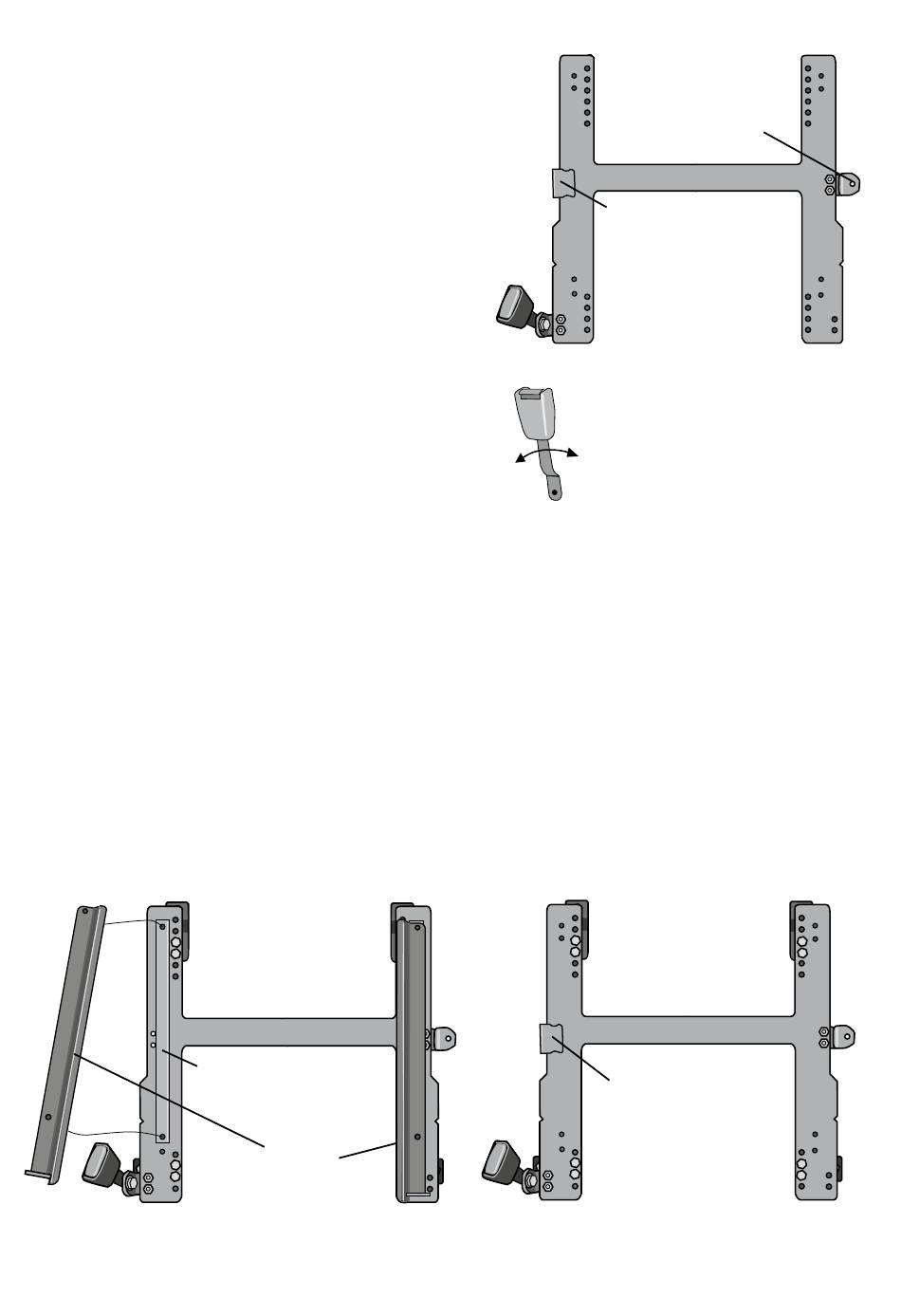

1. Place the spacers on the mounting bracket, accor-
ding to picture.
2. Mount the protecting profiles on top.
14
For
TURNOUT 4E
Spacer, low
Protecting
profiles
Small
protection
profile
(Turnout 4)
Mount the mounting bracket in the
original seat bolt holes.
If a Universal mounting bracket is
used: adjust the legs to the vehicle
floor and coat them afterwards.
• For Turnout 4:
1. Place the spacers on the mounting bracket, ac-
cording to picture.
For
TURNOUT 4
Small protecting
profile
Slewing
bracket
attachment
