Autoadapt Turnout 2 Installation Manual page 5

• For Turnout 4E and 4:
1. Pull the lower part of the spacers backwards and remove the
screws placed in the front part of the rail attachment in Turnout.
Then pull the lower part of the rail maximum forward.
2. Place the Turnout, with the protecting profiles under the rails,
on the spacers. Move the rail to the side (Fig.1) to be able to
screw an M8x30 screw through the front hole of the lower part
of the rail, the protecting profile, the spacers and the mounting
bracket. Repeat on the opposite side.
3. Pull Turnout forward on the rails and screw Turnout back
into the front part of the rails again.
4. Screw M8x30 screws through the rear holes of the rails,
the protecting profiles, the spacers and the mounting
bracket. (Fig.2)
• Change of movement for Turnout 4 and 4E:
When using an open slewing bracket, the Turnout swivels
slightly outwards before moving forward and then swivel-
ling out. This provides extra space for a person sitting in
driver position where the space by steering wheel is snug.
The distance to the B-pillar can be reduced by 4 cm with
an open slewing bracket, compared to using the standard
slewing bracket.
The bracket is mounted with the oblong hole to the up-
per plate of Turnout and the circular hole to the slewing
bracket attachment on the lower plate.
For Turnout 4 E, use a low type slewing bracket attach-
ment and the spacer (included in the package). The spa-
cer is mounted between the oblong hole of the slewing
bracket and the attachment in the upper plate of Turnout.
• For Turnout 2E and 2:
1. Place the high spacers on the mounting
bracket, according to picture.
2. Separate the upper plate (M6 nut) from
the lower, to be able to reach the outer rear
hole. Use the countersunk M8 screw.
IMPORTANT!
When reuniting the plates, tighten the M6 nut using 50 Nm.
3. Use the front set of holes in the lower plate of Turnout
and fix Turnout with 4 pcs M8x50 screws through the spa-
cers and the mounting bracket.

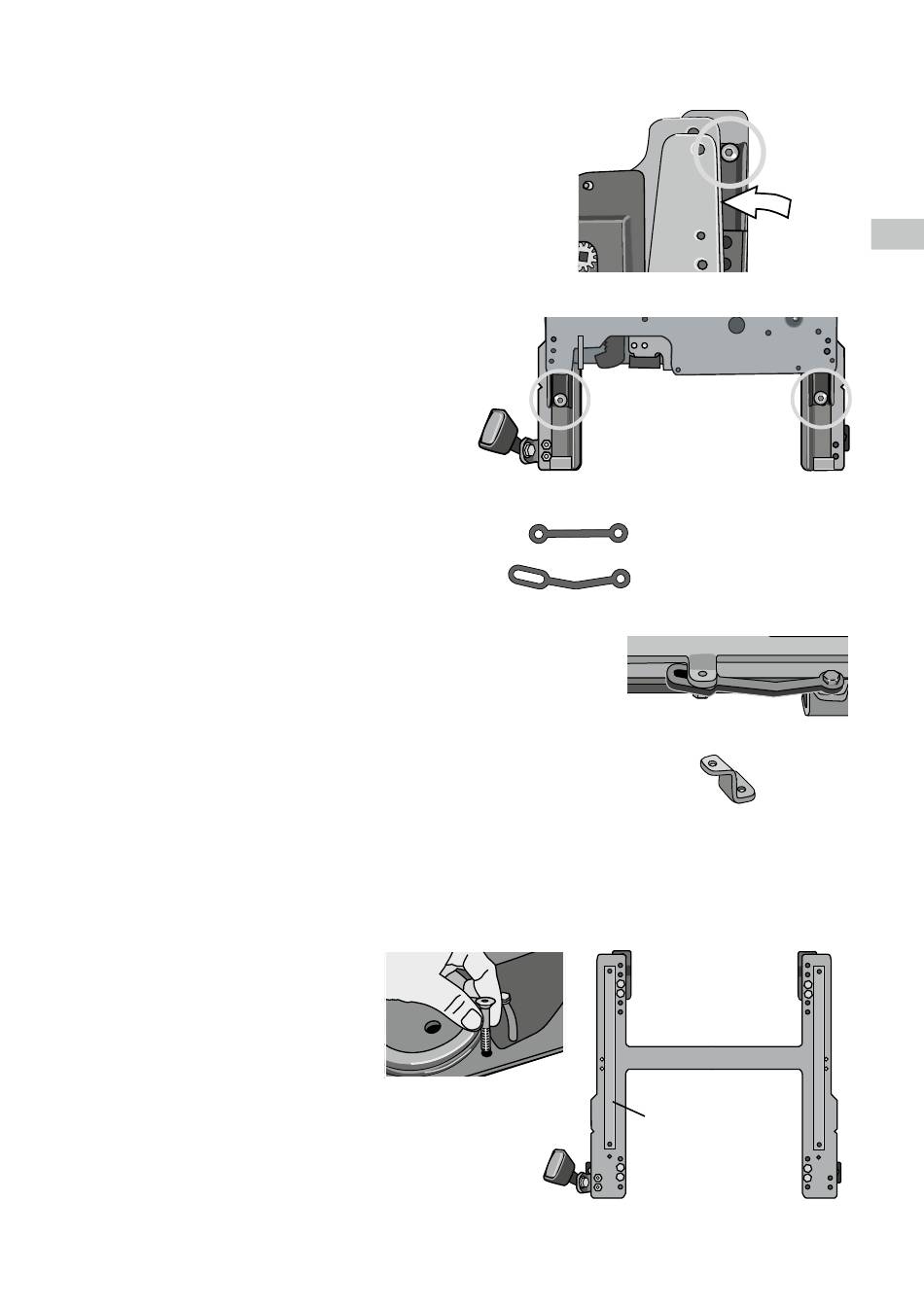

Fig. 2
Standard slewing bracket
Openslewing bracket
Turnout 4: # 101685
Turnout 4E: # 102242
The open slewing bracket
mounted on Turnout.
Low type slewing
bracket attachment
TURNOUT 2E
TURNOUT 2
Spacer, high
