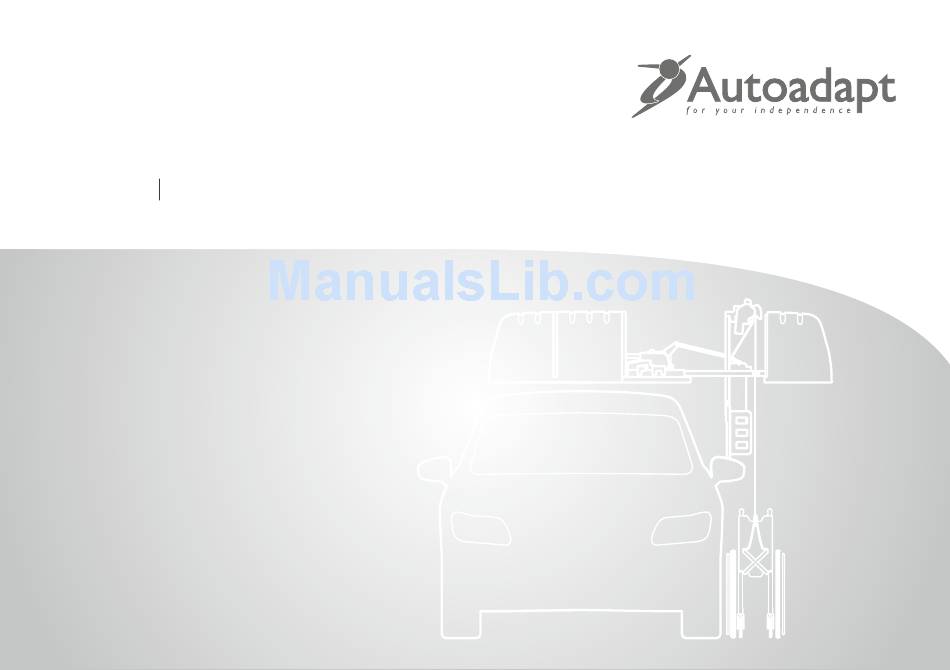

- Page 1 Chair Topper Autoadapt Hoisting and stowing User manual...
- Page 2 If you have any questions about your adaptation, please contact your installation engineer. If you want to share your opinions about the product or the company with us, you can register them on www.autoadapt.com/register. That way, you will be helping us to become a better supplier.
- Page 3 Hoisting and stowing Chair Topper Safety Operation Emergency operation Maintenance Troubleshooting Technical specification Introduction for users Manufacturer certificate (declaration of conformity) at the end of the manual.
- Page 4 Chair Topper Hoisting and stowing Safety Safety decals located on Chair Topper /...
- Page 5 Hoisting and stowing Chair Topper My Chair Topper Combined height of vehicle and Chair Topper at the time of installation, ______________ cm. Please note that changing the wheels, rims or other modifications to the vehicle might affect the total height.
-
Page 6: Operation
4. Press the IN button and carefully raise the hook. Release the button when the Chair Topper is fully closed. BEFORE TRANSPORT / 1. Place the hand held control in its cradle to avoid accidental activation of the Chair Topper. - Page 7 Hoisting and stowing Chair Topper Ensure that the hook is inserted all the way in. Vehicle door fully open Wheelchair facing toward the front of the vehicle...
-
Page 8: Emergency Operation
Use the supplied hook to remove the lock pin through hole in the cover. Turn the knob 15 full revolutions counter clock wise. Use the slotted tube to reach. Use the emergency kit, supplied with the Chair Topper, to easier the emergency operation. - Page 9 Hoisting and stowing Chair Topper Grab the cover and pull the slide frame out.
- Page 10 Chair Topper Hoisting and stowing DOWN Use the supplied hook to remove the lock pin. Use the emergency kit, supplied with the Chair Topper, to easier the emergency operation.
- Page 11 DANGER During this procedure the wheelchair will suddenly drop and free fall from the Chair Topper. Unless held by a person of adequate strenght, it may cause injury to anyone in its path as well as cause damage to the vehicle.
- Page 12 Push in the slide frame until the fold frame is in a horisontal position. Place the seat hook and chains on fold frame. Continue to push in the slide frame until it is fully closed. Use the emergency kit, supplied with the Chair Topper, to easier the emergency operation.
- Page 13 Hoisting and stowing Chair Topper Turn knob 15 revolutions clock wise. Use the slotted tube to reach.
-
Page 14: Maintenance
Chair Topper Hoisting and stowing Maintenance Perform maintenance at the scheduled intervals according to the number of cycles or elapsed time whichever comes first. Always contact your dealer for disassembly. Wash and/or wax the ABS plastic in the same manner which you care for your vehicle. - Page 15 Hoisting and stowing Chair Topper Inspect chain bolts and all chain connecting points. Inspect master links and chain blocks for positive securement and/or possible damage. Replace, resecure or correct as needed. Inspect chains for lubrication, damage, misalignment, binding or twisting. Lubricate with light oil.
- Page 16 Chair Topper Hoisting and stowing Repeat all checks listed in the two previous sections. Repeat maintenance procedures. Inspect fuse holder and electrical connections. Correct as needed. Inspect the channel on both sides for damage, securement or obstructions. Clean, resecure or correct as needed.
-
Page 17: Troubleshooting
- Check that the fuse is intact and that the vehicle battery is charged. - Follow the instructions for “Emergency operation”. Unusual noises heard during operation..- Do not use the Chair Topper. Contact your installation technician for an overhaul. - Page 18 Chair Topper Hoisting and stowing Please contact your installation technician if you require further assistance or need to ask questions about warranty. We recommend keeping the following information to hand at all times / Contact details for the installation engineer /...
-
Page 19: Technical Specification
Hoisting and stowing Chair Topper Technical specification Dimensions A, length ............143 cm B, width ............131 cm C, height ..........46+10* cm D, extension ..........91 cm E, chain lenght ...109 cm (200 cm with ext. kit) F, max folded height .........93 cm G, max folded apex height .... - Page 20 Chair Topper Hoisting and stowing Introduction for users Autoadapt would like you, as a user, to feel secure and comfortable with your new product. For that reason, it is your installer’s duty to go through the following with you / •...
-
Page 22: Declaration Of Conformity
/ Autoadapt AB Åkerivägen 7, 443 61 Stenkullen 2006/42/EEC Sweden ECE R-10 ISO 11154 Phone: +46 302 254 00 E-mail: info @ autoadapt.com www.autoadapt.com Autoadapt AB, Stenkullen 2017-06-15 Declares that the product / Chairtopper, model left/right Håkan Sandberg... - Page 23 Accredited by SWEDAC as testing laboratory in accordance with ISO/IEC 17025:2005 Quality system certified in accordance with ISO 9001:2008 Illustrations, descriptions and specifications in the user manual are based on current product information. Autoadapt reserves the right to make alterations without previous notice. © 2017 Autoadapt AB...
- Page 24 AUTOADAPT AB Åkerivägen 7 S-443 61 Stenkullen Sweden Phone: +46 302 254 00 E-mail: info@autoadapt.com...
