PRIOR TO INSTALLATION

Make sure the goods have not been damaged during transport and that the goods are according to your
order. Please read the user instructions for Turnout and make sure you understand how it is operated.
If the seat is equipped with a side-airbag please contact the representative from the manufacturer of the
vehicle for instructions on how to dismount the seat and what kind of substitute resistance should be used.
THE TURNOUT INSTALLATION
Place the vehicle horizontally on even level!
If there are any electrical cables on the floor or under the carpet, these must be put to the side or protec-
ted in any other way to avoid them getting damaged during the installation.
The original bolt holes for the vehicle seat must be used
when installing a Turnout and its mounting bracket.

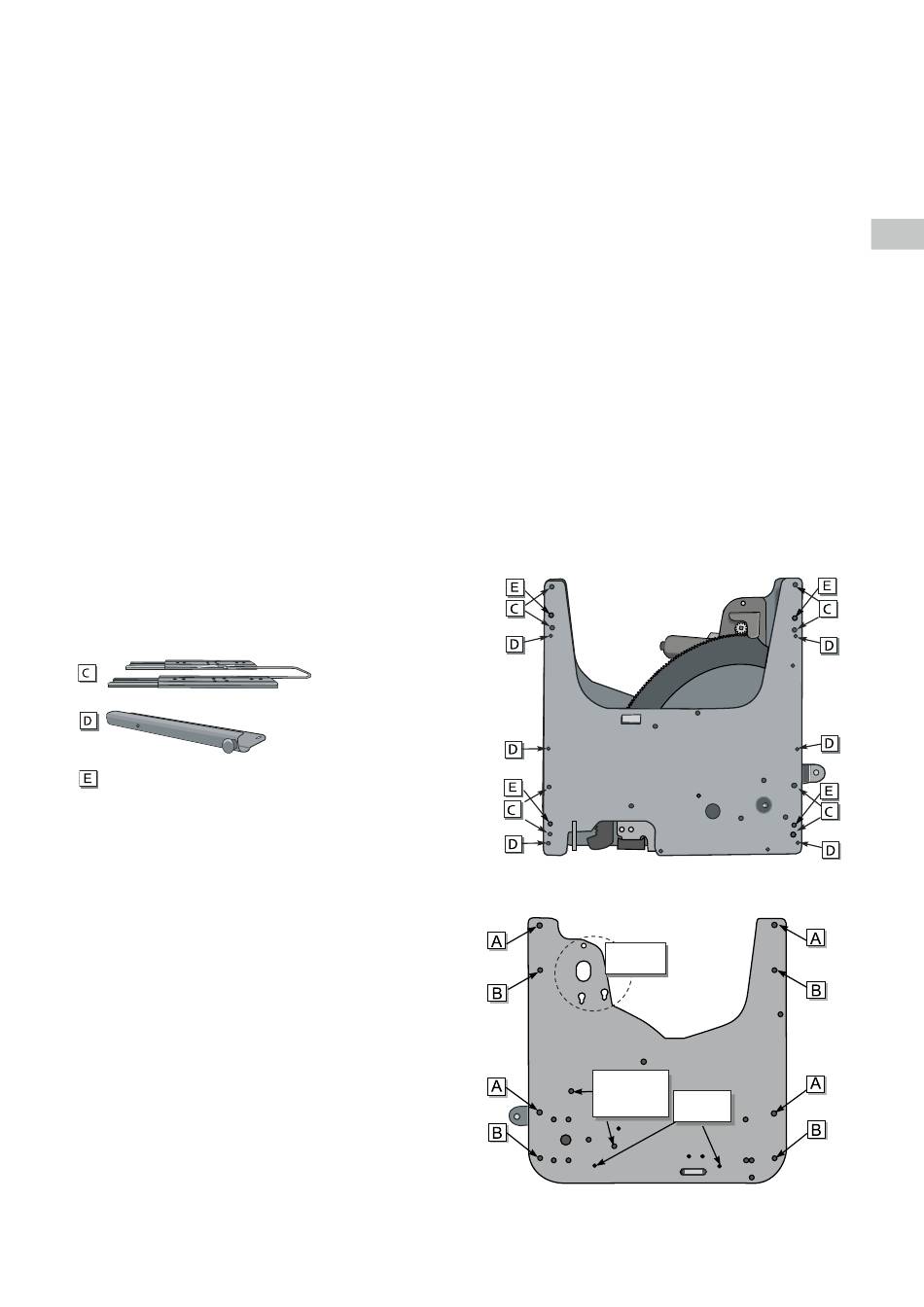

Holes
Turnout upper plate:
Recaro rails
Turnout lower plate:
A = Holes for Turnout 2/2E (2-door vehicles)
B = Holes for Turnout 4/4E (4-door vehicles)
Glide rails,
2 alternative positions
Carony rails
Motor
Turnout E
Turnout 2,4
adjustable
cover
swivel angle
