Eizo CuratOR EX5841 Installation Manual
4k uhd 58" monitor
Hide thumbs
Also See for CuratOR EX5841:
- Instructions for use manual (48 pages) ,
- Installation manual (26 pages)
Related Manuals for Eizo CuratOR EX5841
Summary of Contents for Eizo CuratOR EX5841

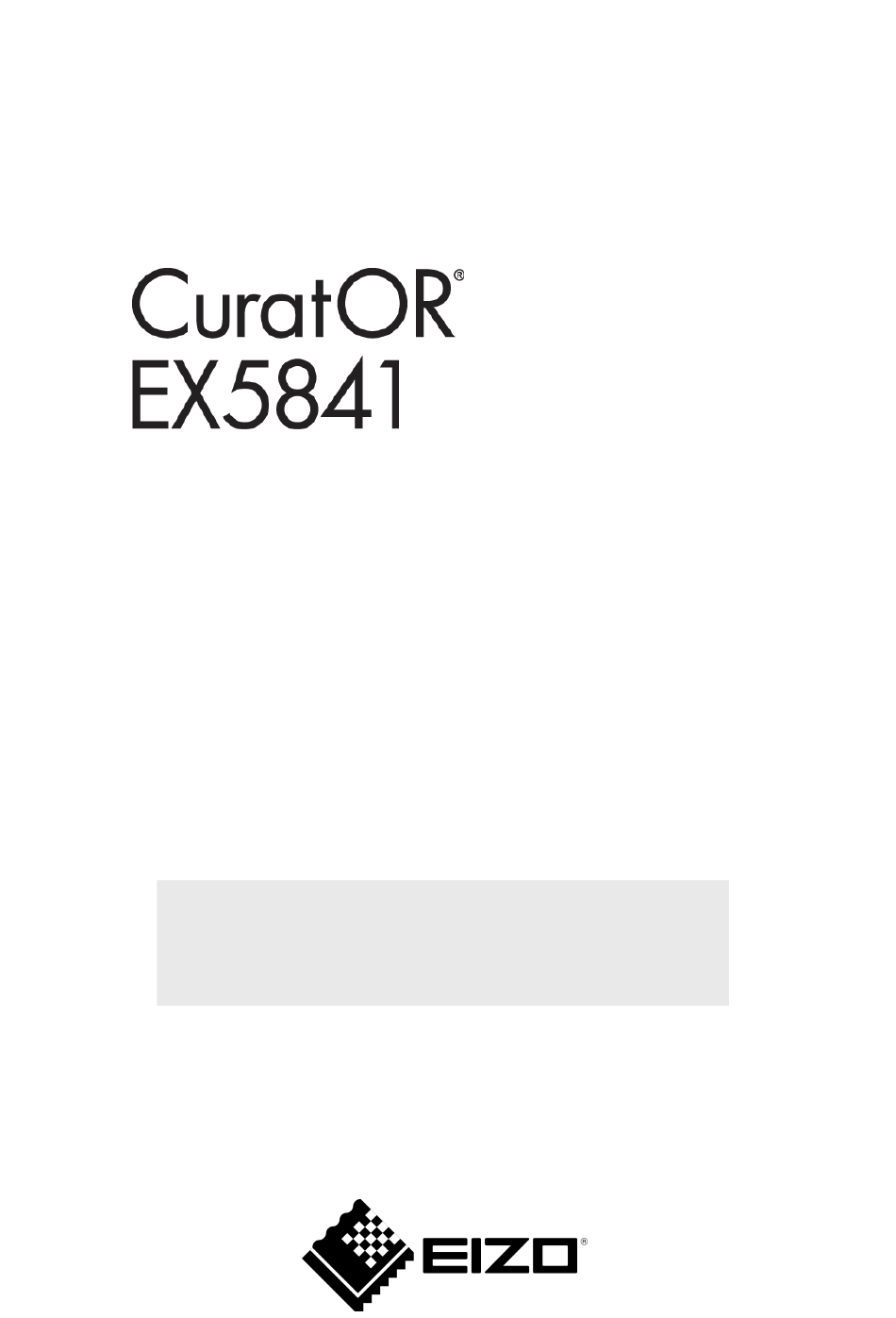

- Page 1 Installation Manual 4K UHD 58" Monitor Important Please read the safety information and all information delivered with the product carefully to familiarize yourself with safe and effective usage.
-
Page 2: Legal Information
Use of EIZO products WARNING EIZO products may only be used for the applications described in the catalog and in the relevant tech- nical documentation. If products and components from other manufacturers are used, these must be recommended or approved by EIZO. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems. -
Page 3: Table Of Contents
Check the settings .................... 18 4 Technical specifications .................... 19 Supported timing..................... 19 4.1.1 SDI input .................... 19 4.1.2 DVI input .................... 19 4.1.3 HDMI input .................... 20 4.1.4 DisplayPort Input.................. 21 Factory Preset ...................... 22 Index .......................... 24 CuratOR EX5841 Installation Manual, 08/2019... -
Page 4: Introduction
1.1 Contents of this document 1 Introduction 1.1 Contents of this document This installation manual explains the start-up and adjustment of the CuratOR EX5841. To ensure clarity, it does not contain all detailed information on this product. The documentation is intended for service personnel. -
Page 5: Commissioning
2.2 Check for pixel defects Pixel defects (small bright or dark dots) can occur in LCD monitors. During the manufactur- ing process, all monitors are checked for the permitted number of defective pixels. Defective pixels cannot be corrected. CuratOR EX5841 Installation Manual, 08/2019... -
Page 6: Locking Or Unlocking The Osd Menu
The OSD menu is used to make settings for operation of the monitor. Note Dynamic OSD The OSD Menu is dynamic in nature. Depending on the active signal and user settings, some functions are hidden. CuratOR EX5841 Installation Manual, 08/2019... - Page 7 Commissioning 2.4 Overview of the OSD menu CuratOR EX5841 Installation Manual, 08/2019...
-
Page 8: Preset" Key
This function enables you to make any LUT set- LUT. tings in the "CAL Switch" function selectable (1) or non-selectable (0). The names of the selectable LUT settings are taken from the "CAL Switch" function. Note: The active LUT cannot be set to "0". CuratOR EX5841 Installation Manual, 08/2019... - Page 9 Default: depends on the signal. selected preset • Not available for DVI. 0-255 Establish the dynamic range of the selected Input Range video source. 16-235 Note: Not available for DVI. 16-255 Default: depends on the selected preset CuratOR EX5841 Installation Manual, 08/2019...
- Page 10 (right window and/or PiP window). Note: Timings with the native panel resolution and the Full HD timings stored in the EDID of the monitor are displayed in "synchronised" mode. Other timings are shown in "framebuff.2" or "framebuff.3" mode. CuratOR EX5841 Installation Manual, 08/2019...
-
Page 11: Picture Layout Menu
Right Window Two video sources are displayed in two windows of equal size next to one another. Open the "Window Configuration" menu for the respective window to change the video source or display size. CuratOR EX5841 Installation Manual, 08/2019... - Page 12 Source Selection Selecting the video source HDMI Here you set which video source should be dis- played in the selected window. The setting remains even if you shut down and switch on the system again. CuratOR EX5841 Installation Manual, 08/2019...
-
Page 13: Power Manager Menu
DMPM External Power On: The backlight has been turned off. The power supply to external devices remains switched on. • DMPM Disabled: DMPM signals are ig- nored. The monitor does not change to an energy saving mode. CuratOR EX5841 Installation Manual, 08/2019... -
Page 14: Other Options Menu
LED to prevent interfering stray light. Default: Dimmed Note: The brightness of the operation LED increases again automatically when an error occurs in the monitor. The color of the opera- tion LED then indicates a possible cause of the error. CuratOR EX5841 Installation Manual, 08/2019... - Page 15 Source, Color Space, and Input Range for each video input • LUT for each window • Color Gamut and Zoom • OSD position (optional) Edit User Preset Name Change the name of a user preset. CuratOR EX5841 Installation Manual, 08/2019...
-
Page 16: Information Menu
Asset number A/N Firmware <Value> • Installed firmware, FPGA, and OSD versions. Main FPGA <Value> Front FPGA <Value> OSD <Value> Additional Information Working Hours <Value> • Operating hours Temperature (°C) <Value> • Temperature in the device CuratOR EX5841 Installation Manual, 08/2019... -
Page 17: Signal Menu
Display of color information (Example) Description HDMI 8 bit RGB Display of the color information with the following in- formation: DVI 8 bit RGB • Video input SDI 10 bit 4:2:2 • • Color space or sub-sample CuratOR EX5841 Installation Manual, 08/2019... -
Page 18: Service Work
The picture quality of the monitor changes due to aging of the LCD unit and the backlight. • Check the monitor settings at regular intervals in accordance with the local guidelines. • Correct the settings if necessary. CuratOR EX5841 Installation Manual, 08/2019... -
Page 19: Technical Specifications
Level A 4.1.2 DVI input Reso- H active x Aspect Frame Pixel fre- Color Color Sub- Comment lution V active ratio rate (Hz) quency hues (Bit) space Sample (MHz) 1920 x 1080 16:9 148.50 59.94 148.35 148.50 CuratOR EX5841 Installation Manual, 08/2019... -
Page 20: Hdmi Input
8 / 10 8 / 10 YCbCr 4:4:4 YCbCr 4:2:2 74.25 74.25 1280 x 720 16:9 74.25 74.25 *4K-DCI timings can either be shown zoomed, with a black border above and below, or trun- cated. CuratOR EX5841 Installation Manual, 08/2019... -
Page 21: Displayport Input
4:2:2 59.94 148.35 8 / 10 YCbCr 4:4:4 YCbCr 4:2:2 148.50 8 / 10 YCbCr 4:4:4 YCbCr 4:2:2 *4K-DCI timings can either be shown zoomed, with a black border above and below, or trun- cated. CuratOR EX5841 Installation Manual, 08/2019... -
Page 22: Factory Preset
– For Dual Source (PaP), DP is set as default in the left window and SDI is set as de- fault in the right window. Note Delivery status When the CuratOR EX5841 is delivered the "1W_4K_YUV" factory preset is the default. Signal input settings Preset Signal input... - Page 23 Native Gamma Native Gamma 1W_ SDI_3G_YUV DP Native Gamma Native Gamma Set to BT.2020 Gamma Set to BT2020. Gamma 2W_YUV Aspect Aspect emul. 2W_RGB HDMI Set to BT.2020 Gamma Set to sRGB Gamma Aspect Aspect CuratOR EX5841 Installation Manual, 08/2019...
-
Page 24: Index
Index Index Cleaning staff 4 Energy saving 5 Image Sticking 5 OSD Menu 6 Lock / unlock 6 Pixel defects 5 Service personnel 4 Technical specifications 19 Update 18 User 4 CuratOR EX5841 Installation Manual, 08/2019... - Page 26 Carl-Benz-Straße 3 76761 Rülzheim Germany Installation Manual, 08/2019 CuratOR EX5841 1085097-001 Copyright © 2019 EIZO GmbH. All rights reserved.
