Instructions for Use
Color LCD Monitor
Important
Please read this "Instructions for Use", and "Installation Manual"
(separate volume) carefully to familiarize yourself with safe and
effective usage.
Please retain this manual for future reference.
For monitor adjustment and settings, refer to the "Installation Manual".

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CuratOR EX3140 and is the answer not in the manual?

Questions and answers

Related Manuals for Eizo CuratOR EX3140

Summary of Contents for Eizo CuratOR EX3140

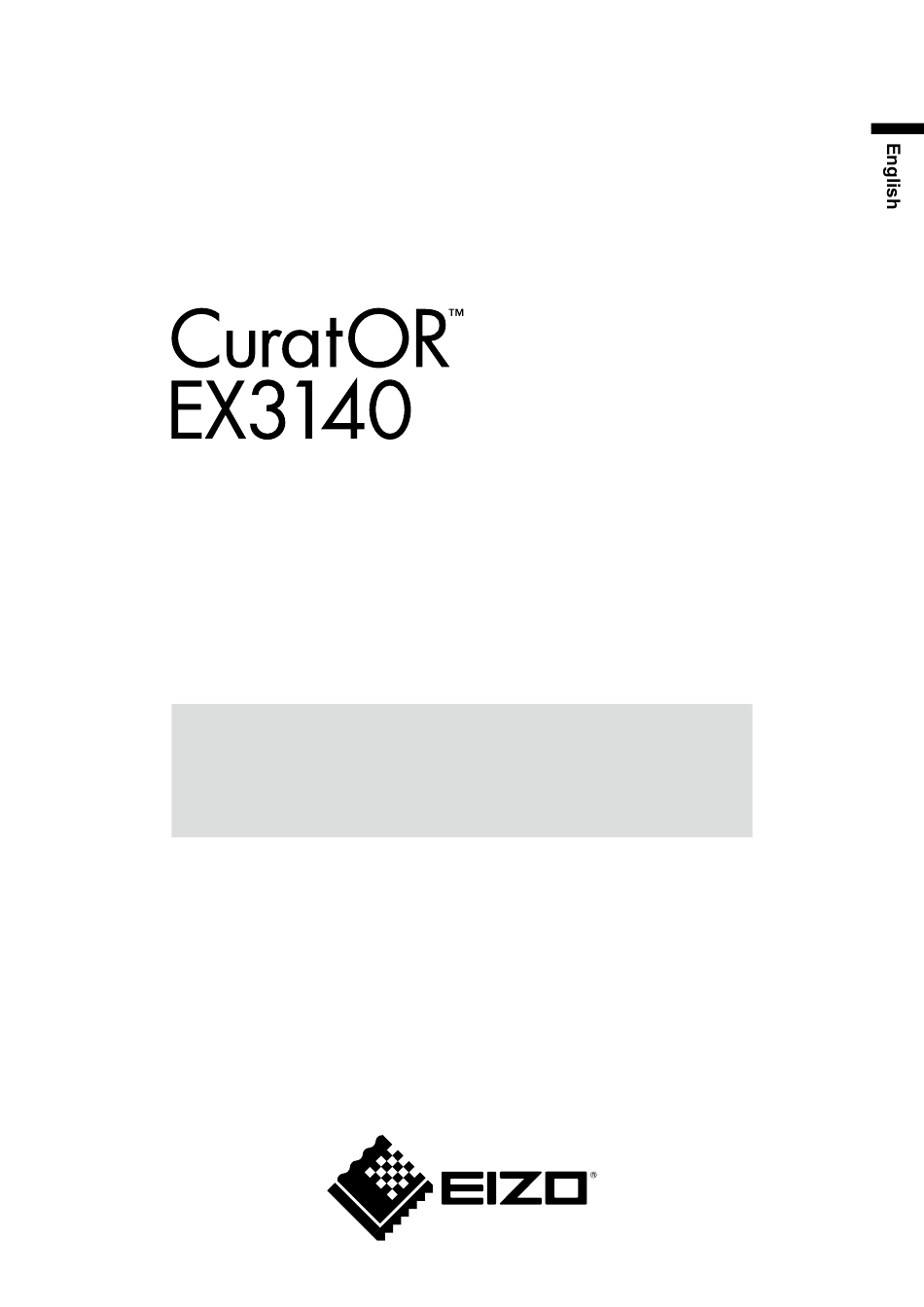

  • Page 1 Instructions for Use Color LCD Monitor Important Please read this “Instructions for Use”, and “Installation Manual” (separate volume) carefully to familiarize yourself with safe and effective usage. Please retain this manual for future reference. For monitor adjustment and settings, refer to the “Installation Manual”.
  • Page 2 EIZO Corporation is under no obligation to keep any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 3: Precautions

    PRECAUTIONS IMPORTANT • This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications. • To ensure personal safety and proper maintenance, please read carefully this section and the caution statements on the monitor.
  • Page 4 If the unit is installed incorrectly, it may drop or fall over, resulting in personal injury or equipment damage. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electric shock.
  • Page 5 WARNING Use the enclosed AC adapter. The enclosed AC adapter (AHM250PS48T) is for use with this product only. Do not use the AC adapter with other equipment. Do not use an AC adapter designed for other devices with this product. Connecting to power sources that do not match the power ratings of the AC adapter may result in fire or electric shock.
  • Page 6 CAUTION Check the operational state before use. • Begin use after ensuring that there are no problems with the displayed image. • When using multiple units, begin use after ensuring that the images are displayed appropriately. Securely fix cables / cords that have a fixing feature. If they are not fixed securely, cables / cords may disconnect, and subsequently images may be cut off and your operations may be disrupted.
  • Page 7 CAUTION Periodically clean the area around the power plug and the ventilation slot of the monitor and the AC adapter. Dust, water, or oil on the plug may result in fire. Unplug the unit before cleaning it. Cleaning the unit while it is plugged into a power outlet may result in electric shock. If you plan to leave the unit unused for an extended period of time, disconnect the power plug from the wall socket after turning off the power switch for safety and power conservation.

  • Page 8: About The Monitor

    • The backlight of the LCD panel has a fixed lifetime. When the screen becomes dark or begins to flicker, please contact your local EIZO representative. • The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may appear on the LCD panel, this is not a malfunction.

  • Page 9: Cleaning

    Cleaning Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. Gently wipe off any dirt on the cabinet or panel surface with a soft cloth soaked in a small amount of water or one of the chemicals listed below. Chemicals that may be used for cleaning Material name Product name...

  • Page 10: Table Of Contents

    CONTENTS PRECAUTIONS ............3 IMPORTANT .............. 3 About the monitor ..........8 Intended Use ............. 8 Precautions for Use ..........8 Cleaning ..............9 CONTENTS ............10 Chapter 1 Introduction ........11 1-1. Features ............11 1-2. Package Contents ........11 1-3. Controls and Functions ......12 Chapter 2 Installation / Connection ....

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction 1-1. Features ● High-quality and high-resolution Ultra High Definition (UHD) • The UHD LCD display allows for display of high-quality, high-resolution medical images. • Equipped with front protection panel • LED Backlight ● Supports multiple I/O • 3G-SDI: 4 inputs / 4 outputs (UHD compatible display can be output to four terminals via 3G-SDI.*1) •...

  • Page 12: Controls And Functions

    1-3. Controls and Functions AC adapter 1. Main power indicator Depending on the operation status of the main power supply, the indicator of the AC adapter turns on or off. Lit up: Power on, Not lit up: Power off 2. AC IN terminal Connects the power cord.
  • Page 13 Front Bottom View Displays the preset menu. (PRESET) button Displays the input select menu. (INPUT) button Displays the main menu. (MENU) button Executes the function assigned to this button. Select items in the menu screen. (F1) button (F2) button (F3) button (F4) button Executes the function assigned to this button.
  • Page 14 Rear 11. DC IN terminal Connects the DC OUT terminal of the AC adapter. 12. DC OUT terminal Used when providing 5V power to a peripheral device. Attention • Do not connect this to the terminal to measurement devices or medical equipment which will come into contact with a patient.

  • Page 15: Chapter 2 Installation / Connection

    Chapter 2 Installation / Connection 2-1. Before Installing the Product Carefully read “PRECAUTIONS” (page 3) and always follow the instructions. When installing this product, perform thorough operational testing (of the system, cables, arms, etc.) in the environment where the product will be used. ●...

  • Page 16: Installing The Product

    2-2. Installing the Product This product should be installed using an arm or stand. Attention • When installing, do so by carefully following the information in the User Manual about the arm or stand. • Ensure the following and select components that comply with the VESA standards. - Clearance between the screw holes: 100 mm ×...

  • Page 17: Connecting The Power Cord

    2-3. Connecting the Power Cord Attention • Turn off the monitor before connecting it. • When removing the power cord, always remove the power plug from the power outlet first. Connect the power cord to the AC IN terminal on the AC adapter. Insert the power cord all the way to the back.

  • Page 18: Connecting The Cables

    2-4. Connecting the Cables Connect the cables appropriate for the device to be used. Attention • Do not use damaged cables. • Do not connect or disconnect the signal cable while the monitor is turned on. • The SDI terminal, DVI-D terminal and DisplayPort terminal are vulnerable to static electricity, therefore exercise caution when installing.

  • Page 19: Installing The Cable Cover

    2-5. Installing the Cable Cover Align the cable cover on the back of the monitor in such a way that the cables can go through the cable outlet port. Insert the cable cover tabs into the grooves in the monitor. Tighten the screws at the left and right-hand holes on the bottom side of the monitor.

  • Page 20: Chapter 3 If No Image Is Displayed

    Chapter 3 If No Image Is Displayed Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected properly. • Check whether the DC OUT terminal and DC IN terminal are connected properly. • Turn on the power switch. •...

  • Page 21: Chapter 4 Specifications

    Chapter 4 Specifications 4-1. Specifications List Monitor LCD Panel Type Color (IPS) Backlight Size 78.9 cm (31.1 inch) Display resolution (H x V) 3840 × 2160 Display Size (H x V) 654 mm × 368 mm Pixel Pitch 0.170 mm Display Colors 8-bit: 16.77 million colors 10-bit (SDI / DisplayPort): 1073.74 million colors (Max.)
  • Page 22 Physical Specifications External dimensions 760 mm × 444 mm × 87 mm (W × H × D) Net Weight Approx. 11.2 kg Protection structure IP32 (The IPx2 protection level is effective when the monitor is installed so it cannot be put at a slant.) Operating Environmental Requirements Temperature 0 ˚C to 35 ˚C (32 ˚F to 95 ˚F)

  • Page 23: Displayable Input Signals

    4-2. Displayable Input Signals √: Supported SDI 1 SDI 2 DVI 1 Horizontal Frequency Vertical Frequency Signal name DisplayPort (kHz) (Hz) SDI 3 DVI 2 SDI 4 720 x 480@59p 31.469 59.940 √ 720 x 480@60p 31.500 60.000 √ 720 x 576@50p 31.250 50.000 √...

  • Page 24: Appendix

    Appendix Medical Standard • It is necessary to ensure that the final system is in compliance with IEC60601-1-1 requirements. • Power-supplied equipment can emit electromagnetic waves, that could influence, limit or result in malfunction of the monitor. Install the equipment in a controlled environment, in which such effects are avoided.

  • Page 25: Emc Information

    EMC Information The performance of the EX3140 ensures appropriate display of images. Intended Use Environments The EX3140 is intended to be used in professional healthcare facility environments such as clinics and hospitals (including use in the vicinity of high-frequency surgical equipment such as electrosurgical knives).
  • Page 26 Technical Specifications Electromagnetic emissions The EX3140 is intended for use in the electromagnetic environment specified below. The customer or the user of the EX3140 should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment - Guidance RF emissions Group 1 The EX3140 uses RF energy only for its internal function.
  • Page 27 Electromagnetic immunity The EX3140 has been tested at the following compliance levels according to the testing requirements for professional healthcare facility environments defined in IEC / EN60601-1-2. Customers and users of the EX3140 must ensure that the EX3140 is used in the following environments: Immunity test Test level for Compliance level...
  • Page 28 Recommended separation distances between portable or mobile RF communication equipment and the EX3140 The EX3140 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the EX3140 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the EX3140.

  • Page 29: Warning For Radio Interference

    Warning for Radio interference For U.S.A, Canada Only WARNING! This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 30 153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan 中国苏州市苏州工业园区展业路 8 号中新科技工业坊 5B Siemensallee 84, 76187 Karlsruhe, Germany 00N0N059A1 http://www.eizoglobal.com IFU-EX3140-6 Copyright © 2018 EIZO Corporation. All rights reserved. 1st Edition-January, 2018 Printed in Japan.
