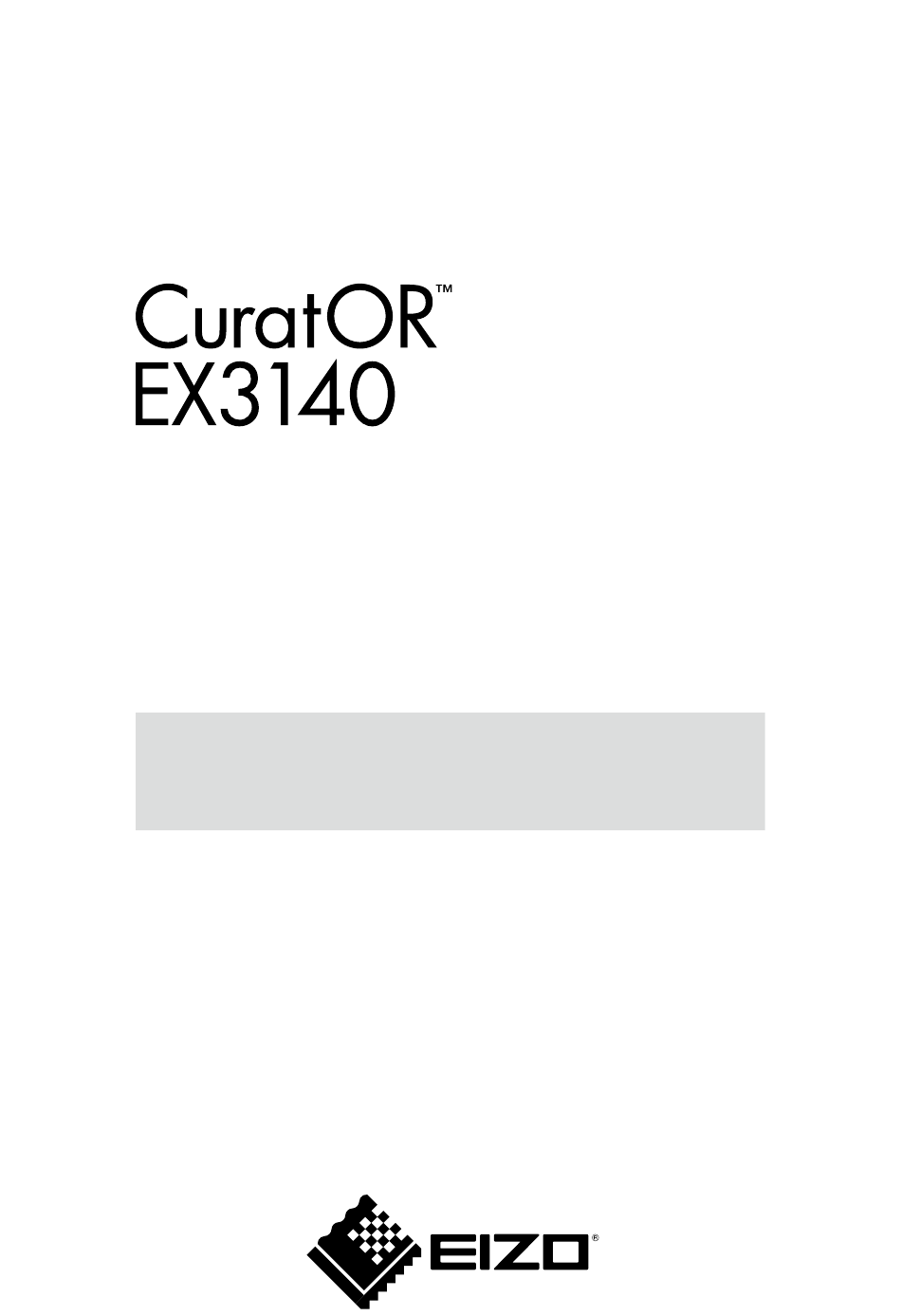

- Page 1 Installation Manual Color LCD Monitor Important Please read this “Installation Manual”, and “Instructions for Use” (separate volume) carefully to familiarize yourself with safe and effective usage. Refer to the “Instructions for Use” for information on the installation / connection of the monitor.
- Page 2 EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
-
Page 3: Table Of Contents
CONTENTS CONTENTS ............. 3 Chapter 1 Basic Adjustment / Setting ....4 1-1. Loading the Monitor Settings ...... 4 1-2. Switching Input Signals ....... 5 1-3. Using Function Buttons ....... 5 Chapter 2 Advanced Adjustment / Setting ..6 2-1. Operation via the Main Menu ....... -
Page 4: Chapter 1 Basic Adjustment / Setting
Chapter 1 Basic Adjustment / Setting This chapter describes the basic functions that can be adjusted and set by pressing the buttons on the front of the monitor. 1-1. Loading the Monitor Settings It is possible to switch to PRESET, FACTORY, or the USER settings that have been set in advance. PRESET Basic settings are made in advance at the factory. -
Page 5: Switching Input Signals
1-2. Switching Input Signals Select the signal input to the monitor and display it on the screen. Press (INPUT). The “Input Select” menu appears. Press to select an input signal. This switches to the selected input signal. Press (INPUT). The menu screen exits. Note •... -
Page 6: Chapter 2 Advanced Adjustment / Setting
Chapter 2 Advanced Adjustment / Setting This chapter describes advanced monitor adjustment and setting procedures using the main menu. 2-1. Operation via the Main Menu Menu display 1. Press (MENU). The main menu is displayed. 2. Press to select the desired item, and then press Adjusting / setting 1. -
Page 7: Individual Functions Of Main Menu
2-2. Individual Functions of Main Menu ● Video Config Adjustments / settings for image display. Setting Function Description range Color 0 to 100 Adjusts color depth of the image. Tint 0 to 100 Adjusts skin tones. Brightness 0 to 100 Adjusts image darkness (black). Picture 0 to 100 Adjusts image intensity. -
Page 8: System Config
● System Config Settings for devices. Function Setting range Description Auto SDI 4K Sets the signal format. SQUARE • “Auto” INTERLEAVE SQUARE or INTERLEAVE are automatically detected. • “SQUARE” Treats as Square Division (SQD) signal. • “INTERLEAVE” Treats as Two-Sample Interleave Division (2SI) signal. Function Sets functions assigned to function buttons. - Page 9 Function Setting range Description Power Save Mode Sets whether function that the backlight turns off due to no video signal after 30 sec is valid. Sets the language to be used for display in settings and all Language English Deutsch menus.
-
Page 10: Window Config
● Window Config Settings for screen display. Function Setting range Description Multi Window Sets dual screen display. • “Off ” 2POP Sets single screen display mode • “2POP ” Displays split window (P out P). Display Direction Normal Sets the rotation angle or horizontally flips the main screen and 180°... -
Page 11: Preset
● PRESET Settings for “USER1” to “USER10”. Function Description Save Saves currently set values, and the status for each user. Attention • “Power On Setup”, “Language” and “Logo Display” settings cannot be registered. Clear The set values of “USER1” to “USER10” (USER NAME) can be deleted. Rename The character strings of “USER1”... - Page 12 Function Setting range Description GPI Setup GPI1 Zoom Sets functions assigned to each terminal of the GPI terminals. GPI2 • “Zoom” GPI3 Display Direction Switch between the set zoom level and actual size. GPI4 Display Direction • “POP” GPI5 Switches between dual screen (P out P) and single Input DisplayPort GPI6 Input SDI 4K...
-
Page 13: Chapter 3 Troubleshooting
Chapter 3 Troubleshooting 3-1. No Picture Displayed Problem Possible cause and remedy 1. No picture. • Check whether the power cord is connected properly. • Check whether the DC OUT terminal and the DC IN terminal are connected properly. • Turn on the power switch. •... -
Page 14: Imaging Problems
3-2. Imaging Problems Problem Possible cause and remedy 1. The screen is too bright or too dark. • Use “Brightness” or “Backlight” in the Setting menu to adjust it. 2. Text is blurred • Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see “Compatible Resolutions”... -
Page 15: Chapter 4 Reference
Chapter 4 Reference 4-1. Main Default Settings PRESET / FACTORY Input Select Main Screen Subscreen PRESET 1 SDI 4K DVI 1 PRESET 2 DVI 1 SDI 1 PRESET 3 DisplayPort SDI 1 PRESET 4 SDI 4K DVI 1 PRESET 5 DVI 1 SDI 1 FACTORY... -
Page 16: Pin Specifications
4-2. Pin Specifications ● GPI terminal Pin No. Signal name GPI1 GPI2 GPI3 GPI4 GPI5 GPI6 GPI7 GPI8 ● DC IN terminal Pin No. Signal name 48 VDC 48 VDC ● DC OUT terminal on the main unit Pin No. Signal name 5 VDC 5 VDC HIROSE P/N: HR10A-7R-4S(74) -
Page 17: Appendix
Original Purchaser or any third parties other than as provided under this Warranty. EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon expiration of five (5) years after the production of the Product is discontinued. In repairing the monitor, EIZO and Distributors will use renewal parts which comply with our QC standards. -
Page 18: Trademark
Apple, macOS, Mac OS, OS X, Macintosh and ColorSync are registered trademarks of Apple Inc. EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. ColorEdge Tablet Controller, ColorNavigator, CuratOR, EcoView NET, EIZO EasyPIX, EIZO Monitor Configurator, EIZO ScreenSlicer, G-Ignition, i•Sound, Quick Color Match, RadiLight, Re/Vue, Screen... -
Page 19: Recycling Information
Este producto debe desecharse y reciclarse según la legislación del país para reducir el impacto medioambiental. Cuando desee deshacerse de este producto, póngase en contacto con un distribuidor o una filial de su país. Encontrará las direcciones de contacto en el sitio web de EIZO que se indica a continuación. http://www.eizoglobal.com... - Page 20 Este produto, quando o deitar fora, deve ser recolhido e reciclado de acordo com a legislação do seu país para reduzir a poluição. Quando deitar fora este produto, contacte um distribuidor ou uma filial no seu país. Os endereços de contacto estão listados no website do EIZO, abaixo. http://www.eizoglobal.com...
- Page 21 страна за да се намали замърсяването на околната среда. Когато искате да се освободите от този продукт, моля свържете се с търговския му представител или със съответните органи отговарящи за това във вашата страна. Данните за връзка с нас са описани на следния Интернет сайт на EIZO: http://www.eizoglobal.com Informaţie referitoare la reciclare Acest produs, când debarasat, trebuie colectat şi reciclat conform legislaţiei ţării rspective ca să...
- Page 22 Geri Dönüşüm Bilgisi Bu ürünün, atılacağı zaman, ülkenizin çevre kirliliğinin azaltılması konusundaki mevzuatına göre toplanması ve yeniden değerlendirilmesi gerekmektedir. Ürünü atacağınız zaman lütfen ülkenizdeki bir distribütör veya ilgili kuruluşla temasa geçiniz. İrtibat adresleri aşağıdaki EIZO web sitesinde verilmiştir. http://www.eizoglobal.com Appendix...
- Page 23 03V27100A1 IM-EX3140 Copyright © 2018 EIZO Corporation. All rights reserved. 1st Edition-January, 2018...
