Unpacking

Each K-array amplifier is built to the highest standard and
thoroughly inspected before leaving the factory. Upon arrival,
carefully inspect the shipping carton, then examine and test
your new amplifier. If you find any damage, immediately notify

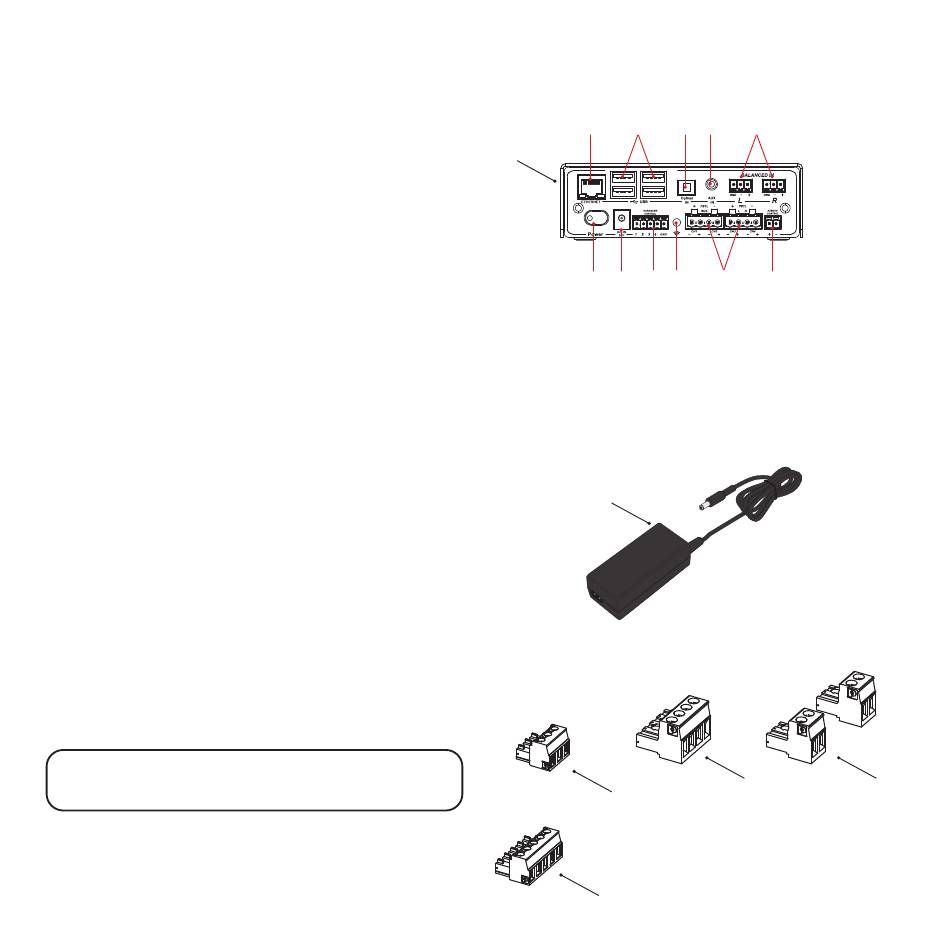

the shipping company. Check that the following parts are
supplied with the product.
A. Kommander-KA02 amplifier unit
B. Power supply with power cords
C. 2x Phoenix MC 1,5/ 3-ST-3,81 BK
3 pin balanced input connectors
D. 1x Phoenix MSTB 2,5/ 4-ST-5,08 BK
4 pin output speaker connector
E. 2x Phoenix MSTB 2,5/ 2-ST-5,08 BK
2 pin output speaker connectors
F. 1x Phoenix MC 1,5/ 5-ST-3,81 BK
5 pin General Purpose Input connector
Note about the Power supply
The Kommander-KA02 amplifier unit is provided with a
dedicated 24 V LPS power supply, suiting any nominal
DC
input operating voltage in the range 100-240 V
It is strongly recommended to use certified
24 V , 4.0 A LPS power supply only
DC
4
A
1. Ethernet port
2. USB ports
3. Optical input
4. 3,5 mm jack analog input
5. Balanced analog inputs
6. Remote control connector
- 50/60Hz.
AC
1 2 3 4 5
11 10 9 8 7
7. Output connections
8. Wi-Fi reset switch
9. GPIO port
10. DC inlet
11. Power switch
B
D
C
F
6
E
