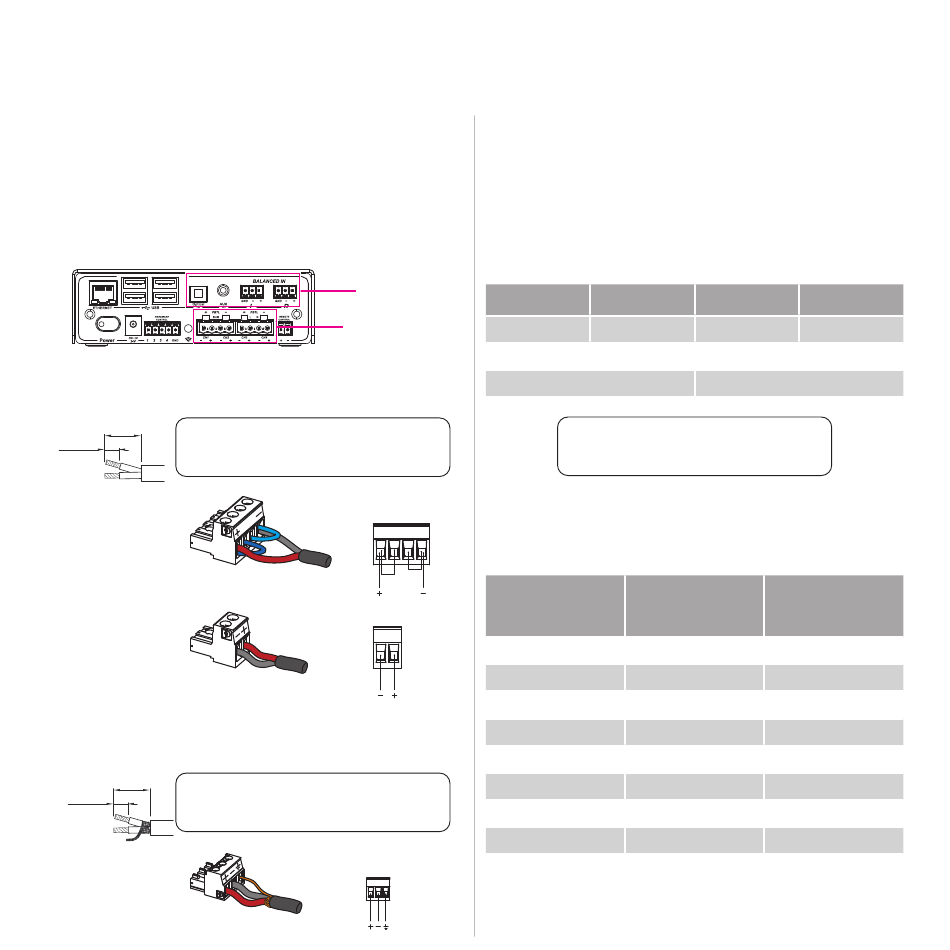

Wirings

In order to set the proper connections with the input and
output devices, a set of terminal connectors are provided
within the package.
12 mm
6 mm
(0.5 in)
(0.25 in)
Wire gauges must comply with the loudspeaker
nominal impedance according to the cable run.
Parallel Bridge
Tied Load
PBTL
Single Ended
SE
Balanced Audio Input
12 mm
6 mm
(0.5 in)
(0.25 in)
6
Audio Input
Speaker output
Speaker output
Use only high quality speaker cables.
Use only high quality signal cables
with proper grounding shield
Output Channel Configurations
The Kommander-KA02 output channels can be arranged
in multiple loudspeakers configurations. The following table
shows the maximum power delivered at the minimum load
impedance by each output channel according to the output
configuration.
CH1 CH2
SE 50 W @ 4 Ω SE 50 W @ 4 Ω
PBTL 100 W @ 2 Ω
PBTL 100 W @ 2 Ω
Ensure the amplifier's minimum loading
impedance is matched, especially when
connecting multiple loudspeakers in parallel
The following table shows the maximum number of K-array
loudspeaker that can be connected to a single output channel
according to the amplifier driving capabilities.
Loudspeaker Loudspeaker load
Name impedance
Lyzard-KZ1
Lyzard-KZ14
Vyper-KV25
Tornado-KT2
Domino-KF26
Truffle-KTR24
Truffle-KTR25
Truffle-KTR26
RAIL
* Not to full power
** 2ch Parallel Bridge-Tied Load – PBTL
CH3 CH4
SE 50 W @ 4 Ω SE 50 W @ 4 Ω
SE 50 W @ 4 Ω SE 50 W @ 4 Ω
PBTL 100 W @ 2 Ω
Max number of
loudspeaker in
parallel per ch
16 Ω 4
16 Ω 4
8 Ω 2
8 Ω 2
8 Ω 2*
4 Ω 2**
4 Ω 2**
2 Ω 1**
48 Ω 12*
