USB-I2C Bridge
The KitProg3 can function as a USB-I2C bridge and can communicate with the Bridge Control Panel
(BCP) software which acts as an I2C master. The I2C lines on the PSoC 6 MCU are hard-wired on
the board to the I2C lines of the KitProg3, with onboard pull-up resistors as
USB-I2C supports I2C speeds of 50 kHz, 100 kHz, 400 kHz, and 1 MHz. For more details on the
KitProg3 USB-I2C functionality, see the

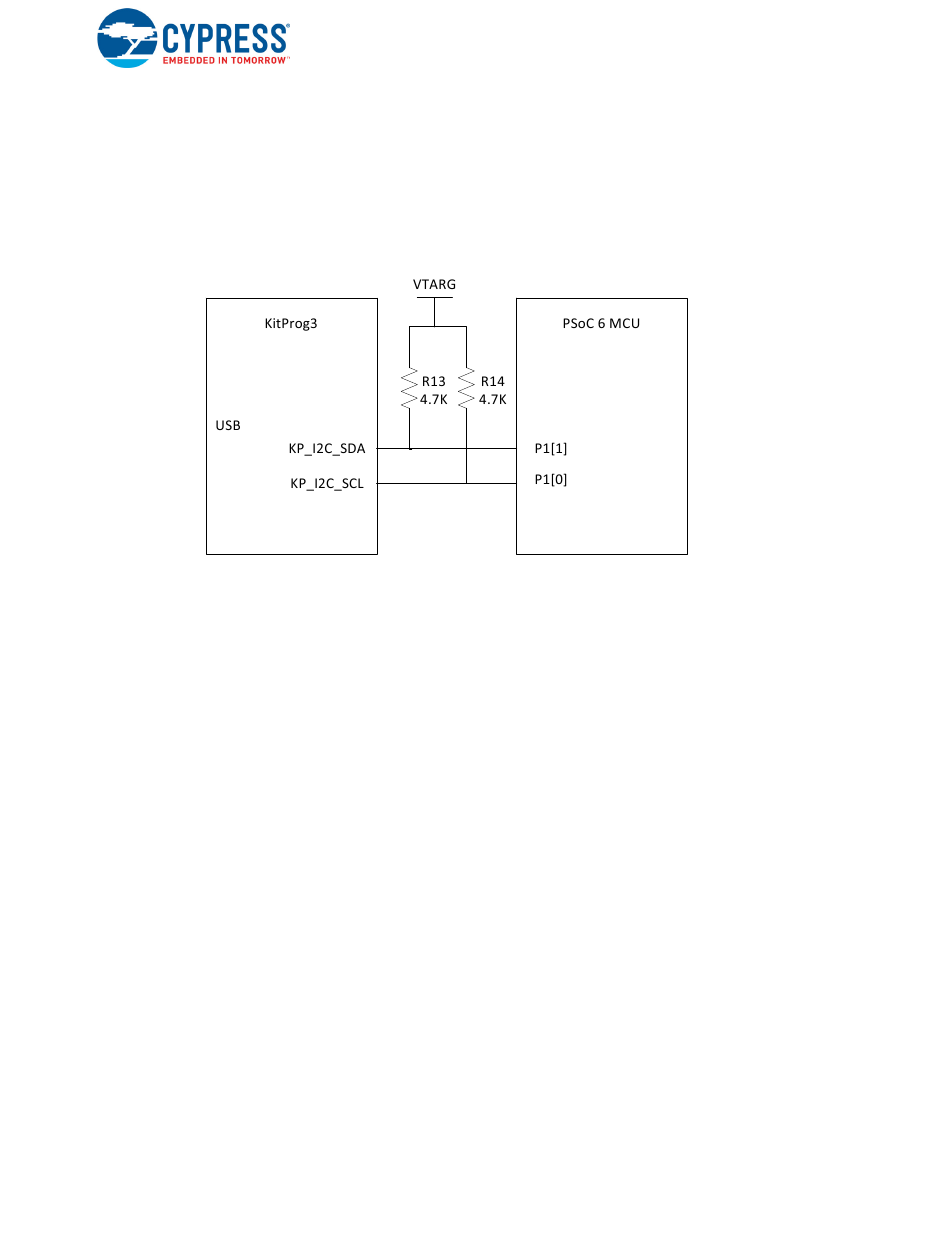

Figure 2-17. I2C Connection between KitProg3 and PSoC 6 MCU
CYW9P62S1-43012EVB-01 PSoC 62S1 Wi-Fi BT Pioneer Kit Guide, Doc. # 002-28722 Rev. *B
KitProg3 User
Guide.
Kit Operation
Figure 2-17
shows. The
