2.2.1.1 Using the OOB Example – PSoC 6 MCU: Hello World
The PSoC 62S1 Wi-Fi BT Pioneer Board is by default programmed with the code example:
MCU: Hello World. The steps below describe how to use the example. For a detailed description of
the project refer to the example's readme file in the
Note: At any point, if you overwrite the OOB example, you can restore it by programming the
PSoC 6 MCU: Hello World application. Refer
page 20 for programming the board.
1. Connect the board to your PC using the provided USB cable through the KitProg3 USB
connector.
2. Open a terminal program and select the KitProg3 COM port. Set the serial port parameters to
8N1 and 115200 baud.
3. Press the XRES switch (SW1) on the board and confirm that "Hello World!!!" and other text is
displayed on the UART Terminal application as shown in

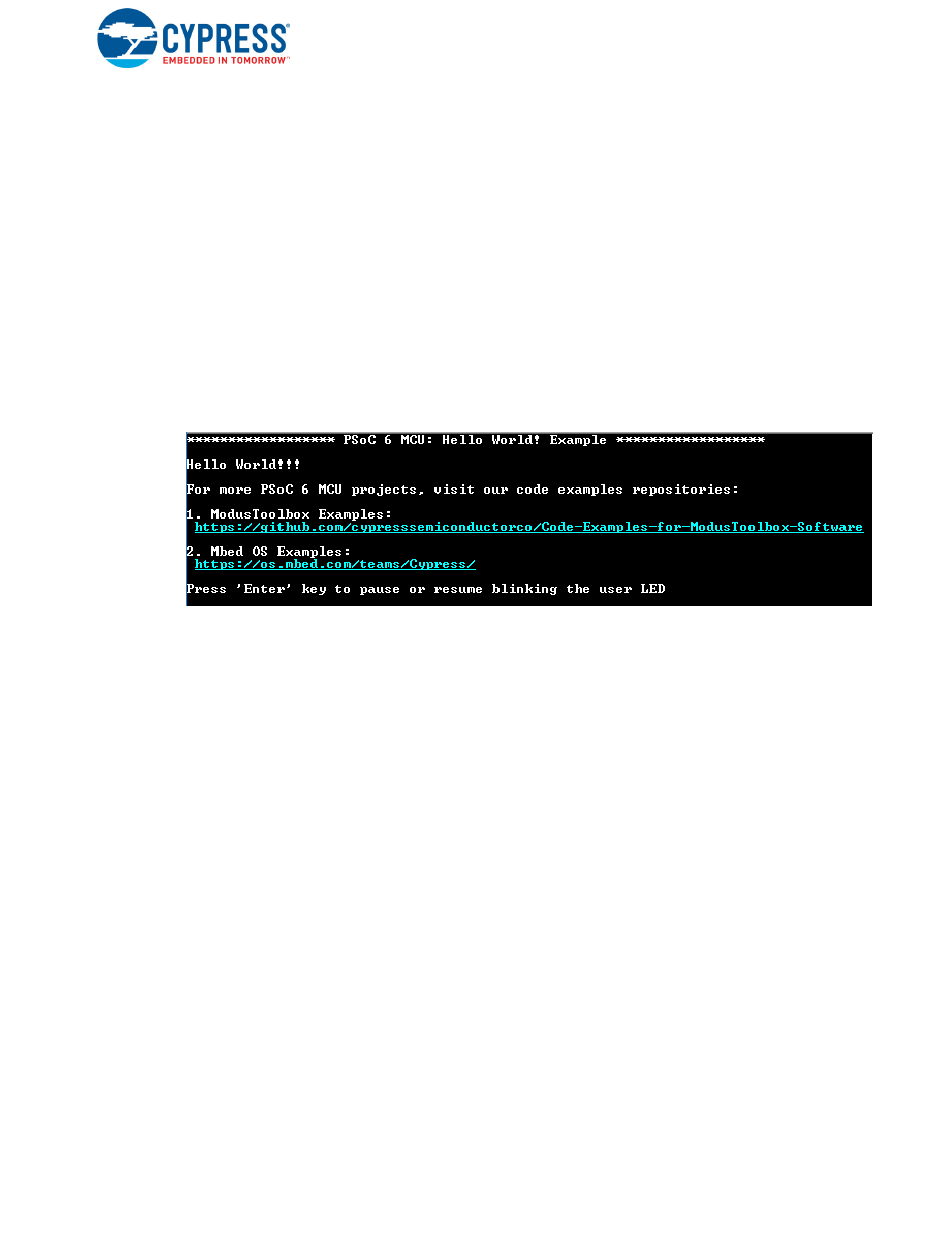

Figure 2-14. Hello World in Terminal
4. Confirm that the kit LED blinks at 1 Hz.
5. Press the Enter key. Confirm that the kit LED stops blinking. The terminal displays the message
"LED blinking paused".
6. Press the Enter key again. Confirm that the kit LED resumes blinking at 1 Hz. The message
displayed on the terminal is updated to "LED blinking resumed".
You can repeat steps 5 and 6 indefinitely.
CYW9P62S1-43012EVB-01 PSoC 62S1 Wi-Fi BT Pioneer Kit Guide, Doc. # 002-28722 Rev. *B
GitHub repository.
Programming and Debugging using ModusToolbox on
Figure 2-14.
Kit Operation
PSoC 6
