2.2

KitProg3: On-Board Programmer/Debugger

The PSoC 62S1 Wi-Fi BT Pioneer Board can be programmed and debugged using the onboard
KitProg3. KitProg3 is an onboard programmer/debugger with additional USB-UART and USB-I2C
functionality. A Cypress PSoC 5LP device is used to implement the KitProg3. For more details on the
KitProg3 functionality, see the
2.2.1

Programming and Debugging using ModusToolbox

This section presents a quick overview of programming and debugging using ModusToolbox. For
detailed instructions, see Help > ModusToolbox IDE Documentation > User Guide.
1. Connect the board to the PC using the USB cable, as shown in
USB Composite Device. KitProg3 can operate either in CMSIS-DAP Bulk mode (default),
CMSIS-DAP HID mode or DAPLink mode (DAPLink mode is required for programing using Mbed
CLI). KitProg3 also supports CMSIS-DAP Bulk with two UARTs. Programming is faster with the
Bulk mode. The status LED (Yellow) is always ON in Bulk mode, ramping at a 1 Hz rate in HID
mode, and ramping at a 2 Hz rate in DAPLink mode. Press and release the Mode select button
(SW3) to switch between these modes. If you do not see the desired LED status, see the
KitProg3 User Guide

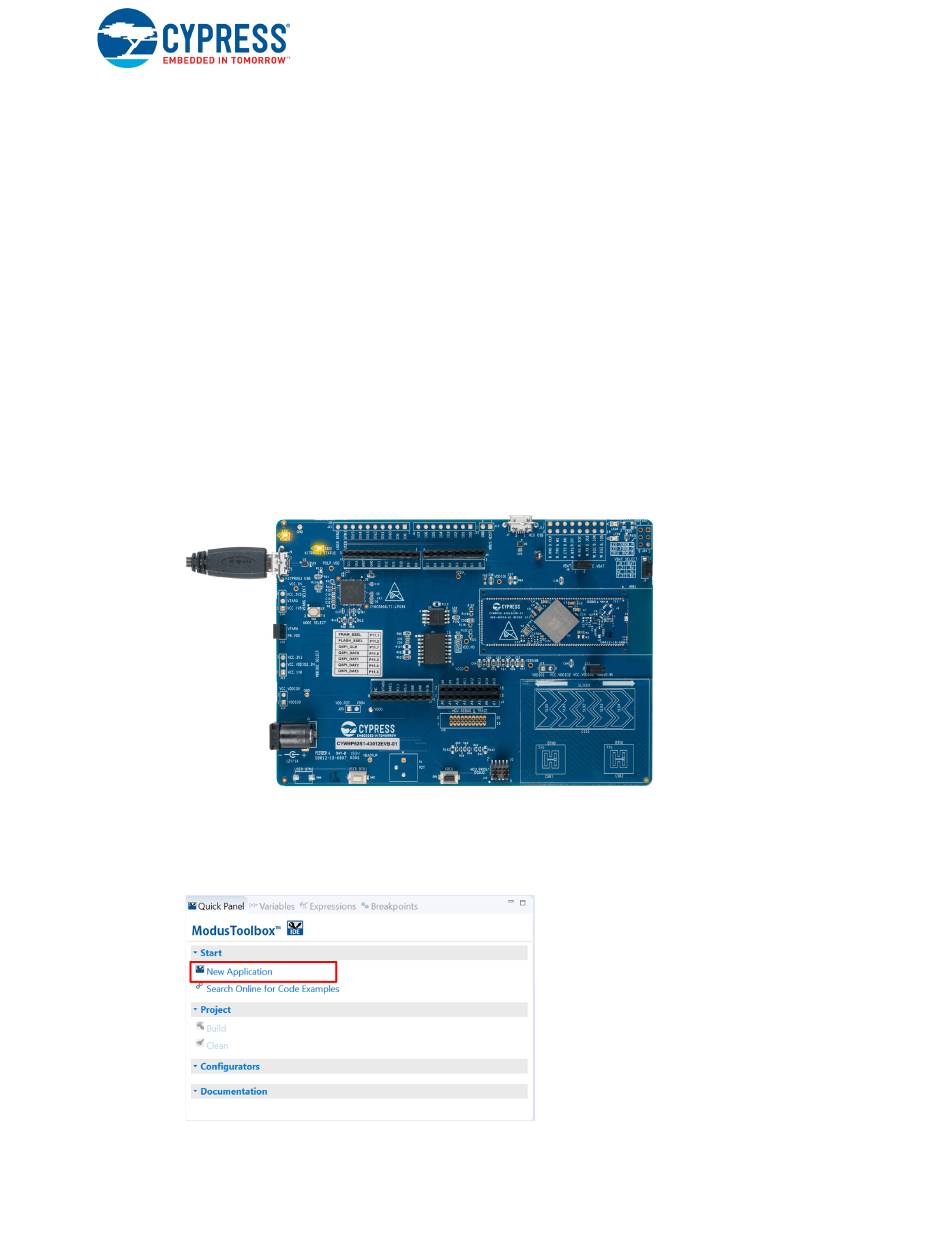

Figure 2-7. Connect USB Cable to USB Connector on the Board
2. In the ModusToolbox IDE, import the desired code example (application) into a new workspace.
a. Click on New Application from Quick Panel.
Figure 2-8. Create New Application
CYW9P62S1-43012EVB-01 PSoC 62S1 Wi-Fi BT Pioneer Kit Guide, Doc. # 002-28722 Rev. *B
KitProg3 User Guide.
for details on the KitProg3 status and troubleshooting instructions.
Kit Operation
Figure 2-7. It enumerates as a
