Internet and HSPA Dual-Path Alarm Communicator
Warning: This manual contains information on limitations regarding product use and function and inform-
ation on the limitations as to the liability of the manufacturer. The entire manual should be carefully read.

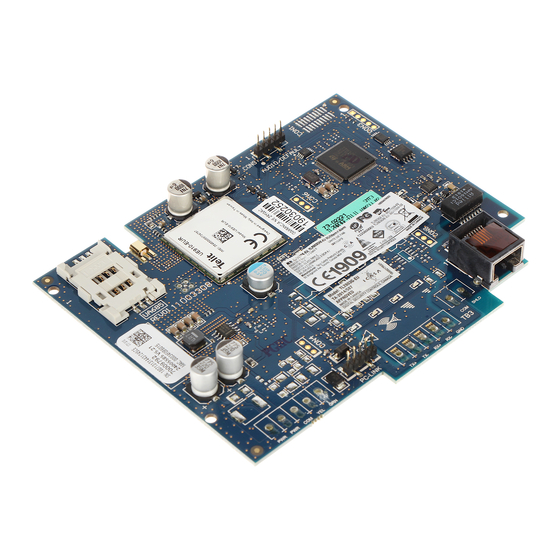

3G2080(R)E
Cellular Alarm Communicator
TL2803G(R)E
TL280(R)E
Internet Alarm Communicator
Installation Guide v5.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerSeries Neo 3G2080E and is the answer not in the manual?

Questions and answers

Related Manuals for DSC PowerSeries Neo 3G2080E

Summary of Contents for DSC PowerSeries Neo 3G2080E

  • Page 1 3G2080(R)E Cellular Alarm Communicator TL2803G(R)E Internet and HSPA Dual-Path Alarm Communicator TL280(R)E Internet Alarm Communicator Installation Guide v5.0 Warning: This manual contains information on limitations regarding product use and function and inform- ation on the limitations as to the liability of the manufacturer. The entire manual should be carefully read.
  • Page 2 Passive infrared motion detectors operate by sensing changes in temperature. WARNING: Installer please read However their effectiveness can be reduced when the ambient temperature risesnear or above bodytemperature or if there are intentionalor unintentional carefully sourcesof heat in or near the detection area. Some of these heat sources could be heaters, radiators, stoves, barbecues, fireplaces, sunlight, steamvents, light- ing and so on.

  • Page 3: Safety Information

    (minimum of one green LED ON). Optional antenna kits (GS- 15ANTQ, GS-25ANTQ and GS-50ANTQ) are available from DSC to improve signal strength as required. NOTE: Prior to installation of the 3G2080 (R)E or TL2803G (R)E communicator, confirm with the local service provider that the HSPA(3G)/GPRS network is available and active in the area where the communicator will be installed, and that radio signal strength (CSQ) is adequate.

  • Page 4: Panel Mounting

    Panel Mounting The following communicators are compatible with HS2016, HS2016-4, HS2032, HS2064, and HS2128 panels: 3G2080(R)E (HSPA(3G)/GPRS only) TL2803G(R)E (Ethernet/Internet + HSPA(3G)/GPRS dual-path) TL280(R)E (Ethernet/Internet only) Features 128-bit AES encryption via cellular and Ethernet/Internet (NIST validation cert. number 2645). Back up or primary cellular alarm communication. Automatically switches to 2G (EDGE/GPRS) if HSPA(3G) service is not available.

  • Page 5: Pre Installation Configuration

    3G2080(R)E TL280(R)E TL2803G(R)E Model Cellular only Internet only Internet and Cellular Power is supplied from the panel’s PC-Link header or a PCL-422 module in remote cabinet installations. In remote cabinet installations, the PCL-422 module located with the communicator is powered by either an HSM2204 or an HSM2300. Refer to the PCL-422 installation instructions for details.

  • Page 6: Installing Communicator In Panel

    Installing the Ethernet Cable (TLXXXX Models Only) A Category 5 (CAT 5) Ethernet cable must be run from a source with Internet connectivity to the communicator module, inside the panel. The communicator end of the cable must be terminated with an RJ45 plug, which will connect to the communicator’s RJ45 jack after the communicator is installed.
  • Page 7 Figure 1: Communicator Mounting Bracket Item Description 1 External Antenna Screw Thread 2 Brass Nut 3 Brass Washer 4 Nylon Washer (flat) 5 Antenna Mounting Tab 6 Nylon Washer with bushing (thicker flat washer) 7 Antenna Cable 8 Mounting Holes 9 Mounting Plate 10 Communicator Board 11 Stand Off...
  • Page 8 Figure 2: HS2016/2032/2064/2128 Control Panel HS2016/2032/2064/2128 Item Description 1 PC-Link Cable Connector 2 Quad Band Whip Antenna - Use light pressure to attach antenna finger tight only 3 Screw WARNING! - 3G2080(R)E/TL2803G(R) E modules are power limited. Do not route any wiring over the circuit board. Main- tain at least 1in.
  • Page 9 Figure 3: Communicator Wiring Diagram AUDIO/DEFAULT 3G Radio TL2803G(R)E UA685 3G2080(R)E TL280(R)E RJ-45 PC-LINK PCLINK_2 HS2016/2032/2064/2128 UA621 AC AC AUX+ PGM1 PGM3 Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8 RING PGM2 PGM4 Input Ratings: Item Description +10.8V ~ +12.5VDC 90mA(3G2080(R)E) / 120mA(TL2803G(R)E) standby;...

  • Page 10: Communicator Placement Test

    NOTE: During radio reset, the two green LEDs will flash alternately. NOTE: Initialization may take several minutes to complete. Red and yellow LEDs will flash together during initialization. Do not continue to next step until the red and yellow LEDs have stopped flashing. (If only the yellow LED is flashing, there is a communicator trouble and the green LEDs are not valid for communicator placement test).

  • Page 11: Initial Panel Programming

    NOTE: In between displaying signal strength, the signal strength LEDs will flash alternately if an inactive SIM card is used. The flashing indicates that the module is attempting to attach to the cellular network and will only last briefly. Initial Panel Programming Keypad Data Display Section-Toggle Options: The number is displayed when toggle is ON and the number is not displayed when toggle is OFF.

  • Page 12: Communicator Status Leds

    Alt comm Receiver (1-4) Absent/Restore Alt comm Receiver (1-4) Supervision Trouble/Restore Alt comm Receiver (1-4) FTC Trouble/Restore NOTE: When Panel displays “Alternate Communicator Fault”, communicator programming is not accessible via the keypad. Communicator Status LEDs The communicator has four on-board LED indicators. These include one yellow trouble LED, one red network connection status LED and two green signal strength LEDs.

  • Page 13: Communicator Troubleshooting

    Receiver Supervision Trouble (8 Flashes) This trouble is indicated when receiver supervision is enabled and communication between the communicator module and the receiver fails. Trouble is indicated if Ethernet 1 and/or cellular 1 is supervised and does not receive a heartbeat from the receiver or if cellular is supervised and the unit does not receive an acknowledgment to 4 heartbeats sent to the receiver.
  • Page 14 Refer to section [985] for troubleshooting radio initialization Table 8: Trouble Indications Trouble Trouble Possible Causes Trouble Possible Solution indication Indicator Digit Check the power connections between the panel and the communicator. No Indication No Power Confirm PC-LINK cable is properly installed between communicator and panel.
  • Page 15 Trouble Trouble Possible Causes Trouble Possible Solution indication Indicator Digit All LEDs Boot Loader Disconnect power, then reconnect power to the communicator flashing module. Failed together Red and The unit is still initializing please wait while the unit gets its Yellow LEDs Initialization programming and establishes a connection to all programmed...

  • Page 16: Limited Warranty

    EULA, even if this EULA is deemed to be a modification of any previous arrangement or contract. If You do not agree to the terms of thisEULA, DSC is Items Not Covered by Warranty unwilling to license the SOFTWAREPRODUCT to You, and You have no right to In addition to the itemswhich void the Warranty, the following itemsshall not be use it.
  • Page 17 SOFTWAREPRODUCT), the accompanying printed materials, and anycopies of the SOFTWARE PRODUCT, are owned by DSC or its suppliers. You may not Wireless notice copythe printed materialsaccompanying the SOFTWAREPRODUCT. Alltitle and...
  • Page 18 The TL2803G(R)E-EU module hastwo communication paths: HSPA3G Cel- lular communication path using 900/1800/2100MHzPublicCellular Network and Ethernet communication path using Internet. The communication paths can be used in a standalone mode in conjunction with a DSC alarmsystem (compatible DSC alarmcontrolpanelmodels: HS2128/064/032/016). The supported ATSconfiguration is: customcategoryC.
  • Page 19 encrypted line securitysystemsthe encryption AES128 bit shallbe enabled at the monitoring station receiver. • For UL Commercial Burglary installations, the TL2803G(R) E/3G2080 (R) E/TL280(R)E islisted as a primary (sole) communication means (heartbeat must be enabled) or for supplementary (back-up) use in conjunction with a Plain Old Telephone Service (POTS) line dialer.
  • Page 20 © 2016 Tyco Security Products. All Rights Reserved. Tech Support: +800-2255-8926 (Canada & U.S.) or 905-760-3000 www.visonic.com The trademarks, logos, and service marksdisplayed on thisdocument are registered in the United States[or other countries]. Anymisuse of the trademarksisstrictly pro- hibited and Tyco willaggressively enforce its intellectualproperty rightsto the fullest extent of the law, including pursuit of criminalprosecution wherever necessary. All trademarksnot owned byTyco are the propertyof their respective owners, and are used with permission or allowed under applicable laws.
