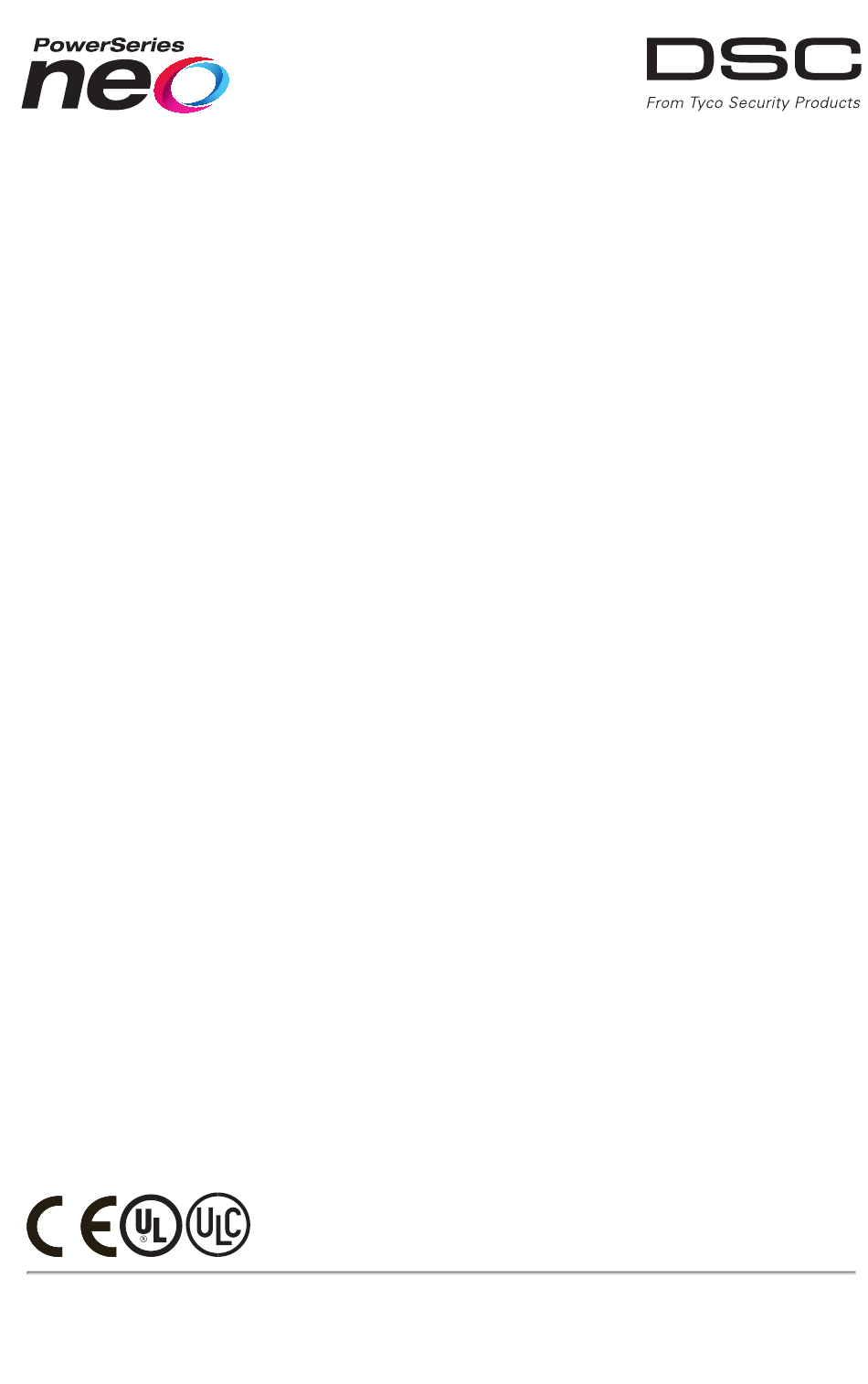

TL280LE(R) / TL280LE-EU /
TL280LE-LAT / TL280LE-AU
Internet and LTE/HSPA Dual-Path Alarm
Communicator
LE2080(R) / LE2080-EU / LE2080-
LAT / LE2080-AU
LTE/HSPA Alarm Communicator
3G2080(R)E
HSPA Cellular Alarm Communicator
TL2803G(R)E
Internet and HSPA Dual-Path Alarm Communicator
TL280(R)E
Internet Alarm Communicator
Installation Manual 5.X
Warning: This manual contains information on limitations regarding product use and function and information on the
limitations as to the liability of the manufacturer. The entire manual should be carefully read.
Please note that not all models and features listed are available in all markets.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL280LE-LAT and is the answer not in the manual?

Questions and answers

Related Manuals for DSC TL280LE-LAT

Summary of Contents for DSC TL280LE-LAT

  • Page 1 TL280LE(R) / TL280LE-EU / TL280LE-LAT / TL280LE-AU Internet and LTE/HSPA Dual-Path Alarm Communicator LE2080(R) / LE2080-EU / LE2080- LAT / LE2080-AU LTE/HSPA Alarm Communicator 3G2080(R)E HSPA Cellular Alarm Communicator TL2803G(R)E Internet and HSPA Dual-Path Alarm Communicator TL280(R)E Internet Alarm Communicator Installation Manual 5.X...
  • Page 3 ers, radiators, stoves, barbecues, fireplaces, sunlight, steam vents, lighting and so WARNING: Installer please read carefully Note to Installers Power Failure The warningson thispage contain vitalinformation. Asthe onlyindividualin contact Controlunits, intrusion detectors, smoke detectorsand manyother securitydevices with systemusers, it isthe installer’sresponsibilityto bring each itemin thiswarning to require an adequate power supplyfor proper operation.

  • Page 4: Table Of Contents

    Table of Contents Table of Contents General Safety Information Model Information Panel Mounting Features Technical Specifications EN50131-1 Installation Requirements Ratings Compatibility Pre Installation Configuration Encryption Communicator Installation Configuration Installing the Ethernet Cable (TL Models Only) Inserting and Removing the SIM Card Running the RS-232 Cable (R models only) Installing Communicator in Panel Installing the Communicator with HS20XX Panels...
  • Page 5 System Options Programming Options Communications Reporting Codes System Test Options Ethernet Receiver 1 Options Ethernet Receiver 2 Options Ethernet Options Cellular Receiver 1 Options Cellular Receiver 2 Options Cellular Options SMS Event Notification/Command and Control Options External Event Label Programming Receiver Diagnostic Testing System Information (Read Only) System Reset Defaults...

  • Page 6: General

    WCDMA bands B2 and B5 (850/1900MHz Operation). LTE - LATAM and Mexico Models TL280LE-LAT and LE2080-LAT support LTE bands 1, 2, 3, 4, 5, 7 and 28. WCDMA bands 1, 2, 4 and 5. 2G bands 2, 3, 5 and 8.
  • Page 7 LTE B12 698 - 716 MHz 728 - 746 MHz LTE B13 777 - 787 MHz 746 - 756 MHz UMTS B2 1850 - 1910 MHz 1930 - 1990 MHz UMTS B5 824 - 840 MHz 869 - 894 MHz Table 2: LTE Europe - LE910-C1-EUX Band Transmit Band (Tx) Receive Band (Rx)

  • Page 8: Panel Mounting

    The following communicators are compatible with HS2016, HS2016-4, HS2032, HS2064, and HS2128 panels: 3G2080(R)E (HSPA(3G)/GPRS only) TL2803G(R)E (Ethernet/Internet + HSPA(3G)/GPRS dual-path) TL280(R)E (Ethernet/Internet only) LE2080(R) (LTE(4G)/HSPA(3G) only) TL280LE(R) (Ethernet/Internet + LTE(4G)/HSPA(3G)) TL280LE-EU (Ethernet/Internet + LTE(4G)/HSPA(3G)/2G) LE2080-EU (LTE(4G)/HSPA(3G)/2G only) TL280LE-AU (Ethernet/Internet + LTE(4G)/HSPA(3G) LE2080-AU LTE(4G)/HSPA(3G) TL280LE-LAT(Ethernet/Internet + LTE(4G)/HSPA(3G)/2G) LE2080-LATLTE(4G)/HSPA(3G)/2G...

  • Page 9: Features

    Features 128-bit AES encryption via cellular and Ethernet/Internet - NIST validation cert number 2645 (for models TL2803G(R)E/3G2080(R)E/TL280(R)E - NIST validation cert number 4475 (for models TL280LE(R)/LE2080(R)) Backup or primary cellular alarm communication. Automatically converts to 2G (EDGE/GPRS) if HSPA(3G) service is not available (2G not supported on European models only).
  • Page 10 TL280LE(R) / TL280LE-EU / TL2803G(R)LE2080(R) / 3G2080(R)E/LE2080(R) TL2803G(R)E/TL280LE(R) LE2080-EU / 3G2080(R) / Model Cellular only Internet and Cellular TL280(R)E Internet and Cellular Power Supply Ratings 10.8-12.5 VDC Power is supplied from the panel’s PC-Link header or a PCL-422 module in Input Voltage remote cabinet installations.

  • Page 11: Pre Installation Configuration

    Sur-Gard SG-DRL3-IP, version 2.30+ (for Sur-Gard System III Receiver) Receiver TL280LE (R) Sur-Gard SG-DRL4-IP version 1.20+ (for Sur-Gard System IV Receiver) TL280(R)E Sur-Gard SG-DRL5-IP version 1.00+ (for Sur-Gard System 5 Receiver) TL280LE-EU LE2080-EU HS2016 TL280LE-LAT HS2016-4 HS2032 Panel LE2080-LAT HS2064 TL280LE-AU HS2128 LE2080-AU NOTE: Enter [*][8][Installer Code][900] at keypad to view the panel version number.

  • Page 12: Inserting And Removing The Sim Card

    Inserting and Removing the SIM Card Remove the front cover of the panel to access SIM holder. Remove power from the panel and disconnect the battery and telephone line. OPEN On the SIM card holder push gently to slide the cover downwards to .

  • Page 13: Installing Communicator In Panel

    Installing Communicator in Panel Installing the Communicator with HS20XX Panels NOTE: Before installing the communicator or inserting/removing SIM, ensure that system power is off and telephone line is disconnected. Figure 1 To assemble supplied mounting bracket, perform the following: (See Remove the 4 white plastic standoffs from the bag provided with the communicator kit.
  • Page 14 Install the Communicator into the panel: Attach one end of the PC-LINK cable to the panel PCLINK_2 header on the panel (red wire goes on the right- panel Figure 3 hand pin of the PCLINK_2 header (see b. Insert the assembled communicator into the panel. NOTE: Ensure that the threaded antenna connection is visible through the knockout hole at the top right of the panel.
  • Page 15 100mA TL280(R)E Jumper pins 4 and 5 to reset 400mA alarm Network Link - Yellow DSC Panel minimum power requirements: From NID use only CAT5 supervised 16.5 VAC 40 VA transformer maximum cable length 100m (328 feet) 12 VDC 7Ah battery...

  • Page 16: Communicator Placement Test

    NOTE: Initialization may take several minutes to complete. Do not continue to next step until the red and yellow LEDs have stopped flashing. (If only the yellow LED is flashing, there is a communicator trouble and the green LEDs are not valid for communicator placement test).

  • Page 17: Initial Panel Programming

    NOTE: In between displaying signal strength, the signal strength LEDs will flash alternately if an inactive SIM card is used. The flashing indicates that the module is attempting to attach to the cellular network and will only last briefly. Initial Panel Programming Keypad Data Display Section-Toggle Options: The number is displayed when toggle is ON and the number is not displayed when toggle is...

  • Page 18: Sms Command And Control

    SMS Command and Control Certain functions can be performed on the alarm panel by remote using SMS text messages. In addition, the system sends SMS messages to confirm commands. SMS programming options are accessed through programming section [851]. The security system only responds to SMS messages sent from designated phone numbers (programmed in section [851]> [311]-[328]).

  • Page 19: Panel Supervision Trouble (2 Flashes)

    Panel Supervision Trouble (2 Flashes) This trouble occurs when communication between the communicator module and the panel fails. If the module can not com- municate with the panel (e.g., loss of power to the panel) the communicator will send the ‘Panel Absent Trouble' event mes- sage to the central station receiver.

  • Page 20: Communicator Reset/Update

    Table 11: Radio Signal Strength Signal Yellow Green Green Signal Action Required Strength Level LED 2 LED 1 Level dBm If this status persists and the yellow LED shows 5 Radio Alternate Alternate flashes, confirm that the SIM card is active. Confirm cellular service is active in area.

  • Page 21: Communicator Troubleshooting

    Communicator Troubleshooting NOTE: For additional details: Refer to section [983] for troubleshooting the firmware updates Refer to section [984] to view the trouble status Refer to section [985] for troubleshooting radio initialization Table 12: Trouble Indications Trouble Trouble Possible Trouble Possible Solution indication Indicator Digit Causes...
  • Page 22 Trouble Trouble Possible Trouble Possible Solution indication Indicator Digit Causes Receiver This trouble is indicated when supervision is enabled and the unit Yellow LED Supervision is not able to successfully communicate with the receiver. – 8 Flashes If this trouble persists, contact the central station. Trouble The unit has exhausted all communications attempts to all Yellow LED...

  • Page 23: Ethernet/Cellular Programming Options

    Ethernet/Cellular Programming Options The programming sections described in this document can be viewed at the keypad LCD. To start programming, enter: [*] [8][installer code] [851] [section number], where section number is the 3-digit section number referenced in this section. The programming worksheets at the end of this document can be used to record the new values when programming changes have been made from the default values.

  • Page 24: Programming Options

    [006] System Toggle Options 2 [1]- IPv6 control ON - IPv4v6 Enabled. This option may be required by certain network providers. It is enabled at default in LTE com- municators for LATAM, Europe and Australia Off - IPv4 Only. This option is disabled at default in North American LTE communicators. [5] - Radio Not In Use (v5.6+)ON - Radio Not In Use - The cellular radio will be disabled, preventing any trouble conditions related to cellular from being indicated.
  • Page 25 [3] Video On Demand. Default (OFF) ON: Video On Demand is enabled. OFF: Video On Demand is disabled. [4] Receiver Group. Default (OFF) ON: Receiver Group is enabled. OFF: Receiver Group is disabled. NOTE: Enable this option when visual verification needs to be sent to more than one receiver. NOTE: Auto-Routing must be enabled in section [300] of the Neo panel.
  • Page 26 [013] DLS Outgoing Port Default (0BFA/3066) The DLS outgoing port is used for outgoing sessions to DLS after an SMS request has been sent to the communicator. Use this section to set the value of the local outgoing port. The value must be changed if the communicator is located behind a firewall and must be assigned a particular port number, as determined by the network administrator.
  • Page 27 [020] Time Zone Default (00) Please refer to the panel manual section ‘Real- Time Clock’ for more details. Use Column 2 (Offset Hours) to find the local Time Zone. Record the two-digit HEX value from Column 1 (HEX Value) on the same row. Program this HEX value for the Time Zone.

  • Page 28: Communications Reporting Codes

    Offset Standard Location Value Hours Abbreviation 8.75 ACWST Australian Central Western Standard Time Korea Standard Time ACST Australian Central Standard Time AEST Australian Eastern Standard Time 10.5 LHST Lord Howe Standard Time Vanuatu Time 11.5 Norfolk Island Time NZST New Zealand Standard Time 12.75 CHAST Chatham Island Standard Time...

  • Page 29: System Test Options

    [023] Panel Absent Trouble Default (FF) Program 00 to disable this event or FF to enable. This event will occur when communications with the panel have been lost for more than 60 seconds. [024] Panel Absent Trouble Restore Default (FF) Program 00 to disable this event or FF to enable.

  • Page 30: Ethernet Receiver 1 Options

    [029] Cellular 2 Test Transmission Default (00) Program 00 to disable this event transmission or FF to enable. See System Test Options (previous page) for details on set- tings. NOTE: The time interval (in minutes) between periodic tests is programmed in section [125] (Ethernet) and section [225] (cellular).

  • Page 31: Ethernet Receiver 2 Options

    NOTE: If Ethernet receiver 1 and cellular receiver 1 are programmed as the same receiver (IP and port number are identical), Ethernet receiver 1 account code will be used. [102] Ethernet Receiver 1 DNIS Default (000000) The Dialed Number Information Service (DNIS) is used in addition to the account code to identify the communicator module at the central station.

  • Page 32: Ethernet Options

    [112] Ethernet Receiver 2 DNIS Default (000000) The DNIS is used in addition to the account code to identify the communicator module at the central station. Valid range: 000000 - 099999. Value is entered as leading 0 followed by the 5-digit DNIS. [113] Ethernet Receiver 2 Address Default (000.000.000.000) Programming the Ethernet receiver 2 IP address with 000.000.000.000 will disable Ethernet.

  • Page 33: Cellular Receiver 1 Options

    NOTE: Minimum value is 000005 minutes. Programming an interval that is less than 5 minutes will disable test trans- mission. Cellular Receiver 1 Options [200] Cellular Receiver 1 Options Option 1: Cellular Receiver 1 Enabled - Default ON/OFF ON: Cellular receiver 1 is enabled. OFF: Cellular receiver 1 is disabled.

  • Page 34: Cellular Options

    ON: Cellular receiver 2 is enabled. OFF: Cellular receiver 2 is disabled. Options 2: Cellular Receiver 2 Supervision Enabled - Default OFF ON: Cellular receiver 2 is supervised and heartbeats are sent to cellular receiver 2 based on the supervision interval pro- grammed in section [217].

  • Page 35: Sms Event Notification/Command And Control Options

    [223] Cellular Login Password Default ( ) Some network carriers require login credentials when connecting to an APN. Program the login password in this section. Enter the Cellular Login Password with up to 32 ASCII characters. [224] Cellular Test Transmission Time of Day Default (9999) Enter a 4-digit value using the 24-hour clock format (HHMM) to set the test transmission time of day.
  • Page 36 Account Label [351], Date and Time [DD/MM/YY HH:MM], Partition Label programmed in panel, Event Label [451]- [596], and User Label programmed in panel (or Zone Label programmed in panel). Extra spaces in each of the five parts of the message are removed when the SMS message is composed. If the message is too long, all extra characters are removed and will not be included in the SMS message.
  • Page 37 Valid entries are 01 - 05: 01 = 9600 Baud 02 = 19200 Baud 03 = 38400 Baud 04 = 57600 Baud 05 = 115200 Baud [421] Serial Port Settings (for use with 'R' models only) [1] Parity Enabled Default (OFF) ON: Parity OFF: No Parity [2] Parity Type Default (OFF)
  • Page 38 [4] Notification Follows Poll Default (OFF) [5] Reserved [6] Reserved [7] Reserved [8] Reserved [427] Session 1 Interactive Polling Interval in Seconds Default (000A) This option controls the polling interval from the alarm panel to the integration interface for the purpose of optimizing data usage.
  • Page 39 Zone 34 (ON) Zone 42 (ON) Zone 35 (ON) Zone 43 (ON) Zone 36 (ON) Zone 44 (ON) Zone 37 (ON) Zone 45 (ON) Zone 38 (ON) Zone 46 (ON) Zone 39 (ON) Zone 47 (ON) Zone 40 (ON) Zone 48 (ON) [440] Session 1 Notification Zone 49-56 [441] Session 1 Notification Zone 57-64 Toggle Zone 49 (ON)
  • Page 40 Zone 104 (ON) Zone 112 (ON) [448] Session 1 Notification Zone 113-120 [449] Session 1 Notification Zone 121-128 Toggle Zone 113 (ON) Zone 121 (ON) Zone 114 (ON) Zone 122 (ON) Zone 115 (ON) Zone 123 (ON) Zone 116 (ON) Zone 124 (ON) Zone 117 (ON) Zone 125 (ON)
  • Page 41 [724] Lifestyle Zone 17-24 Toggle [725] Lifestyle Zone 25-32 Toggle Zone 17 (ON) Zone 25 (ON) Zone 18 (ON) Zone 26 (ON) Zone 19 (ON) Zone 27 (ON) Zone 20 (ON) Zone 28 (ON) Zone 21 (ON) Zone 29 (ON) Zone 22 (ON) Zone 30 (ON) Zone 23 (ON)
  • Page 42 Zone 84 (ON) Zone 92 (ON) Zone 85 (ON) Zone 93 (ON) Zone 86 (ON) Zone 94 (ON) Zone 87 (ON) Zone 95 (ON) Zone 88 (ON) Zone 96 (ON) [734] Lifestyle Zone 97-104 Toggle [735] Lifestyle Zone 105-112 Toggle Zone 97 (ON) Zone 105 (ON) Zone 98 (ON)
  • Page 43 [736] Lifestyle Zone 113-120 Toggle [737] Lifestyle Zone 121-128 Toggle Zone 113 (ON) Zone 121 (ON) Zone 114 (ON) Zone 122 (ON) Zone 115 (ON) Zone 123 (ON) Zone 116 (ON) Zone 124 (ON) Zone 117 (ON) Zone 125 (ON) Zone 118 (ON) Zone 126 (ON) Zone 119 (ON)

  • Page 44: External Event Label Programming

    External Event Label Programming [738]-[883] Event Labels Default (see Label Number in table); There are 143 programmable event labels. Each label is pre-programmed with the default text shown in the table. Each label is up to 32 ASCII characters (including spaces). The language is specified in section [009]. Table 18: External Event Labels Event [Section] Label Default Label...
  • Page 45 Event [Section] Label Default Label Event [Section] Label Default Label [784] Panel Battery Trouble (Battery Trouble) [785] Panel Battery Restore (Battery Trouble Restore) [786] Panel Bell Circuit (Panel Bell Circuit [787] Panel Bell Circuit (Panel Bell Circuit Restore) Trouble Trouble) Restore [788] Panel Telephone Line (Panel Telephone Line...

  • Page 46: Receiver Diagnostic Testing

    Event [Section] Label Default Label Event [Section] Label Default Label [838] Delinquency (Delinquency) [839] Keypad Lockout (Keypad Lockout) [840] Event Log 75% full (Buffer Near Full) [841] FTC Trouble (Fail to communicate trouble) (fail to communicate (Panel Communications [842] FTC Restore [843] Panel Absent Trouble restore) Trouble)

  • Page 47: System Information (Read Only)

    The template will also automatically program the account codes saved in sections [101] or [201] with a unique value derived from the integration ID in section [422]. Refer to the Connect Alarm Programming guide found on www.dsc.com for a complete description of the settings applied through the template.
  • Page 48 Resolve the low battery trouble to continue with system low battery trouble; device/module) firmware update process. System update pending - communication in Retry in a few minutes; if issue persists, contact DSC Tech progress Support. Firmware Update Sequence Change System firmware update successful None At least one module was not updated.
  • Page 49 Response Description of Response Code Corresponding Action Code Reserved Enable remote firmware update in the communicator in order Remote firmware update disabled to perform remote system firmware update. Local Status Update States No action required. Communicator currently does not have any Firmware file empty firmware files.
  • Page 50 Table 21: Network Indicator - Digit 3 Network Indicator Value Means No network trouble Ethernet cable disconnected Ethernet DHCP failed Incoming transmission Outgoing transmission Flashing Incoming transmission [985] Radio Initialization Status The radio initialization status provides installers with the status of radio communication. It is displayed as an 8-digit toggle option, with each digit indicating a task in the initialization process.

  • Page 51: System Reset Defaults

    [993] Ethernet Gateway Address This section will display the IP address of the Ethernet gateway. This value is programmed in section [003] or assigned by DHCP. [994] Cellular IP Address This section will display the current dynamic IP address assigned by DHCP to the cellular connection. NOTE: Cellular uses DHCP (dynamic IP) only.

  • Page 52: Communicator Programming Worksheets

    [009] Language Communicator Programming Default (01); Program label language 01-29 Worksheets Language Language Language System Options English Swedish Russian Spanish Norwegian Bulgarian [001] Ethernet IP Address Portuguese Danish Latvian Default (000.000.000.000) French Hebrew Lithuanian Italian Greek Ukrainian Dutch Turkish Slovakian [002] Ethernet IP Subnet Mask Polish Chinese...

  • Page 53: System Test Options

    [098] SA User Call Up Port Default (0000) Valid range: 0000 - FFFF. [021] Account Code Default (FFFFFF) Valid range: 000001 - FFFFFE. [099] SA Password Default (FFFFFFFF) Valid range: 00000000 - FFFFFFFF. [022] Communications Format Default (04) Program 03 (CID), 04 (SIA). Ethernet Receiver 1 Options [023] Panel Absent Trouble [100] Ethernet Receiver 1 Options...

  • Page 54: Ethernet Options

    [114] Ethernet Receiver 2 UDP Remote Port Cellular Receiver 2 Options Default (0BF5/3061) Valid range: 0000 - FFFF. [210] Cellular Receiver 2 Enabled [1] – Cellular Receiver 2 Enable (Default On) [115] Ethernet Receiver 2 UDP Local Port [2] – Cellular Receiver 2 Supervision Enable (Default Default (0BF9/3065) Valid range: 0000 -FFFF.

  • Page 55: Command And Control Options

    00 - Global; 01-32 - Partition; FF - Disabled [227] Voice Call Timeout Default (00) Valid entries from 00 to FF. [420] Serial Port Baud Rate ('R' models only) Default (05) 01=9600 Baud; 02=19200 Baud; 03=38400 Baud; [228] Voice Call Back Time 04=57600 Baud;...
  • Page 56 [430] Session 1 Integration Polling Port [7] Zone 31 Default (ON) Default (0C01/3073) Valid range: 0000 - FFFF. [8] Zone 32 Default (ON) [438] Session 1 Notification Zone 33-40 Toggle [431] Session 1 Integration Server DNS [1] Zone 33 Default (ON) 32 ASCII characters.
  • Page 57 [6] Zone 70 Default (ON) [5] Zone 109 Default (ON) [7] Zone 71 Default (ON) [6] Zone 110 Default (ON) [8] Zone 72 Default (ON) [7] Zone 111 Default (ON) [8] Zone 112 Default (ON) [443] Session 1 Notification Zone 73-80 Toggle [448] Session 1 Notification Zone 113-120 Toggle [1] Zone 73 Default (ON) [2] Zone 74 Default (ON)
  • Page 58 [702] Session 3 (Type 2) Integration Access Code Default (12345678123456781234567812345678) Valid range: (00000000000000000000000000000000 - FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF) [701] Session 2 (Type 2) Integration Access Code Default (12345678123456781234567812345678) Valid range: (00000000000000000000000000000000 - FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF) [703] Session 4 (Type 2) Integration Access Code Default (12345678123456781234567812345678) Valid range: (00000000000000000000000000000000 - FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF) [708] Event Report Retry Interval...
  • Page 59 [6] Zone 14 Default (ON) [5] Zone 53 Default (ON) [7] Zone 15 Default (ON) [6] Zone 54 Default (ON) [8] Zone 16 Default (ON) [7] Zone 55 Default (ON) [8] Zone 56 Default (ON) [724] Lifestyle Zone 17-24 Toggle [729] Lifestyle Zone 57-64 Toggle [1] Zone 17 Default (ON) [2] Zone 18 Default (ON)

  • Page 60: External Event Label Programming

    [739] Burglary Alarm Restore [4] Zone 92 Default (ON) Default (Burglary Alarm Restore) [5] Zone 93 Default (ON) ______________________________________ [6] Zone 94 Default (ON) [740] Fire Alarm [7] Zone 95 Default (ON) Default (Fire Alarm) [8] Zone 96 Default (ON) ______________________________________ [741] Fire Alarm Restore [734] Lifestyle Zone 97-104 Toggle...
  • Page 61 _______________________________________ [774] Duress Alarm [757] Sprinkler Alarm Restore Default (Duress Alarm) _______________________________________ Default (Sprinkler Alarm Restore) _______________________________________ [775] Account Label [758] Water Level Alarm Default (Security System) _______________________________________ Default (Water Level Alarm) _______________________________________ [776] General System Tamper [759] Water Level Alarm Restore Default (General System Tamper) _______________________________________ Default (Water Level Alarm Restore)
  • Page 62 _______________________________________ [809] Automatic Arming [792] Fire Trouble Default (Automatic Arming) _______________________________________ Default (Fire Trouble) _______________________________________ [810] Automatic Arming Cancelled [793] Fire Trouble Restore Default (Automatic Arming Cancelled) _______________________________________ Default (Fire Trouble Restore) _______________________________________ [811] Late to Open [794] Zone Tamper Default (Late to Open) _______________________________________ Default (Zone Tamper)
  • Page 63 _______________________________________ [844] Panel Absent Trouble Restore [827] Periodic Test Transmission Default (Panel Communications Restore) _______________________________________ Default (Periodic Test) _______________________________________ [845] Module Reprogramming [828] Periodic Test With Trouble Default (Communicator Programming Updated) _______________________________________ Default (Periodic Test With Trouble) _______________________________________ [846] Firmware Update [829] DLS Remote Programming Begin Default (Communicator Programming Updated) _______________________________________...

  • Page 64: Receiver Diagnostic Testing

    _______________________________________ [882] Pay As You Go Message [865] Status Request Default (*123#) _______________________________________ Default (Status Request) _______________________________________ [883] Response Code [866] Alarm Memory Request Default (Response Code) _______________________________________ Default (Alarm Memory Request) _______________________________________ Receiver Diagnostic Testing [867] Help [901] Diagnostic Test Transmission Default (Help) _______________________________________ [1] Ethernet 1 Default (OFF).

  • Page 65: System Reset Defaults

    [2] - [8] Reserved [987] Language Version [988] DNS 1 IP Address [989] DNS 2 IP Address [990] Boot Loader Version [991] Communicator Firmware Version [992] Ethernet IP Address [993] Ethernet Gateway Address [994] Cellular IP Address [995] SIM Number ____________________________________ [996] Cellular Telephone Number This number is required for DLS and Firmware upgrades.

  • Page 66: Limited Warranty

    Installer’s Lockout Anyproductsreturned to DSC which have the Installer’sLockout option enabled and exhibit no other problemswillbe subject to a service charge. Out of Warranty Repairs JCI willat itsoption repair or replace out-of-warrantyproducts which are returned to its factoryaccording to the following conditions. Anyone returning goods to JCI must first obtain an authorization number.

  • Page 67: Eula

    Regardlessof itscapabilities, an alarmsystemisnot a substitute for propertyor life insurance. An alarmsystemalso isnot a substitute for propertyowners, renters, or other occupantsto act prudentlyto prevent or minimize the harmfuleffectsof an emergencysituation. EULA IMPORTANT - READ CAREFULLY: DSC Software purchased with or without Productsand Componentsiscopyrighted and ispurchased under the fol- lowing license terms:...
  • Page 68 Byinstalling, copying, downloading, storing, accessing or otherwise using the SOFTWAREPRODUCT, You agree unconditionallyto be bound bythe termsof thisEULA, even if thisEULA isdeemed to be a modification of any previousarrangement or contract. If You do not agree to the terms of this EULA, DSC is unwilling to license the SOFTWAREPRODUCT to You, and You have no right to use it.

  • Page 69: Regulatory Information

    LTEPublic Cellular Networkand Ethernet communication path using Internet. The communication paths can be used in a standalone mode in con- junction with a DSC alarm system (compatible DSC alarm control panel models: HS2128/064/032/016). The supported ATS configuration is:SP4 or DP3.
  • Page 70 EN50136-1:2012 + A1:2018 Table 4 – RCT to AEalarmreporting ATSfailure reported to ARC, SPT according to SP4 and DP3 ATS failure reported to AS (DSC compatible control panel EN50136-1:2012 + A1:2018 Table 5 – SPT to ASalarmreporting HS2128/HS2064/HS2032/HS2016). SPT according to SP4 and DP3 EN50136-1:2012 + A1:2018 Table 6 –...
  • Page 71 •For UL Commercial Burglary applicationsthe TL2803G(R) E/ 3G2080R / TL280 (R)E / LE2080(R) / TL280LE(R) can be used asdual signalling line communication system(cellular and Ethernet channelsused in redundant configuration), standard line securityand asencrypted line security. •The supervision heartbeat shall be enabled (panel section [851][005] toggle option [1] (Ethernet) and/or toggle option [2] (cellular) shall be ON), toggle option [3] (supervision type) shall be ON and the supervision heartbeat rate shallbe selected as135 (0087/135) seconds.
  • Page 72 © 2022 Johnson Controls. All rights reserved. Johnson Controls, Tyco and DSC are trademarks of Johnson Controls. Tech Support: 1-800-387-3630 (Canada & U.S.) or 905-760-3000 www.dsc.com The trademarks, logos, and service marks displayed on this document are registered in the United States [or other countries].
