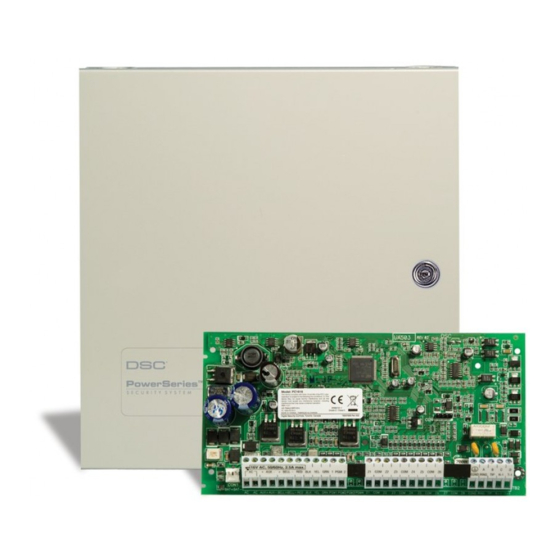

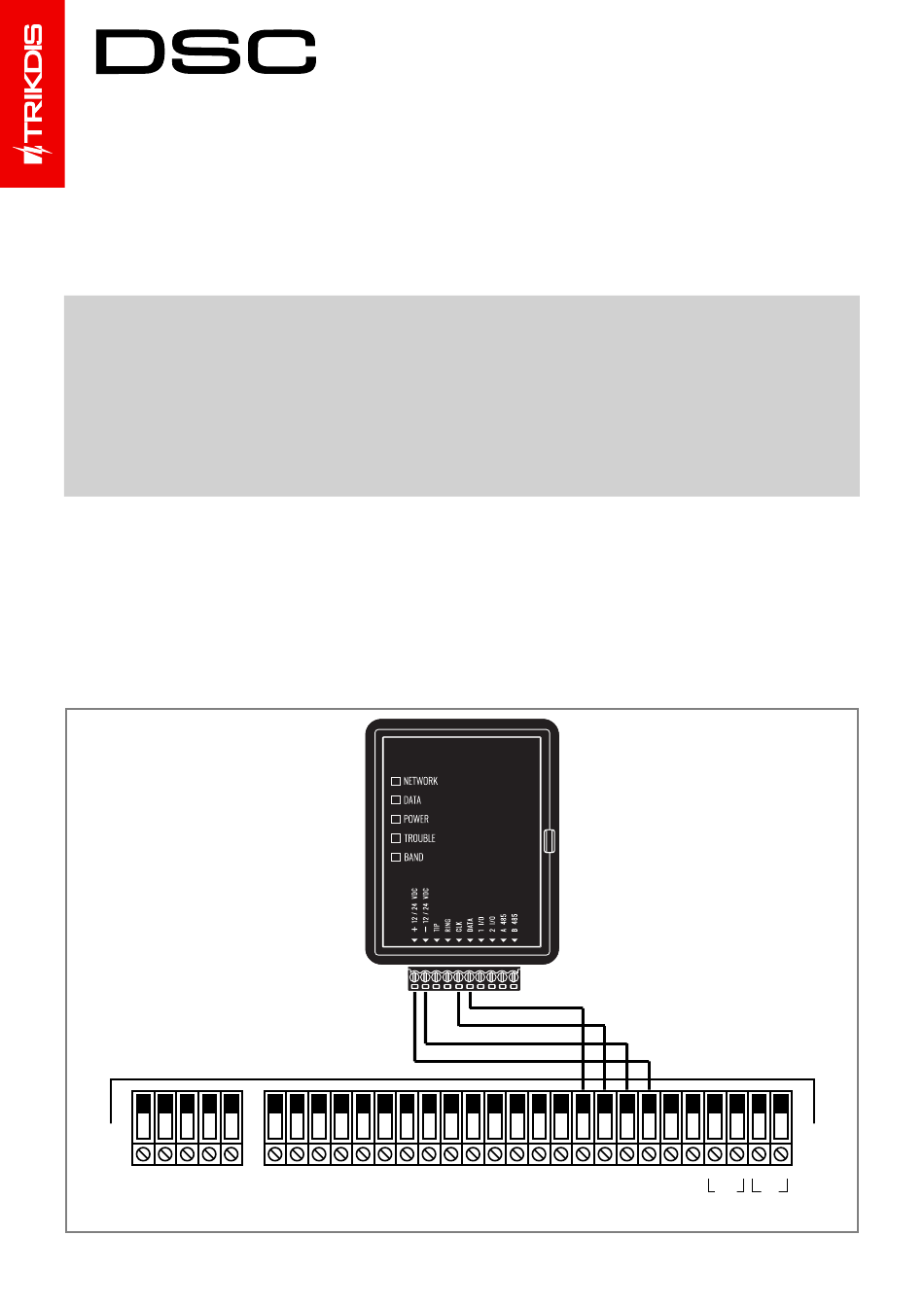

• Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. Schematics for wiring the communicator to the security control panel Following the schematics provided below, wire the communicator to the control panel. T-1 R-1 TIP RING EGND GRN YEL BLK RED -BELL+ DSC PC1832 trikdis.com...
Page 2
PC1832 Wiring Trikdis GT+ Cellular Communicator and Programming the Panel DSC PC1832 panel do not need to be programmed. LED indication of communicator operation Indicator Light status No connection to cellular network Yellow blinking Connecting to cellular network NETWORK Green solid with yellow blinking Communicator is connected to cellular network.
Page 3
Enter the IMEI number of Select security company Press "DSC" button the communicator Step 5 Step 6 Step 7 Step 8 Enter "Object ID" and Wait while the Press "PC1832" Press "Add to Protegus2" "Module ID". Press "NEXT" configuration is written trikdis.com...
Page 4
PC1832 Wiring Trikdis GT+ Cellular Communicator and Programming the Panel Setting up the GT+ communicator with the app Step 9 Step 10 Step 11 Step 12 Enter system "Name". Wait 1 minute and press Press "Skip" Press on system Press "Next"...
