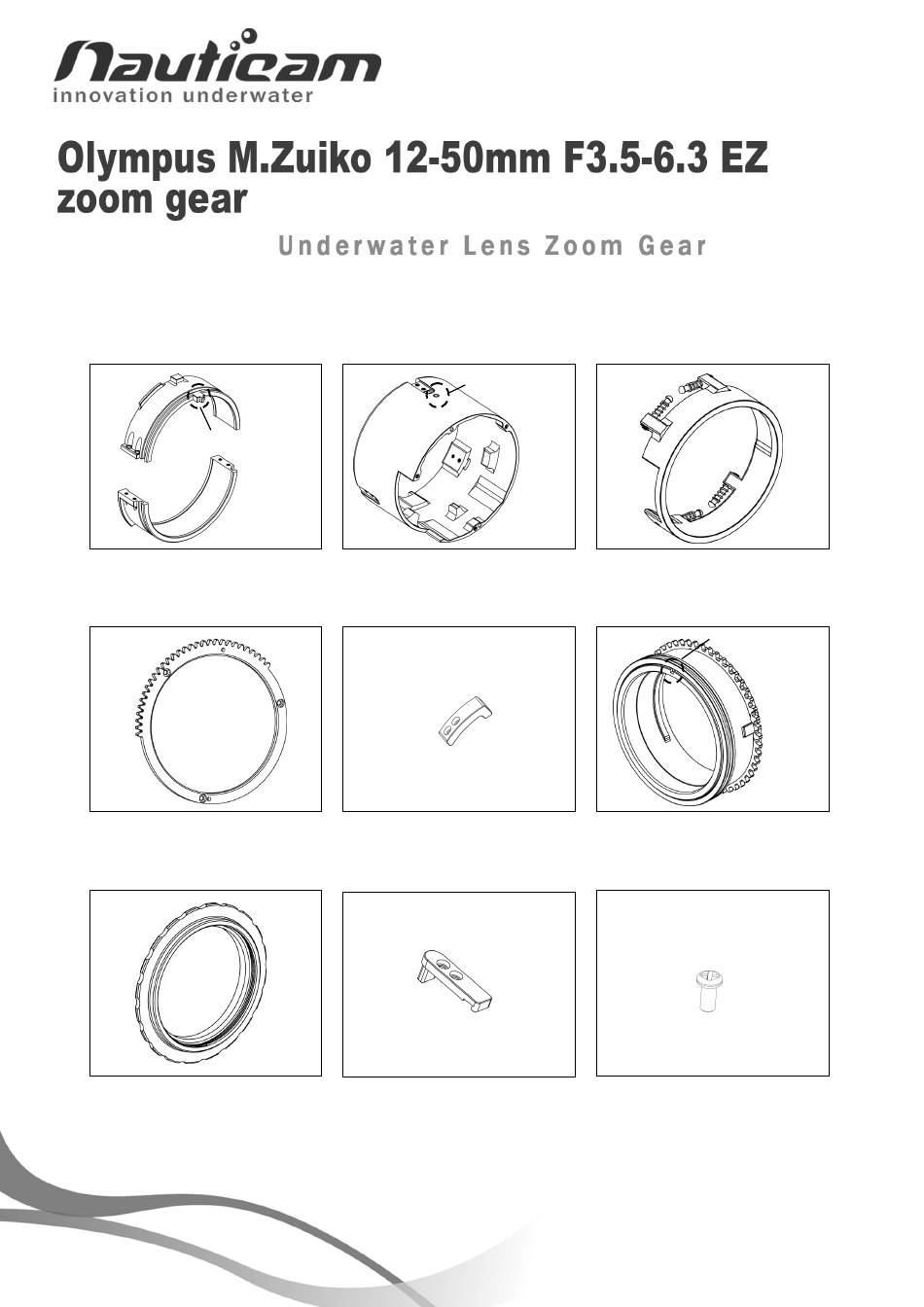

Identification of parts:
alignment index
alignment index
Zoom gear tube - Zoom Gear
Two half-rings - Zoom Gear
Spring ring - Zoom gear
inner groove
Zoom gear ring - Zoom Gear
Macro Switch Block - Zoom
Macro switch gear
Gear
Locking ring - Macro switch
Positioning Block x3- Macro
Screw x12
Gear
Switch Gear
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nauticam O1250-Z
Summary of Contents for Nauticam O1250-Z
- Page 1 Identification of parts: alignment index alignment index Zoom gear tube - Zoom Gear Two half-rings - Zoom Gear Spring ring - Zoom gear inner groove Zoom gear ring - Zoom Gear Macro Switch Block - Zoom Macro switch gear Gear Locking ring - Macro switch Positioning Block x3- Macro Screw x12...
- Page 2 Please follow the instructions below to mount the dedicated zoom gear on the lens. Mount the two half-rings on the lens zoom ring as indicated in the diagram. Align the alignment index on the ring with the line on the lens before tightening the four screws.
- Page 3 Align the spring ring with the lens as indicated in the diagram. Then lightly push the ring towards the lens until it cannot go any further. Tip: To remove, pull out from the cover. Align the pins on the tube with the holes in the gear ring as indicated in the diagram.
- Page 4 The Macro switch gear will be mounted from the front of the lens. Align the inner groove of the macro switch gear with the white dot on the front part of the lens. Then lightly push the gear towards the lens until it cannot go any further.
