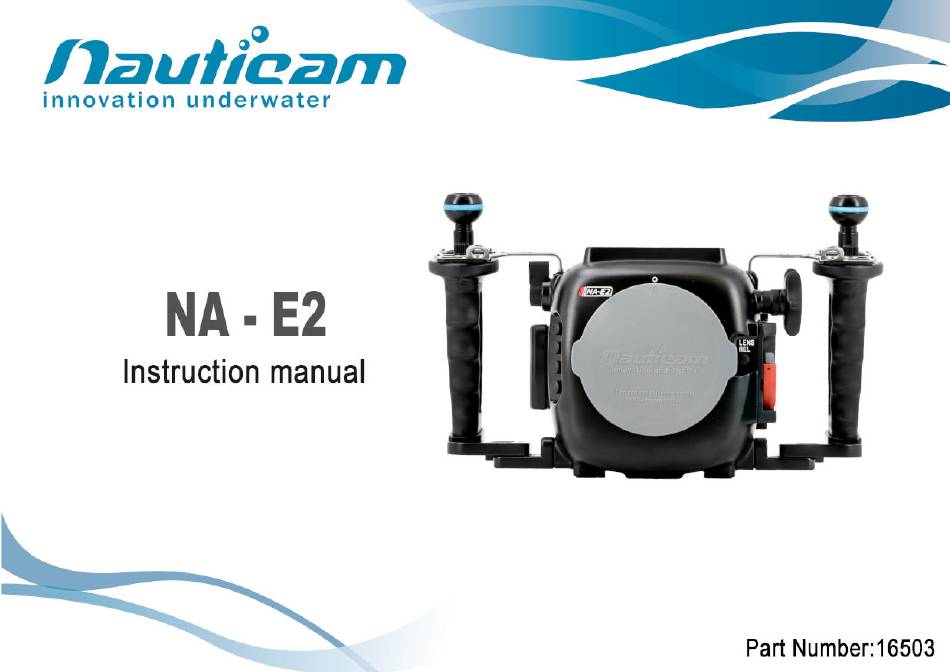

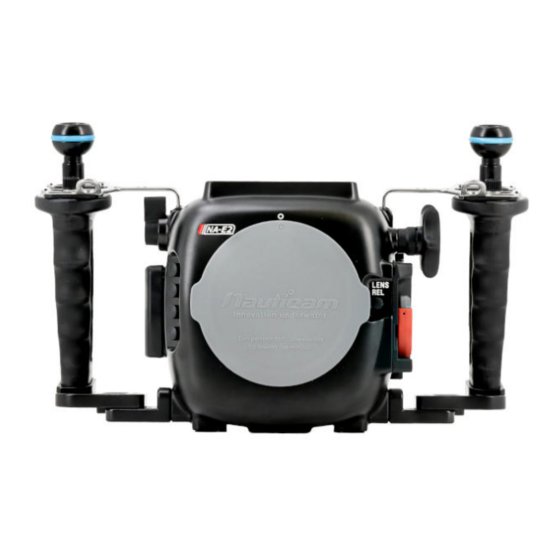

Summary of Contents for Nauticam NA-E2
- Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
-
Page 3: Table Of Contents
ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing the Camera …………………………………………………………………………………………. Connecting External Monitor (HDMI 2.0 Cable)………………………………………………… Mounting the Port ……………………………………………………………………………………………… Care and Maintenance ………………………………………………………………………………………. -
Page 4: Warranty
NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products. -
Page 5: Precautions
O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage. - Page 6 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...
-
Page 7: Package Contents
ACKAGE ONTENTS • NA-E2 Housing • Spare 90133 Housing O-ring • O-ring Remover • CR2032 Battery (for vacuum system) • 2x Adjustable Handles with Brackets • Lubricant • Set of Allen Keys • Manual Instruction Card • Padded Travel Case •... -
Page 8: Specifications
PECIFICATIONS Housing body: Aluminum Alloy Construction Surface treatment: Hard Anodized Display window: Abrasion Resistant Polycarbonate Width: 170mm Dimensions Height: 145mm (Without Handles) Depth: 173mm Weight in Water 0.32kg (Incl. Camera and Sony FP-970 Battery) Weight in Air Approx. 2.1kg Depth Rating 100 m Port Mount Compatible Cameras... -
Page 9: Identification Of Parts
DENTIFICATION OF ARTS Zoom/Focus Knob Ball Joint Lens Release Button Port Lock Safety Button Port Alignment Index Port Lock Lever... - Page 10 F1 Button F2 Button F3 Button Power Button...
- Page 11 Housing Lock Safety Button M16 Accessory Port Housing Lock Moisture Alarm Window M28 Accessory Port...
- Page 12 LCD Display Window Mounting Points 1/4-20 Fn Button MENU Button OK Button Up Button M16 Accessory Port Down Button...
- Page 13 Sacrificial Zinc Anode Mounting Points 1/4-20...
-
Page 14: Opening And Locking The Housing
PENING AND OCKING THE OUSING To open the housing: Turn the housing lock anti- Press the housing lock safety button. clockwise for 270°, until the lock reaches the “Open” position as shown. - Page 15 To lock the housing: Close the housing while the Turn the housing lock clockwise for housing is in the “Open” 270°, until the lock reaches the position. “lock” position as shown. Confirm that the white indicator line on the safety button is visible.
-
Page 16: Preparation Of The Housing
Prepar REPARATION OF THE OUSING 1. After verifying that the main O-ring is in 4. Setting up the moisture alarm: good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;... - Page 17 Battery Installation: Press Press Insert the battery as shown above and To remove the battery, press the metal then press down the battery. plate as indicated and the battery will pop out. *Use only recommended battery with this product...
- Page 18 2. Switch the alarm on. The LED light 3. Test the alarm by connecting the two wires near the bottom of the will flash blue once and turn blue for housing with a damp cotton bud; five seconds indicating the battery is the alarm should start giving out a normal.
- Page 19 Optional vacuum valve: Vacuum valve can be attached to the housing via one of the accessory port for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status...
- Page 20 After start up LED indicator Status Standby mode. The moisture alarm is active, Flashing "Blue" light and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light Moisture is detected. with beeping sound Some vacuum is detected, target vacuum level Flashing "Yellow"...
-
Page 21: Installing The Camera
Connect NSTALLING THE AMERA To install the camera to the housing: Disengage the red camera saddle lock by Attach the saddle to the camera by tightening the pressing it inwards. Remove the camera screws to the tripod sockets saddle from the housing by sliding it outwards. - Page 22 Connect Install the camera by sliding the attached saddle along the rail in the housing until it cannot go in any further. Confirm that the red camera saddle locks are in the engaged position before closing the housing.
-
Page 23: Connecting External Monitor (Hdmi 2.0 Cable)
Connect ONNECTING WITH XTERNAL ONITOR HDMI 2.0 C ABLE Insert the HDMI 2.0 cable Unscrew M28 accessory port cap (M28A2R210-M28A1R170 HDMI 2.0 Cable) through the M28 port... - Page 24 Connect Gently push the cable into the M28 port opening of the housing, until it cannot go in any further. Then, tighten the HDMI 2.0 cable by turning the threaded working ring to clockwise direction.
- Page 25 Before installing the camera on the cannot go in any further housing, screw it on the camera as shown. * 25088 Cable Clamp for NA-E2 Housing with Screws...
- Page 26 Connect Use the positioning guide on the Connect the HDMI 2.0 cable through rear housing to hold the cable in the camera’s HDMI port. position. To slide in an external portable SSD (ex: T5), use the USB 3.1 Gen 2 type C to C cable (P/N: 36336) to connect with the camera's USB port accordingly as shown.
-
Page 27: Mounting The Port
Connect OUNTING THE Please refer to the NAUTICAM N85 system port chart for a range of compatible ports: 1. Remove the O-ring from the port, inspect for any damage and lightly coat it with the provided lubricant before placing it back into its groove. - Page 28 Connect 4. Turn the port locking lever to Align the port mounting indicates of the the release position as shown. port and the housing. Gently push the port into the port opening Then lift the housing cap. of the housing, until it cannot go in any further.
- Page 29 Connect Lock the port into place by turning the port locking lever to the inward position. To ensure that the port is securely mounted, confirm that the green line on the safety button of the port locking lever is visible.
-
Page 30: Care And Maintenance
O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. •... -
Page 31: Optional Accessories
P.N. 36336 P.N. 16506 P.N. 25101/25103 USB 3.1 Gen 2 Type C to Conversion Kit for E2C to M67 Flip Diopter Holder C Cable with Connectors Use in NA-E2 Housing for M67/M77 macro ports (To use with Samsung SSD T5) - Page 32 P.N. 25108/25109 P.N. 83213/83215 P.N. 81201 M67 Double Flip Holder M67/M77 to Bayonet Super Macro Convertor 1 for M67/M77 Macro Ports Mount Converter P.N. 81301 P.N. 81302 P.N. 83201 Compact Macro Convertor 1 Compact Macro Convertor 2 Wet Wide Lens 1 (WWL-1) (CMC-1, 4.5x Magnification) (CMC-2, 2.8x Magnification) 130 deg.
- Page 33 DSMC2/C200/EVA1/E2 Bright Monitor *25033 is included in NA- (for internal connection) 058/502H/FHD5/502B-H monitor housing) 17922 Nauticam Atomos 25079 M28A2R210-M28A1R170 HDMI 2.0 Cable Ninja V Housing Housing for HDMI 2.0 (for NA-GH5V/E2 to use with Ninja V housing) Atomos Ninja V 5” 4Kp60 4:2:2 *A dedicated positioning cable clamp for 25079 is required.
