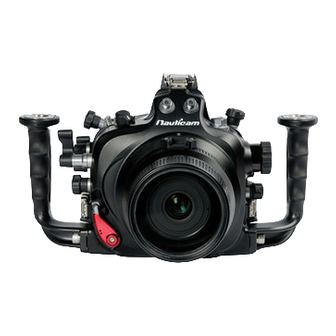

Underwater camera housing

Advertisement

Quick Links



Advertisement

loading
Need help?

Need help?

Do you have a question about the NA-D90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nauticam NA-D90

  • Page 1 0   ...
  • Page 2     Thank you for your purchase of a NAUTICAM digital camera housing.      At NAUTICAM, we pride ourselves on the ability to recognise the requirements of  professional as well as amateur underwater photographers and fulfill them  through the innovative designs of our products.  We strive to achieve a high level  of user‐friendliness by allowing stress‐free installation and easy operation of all  important functions of the camera.    Each housing is individually inspected and water pressure tested to more than 75  metres to ensure optimum quality.      Please read this manual carefully before using the housing, this will maximise its  performance as well as its lifetime.      1   ...
  • Page 3     1. All NAUTICAM Products are warranted against any material and manufacturing  defects for one year from the date of purchase for consumer use.  2. NAUTICAM accepts no liability for any damage to and defects in the housing  caused by improper use and/or poor maintenance; it is the responsibility of the  owner to carefully follow the instructions in this manual.  3. NAUTICAM does not hold responsibility for damage, of any nature, to any  equipment used with and/or placed within the housing.   4. NAUTICAM accepts no liability for any loss of captured images or the inability  to capture images even if it is due to the malfunctioning or leakage of the  housing.  5. This warranty only applies to products purchased from authorised NAUTICAM  dealers and does not extend beyond the original retail purchaser.  6. Unauthorised modifications and/or repairs of the housing will automatically  invalidate this warranty.  7. To return products for service, please contact our regional distributor,  normally you would need to notify them by email first and ship them the  product by registered mail, along with your contact details and a brief  description of the defect.        2   ...
  • Page 4   1. NA‐D90 housing  2. Instruction manual  3. Spare silicone rubber main o‐ring  4. O‐ring remover  5. CR2032 battery (for moisture alarm)  6. Lubricant  7. Set of Allen keys    CR2032 battery  Spare silicone rubber o‐ring  O‐ring remover  Lubricant  Set of Allen keys  3   ...
  • Page 5     1. A water‐tight test without the camera inside the housing is highly  recommended when using the system for the first time and after the changing  of port and O‐ring(s).  2. Do not use lubricants from other brands with the silicone rubber O‐ring on this  housing, only use the lubricant provided by NAUTICAM.  3. Discontinue use immediately should you notice any leakage.  4. Store the housing in a robust, shock‐proof container during transportation;  avoid transporting with any equipment, such as a camera, inside the housing.  5. When travelling by air, do not close the housing if the port is installed, as this  may lead to a pressure difference between the atmosphere and inside the  housing.  6. Care must be taken when opening the housing, as pressure may build up inside  the housing which increases the opening force.  7. Do not open the product in a wet or sandy environment.  Protect the interior  from moisture and debris in order to prevent malfunction or leakage.   8. Do not store the product in an environment of high humidity.  9. Do not leave the housing and the camera in direct sunlight for prolonged  periods.   10. Keep out of reach of children, failure to do so could result in injury.  11. Defective products should be shipped to our distributors for service,  unauthorized disassembling and/or modifications could result in malfunction  or leakage.  4   ...
  • Page 6   Specifications  6  Identification of Parts  7  Preparation of the Housing  9  Opening and Closing the Housing  12  Installing the Camera  13  Mounting the Port  16  Connecting the Strobe System  18  Using the Live view/OK lever  22  Changing the Viewfinder  24  Care and Maintenance  26  Optional Accessories  27      5   ...
  • Page 7   Housing body:    Aluminium alloy  Surface treatment:  Anodised  Construction  Display window:    Abrasion resistant polycarbonate  Grip handles:    Polycarbonate and rubber  Width:    347 mm  Dimensions  Height:    195 mm  Depth:    133 mm  Weight  Approx. 2.68 kg  (without camera)  Buoyancy  Slightly negative  Depth rating  75 metres  Moisture alarm:    Blinking LED and audible alarm  Viewfinder:    0.66X viewfinder  Single Nikonos 5‐pin bulkhead (optional)  TTL capability:    2 optical bulkheads utilising on camera  pop‐up flash as commmander  Features  Compatible with all Sea & Sea and Nexus  Port mount:  ports (by using adaptors)  Specially designed for the easy operation  Live view/OK lever:  of video recording function.  6   ...
  • Page 8 1  6    2  7    3  8    4          5      9    10            1  Metering button  9  Main command dial  2  On/Off control knob  10  AE‐L/AF‐L lever  3  Exposure compensation button  11  Autofocus mode button  4  Grip handles x 2  12  Release mode button ...
  • Page 9       22  16    23  17      24  18    19    25    20    21  26        27  30    28      31  29        16  Moisture alarm  24  Right selector  17  Delete button ...
  • Page 10      1. After verifying that the main O‐ring is in good condition, lightly coat it with the  lubricant provided.  2. Make sure the O‐ring groove located in the front part of the housing is free  from any foreign material; the groove can be cleaned with the aid of a  microfiber cloth.  3. Place the main O‐ring into the groove by gently pushing it, first at the corners,  then the whole perimeter.  4. If necessary, spacers can be used to increase space between the grip handles  and the housing; please use the longer screws provided to attach the grip  handles and the spacers to the housing.  5. (Optional) To install the Nikonos 5‐pin bulkhead:      Unscrew the plug from the  threaded hole with a spanner.    Insert the 5‐pin bulkhead through  the threaded hole.  9   ...
  • Page 11       iii. Tighten the 5‐pin bulkhead with a    spanner.              Connect the 5‐pin bulkhead to the    accessory shoe plug.        Slide the accessory shoe plug of  the housing into the accessory  shoe of the camera.  10   ...
  • Page 12   Setting up the moisture alarm    1. Install the CR2032 battery provided    into  the  battery  compartment  on    the  circuit  board  inside  the  rear  part of the housing.      2. Test  the  alarm  by  contacting  the  two  wires  near  the  bottom  of  the  housing with a damped cotton bud;  the  alarm  should  start  giving  out  a  repeating “beep” sound along with ...
  • Page 13   1. With the front facing down, place the housing on a flat surface or in your lap.  2. When closing, make sure there is nothing caught between the closing surfaces  of the two halves of the housing.  3. The housing can be opened and closed by operating the three locking latches;  when opening, first operate the latch on the top of the housing then the two  on both sides simultaneously.  When closing the housing, operate the two side  latches first, then the one on the top.  4. After closing, check that the locking latches are properly engaged and the gap  between the two halves of the housing caused by the main O‐ring is evenly  spaced for the whole perimeter of the housing.  12   ...
  • Page 14                     1. Remove the camera saddle from  2. Turn the locking lever on the tray    the housing.  of the housing to the “open”  position.                3. Pull the sliding bar on the saddle  4. Attach the saddle to the camera  to its outward position.  by tightening the screw to the  tripod socket of the camera with  a screwdriver or a coin.  13   ...
  • Page 15                 5. After ensuring the AF/M activator  6. Make sure the camera power is off    on the sliding bar matches the  and the On/Off control knob on the    focus mode selector of the  housing is in the “off” position.  camera, push the sliding bar to its    inward position.  Check that by  rotating the activator, the focus  mode of the camera can be  altered.    7. Mount the camera by sliding the  8. Lock the camera into place by  attached saddle along the rail in  turning the locking lever to the  the housing until it cannot go in  “lock” position.  any further.  9. Lock the camera into place by  turning the locking lever to the  “lock” position.    14   ...
  • Page 16 10. Confirm that all the controls of the  housing are correctly engaged.  Raise the camera’s built‐in flash by  pressing the flash mode button on  the D90 camera.  12. For removal of the camera from the  housing, reverse the above  procedures.  15   ...
  • Page 17     Please refer to the NAUTICAM system port chart for a range of compatible    ports; note that extension rings may be needed for certain lenses and adaptors    are available for the attachment of ports of other manufacturers.      1. Remove the O‐ring from the port,    inspect for any damage and lightly    coat it with the provided lubricant  before placing it back into its    groove..        2. Verify that the port opening of the  housing is clean and free from    foreign material.    3. Push the safety button of the port  locking lever downwards.        4. Turn the port locking lever to the  5. Align the mounting marks of the port  outward position.  and the housing; the marks appear as  white dots on both the port and the ...
  • Page 18                   7. Lock the port into place by turning the  port locking lever to the inward    position.  To ensure that the port is  securely mounted, confirm that the    green line on the safety button of the    port locking lever is visible.  8. To remove the port from the housing,    simply turn the port locking lever to    the outward position and gently pull it  out.        17   ...
  • Page 19   Optional strobe attachment balls can be attached to the strobe mounting bases  on the housing or onto the top of the handles.  There are two ways of connecting strobes to the NA‐D90 housing:  A) by optical  connection through the Optical Bulkheads;  B) by electrical connection through  the Nikonos 5‐pins bulkhead.    A) Using the Optical Bulkheads  The built‐in pop‐up flash of the D‐90 camera can be used as a  commander to send out signals (including i‐TTL commands) to the  strobes via the 2 Optical Bulkheads.  It can be utilised in different ways  depending on the type of strobes connected to the housing:    1) Nikon i‐TTL compatible strobes such as SB‐R200, SB‐600, SB‐800, SB‐ 900:    These strobes can fully utilise the Nikon i‐TTL controls protocols  enabling individual TTL exposure compensation of each of the 2  strobes connected to the Optical Bulkheads.  Do ensure that the other  ends of the optical fibres are pointing onto the light sensor window of  the strobes.       To set the D‐90 camera to i‐TTL Commander  mode, under Menu, scroll to Custom Setting Menu  (Pencil shaped icon on the left of the LCD screen),  enter ‘e’ Bracketing/flash.      18   ...
  • Page 20   Then scroll to ‘e2’ Flash cntrl for build‐in flash and  enter.         Scroll to Commander mode.         Set the Built‐in flash Mode to ‘—‘, Group A (one of  the strobes) to Mode ‘TTL’, and Group B (the other  strobe) to Mode ‘TTL’.        The exposure compensation of each strobe can be set individually (A  and/or B) by entering the value under Comp.  Be sure the Channel number selected is the same of the 2 strobes.    2) Inon strobes:               We recommend using Inon strobes in either S‐TTL or manual mode.            For S‐TTL operation, set the built‐in flash of D‐90  camera to TTL mode. From the Menu, scroll to  Custom Setting Menu (Pencil shaped icon on the  left of the LCD screen), enter ‘e’ Bracketing/flash.        Then scroll to ‘e2’ Flash cntrl for build‐in flash and ...
  • Page 21     Scroll to TTL and press OK.                  For Manual operation, set the built‐in flash of D‐90  camera to Manual mode. From the Menu, scroll to  Custom Setting Menu (Pencil shaped icon on the  left of the LCD screen), enter ‘e’ Bracketing/flash.        Then scroll to ‘e2’ Flash cntrl for built‐in flash and  enter.            Scroll to Manual.          A list of power outputs (of the built‐in flash) will  appear, selecting a relatively small output (1/100 or  1/128 and press OK) should be adequate to trigger  the Inon strobes while saving the D90 battery  energy.  20   ...
  • Page 22   3) Other strobes  The optical signal from the D90 build‐in flash can also be utilised to trigger  other strobes having an optical sensor.  Tips 1: The built‐in flash can be popped‐up by pressing the ‘Flash’  button in M, A, S or P mode.  If the flash is not in the raised position  after the housing is closed, turn the mode dial to ‘Auto’ and point the  camera to a dark area and press the shutter release briefly to pop‐up  the build‐in flash.   Tips 2:  The built‐in flash can be disabled by setting the D90 camera to  the “flash‐off” mode, with the mode dial.  Flash‐off  mode      B)   Using the Nikonos 5‐pin bulkhead    The Nikonos 5‐pin bulkhead connects to all the 5 contact points of the D90  hotshoe for iTTL compatible operation. 21   ...
  • Page 23   The Live view/OK lever is specially designed for the easy operation of the D‐ 90 camera’s video recording function.    To enter or exit the live view mode,  pull the lever towards the rear side of the  housing, following the arrow indicator on  the housing.            To select OK for starting and stopping  a video, simply press the lever towards the  front side of the housing.        By default, the autofocus function of the camera is activated by pressing the  shutter release button halfway, however, when recording videos in the live view  mode, assigning the autofocus function to the AE‐L/AF‐L button is  recommended to avoid the accidental activation of the shutter release during  focusing.  For convenience, the AE‐L/AF‐L lever is situated next to the Live  view/OK lever on the NA‐D90 housing.  22   ...
  • Page 24   To assign the autofocus function to the AE‐L/AF‐L  button, go to the camera’s Menu, scroll to Custom  Setting Manual (Pencil shaped icon on the left of the  LCD screen), and enter ‘f’ Controls.      Then, scroll to ‘f4’ Assign AE‐L/AF‐L button and enter.        Scroll to AF‐ON and press OK.        *Do note that after performing the above setting, pressing the shutter release  halfway will not activate autofocus when taking still pictures.  23   ...
  • Page 25     In order that users can change to a preferred viewfinder easily, the 0.66X  viewfinder which comes with this housing is designed so that it can be removed  and re‐installed by following the simple steps described below.      To remove the viewfinder:                  1. Gently push the viewfinder from  2. Remove the retainer O‐ring of the  the inside of the housing.  viewfinder inside the rear half of    the housing by making use of the      recess on the viewfinder.  24   ...
  • Page 26     To re‐install the viewfinder:    3. Push the viewfinder from the  1. Lightly coat the O‐rings on the  outside of the housing until it  outer periphery of the  cannot go in any further.  viewfinder body with  lubricant.  4. Place the retainer O‐ring of the  viewfinder back from inside the  2. Align the viewfinder with the  housing.  sleeve in the display window.  25   ...
  • Page 27     1. Soak the housing system in fresh water after each salt water use, during which  all control buttons/knobs should be operated a few times to avoid the  accumulation of salt residue; wipe the housing with a towel before opening.  2. After each day of diving, it is advisable to have the main O‐ring in the front part  of the housing removed from its groove with the O‐ring remover and  inspected for damage.  Also check that the O‐ring retains its original circular  shape; never stretch the O‐ring excessively or remove it with a sharp object.   The O‐ring groove should be cleaned to ensure it is free from any salt deposit  or foreign material; lightly coat the O‐ring with the provided lubricant before  reinstalling it in the groove.  A damaged O‐ring should be discarded  immediately and replaced only with one that is provided by NAUTICAM.  3. Replace the main O‐ring annually.  4. It is recommended that you ship the housing to our distributor for a complete  overhaul every year or after every 200 dives.  26   ...
  • Page 28               Nikonos 5‐pin bulkhead    Set of spacers             Enhanced 180° viewfinder  (with external dioptric adjustment knob)                      Strobe mounting set with lanyard    27   ...
