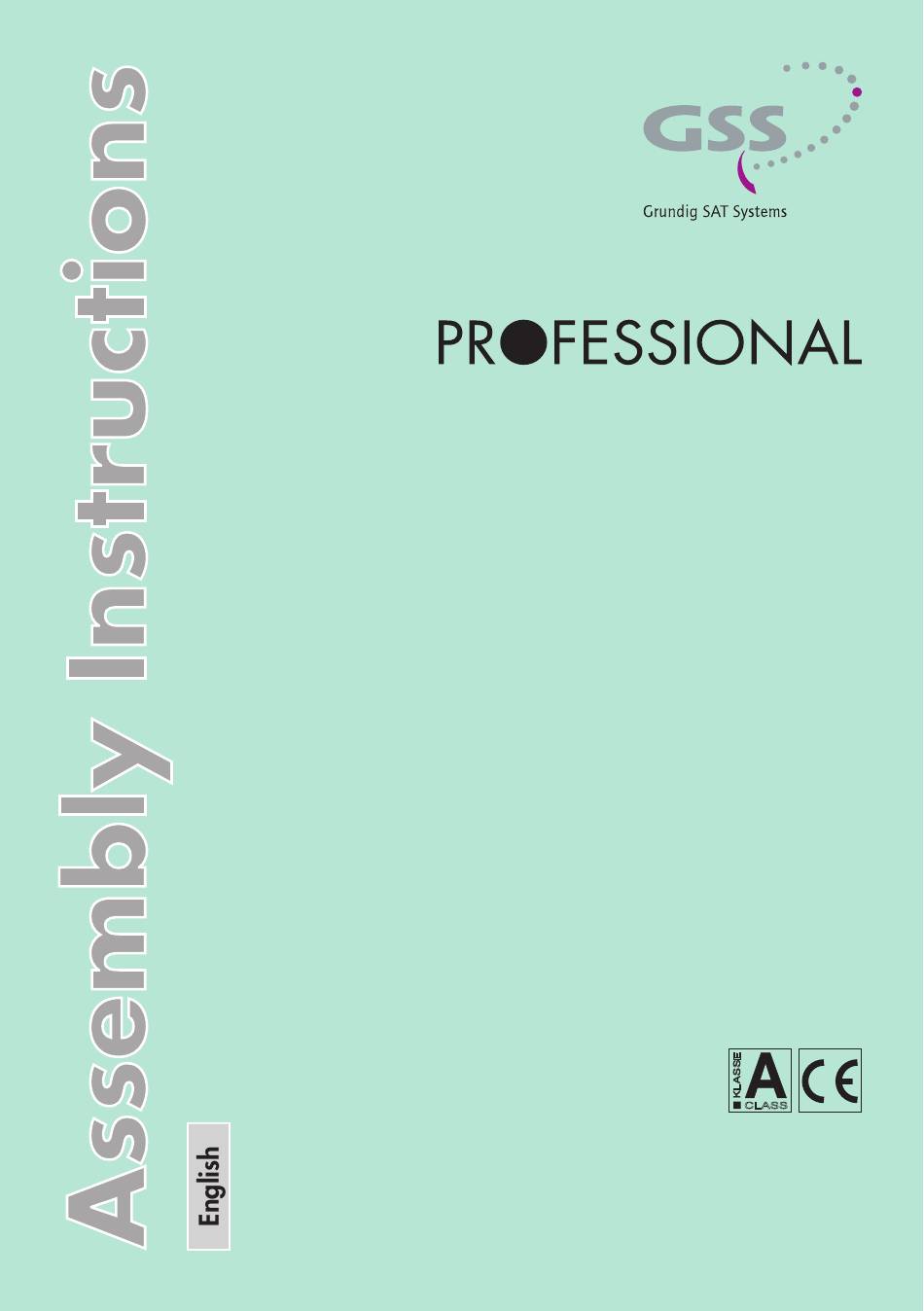

GSS Professional PADE 7006 Assembly Instructions Manual

Professional analogue digital encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Professional Analogue Digital Encoder
GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuremberg
PADE 7006
Phone:
+49 (0) 911 / 703 8877
Fax:
+49 (0) 911 / 703 9210
E-mail:
info@gss.de
Internet:
http://www.gss.de
CLASS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Professional PADE 7006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GSS Professional PADE 7006

Summary of Contents for GSS Professional PADE 7006

  • Page 1 Professional Analogue Digital Encoder PADE 7006 CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Strasse 43 E-mail: info@gss.de D-90471 Nuremberg Internet: http://www.gss.de...

  • Page 2: Table Of Contents

    Contents 1 Safety regulations ....................4 2 General information .................... 5 Packing contents .................. 5 Meaning of the symbols used ..............5 Technical data ..................5 Description ..................7 2.3.1 Software versions ................7 3 Assembly ......................8 Installing the cassette ................8 Cassette overview ................
  • Page 3 Setting the output IP address ............... 20 Setting the input parameter ..............20 Setting the bit rate of the video signal ...........21 Setting the video signal type ..............21 Setting the TV standard ...............21 Setting the aspect ratio ............... 22 Setting the sharpness ................. 22 Setting the teletext option ..............

  • Page 4: Safety Regulations

    Test the software versions of the head-end station and the cassette and update them if necessary. The current software versions can be found at ”www.gss.de”. For further information please read the assembly instructions for the head- end station used.

  • Page 5: General Information

    General information Packing contents 1 Cassette PADE 7006 1 CD (assembly instructions) 1 Brief assembly instructions 1 BNC cable 1 LAN cable (RJ45) Meaning of the symbols used Important note —> General note Technical data The devices meet the following EU directives: The product fulfils the guidelines and standards for CE labelling.
  • Page 6 Audio Input: Standard: ..............DIN EN 50049-1 Input level: ................500 mV Input impedance: ................10 k Frequency range: ............ASI Interfaces Standard: ..............DIN EN 50083-9 Format: ..............MPEG ISO IEC 13818-1 max. data rate ...............108 Mbit/s User data rate: ..............Impedance: ..................75 Level (input / output): .............

  • Page 7: Description

    Description In the cassette PADE 7006 two analogue audio and video signals are con- verted into MPEG2 data streams (transport streams). The transport streams are emitted via the LAN interface or the ASI output. and one ASI data stream input. The fed in analogues signals are digitized and supplied to an encoder that encodes them in real time.

  • Page 8: Assembly

    Assembly Installing the cassette Before installing or changing a cassette unplug the power cable from the mains power socket. of an unoccupied slot from the bracket of the head-end station. of the board and the HF bus bar. 0° ACHTUNG! AUSGANG Vor dem Kassettenwechsel max.

  • Page 9: Connecting The Cassette

    The "RS-232" socket (9-pin Sub-D) is for updating the operating software of the cassette using a PC or notebook. Use the "BE-Flash" software as the up- date software. You can find the current operating software of the cassette on the website "www.gss.de". - 9 - PADE 7006...

  • Page 10: The Control Panel At A Glance

    The control panel at a glance Menu items Program the cassette using the buttons on the control unit of the head-end sta- tion. The two-line display of the control unit then shows the menus. Use the key to select the following main menu items: BE-Remote –...

  • Page 11: Programming

    Programming Programming procedure BE–Remote V 41 Ein/On Bedienhinweise PROFESSIONAL "blättert" Menüs vorwärts. "blättert" Menüs rückwärts. t > 10 s wählen die Eingabeposition wählt Untermenü Bx 1 A TWIN-SAT stellen Werte ein,. C5-12,S3-24 speichert alle Eingaben. zeigt die Eingabeposition Operating Hints scrolls forward through the menu.
  • Page 12 1234 108000 KBits /RTP IP 1 PKTS/FEC Bx 2 ASI OPTION 188 pos. cont. /204 1…7 /neg. / 10/09 AnnexB / /burst … / 20/19 AnnexB IP 1 OUT-IP 227. 40. 50. 60 nur/only IP 2 MODE/PORT IP SPTS 1234 /RTP IP 2 PKTS/FEC...

  • Page 13: Programming The Cassette

    /sharp/soft normal TELETEXT /OFF AUDIO Stereo 192 kbps /Joint/Dual/Mono L /256/320/384 VOLUME -11…+11 -2 dB PRG-NUM 1…255 ! (0x0020. . . ) ! = Programmnummer ist bereits belegt ! = Programme number is already in use NAME PROG 1 Bx 2 Filter Services entfernen / hinzufügen 01/07...

  • Page 14: Selecting The Cassette

    —> The display shows the software version (e.g. V 41). —> The processor reads the cassettes´ data (approx. 10 seconds). BE–Remote V 41 Ein/On PROFESSIONAL t > 10 s Bx 1 A TWIN-SAT C5-12,S3-24 Selecting the cassette BE–Remote V 41 Bx 2 ENCODER Bx 3A...

  • Page 15: Setting The Ip Address Of The Cassette

    Bx 2 ETHERNET Bx 2 ETHERNET Bx 2 ETHERNET BE–Remote V 41 => stat => DHCP => Ein/On Bedienhinweise "blättert" Menüs v "blättert" Menüs r – manual setting ("stat t > 10 s wählen die Einga – automatic setting ("DHCP") of the Ethernet parameter or wählt Untermenü...

  • Page 16: Setting The Address Of The Gateway

    Ein/On Bedienhinweise saves all entries. "blättert" Menüs vo shows the enter p > 2 sec. = abbrechen / cancel "blättert" Menüs rü t > 10 s Setting the address of the gateway Bx 2 IP-MASK wählen die Eingab wählt Untermenü 255.255.

  • Page 17: Output Signal Path "Asi

    shows the enter p 255.255. 255. 60000 > 2 sec. = abbrechen / cancel Output signal path "ASI" Bx 2 ETHERNET Bx 2 IP-GATEWAY => Options In this setting the output transport stream is provided via the ASI output. For this 192.168.

  • Page 18: Output Signal Path "Ip Mpts"/"Ip Spts

    Bedienhinweise "blättert" Menüs vorwärts. "blättert" Menüs rückwärts. wählen die Eingabeposition buttons to select "cont." wählt Untermenü IN-SAT (continuous – standard) and using the buttons set to "burst". stellen Werte ein,. speichert alle Eingaben. —> Setting "cont." zeigt die Eingabeposition The data packets of the user data are collected to a great data packet in the Operating Hints transport stream.

  • Page 19: Defining The Quantity Of Data Packets

    ERNET ptions Selecting the transmission protocol button to select "UPD". Bx 2 IP-ADDR buttons to select the transmission protocol wished: 192.168. 0.128 "UDP" – The "User Datagram Protocol" is for the connectionless (without handshake) transmission of data to a certain application. The port number of the service is also sent which the data should obtain.

  • Page 20: Setting The Output Ip Address

    UTPUT Setting the transmission channel => button to select"Annex…". IP MPTS buttons to set the transmission channel wished ("AnnexA" / IP SPTS "AnnexB"). IP 1 MODE/PORT Bx 2 ASI RATE 1234 108000 KBits /RTP button. —> The "Setting the output IP address" – "OUT-IP" menu is activated. IP 1 PKTS/FEC Bx 2...

  • Page 21: Setting The Bit Rate Of The Video Signal

    IP 2 OUT-IP 227. 40. 50. 61 IP 1 PKTS/FEC Bx 2 ASI OPTION nur/only button. IP 2 MODE/PORT IP SPTS 188 pos. cont. /204 1…7 —> The "Setting the bit rate of the video signal " – "BITRATE" menu is acti- 1234 /RTP /neg.

  • Page 22: Setting The Aspect Ratio

    AV 1 => INPUT /S-Video Composite /AV 2 button. BITRATE —> The "Setting the aspect ratio" – "ASPECT" menu is activated. /Audio only/2…15/off 6 Mbps NORM /PAL N Setting the aspect ratio PAL BG 4.43 MHz Bx 2 INPUT AV 1 =>...

  • Page 23: Setting The Level Of The Audio Signal

    /Audio only/2…15/off /OFF 6 Mbps NORM /PAL N PAL BG 4.43 MHz AUDIO INPUT Stereo 192 kbps /S-Video /Joint/Dual/Mono L Composite /256/320/384 buttons to set the signal type – "Stereo ASPECT Joint Stereo" (sub- /16:9 Dual Channel" (dual channel sound) VOLUME or "Mono L"...

  • Page 24: Setting The Channel Name

    TELETEXT PRG-NUM NORM 1…255 ! Setting the channel name (0x0020. . . ) /PAL N /OFF ! = Programmnummer PAL BG 4.43 MHz ist bereits belegt In this menu the channel name of the input can be set. ! = Programme number is already in use AUDIO NAME...

  • Page 25: Setting The Transport Stream Id And Orgnet Id

    SHARPNESS /sharp/soft normal Meaning of the indicators in the example: "ASI" ASI station filter "TV" "Television" (type of service) TELETEXT The currently selected service is activated. " + " "01/07" The 1st of 7 services is being displayed. /OFF "Das Erste" Name of the service AUDIO Further possible terms displayed: Stereo...

  • Page 26: Saving Settings

    Saving settings button. —> Return to "Selecting the cassette" (page 14). —> The settings are saved. Note: – By pressing the "Setting the Ethernet parameters" (page 14) without saving the programmed data. Final procedures After installing the head-end station, upgrading accessories or installing cas- settes it is necessary to tighten all cable connections, cable terminals and cover screws in order to maintain compliance with current EMC regulations securely.
  • Page 27 - 27 - PADE 7006...
  • Page 28 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS GmbH V1/07012010...
