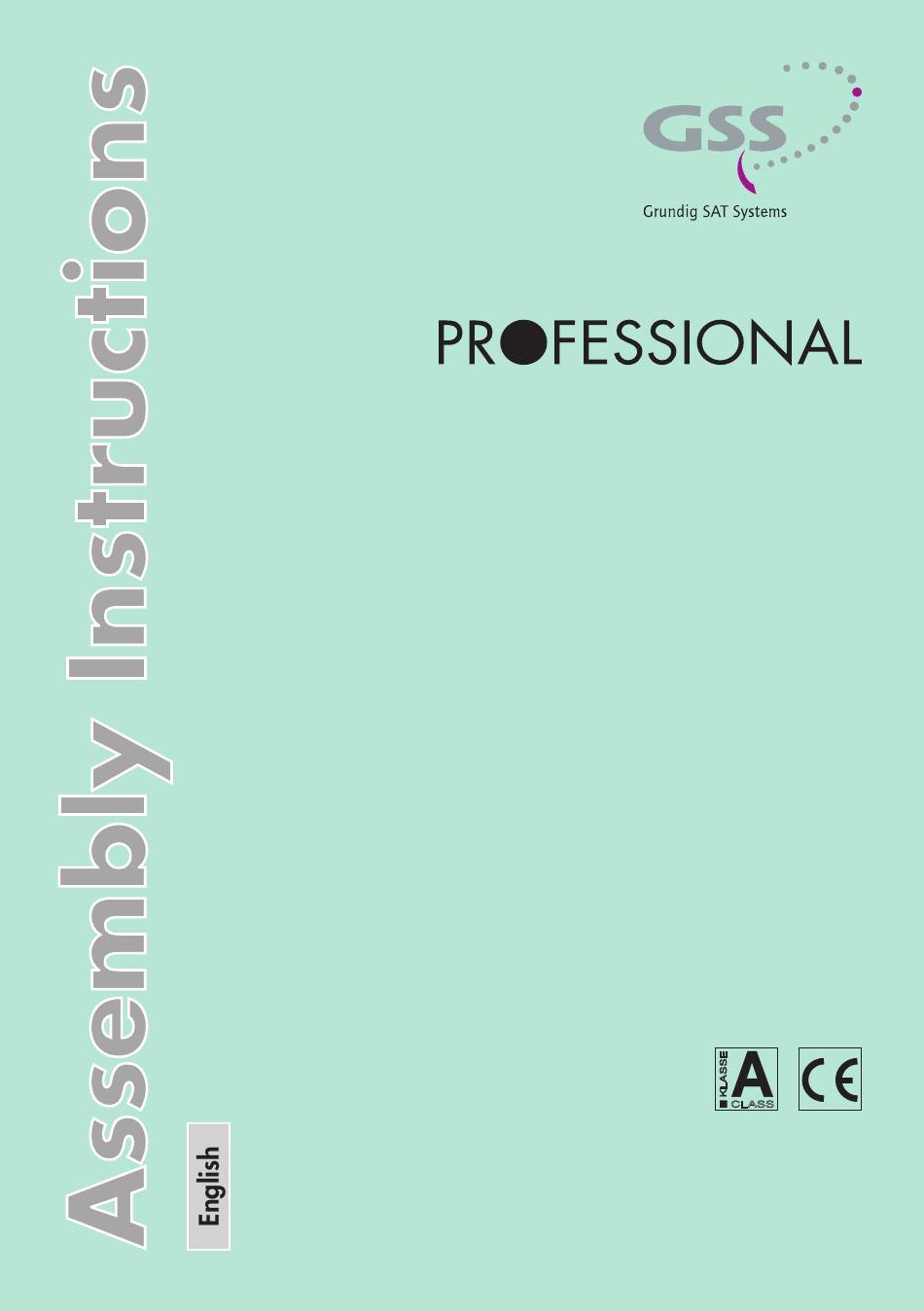

- Page 1 HDTV Digital QAM PHDQ 1000 ASI LAN PHDQ 1001 CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Strasse 43 E-mail: info@gss.de D-90471 Nuremberg Internet: http://www.gss.de...
-
Page 2: Table Of Contents
4 The control panel at a glance ..............16 4.1 Menu items ...................16 4.2 Control panel ................16 5 Programming .................... 17 5.1 Preparation ...................17 5.2 Notes on level setting ..............17 - 2 - PHDQ 1000 ASI LAN / PHDQ 1001... - Page 3 Setting the scrambling ..............40 Setting the PID monitoring ............41 Configuring the CA module ............41 Setting the station filter ..............43 6 Final procedures ..................44 7 Channel and frequency tables ..............45 - 3 - PHDQ 1000 ASI LAN / PHDQ 1001...
-
Page 4: Safety Regulations And Notes
At the end of its service life, please take your device to one of these public collection facilities for proper disposal. - 4 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 5: General Information
General information Packing contents 1 Cassette PHDQ 1000 ASI LAN or PHDQ 1001 2 HF cables 1 Brief assembly instructions 1 Measuring log Meaning of the symbols used Important note —> General note • Performing works Technical data The devices meet the following EU directives: 2006/95/EC, 2004/108/EC The product fulfils the guidelines and standards for CE labelling (page 46). -
Page 6: Description
The transport stream fed via the ASI socket can be inserted into the transport streams of the receiving stages via the TPS module. The signal path is set in the menu items input signal path "INROUTE" and output signal path "OUTROUTE". - 6 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 7: Input Signal Path "Inroute
"TS ASI" are split into transport stream 1 and 2. Receiving stage "B" is not used. TS A Receiving stage CA module Transport stream 1 SAT input ”A“ "A" TS ASI ASI input Transport stream 2 - 7 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 8: Output Signal Path "Outroute
ASI output and the transport stream from the ASI input "TS ASI" via modulator "B" (MB). Modulator Transport stream 1 "A" Combiner HF output TS ASI Modulator ASI input "B" Transport stream 2 ASI output - 8 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 9: General
PSU 12, PSU 8-16 and PST 19-1 Software query Control unit If necessary, you can activate the indication of the software version of the control unit manually: • Press any two keys on the control unit of the head-end station simultaneously until the display goes dark and the software version, e.g. "V 43" appears. - 9 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 10: How The Tps Module Works
Changing the operator ID (CAT) Some network operators transmit an operator ID in the data stream (e.g. visAvision). By changing the CAT the operator ID can be adjusted to the de- mands. - 10 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 11: Explanation Of The Term "Symbol Rate
Reception from a transponder with a very low symbol rate (SCPC station) The extremely low data rate means that the output symbol rate is very low. If there are reception problems with different digital receivers, set output symbol rate to a higher value. Defined symbol rates Some cable operators specify a fixed symbol rate (e.g. 6,900 kSymb/s). - 11 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 12: Assembly
HF bus bar. • Fasten the cassette with the screws 0° ACHTUNG! AUSGANG Vor dem Kassettenwechsel max. 90 dBµV unbedingt denNetzstecker ziehen. CAUTION! Before changing cassettes remove mains plug. Grundig SAT Systems - 12 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 13: Emc Regulations
Tighten the nuts on the cable terminals until the teeth on the lock washer have penetrated the exterior coating and a good connection is made between the hous- ing and cable terminals. - 13 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 14: Cassette Overview
• Plug the SAT input cables into the SAT input sockets "SAT input A" (chan- nel strip "A") and "SAT input B" (channel strip "B"). • Connect the ASI sockets • Connect the head-end station to the mains power supply. - 14 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 15: Retrofitting A Ca Module
(top) of the CA module • Insert the CA module into the slot with the top side of the CA module facing the RS-232 socket of the cassette. • Push the CA module without canting into the guide rails of the CA slot and contact it to the common interface. - 15 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 16: The Control Panel At A Glance
(in menu "DEFAULT" -> Factory reset). - 16 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 17: Programming
256 QAM. • Measure the output levels of the other cassettes and tune them to a uniform output level using the appropriate level controls or software dependent on the head-end station used. Please regard the assembly instructions of the respective head-end station. - 17 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 18: Programming Procedure
◀ ▶ 4A/B OUTPUT Freq. Channel / Freq. 4A/B OUTPUT ◀ ▶ 850.00 MHz on / off 4A/B LEVEL -3 dB 0 … -10 dB 4A/B ◀ ▶ - 18 - PHDQ 1000 ASI LAN / PHDQ 1001 10600 MHz... - Page 19 ..0 – nicht entschlüsseln no descrambling ◀ ▶ Bx 4A 01/03 MENU nächster Service next service Information *) - 19 - PHDQ 1000 ASI LAN / PHDQ 1001 *) Die angezeigte Information ist abhängig vom verwendeten CA-Modul.
- Page 20 0x0000 –> 0000 on / off Page 18 auf Werkseinstellung Bx 4 FACTORY Bx 4 FACTORY zurücksetzen und speichern ▶ reset to factory defaults Defaults => STORE => M and store - 20 - PHDQ 1000 ASI LAN / PHDQ 1001...
-
Page 21: Programming The Cassette
4 "DVBS2-TPM" Type of cassette "V 16" Software version of the cassette • Press the button. —> The "Selecting the input signal path" – "INROUTE" menu is activated. - 21 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 22: Selecting The Input Signal Path
—> The "Selecting the channel strip" – " " menu is activated (page 24). • Press the button. —> The "Setting the ASI transfer rate" – "ASI RATE" menu is activated. - 22 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 23: Setting The Asi Transfer Rate
"cont." (continuous – standard) and using the set to "burst". —> Setting "cont." The data packets of the user data are collected to a great data packet in the transport stream. - 23 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 24: Selecting The Channel Strip
The CCIR channel grid is 7 MHz in the range of the lower frequency bands (channels C2 … S20). Therefore the frequency setting is used here. If one uses the existing channel grid of 7 MHz in these channel ranges, this will result in interference (overlapping) with the 8 MHz QAM signal packages, thus caus- ing transmission problems. For programming in these channel ranges and in the frequency ranges below them, we recommend starting with channel S21 / 306 MHz going back in steps of 8 MHz (see frequency table on page 45), or reducing the bandwidth of the QAM output signal by removing stations. - 24 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 25: Setting The Output Channel
Bx 4A OUTPUT 850.00 MHz • Use the buttons to place the cursor under the digit to be set for the frequency display then use to set the output frequency wished. - 25 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 26: Switching The Modulator Off Or On
• Activate the "LEVEL" menu of the channel strip with the higher output level. • By pressing adjust the higher output level of one channel strip to the lower output level of the other channel strip incrementally from "0" to "–10 dB". - 26 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 27: Setting The Lnb Oscillator Frequency
• Press to enter the values of the symbol rate. Setting the DVB mode The cassette recognizes the transmitted DVB mode and switches over between the normal QPSK mode (DVB-S) and the DVB-S2 mode. Receiving stations with DVB-S2 mode, we suggest to preset the DVB mode to shorten the time for searching stations. - 27 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 28: Setting The Input Frequency
• Set the frequency offset shown in the display (e.g. "– 1.7") to less than 1.0 MHz by varying the input frequency using the buttons. • Press the button. —> The "Testing the signal to noise ratio" – "C/N" menu is activated. - 28 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 29: Testing The Signal To Noise Ratio
"B" according to the pages 28/29, before activating the "Setting the station filter" – "PROGRAM" menu. If the input signal path "A+ASI=1 B+ASI=2" or "A+ASI=1 A+ASI=2" is se- lected the channel strips can be programmed one after the other. - 29 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 30: Setting The Station Filter
Menu setting "A+B+ASI = 1 ASI = 2". Channel strip "A" Bx 4A PROGRAM Bx 4A TV 01/10 Filter Das Erste ▶ Bx 4B TV 02/19 SWF3 01/10 ..- 30 - PHDQ 1000 ASI LAN / PHDQ 1001... - Page 31 —> If a service number (e.g. "131") appears instead of "TV" or "RA", this indicates that an unnamed station or an undefined data stream is being received. - 31 - PHDQ 1000 ASI LAN / PHDQ 1001...
- Page 32 "A+ASI = 1 B+ASI = 2", "A+ASI = 1 A+ASI = 2". Channel strip "A" Bx 4A PROGRAM Bx 4A TV 01/10 Filter Das Erste ▶ 02/19 ORF2 • Set the channel strip "A" or "B". - 32 - PHDQ 1000 ASI LAN / PHDQ 1001...
-
Page 33: Setting The Qam Modulation
• Use to place the cursor under "normal". • Use to set the spectral position to "inverse". • Press the button. —> The "Setting stuffing" – "STUFFING" menu is activated. - 33 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 34: Setting Stuffing
Do not decrease the "Number 1" lower than the value of "Number 2". Is the "Number 1" lower than "Number 2" question marks " " ap- pear in the display. Bx 4A STUFFING SR=6500 (6650) ?? - 34 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 35: Setting A Substitute Signal In The Case Of An Incorrect Input Signal
• Press to set the respective digit of the hexadecimal number. • Repeat the procedure by the quantity of the digits to be set. • Using the button place the cursor under "off" and switch "on" the trans- mitter identification using the buttons. - 35 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 36: Network Information Table (Nit)
NIT of the cassette is switched on again ("on") by pressing the button, the previously generated NIT is added again. If you have changed parameters in the meantime, you must first select "Make" to generate a new, up-to-date NIT. • Press the button. —> The "Network/operator identification" – "CAT-ID" menu is activated. - 36 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 37: Network/Operator Identification
—> If you try to change the network/operator identification (operator ID) of a transponder which cannot be modified, "not modified" ap- pears in the display. • Press the button. —> The "Deleting a PID" – "DROP" menu is activated. - 37 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 38: Deleting A Pid
• Set the hexadecimal number using • Use to set the cursor to "off" and switch to "on" (rename) using the buttons. • Press the button. —> The "Factory reset" – "FACTORY Defaults" menu is activated. - 38 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 39: Factory Reset
" " Station filter is switched on. " " NIT is activated. " " Network/operator identification CAT is activated. —> If necessary set channel strip "B". - 39 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 40: Operation With A Ca Module
—> In case of setting "scramble": The "Setting the QAM modulation" – "QAM" menu is activated (page 33). —> In case of setting "descramble": The "Setting the PID monitoring" – "CA" menu is activated. - 40 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 41: Setting The Pid Monitoring
CA module" – "CA" menu and activate the "Setting the QAM modulation" – "QAM" menu (page 33). • Press the button to activate the menu of the CA module. Bx 4A 01/03 MENU Information *) - 41 - PHDQ 1000 ASI LAN / PHDQ 1001... - Page 42 CA module and are returned to the "Configuring the CA module" – "CA" menu. • Press the button. —> The "Setting the station filter" – "Edit" menu is activated. - 42 - PHDQ 1000 ASI LAN / PHDQ 1001...
-
Page 43: Setting The Station Filter
—> The filter is activated. The display shows the "Configuring the CA module" – "CA" menu. Bx 4A Menu <= => Edit • Press the button. —> The "Setting the QAM modulation" – "QAM" menu is activated (page 33). - 43 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 44: Final Procedures
• Measure the output levels of the other cassettes and tune them to a uniform output level using the appropriate level controls or software dependent on the head-end station used. Please regard the assembly instructions of the respective head-end station. • Mount the front cover (see assembly instructions of the head-end station). - 44 - PHDQ 1000 ASI LAN / PHDQ 1001... -
Page 45: Channel And Frequency Tables
C 68 850.00 C 29 538.00 C 39 618.00 C 49 698.00 C 59 778.00 C 69 858.00 C 30 546.00 C 40 626.00 C 50 706.00 C 60 786.00 - 45 - PHDQ 1000 ASI LAN / PHDQ 1001... - Page 46 - 46 - PHDQ 1000 ASI LAN / PHDQ 1001...
- Page 47 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © GSS GmbH V16/08122010...
