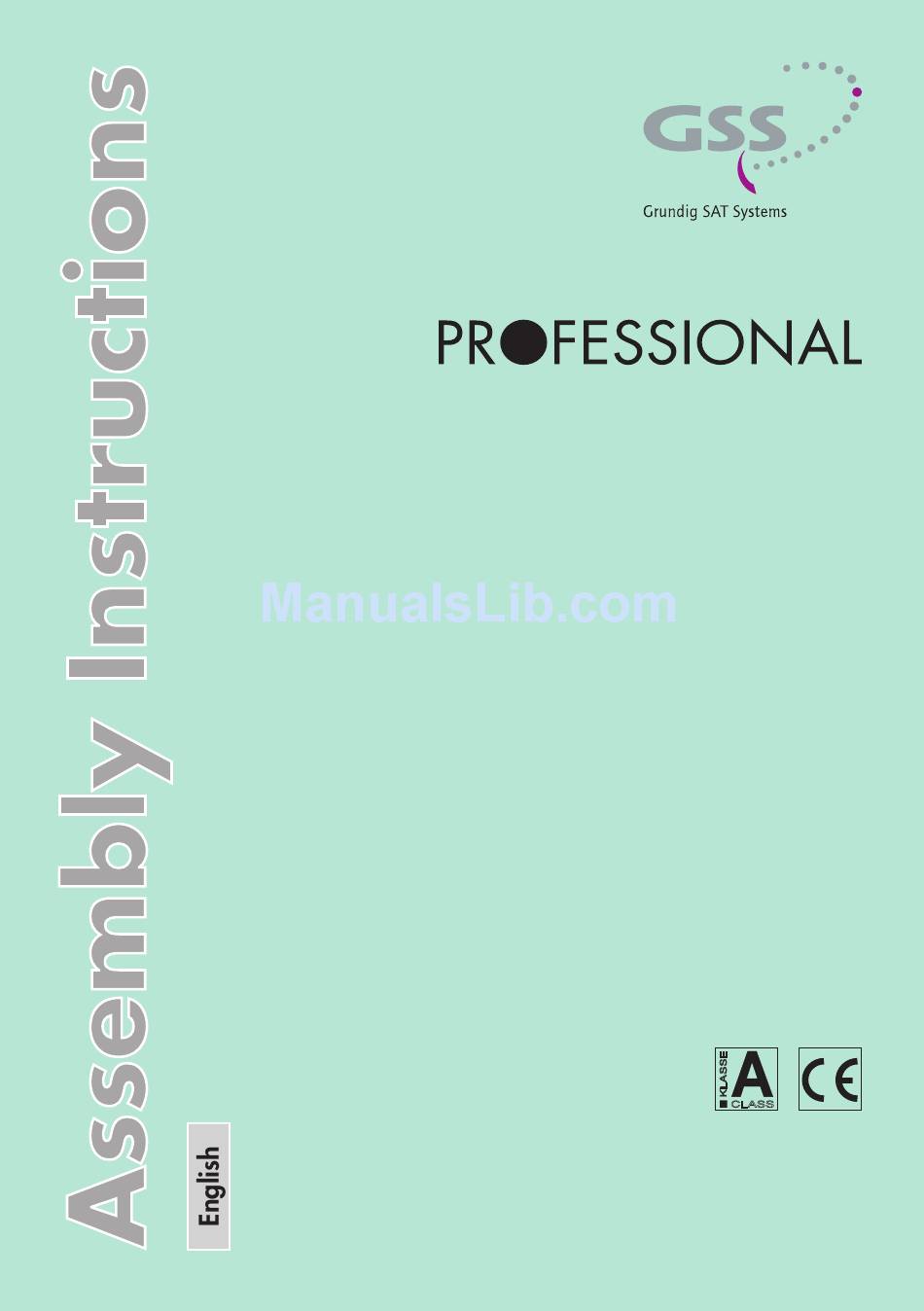

- Page 1 Terrestrial Digital Terrestrial PTDT 9200 CLASS Phone: +49 (0) 911 / 703 8877 Fax: +49 (0) 911 / 703 9210 Grundig SAT Systems GmbH E-mail: info@gss.de Beuthener Strasse 43 Internet: http://www.gss.de D-90471 Nuremberg...
-
Page 2: Table Of Contents
Adjusting the output levels of the channel strips ........19 Selecting the Tuner (only channel strip B) ..........20 Input channel ................... 20 Hierarchical modulation ..............22 Station filter ..................22 COFDM parameters ................. 24 - 2 - PTDT 9200... - Page 3 Network Information Table (NIT) ............32 Deleting a PID .................. 33 Renaming a PID ................33 Factory reset ..................34 Saving settings ................. 34 6 Final procedures ....................35 7 Channel and frequency tables ................36 - 3 - PTDT 9200...
-
Page 4: Safety Regulations And Notes
European Council from January 27, 2003 which addresses old electronic and electrical devices, such devices must be disposed of at a designated collection facility. At the end of its service life, please take your device to one of these public collection facilities for proper disposal. - 4 - PTDT 9200... -
Page 5: General Information
C o n t e n t s 1 Cassette PTDT 9200 2 HF cables 1 Brief assembly instructions... -
Page 6: Technical Data
Connection strip (10-pin): ....for supply voltages and control circuits RS-232 socket: ........serial interface for software update Remote maintenance Remotely controllable (via PSW 1000*): ..........yes Remote update (via BEflash*): ............. yes (* and a corresponding management unit) - 6 - PTDT 9200... -
Page 7: Description
"V 43" or higher. You can find the current op- erating software for the control unit and the cassette, the software "BE-Flash" and the current assembly instructions on the website "www.gss.de". The cassette is designed for use in head-end stations of the profi line. -
Page 8: How The Tps Module Works
The TPS module can adjust the "Network Information Table" (NIT) to accommodate the new station data. The "NIT" contains data which is required by the set-top boxes connected to the cable network for the automatic search feature. - 8 - PTDT 9200... -
Page 9: Assembly
• Insert the cassette in this slot and push it into the housing. • Align the cassette and apply slight pressure to connect it to the connections of the board and the HF bus bar. • Fasten the cassette with the screws 0° ACHTUNG! AUSGANG Vor dem Kassettenwechsel max. 90 dBµV unbedingt denNetzstecker ziehen. CAUTION! Before changing cassettes remove mains plug. Grundig SAT Systems - 9 - PTDT 9200... -
Page 10: Emc Regulations
Tighten the nuts of the cable terminals until the teeth on the lock washers put un- der have penetrated the exterior coating and a good connection is made between the housing / 19" cabinet and cable terminals. - 10 - PTDT 9200... -
Page 11: Cassette Overview
"BE-Flash". You can find the current operating software on the web- site "www.gss.de". o n n e C t i n g t h e C a s s e t t e • Connect the HF connections to the inputs "A" (tuner "A") and "B" (tuner "B"). • Connect the head-end station to the mains. - 11 - PTDT 9200... -
Page 12: The Control Panel At A Glance
The key pad on the head-end station is used to scroll through the menus step- by-step: scrolls forward through the menus. select parameters in the menus. set values, initiate actions. selects sub-menus. scrolls backward through the menus. saves all entries. - 12 - PTDT 9200... -
Page 13: Programming
Pa r at i o n • Test the software versions of the head-end station and the cassette and up- date them if necessary. The current software versions can be found on the website "www.gss.de". • Connect the test receiver to the HF output or the test output of the head-end station. - Page 14 / negative 4A/B COFDM-MODE ◀ ▶ C1/2 … C7/8 C7/8 G1/32 2 … 8k G1/4 … G 1/32 4A/B COFDM TPS ◀ ▶ 0x0000 … 0xFFFF CELL 0x0000 on / off - 14 - PTDT 9200 4A/B STUFFING 34363 (32502)
- Page 15 ◀ ▶ ◀ ▶ 0x0000 –> 0000 on / off Page 13 auf Werkseinstellung Bx 4 FACTORY Bx 4 FACTORY zurücksetzen und speichern ▶ reset to factory defaults Defaults => STORE => M and store - 15 - PTDT 9200...
-
Page 16: Programming The Cassette
• Select the cassette you want to programme (e.g. Box 4) by repeatedly press- ing the button if necessary. —> The display shows e.g. the menu "Box 4 DVBT-TPS": "Box 4" stands for slot 4 "DVBT-TPS" Type of cassette "V 19" Software version of the cassette - 16 - PTDT 9200... -
Page 17: Selecting The Channel Strip
"B" "DVBT-TPS" Type of cassette "858" adjusted frequency —> Button selects channel strip "A". —> Button selects the following cassette. • Press the button. —> The "Channel / frequency setting" – "OUTPUT" menu is activated. - 17 - PTDT 9200... -
Page 18: Channel / Frequency Setting
Additionally the modulator of the channel strip can be switched off or on (page 19). Bx 4A OUTPUT 850.00MHz • Use the buttons to place the cursor under the digit to be set for the frequency display then use to set the output frequency wished. - 18 - PTDT 9200... -
Page 19: Switching The Modulator Off Or On
• Select the other channel strip (page 17) and set the following menu items: • Select "Channel / frequency setting" (page 18). • Set the "Output channel" or "Output frequency" (page 18). • Switch on the modulator if necessary (page 19). • Measure and note down the output level. • Activate the "LEVEL" menu of the channel strip with the higher output level. • By pressing adjust the higher output level of the one channel strip - 19 - PTDT 9200... -
Page 20: Selecting The Tuner (Only Channel Strip B)
If "– –" appears in the second line of the display, there is no input signal present. Check the configuration of the antenna system and the head-end sta- tion as well as the preceding settings of the cassette. Bx 4A INPUT Bx 4A INPUT C66 (834.0) - 20 - PTDT 9200... - Page 21 Signal quality is good No signal The channel strip (modulator) is switched off Status LED Tuner A Status LED Tuner B • To return to the main menu press the button. • Press the button. —> The menu "Hierarchical modulation" – "INPUT Priority:" is acti- vated. - 21 - PTDT 9200...
-
Page 22: Hierarchical Modulation
As soon as the station filter is activated all sta- tions are inactive and can be added to the transport stream selectively. Bx 4A PROGRAM Bx 4A TV 01/10 Filter Das Erste - 22 - PTDT 9200... - Page 23 • To save changes and to activate the station filters press the button. —> The display shows "PROGRAM Filter on". —> If stations are activated the corresponding PIDs (audio, video, text) are inserted into the data stream and the PAT and SDT tables are updated. - 23 - PTDT 9200...
-
Page 24: Cofdm Parameters
16 QAM 14929 16588 17564 18096 16588 18431 19516 20107 17418 19353 20491 21112 14929 16588 17564 18096 19906 22118 23419 24128 64 QAM 22394 24882 26346 27144 24882 27647 29273 30160 26126 29029 30737 31668 - 24 - PTDT 9200... -
Page 25: Ptdt
16 QAM 11197 12441 13173 13572 12441 13824 14637 15080 13063 14515 15369 15834 11197 12441 13173 13572 14929 16588 17564 18096 16796 18662 19760 20358 64 QAM 18662 20735 21995 22620 19595 21772 23053 23751 - 25 - PTDT 9200... - Page 26 Used bandwidth [MHz] 5.71 5.71 5.71 Total symbol duration 373 336 317 308 767 672 634 616 1493 1344 1269 1232 [µs] Guard interval T [µs] 74.7 37.3 18.7 9.3 37.4 18.6 298.7 149.3 74.6 37.3 - 26 - PTDT 9200...
-
Page 27: Output Signal
"NEG". The default setting is "POS". • Use to place the cursor under "POS". • Use to set the spectral position to "NEG". • Press the button. —> The "Transmission parameters" – "COFDM-MODE" menu is activated. - 27 - PTDT 9200... -
Page 28: Transmission Parameters
In this menu item you set the relation of the duration of the user symbols to the duration of the guard intervals to be transmitted. A high guard interval, e.g. "G1/4" causes a low output data rate. For cable networks the setting "G1/32" is adequate. • Use the buttons to place the cursor under "G…". • Set the guard interval required using the buttons ("G1/4", "G1/8", "G1/16", "G1/32"). - 28 - PTDT 9200... -
Page 29: Transmitter Identification
"off" and switch "on" the trans- mitter identification using the buttons. —> By pressing the button you return to the hexadecimal number setting. • Press the button. —> The "STUFFING" menu is activated. - 29 - PTDT 9200... -
Page 30: Stuffing
In this case correct the COFDM settings (pages 27 …) or the settings of the station filter (page 8). Bx 4A STUFFING 34363 (36906) ?? • Press the button. —> The "Substitute signal in the case of an incorrect input signal" – "FAILURE" menu is activated. - 30 - PTDT 9200... -
Page 31: Substitute Signal In The Case Of An Incorrect Input Signal
"off" and switch "on" the trans- mitter identification using the buttons. —> By pressing the button you return to the hexadecimal number setting. • Press the button. —> The "Network Information Table" – " " menu is activated. - 31 - PTDT 9200... -
Page 32: Deleting A Pid
—> The NITs of the other …-COFDM cassettes will stay switched on. When the NIT of the cassette is switched on again ("on") by press- ing the button, the previously generated NIT is added again. If you have changed parameters in the meantime, you must first select "Make" to generate a new, up-to-date NIT. • Press the button. —> The "Deleting a PID" – "DROP" menu is activated. - 32 - PTDT 9200... -
Page 33: Renaming A Pid
PID ("–> 0000"). • Set the hexadecimal number using • Use the button to set the cursor to "off" and rename the PID using the buttons ("on"). • Press the button. —> The "Factory reset" – "FACTORY Defaults" menu is activated. - 33 - PTDT 9200... -
Page 34: Factory Reset
– Station filter is switched on. "N" – NIT is activated. —> By pressing the button, you will be returned to the menu item "Selecting the channel strip" without saving the programmed data (page 17). —> If necessary set channel strip "B". - 34 - PTDT 9200... -
Page 35: Final Procedures
• Securely tighten the cable connections using an appropriate open-ended spanner. • Measure the output levels of the other cassettes and tune them to a uniform output level using the appropriate level controls or software dependent on the head-end station used. Please regard the assembly instructions of the respective head-end station. • Mount the front cover (see assembly instructions of the head-end station). - 35 - PTDT 9200... -
Page 36: Channel And Frequency Tables
C 48 690.00 C 58 770.00 C 68 850.00 C 29 538.00 C 39 618.00 C 49 698.00 C 59 778.00 C 69 858.00 C 30 546.00 C 40 626.00 C 50 706.00 C 60 786.00 - 36 - PTDT 9200... -
Page 37: Ptdt
Declaration of CE conformity - 37 - PTDT 9200... - Page 38 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © GSS GmbH V19/07022011...
