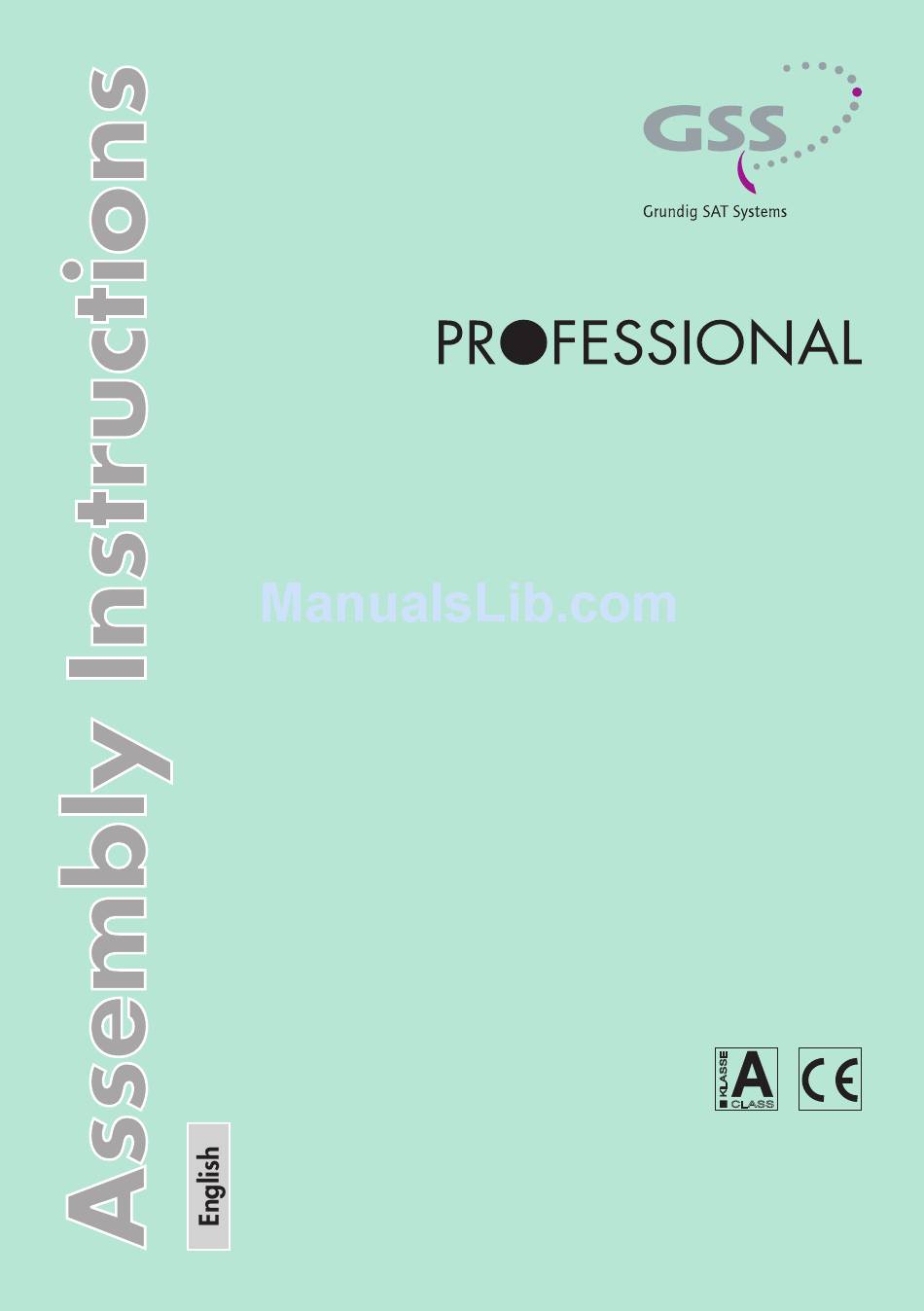

- Page 1 Encoder Digital QAM PEDQ 3005 QMX PEDQ 4005 QMX PEDQ 5005 QMX CLASS Phone: +49 (0) 911 / 703 8877 Fax: +49 (0) 911 / 703 9210 Grundig SAT Systems GmbH E-mail: info@gss.de Beuthener Strasse 43 Internet: http://www.gss.de D-90471 Nuremberg...
-
Page 2: Table Of Contents
Contents 1 Safety regulations and notes ................3 2 General information ..................4 2.1 Packing contents ................... 4 2.2 Meaning of the symbols used ..............4 2.3 Technical data ..................4 2.3 Description................... 5 2.3.1 Software versions ................. 6 2.3.2 TP module functions ................6 2.3.3 Explanation of the term "symbol rate"... -
Page 3: Safety Regulations And Notes
• Test the software versions of the head-end station and the cassette and update them if necessary. The current software versions can be found at "www.gss.de". Take action to prevent static discharge when working on the device! Electronic devices should never be disposed of in the household rubbish. In... -
Page 4: General Information
General information Packing contents 1 cassette PEDQ 3005 QMX or PEDQ 4005 QMX or PEDQ 5005 QMX 1 CD (assembly instructions) 1 Brief assembly instructions 1 Measuring log Meaning of the symbols used Important note —> General note • Performing works... -
Page 5: Description
Symbol rate: ............... 1 … 7 Msymb/sec Noise voltage ratio: ..............> 42 dB Output level: ................90 dBμV Output impedance: ............75 Ω, nominal PEDQ 3005 QMX Frequency range: ..........112 MHz … 306 MHz PEDQ 4005 QMX Channels: ................S21 … S41 Frequency range: ...........306 MHz …... -
Page 6: 2.3.1 Software Versions
9-pin SUB-D socket (RS 232) in the cassette ("BE Flash" software). You can find the current operating software of the cassettes on the website "www.gss.de". The cassettes are intended for use in the head end stations PSU 12, PSU 8 and PGT 8... -
Page 7: 2.3.3 Explanation Of The Term "Symbol Rate
Changing service information The transport stream contains data in the form of tables that the receivers evalu- ate and require for convenient use. The TP module can change the "Network Information Table" (NIT). The "NIT" contains data that is required by the set-top box for the automatic search feature. -
Page 8: Updating The Cassette Software
• Use an RS-232 cable to connect the PC / laptop to the RS-232 interface of the cassette and update its operating software with the "BE-Flash" software. You can find the current operating software of the cassettes on the website "www.gss.de". RS 232 • After programming, push the cassette cover from the back into the guides of the cassette and fasten it with the 3 screws... -
Page 9: Installation
Installation Installing the cassette Pull the mains plug of the head end station out of the mains socket before inserting or replacing any cassettes. • Remove the fastening screws of an unoccupied slot from the bracket of the head end station. • Insert the cassette in this slot and push it into the housing. • Align the cassette and apply slight pressure to connect it to the connections of the board and the HF bus bar. -
Page 10: Connecting The Cassette
Connecting the cassette To comply with the current EMC regulations, it is necessary to connect the lines leading in and out of the head end station (e.g. cinch, HF) using cable termi- nals. When mounting the cassette in a head end station which is installed in a 19" cabinet, make sure that the connections leading in and out (e.g. -
Page 11: The Control Panel At A Glance
The control panel at a glance Menu items Program the cassette using the buttons on the control unit of the head-end sta- tion. The two-line display of the control unit then shows the menus. The parameters and functions to be set are underlined. Use the key to select the following main menu items: –... -
Page 12: Programming
Programming The following examples show how the PEDQ 4005 QMX cassette is programmed; the output channels can be set from S21 to S41. The other cassettes that are listed are set in the same way. Preparation Notes: – In the "LEVEL" menu item, the cassette generates an equally powerful HF carrier on the video carrier frequency of the channel. In this way, the cas- sette's level can also be set using an analogue TV test receiver that is set to the video carrier frequency of the channel. -
Page 13: The Menus At A Glance
The menus at a glance Note: The parameters to be set are underlined (cursor). BE–Remote V 41 Ein / On please wait … t > 10 s Box 1 .......... Bx 1A TWIN-SAT Böx 4 TWIN-SAT Box 4 MULTIPLEX Box 5 .... - Page 14 Bx 4B NAME: ◀ ▶ PROGRAM B Bx 4C NAME: ◀ ▶ PROGRAM C HOTELMODE: Bx 4D NAME: ◀ ▶ “on“ PROGRAM D Bx 4A TV + 01/05 ◀ ▶ PROGRAM A Bx 4B TV + 01/01 ◀ ▶ PROGRAM B Bx 4C TV + 01/01 ◀...
-
Page 15: Programming The Cassette
read … AUDIO Box 4 QAM: ◀ ▶ normal Box 4 STUFFING: ◀ ▶ SR=6900 (2853) Box 4 NIT: => Make ▶ Programming the cassette Notes: – If the key is pressed for more than two seconds, this takes you back to "Selecting the cassette"... -
Page 16: Selecting The Cassette
Selecting the cassette • Press repeatedly to select the cassette to be programmed (Box …). Box … …… ……… …… Bx 1A TWIN-SAT Böx 4 TWIN-SAT Box 4 MULTIPLEX Box 5 ....C5-12,S3-24 C5-12,S3-24 S21-S41 ......• Press the key. —> The "Setting the output channel" – "OUTPUT:" menu is activated Setting the output channel Box 4 OUTPUT:... -
Page 17: Setting The Frequency Offset (Fine Tuning)
634.00 C 55 746.00 C 69 858.00 Frequency setting If the PEDQ 3005 QMX cassette is used, the "Frequency setting" menu is dis- played instead of the "Channel setting" menu. Bx 1 OUTPUT: 112.00 MHz The QAM signal is normally transmitted with a bandwidth of 8 MHz. That means that you can only use the mean channel frequency of the existing chan- nel raster in the range of channels S21 …... -
Page 18: Querying Software Versions
… starting with the upper output frequency of the cassette specified in the technical data, or … to go up in steps of 8 MHz starting with the lower output frequency of the cassette specified in the technical data. • With PEDQ 3005 QMX, use to place the cursor under the digit of the frequency indication to be set and use to set the output fre- quency. -
Page 19: Adapting The Output Level
Adapting the output level This setting is not essential for these cassettes. Under this menu item, the "control" setting is used to set a digital carrier to the analogue video carrier frequency of the output channel. This makes it possible to measure the absolute output level of these cassettes with an analogue test receiver. -
Page 20: Setting Hotel Mode
• Use to make a selection between the automatic ("auto") and manual ("man") assignment of the TS/ORGNET identification. • With the "man" setting (manual), use to position the cursor under the part of the identification number (ID) to be set and use to enter the desired ID. -
Page 21: Naming Channel Strips
Naming channel strips You can use this menu to give the channel strips suitable 16-digit names. To do this, you may use numbers, capitals, small letters and special characters. Bx 4A NAME: PROGRAM A Bx 4B NAME: PROGRAM B Bx 4C NAME: PROGRAM C Bx 4D NAME: PROGRAM D • Use to position the cursor under the place to be set and use to activate the desired character. -
Page 22: Setting The Station Filter
Setting the station filter – If no channel-related input signal is found, "FILTER: no Service" appears in the display. In this case, check the configuration of the system. – Every input signal that is added via channel strip "A", "B", "C" or "D" in- creases the output symbol rate. If you add too many complex signals to the new data stream, the symbol rate rises to above 100%. This can result in interference to the transmission of the video and audio signals. -
Page 23: Reading Out The Station Filter
• Use to call the stations to be activated / deactivated one after the other and use to switch them on (" + ") or off (" – "). • Use to activate the other channel strips ("B", "C", "D") one after the other and use as required to select stations and use to switch... -
Page 24: Setting The Qam Modulation
—> As soon as the read operation is completed, the "Setting the QAM modu- lation" – "QAM:" menu appears. Setting the QAM modulation Note: Pressing in the "QAM:" menu takes you back to the beginning of the "Setting the station filter" chapter. The "Set the station filter" operation may be repeated (not possible with the hotel mode is switched on). Box 4 QAM: normal... -
Page 25: Setting Stuffing
Setting stuffing Bx 4 STUFFING: SR=6900 (2853) Number 1 Number 2 SR=6900 (= "number 1"): Active output symbol rate (2853) (= "number 2"): The current, measured output symbol rate. If the station filters are activated, this value will be less than the value of "number 1". The value will fluctuate, as the data rate depends on the supplied signals. • Use to position the cursor under the digit to be set for "number 1", then use to set the symbol rate. -
Page 26: Network Information Table (Nit)
Network Information Table (NIT) Box 4 NIT: => Make • To switch NIT on/off ("on"/"off"): press • Press to activate "Make". —> All QAM cassettes must be set and ready for reception! —> The NITs of all QAM cassettes are switched on. —> The cassette gets all the information it needs (output frequencies, output symbol rates etc.) to generate the cable NIT from all the QAM cassettes. -
Page 27: Saving Settings
Saving settings • Press —> The "new" settings are saved. —> Return to "Selecting the cassette" (page 16). —> If the NIT function of the TP module is activated, its status is shown in the second line of the display: "NIT" – cable NIT is switched on Note: Pressing takes you back to "Setting the output channel" (page 16) without saving your settings. - Page 28 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS GmbH V3/06042010...
