Summary of Contents for GSS PTIS

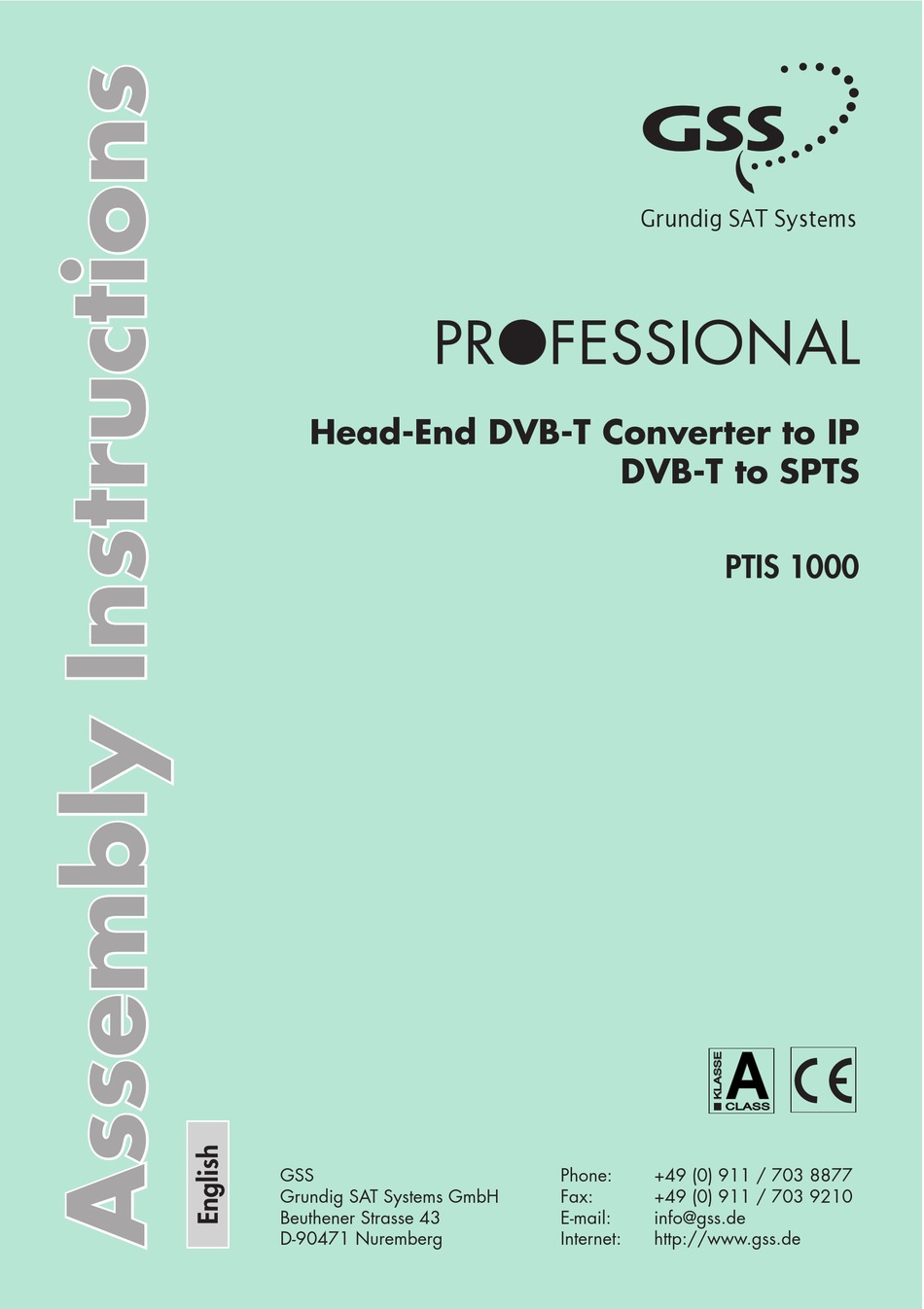

- Page 1 Grundig SAT Syst ms Head-End DVB-T Converter to IP DVB-T to SPTS PTIS 1000 C LASS CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Strasse 43 E-mail: info@gss.de...
-
Page 2: Table Of Contents
Contents 1 Safety regulations and notes ..................4 2 General information ....................5 2.1 Packing contents ..................5 2.2 Meaning of the symbols used ................5 2.3 Technical data .....................5 2.4 Description ....................6 2.5 Software query ....................7 3 Assembly .........................8 3.1 Installing the cassette ..................8 3.2 EMC regulations ..................8 3.3 Overview of the cassette ................9 3.4 Connecting the cassette ................10... - Page 3 Allocating services manually ...............28 Selecting the sound options of the service .............29 Switching DVB service information on or off ..........30 Copying the settings to all IP addresses ............30 Displaying the output data rate ..............31 Saving settings ..................31 5.2.1 Operation with a CA module ............31 Setting the operating voltage for the CA module .........31 Setting the PID monitoring ..............32 Configuring the CA module ..............33...
-
Page 4: Safety Regulations And Notes
• Test the software versions of the head-end station and the cassette and update them if necessary. The current software versions can be found at ”www.gss.de”. • For further information please read the assembly instructions for the head-end station used. -
Page 5: General Information
General information 2.1 Packing contents 1 Cassette PTIS 1000 2 HF cables 1 CD (assembly instructions) 1 Brief assembly instructions 1 Measuring log 2.2 Meaning of the symbols used Important note —> General note • Performing works 2.3 Technical data... -
Page 6: Description
Level (input / output): 800 mV ± 10% Return loss (input): > 17 dB (5 … 270 MHz Connections HF inputs: 2 IEC sockets HF loop-through outputs: 2 IEC sockets HF output: 1 IEC socket (no function) LAN: 1 RJ 45 socket ASI input: 1 BNC socket ASI output:... -
Page 7: Software Query
“V 41” or higher. You can find the current operating software for the control unit and the cassette, the required update software “BE-Flash” and the current assembly instructions on the website “www.gss.de”. The cassette is designed for use in the following head-end stations: –... -
Page 8: Assembly
Assembly 3.1 Installing the cassette – Ensure the head-end station is mounted so it will not be able to vibrate. Avoid, for example, mounting the head-end station onto a lift shaft or any other wall or floor construction that vibrates in a similar way. –... -
Page 9: Overview Of The Cassette
• Insert the required number of cable terminals in the openings provided in the head-end station or in the 19” cabinet. —> Cable terminals are not included in the scope of delivery. Tighten the nuts of the cable terminals until the teeth on the lock washers put under have penetrated the exterior coating and a good connection is made between the housing / 19”... -
Page 10: Connecting The Cassette
“BE-Flash” software to update the software of the cassette. You can find the “BE-Flash” software and the current operating software of the cassette at the website ”www.gss.de”. • Use a “one-to-one cable” to connect the cassette’s RS 232 interface and the PC according to the wiring scheme below. -
Page 11: Retrofitting A Ca Module
3.6 Retrofitting a CA module The cassette is equipped with a common interface. It allows you to connect a CA module for various encryption systems and service providers. Encoded serv- ices can only be decoded with a CA module suitable for the encoding system and the corresponding smart card. -
Page 12: The Control Panel At A Glance
The control panel at a glance 4.1 Menu items Program the cassette using the buttons on the control unit of the head-end station. The two-line display of the control unit then shows the menus. The parameters and functions to be set are underlined. Use the button to select the following main menu items: –... -
Page 13: Programming
Programming 5.1 Programming procedure 5.1.1 Channel strips “Tuner A” (without CA module) and “Tuner B” Ein / On BE–Remote V 41 PROFESSIONAL t > 10 s Box 1 …… ……… …… Box 4 DVBT-SPTS Box 5 …… V 11 – – – ………... - Page 14 Bx 4A INPUT Priority: high high / low page 15 Kanalzug “Tuner A” ohne CA-Modul, Kanalzug “Tuner A” mit CA-Modul Kanalzug “Tuner B” / Channel strip “Tuner A“ with Channel strip “Tuner A“ without CA CA module module, Channel strip “Tuner B“ Bx 4 IP-OUT 1 IP 1...
-
Page 15: Channel Strip "Tuner A" With Ca Module
5.1.2 Channel strip “Tuner A” with CA module page 14 Bx 4A 3.3 V / 5.0 V Supply 5.0 V Bx 4A on / off PID Check Bx 4A Menu <= => Edit X / 0 Bx 4A 01/03 MENU Bx 4A TV 04/09 X –... -
Page 16: Programming The Cassette
5.2 Programming the cassette —> Pressing the button for longer than 2 seconds cancels the pro- gramming procedure. This takes you back to the program item “Selecting the cassette” from any menu. Any entries that have not been saved are reset to the previous settings. -
Page 17: Setting The Ethernet Parameters
• Press the button. —> The “Setting the Ethernet parameters” – “ETHERNET” menu is activated. Setting the Ethernet parameters In this menu you specify whether the Ethernet parameters for the cassette are entered automatically by a connected server (“DHCP”), or whether you want to enter them manually (“stat”). -
Page 18: Setting The Address Range
Bx 4 Bx 4 ETHERNET ETHERNET Bx 4 IP-ADDR stat stat => => Options Options 192.168. 0.128 stat / DHCP stat / DHCP • Use the buttons to place the cursor under the digit ◀ ▶ of the IP address displayed to be set and use to set the IP address wished. -
Page 19: Setting The Address Of The Gateway
Setting the address of the gateway The address of a gateway (server) can be set in this menu. If no gateway is used you can skip this setting. Bx 4 IP-GATEWAY 192.168. • Use the buttons to place the cursor under the digit ◀... -
Page 20: Selecting The Input Transport Stream
Selecting the input transport stream In this menu you select the signal source for the selection of the services. The transport streams to be processed are pro- vided by ”Tuner A”, ”Tuner B” and the ASI interface ”ASI”. Frequenz / Feinabstim Tuner A Tuner A Bx 4... - Page 21 Frequenz / Feinabstim Tuner A Bx 4 Bx 4 INPUT INPUT Bx 4A INPUT Frequency / Fine tunin Tuner A / Tuner A / Tuner A Tuner A => => C30 (546.0) Tuner B C5…C12, C21…C69 Tuner B / Tuner B / -64…+64 •...
-
Page 22: Setting The Hierarchical Modulation
Setting the hierarchical modulation In order to attain with less field strength a greater range for broadcasters, with DVB-T so-called “hierarchical modulation” is used. In this process, several data streams are modulated onto a DVB-T data stream using “Quadrature Amplitude Modulation”... -
Page 23: Allocating The Ip Addresses
• Press the button. —> The “Allocating the IP addresses” – “IP-OUT 1” menu is activated. Allocating the IP addresses In this menu up to 16 services that are contained in the data streams of the input source signals (“Tuner A”, “Tuner B”, “ASI”) can be accessed. -
Page 24: Switching The Ip Address Off Or On
Switching the IP address off or on Selecting the transmission protocol Setting the port number In this menu you can switch off the IP address displayed, and define the transmission protocol and the port number. Bx 4 Bx 4 IP-OUT 1 IP-OUT 1 IP 1 MODE / PORT... -
Page 25: Copying The Settings To All Ip Addresses
Setting the port number • Press the button to position the cursor under the port ▶ number e.g. ” 1234”. • Use the buttons to position the cursor under the ◀ ▶ digit of the port number displayed to be set. •... -
Page 26: Copying The Settings To All Ip Addresses
Defining the quantity of data packets • Using the buttons define the quantity of MPEG data packets in one IP data packet (”1” … ”7”). Setting the forward error correction • Press the button to position the cursor under ”off” . ▶... -
Page 27: Setting Ip Addresses For Services
Setting IP addresses for services In this menu you set the IP address for the IP output selected. The software allows to allocate IP addresses to 16 services automatically in ascending order after setting the IP address. IP 1 OUT-IP 227. -
Page 28: Allocating Services Manually
Allocating services manually In this menu all services supplied via “Tuner A”, “Tuner B” and “ASI” can be displayed and each service is assigned a set IP address in the “OUT-IP” menu. The service can be ac- cessed in the connected network using the given IP addresses for this output in the “OUT-IP”... -
Page 29: Selecting The Sound Options Of The Service
If the service selected is already allocated to an IP address, in the first line of the display an exclamation mark ” ! ” ap- pears beside the type of the service. IP 1 TV ! 001/016 Das Erste If no service is found the display shows “– – –”. In this case check the configuration of the antenna system including the head-end station and the previous settings of the cassette as well as the components connected to the ASI input. -
Page 30: Switching Dvb Service Information On Or Off
Switching DVB service information on or off In this menu the transmission of the DVB service information (EIT – Event Information Table, TDT – Time Date Table, TXT – Teletext, SDT – Service Description Table) can be activated or deactivated. EIT / eit, TDT / tdt, Bx 4 OPTIONS... -
Page 31: Displaying The Output Data Rate
Displaying the output data rate In this menu the current data rate is displayed. Bx 4 DATARATE 72.956 Mbps Saving settings • Press the button. —> The settings are saved. —> You will be returned to the “Selecting the cassette” menu item via connection (page 16). -
Page 32: Setting The Pid Monitoring
• Use the buttons to set the operating voltage for the CA module (”3.3 V“ / ”5.0 V“). • Press the button. —> The “Setting the PID monitoring” – “CA” menu is acti- vated. Setting the PID monitoring The factory default of the PID monitoring is switched on. If particular PIDs are not decrypted the CI module is reset. -
Page 33: Configuring The Ca Module
Configuring the CA module The menu varies according to which CA module you are using. For this reason, please refer to the operating manual of your particular CA module. The relevant information is shown in the display of the head-end station. This may ap- pear as a fixed display or as scrolling text according to dis- play capabilities. -
Page 34: Decoding Services
• Use the buttons to activate the menu desired. • Press the button to activate the menu. ▶ • Use the buttons to select the function desired. • To set the CA module use the buttons. ◀ ▶ • All settings are saved by pressing the button. -
Page 35: Final Procedures
Further possible terms displayed: “RA” – ”Radio” (type of the service) “0” – The currently selected service is encrypted. • Use the buttons to call up the services in sequential ◀ ▶ order which are to be decoded, then use to decrypt (“X”) or not to decrypt them (“0”). - Page 36 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © GSS GmbH 24102009...
