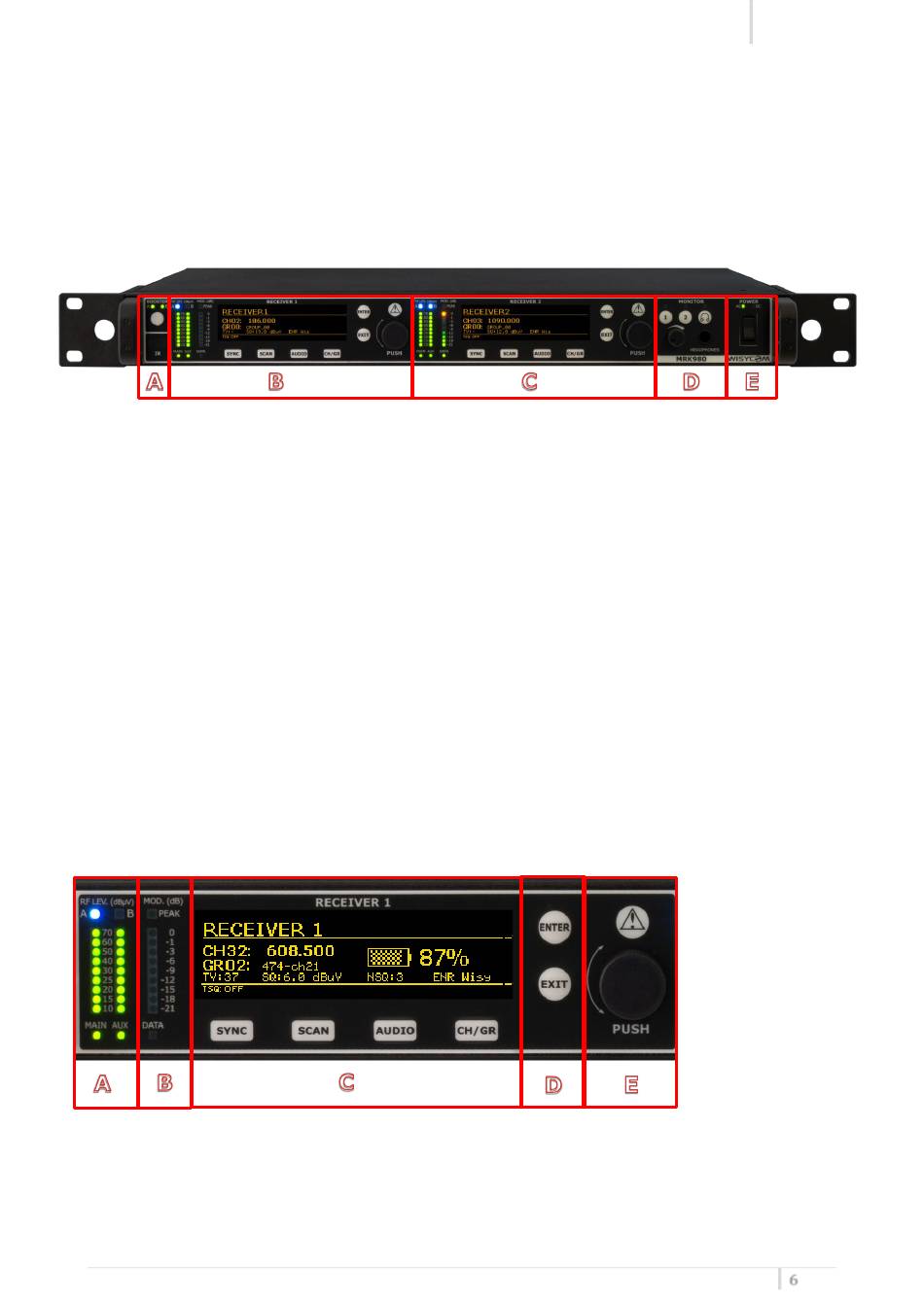

FRONT PANEL
MRK980 allows an easy and quick configuration using buttons, push knobs and
displays.
The front panel is functionally divided in the following section:
A – ANTENNA BOOSTER and INFRARED PORT: ON/OFF booster button
for A&B antennas and IRDA port.
B – RECEIVER 1 CONFIGURATION: display, menu and shortcut buttons.
C – RECEIVER 2 CONFIGURATION: display, menu and shortcut buttons.
D – MONITORING AREA: monitoring audio output on headphone jack
(6.3mm - ¼")
E –
RECEIVER POWER SWITCH: turn the receiver ON/OFF.NOTE: the devices takes 5
secs to turn OFF for safety reasons (e.g. accidental turn OFF)
RECEIVER 1 and RECEIVER 2
AREA A: RF Bars, MAIN and AUX LED indicates what output port is currently in use.
AREA B: Modulation bar and DATA led which indicates the Ethernet connection status
(ON/OFF)
