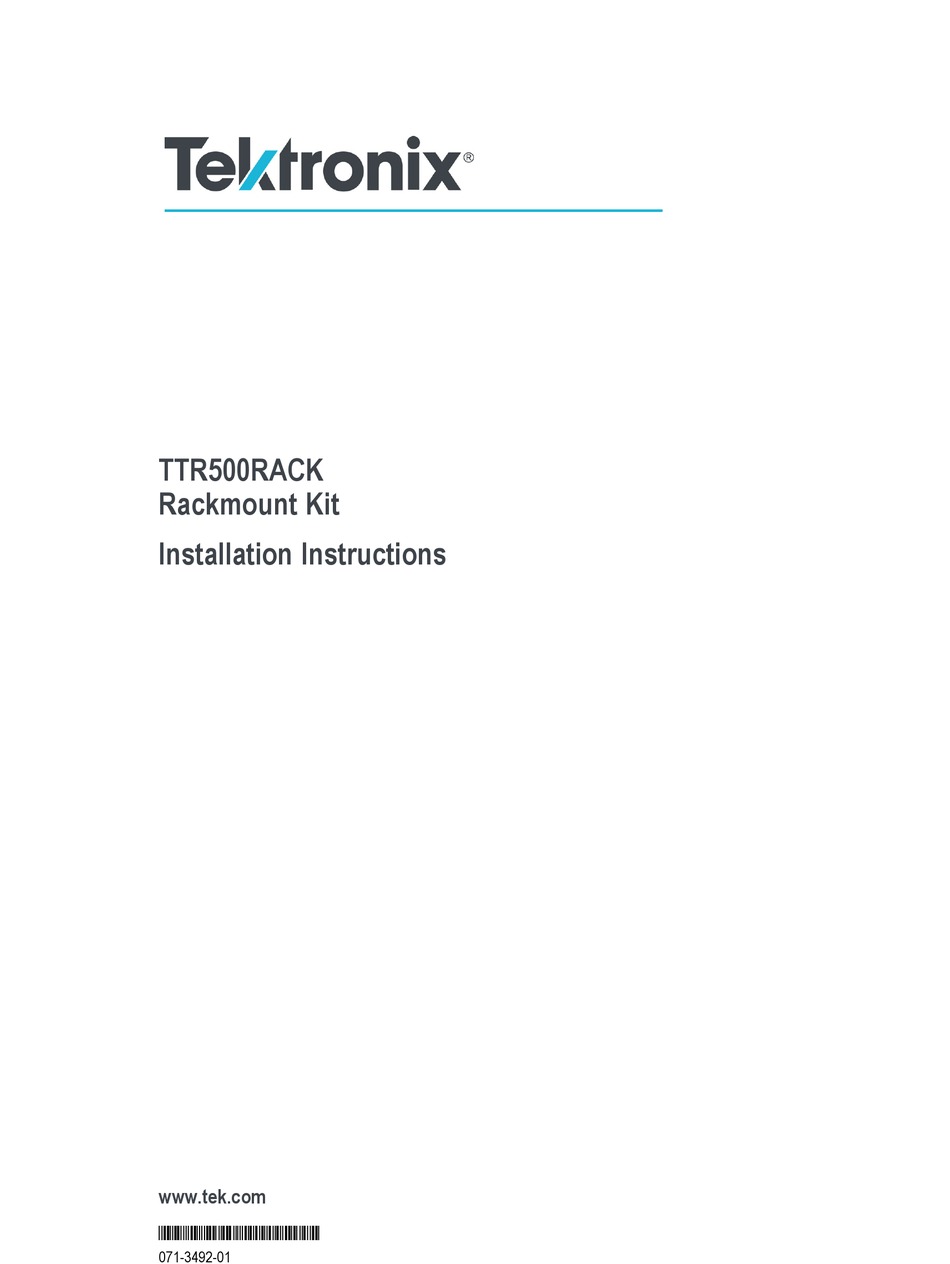

- Page 1 TTR500RACK Rackmount Kit Installation Instructions www.tek.com *P071349201* 071-3492-01...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
- Page 3 Gently pull the product out when removing. Use only with specified products. Do not use rackmount on products for which it was not intended. Refer to individual product manuals for details or contact Tektronix Customer Service when in doubt. TTR500RACK Rackmount Kit Installation...
- Page 4 Kit description Kit description The rackmount kit is a collection of parts that, once installed, holds one or two Tektronix TTR500 Vector Network Analyzers, for mounting onto a standard 19-inch equipment rack. To complete the installation, you need Phillips #2 screwdriver...
- Page 5 Kit description TTR500RACK Rackmount Kit Installation...
- Page 6 7. Use the M3 L6 Torx T10 screws (12) to attach the TTR500 instrument to the main bracket assembly (1). The rackmount kit can support up to two TTR500 instruments. 8. Secure the main bracket assembly to the rack frame using #10–32x5/8 Phillips screws (7). TTR500RACK Rackmount Kit Installation...
