Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-833-9200
tek.com/keithley

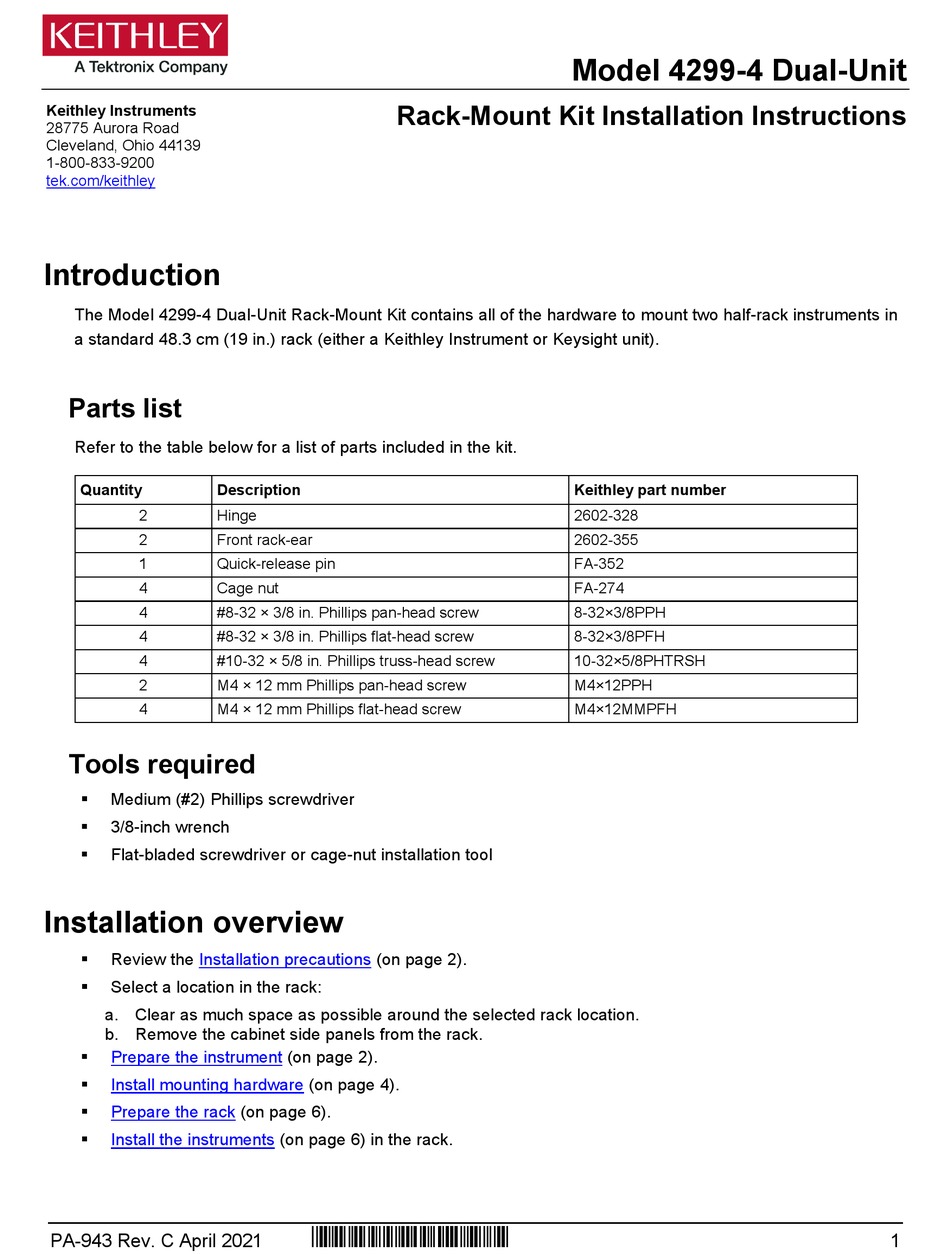

Introduction
The Model 4299-4 Dual-Unit Rack-Mount Kit contains all of the hardware to mount two half-rack instruments in
a standard 48.3 cm (19 in.) rack (either a Keithley Instrument or Keysight unit).
Parts list
Refer to the table below for a list of parts included in the kit.
Quantity
Description
2
Hinge
2
Front rack-ear
1
Quick-release pin
4
Cage nut
4
#8-32 × 3/8 in. Phillips pan-head screw
4
#8-32 × 3/8 in. Phillips flat-head screw
4
#10-32 × 5/8 in. Phillips truss-head screw
2
M4 × 12 mm Phillips pan-head screw
4
M4 × 12 mm Phillips flat-head screw
Tools required
Medium (#2) Phillips screwdriver
3/8-inch wrench
Flat-bladed screwdriver or cage-nut installation tool
Installation overview
Review the
Installation precautions
Select a location in the rack:
a. Clear as much space as possible around the selected rack location.
b. Remove the cabinet side panels from the rack.
Prepare the instrument
Install mounting hardware
Prepare the rack
Install the instruments
PA-943 Rev. C April 2021
Rack-Mount Kit Installation Instructions
(on page 2).
(on page 2).
(on page 4).
(on page 6).
(on page 6) in the rack.
*PPA-943C*
Model 4299-4 Dual-Unit
Keithley part number
2602-328
2602-355
FA-352
FA-274
8-32×3/8PPH
8-32×3/8PFH
10-32×5/8PHTRSH
M4×12PPH
M4×12MMPFH
1
Advertisement
Table of Contents
Related Manuals for Tektronix Keithley 4299-4
Summary of Contents for Tektronix Keithley 4299-4
- Page 1 Model 4299-4 Dual-Unit Rack-Mount Kit Installation Instructions Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Introduction The Model 4299-4 Dual-Unit Rack-Mount Kit contains all of the hardware to mount two half-rack instruments in a standard 48.3 cm (19 in.) rack (either a Keithley Instrument or Keysight unit). Parts list Refer to the table below for a list of parts included in the kit.
-
Page 2: Installation Precautions
Model 4299-4 Dual-Unit Rack-Mount Kit Installation Instructions Installation precautions Observe the following safety precautions while installing instruments. Turn off instrument power and unplug all cables before installing an instrument in a rack. Failure to remove power before installation may cause personal injury or death from electrical shock. - Page 3 Model 4299-4 Dual-Unit Rack-Mount Kit Installation Instructions 2. After you align the arrows (2), pull the ends of the handle (1) away from the case. 3. Remove the screw that secures each mounting ear (3). 4. Pull down and out to remove each ear. Figure 2: Mounting ear removal 5.
-
Page 4: Install Mounting Hardware
Model 4299-4 Dual-Unit Rack-Mount Kit Installation Instructions Install mounting hardware Install the mounting hardware on the opposite sides of each instrument, as shown in the following figures. To install the mounting hardware on the instruments: 1. Place the instruments side-by-side, in the same position that they will be installed in the rack. 2. - Page 5 Model 4299-4 Dual-Unit Rack-Mount Kit Installation Instructions 3. Secure a hinge (2602-328) to both instruments using two Phillips flat-head screws (#8-32 × 3/8 PFH) on each, and make sure the knuckle of the hinge is facing the front of the instruments, as shown in the following figure.
-
Page 6: Prepare The Rack
Model 4299-4 Dual-Unit Rack-Mount Kit Installation Instructions Prepare the rack Install the cage nuts (FA-274) into the front-rack holes for the front rack-ears in the rails. The rack holes selected determine the placement of the instrument in the rack. Cage nuts for the front rack-ears should be installed into the rails at the same hole spacing (vertical height). - Page 7 Model 4299-4 Dual-Unit Rack-Mount Kit Installation Instructions To install the instruments: 1. While supporting the instruments, slide the instruments into the rack and align them to the front rack rails. 2. Secure the instruments in the rack with four Phillips truss-head screws (#10-32 × 5/8 PHTRSH), as shown in the following figure.
-
Page 8: Safety Precautions
Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury. - Page 9 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. The CAUTION heading with the symbol in the user documentation explains hazards that could result in moderate or minor injury or damage the instrument. Always read the associated information very carefully before performing the indicated procedure.
