TG-AM2C20108

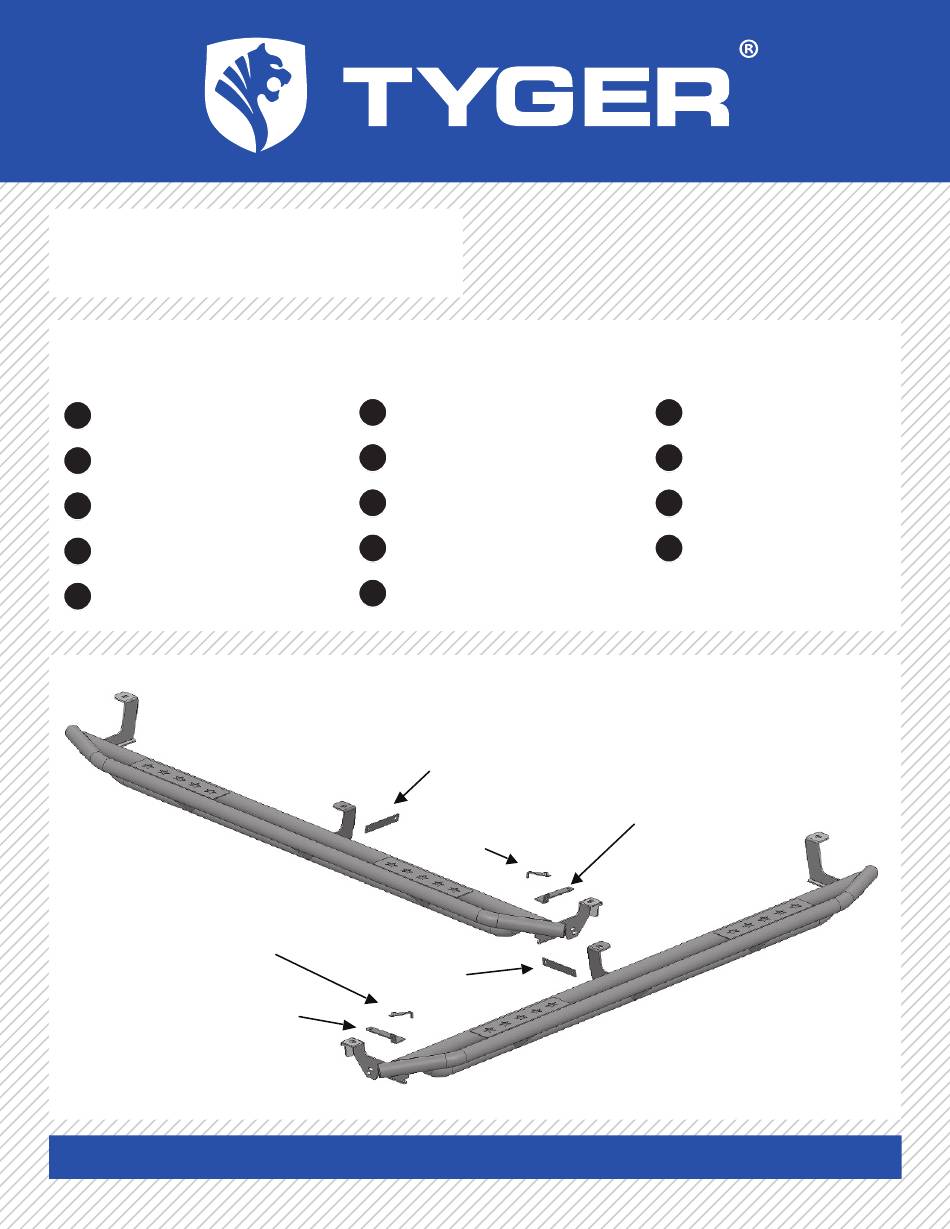

Parts List
Driver Side Armor
x1
Passenger Side Armor
x1
Driver/Left Front Support Bracket
x1
Passenger/Right Front Support Bracket
x1
Center Support Brackets
x2
10mm Nut Plate
Driver Side Front
Support Bracket
12-1.75mm x 30mm Hex Bolts
x2
12mm x 32mm x 3mm Flat Washers
x4
12mm Lock Washers
x2
12mm Hex Nuts
x2
10mm x 20mm OD x 2mm Flat Washers
x10
Center Support
Bracket
10mm Nut Plate
Center Support
Bracket
Customer Support: www.TygerAuto.com/Contact
1/5
TM
Customer Support 1-866-340-3038
STAR ARMOR
10-1.50mm x 30mm Hex Bolts
x6
10mm Lock Washers
x6
10mm Hex Nuts
x4
10mm Nut Plates
x2
Passenger Side
Front Support Bracket
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tyger STAR ARMOR TG-AM2C20108
Summary of Contents for Tyger STAR ARMOR TG-AM2C20108
- Page 1 Customer Support 1-866-340-3038 STAR ARMOR ® TG-AM2C20108 Parts List 12-1.75mm x 30mm Hex Bolts 10-1.50mm x 30mm Hex Bolts Driver Side Armor 12mm x 32mm x 3mm Flat Washers 10mm Lock Washers Passenger Side Armor 12mm Lock Washers 10mm Hex Nuts Driver/Left Front Support Bracket 12mm Hex Nuts 10mm Nut Plates...
- Page 2 Before Installation STEP 2 REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRES ENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS HIGHLY RECOMMENDED. Carefully unpack the Side Armor and select the passenger side assembly. With assistance, hold the Side Armor up in place against the bottom of the body mounts.
- Page 3 STEP 3 STEP 4 IMPORTANT: 2011-16 25-3500 models, skip to Step 8, Select the passenger side front Support Bracket, (Figure 6). front and center Support Brackets are not required. All Attach the at end of the Support Bracket to the Nut Plate with other models, continue to Step 3.
- Page 4 Support Bracket to the Nut Plate in the frame. Carefully push up STEP 6 on the Support Bracket until it reaches the lower slot, (Figures 8 & 9). Attach the Support Bracket to the back of the Mounting Bracket with (1) 10mm x 30mm Hex Bolt, (2) 10mm Flat Wash- Move to the Center Mounting Bracket.
- Page 5 STEP 7 STEP 8 Attach the opposite end of the Support Bracket to either slot in Level and adjust the Side Armor and tighten all hardware. the Center Bracket with (1) 10mm x 30mm Hex Bolt, (2) 10mm Flat Washers, (1) 10mm Lock Washer and (1) 10mm Hex Nut, (Figure 10 &...
