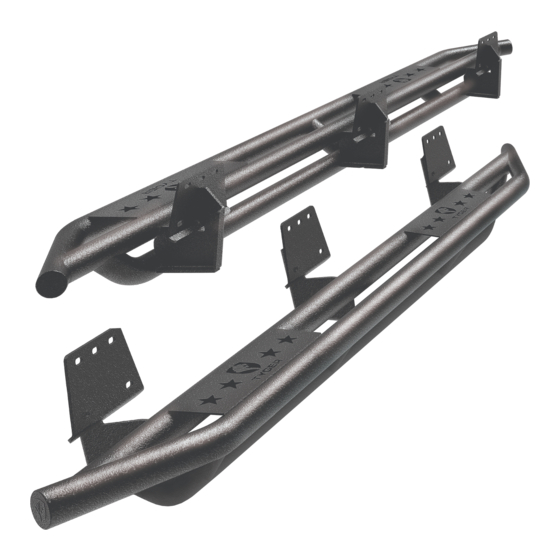

STAR ARMOR
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT.
RECOMMENDED.
FAILURE TO IDENTIFY DAMAGE BEFORE INSTALLATION COULD
LEAD TO A REJECTION OF ANY CLAIM. IF ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. PLEASE ALSO SEND THE PICTURES, ORDER
NUMBER, AND DETAILS OF THE ISSUE TO
Torque Value
Fastener
Class 8.8 Tightening
Size
Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger/right Side
Armor Assembly
®
SUPPORT@TYGERAUTO.COM
Class10.9 Tightening
Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
Customer Support: www.TygerAuto.com/Contact
ASSISTANCE IS
.
6-7
22-23
44-45
78-79
125-126
Front
1/4
TG-AM2D20608
NOTE: Assistance is recommended for installa-
tion.
Parts List
Driver/left side TYGER Armor
x1
Passenger/right side TYGER Armor
x1
8mm x 24mm x 2mm Flat Washers
x18
8-1.25mm Nylon Lock Nuts
x18
Driver/Left Side
Armor Assembly
V200916
Advertisement
Table of Contents
Related Manuals for Tyger STAR ARMOR TG-AM2D20608
Summary of Contents for Tyger STAR ARMOR TG-AM2D20608

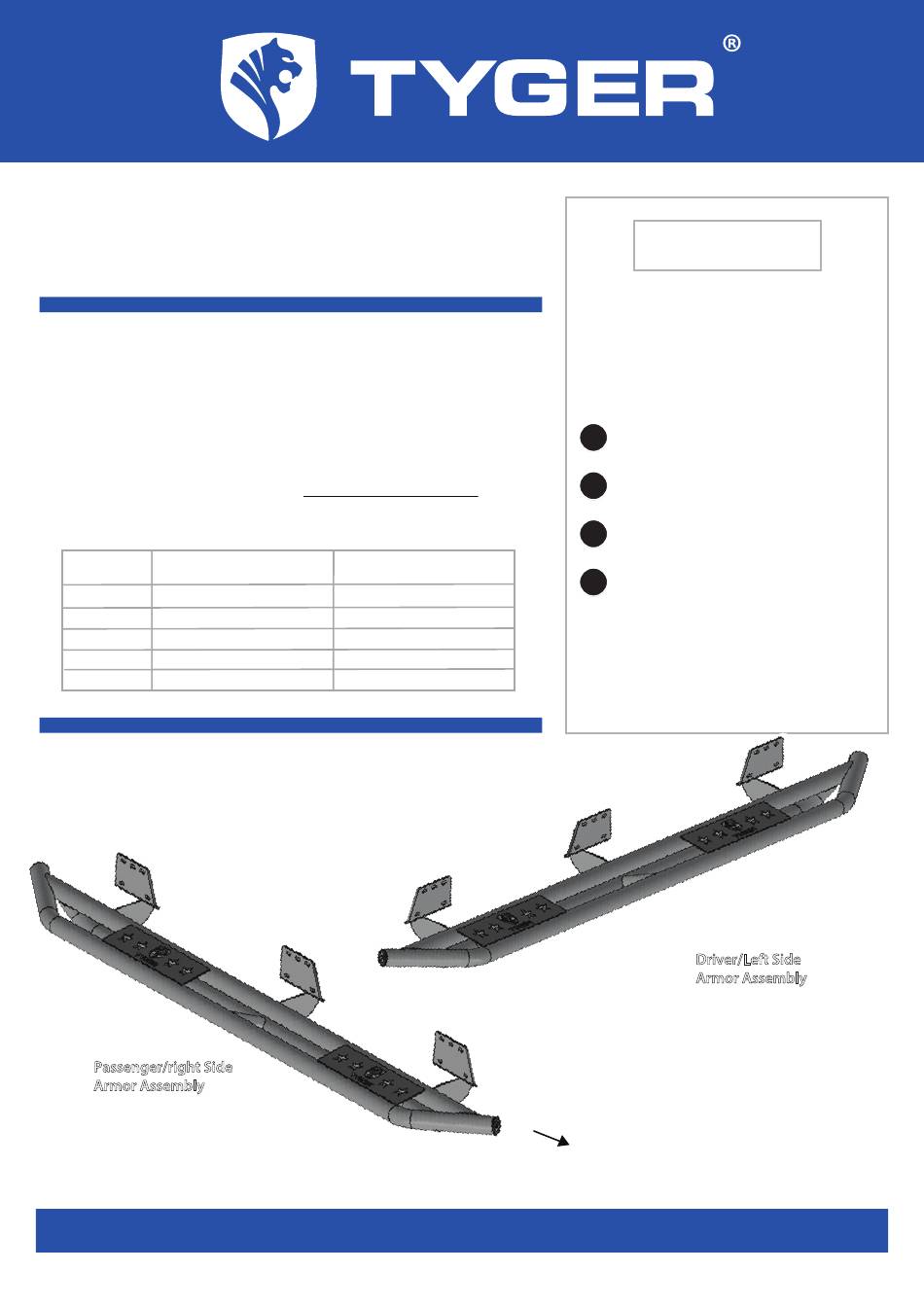

- Page 1 ASSISTANCE IS RECOMMENDED. FAILURE TO IDENTIFY DAMAGE BEFORE INSTALLATION COULD Driver/left side TYGER Armor LEAD TO A REJECTION OF ANY CLAIM. IF ANY DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE CLAIM PURPOSE. PLEASE ALSO SEND THE PICTURES, ORDER Passenger/right side TYGER Armor SUPPORT@TYGERAUTO.COM...
