3

Operation

In the main menu you can enter the next bib and confirm with ENTER.
3.1

Menu

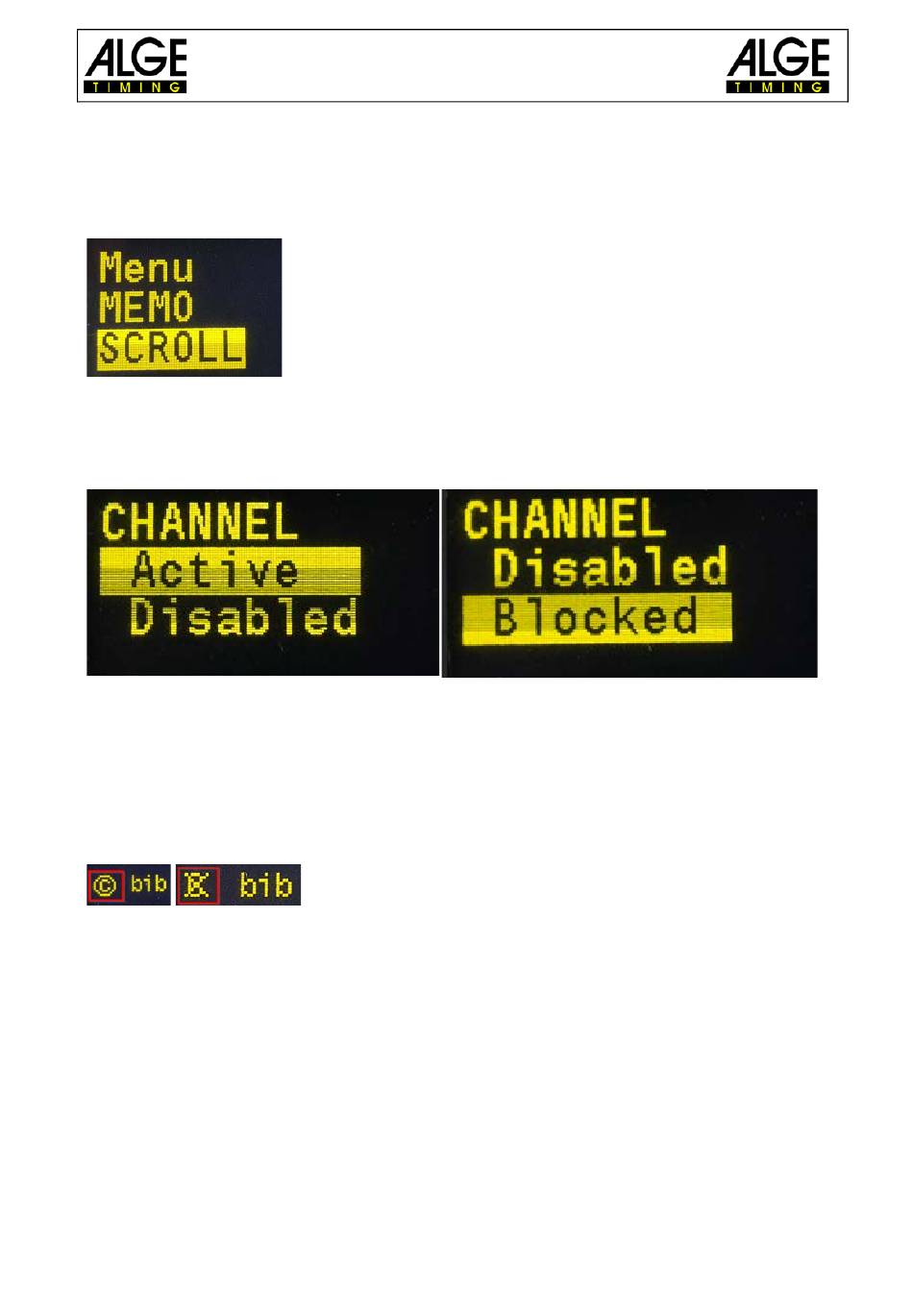

With the ESC button, you open the selection menu. Pressing ESC once again, you return to
the main screen. Use the arrow buttons ('2' for scroll up, '8' for scroll down) to choose the
menu. Press enter to confirm the selection.
3.1.1

Channel blocking

First menu item is the channel menu. In this menu, you can set the timing channels "Active",
"Disabled" and "Blocked". If a timing channel is "Disabled", no time is stored. That is used dur-
ing breaks to avoid unnecessary data transmission. Use "Blocked" during the event when you
are not sure if the next pulse is valid or not. Use "Active" for normal operation. You can navi-
gate with the arrow buttons. To react very fast, this setting is immediately active. You do not
have to confirm. You can return to the main menu with the ESC or ENTER button.
At the main screen, you can see the current state in the left lower corner. A blinking circle
around the C is shown if channels are blocked. It is crossed out if the channels are disabled,
and it does not blink during normal operation.
3.1.2

Permanent trigger

If a timing channel is permanently triggered, the channel display starts to flash after 5 seconds.
That would be the case, for example, if the photocell is misaligned.
