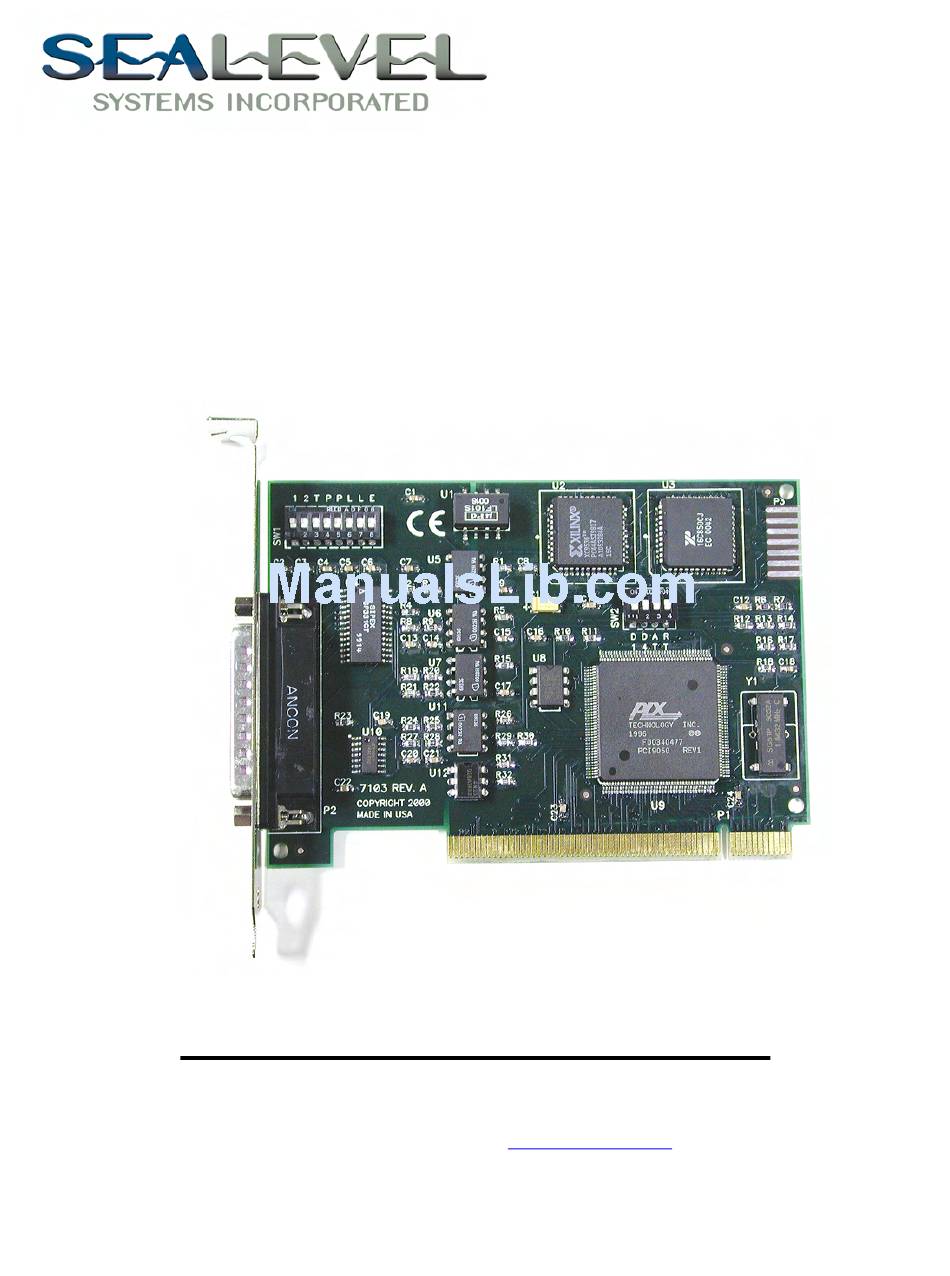

- Page 1 ULTRA COMM+I.PCI™ USER MANUAL Part #3055 Sealevel Systems, Inc. Telephone: (864) 843-4343 PO Box 830 Fax: (864) 843-3067 Liberty, SC 29657 USA www.sealevel.com...
-
Page 2: Table Of Contents
Contents ................ 1 NTRODUCTION ..................1 VERVIEW ’ .................1 NCLUDED ............1 ACTORY EFAULT ETTINGS ................2 ETUP ..........2 LECTRICAL NTERFACE ELECTION ................3 ERMINATION RS-485 E ..............4 NABLE ODES RS-485 E ..............4 NABLE ODES ................5 LOCK ODES ‘D 1’ .......6 ATES AND IVISORS FOR THE MODE ................. - Page 3 Figure 6 - RS-485 Enable modes...............4 Figure 7 - Clocking Modes ................5 Figure 8 – ISO COMM +2 cabling example ..........15 Figure 9 - Asynchronous Communications Bit Diagram......16 © Sealevel Systems, Inc. SL9161 Revision 7/2006 Sealevel Systems, Incorporated. All rights reserved.
-
Page 4: Introduction
Introduction Introduction Overview The Sealevel Systems ULTRA COMM+I.PCI is a single channel isolated PCI Bus serial I/O adapter for the PC and compatibles. Utilizing the Exar 16C850 UART with its industry leading 128 byte FIFOs, it provides a field selectable RS-232/422/485 serial port supporting data rates up to 460.8K bps... -
Page 5: Card Setup
Figure 3 - RS-485, 4-Wire with Echo 2-Wire RS-485 W/Echo 1 2 3 4 5 6 7 8 9 10 1 2 3 T P P L L E Figure 4 - RS-485 2-Wire with Echo Sealevel Systems ULTRA COMM+I.PCI Page 2... -
Page 6: Line Termination
Adds or removes the 1K ohm pull-up resistor in the RS-422/RS- 485 receiver circuit (Receive data only). Connects the TX+ to RX+ for RS-485 two wire operation. Connects the TX- to RX- for RS-485 two wire operation. Sealevel Systems ULTRA COMM+I.PCI Page 3... -
Page 7: Rs-485 Enable Modes
To select the ‘No Echo’ mode place switch position 9 to the ‘On’ position (see Figure 5). RS-485 RS-232/422 Auto Default 1 2 3 4 1 2 3 4 Enabled Figure 6 - RS-485 Enable modes Sealevel Systems ULTRA COMM+I.PCI Page 4... -
Page 8: Clock Modes
(silk-screen D4). To select the maximum data rate (460.8K bps) set switch position 1 to the ‘On’ position (silk-screen D1). Divide by Divide by 4 mode 1 mode 1 2 3 4 1 2 3 4 Figure 7 - Clocking Modes Sealevel Systems ULTRA COMM+I.PCI Page 5... -
Page 9: Baud Rates And Divisors For The 'Div1' Mode
If your communications package allows the use of Baud rate divisors, choose the appropriate divisor from the following table: For this Data Rate Choose this Divisor 1200 bps 2400 bps 4800 bps 9600 bps 19.2K bps 38.4K bps 57.6K bps 115.2K bps 230.4K bps 460.8K bps Sealevel Systems ULTRA COMM+I.PCI Page 6... -
Page 10: Installation
Locate an available PCI slot and remove the blank metal slot cover. Gently insert the ULTRA COMM+I.PCI into the slot. Make sure that the adapter is seated properly. Replace the screw. Replace the cover. Connect the power cord. Installation is complete. Sealevel Systems ULTRA COMM+I.PCI Page 7... -
Page 11: Technical Description
Technical Description Technical Description The Sealevel Systems ULTRA COMM+I.PCI provides a PCI interface adapter with an isolated asynchronous serial port providing a versatile interface, field selectable as RS-232 for modems, printers and plotters, as well as RS-422/485 for industrial automation and control applications. Isolation is important in installations where the equipment being connected to the PC is either far from the PC, or on a different power transformer circuit. -
Page 12: Connector Pin Assignments
Clear To Send Positive Input CTSA CTS- Clear To Send Negative Input Transmit Data Positive Output Transmit Data Negative Output RTSB RTS+ Request To Send Positive Output RTSA RTS- Request To Send Negative Output Sealevel Systems ULTRA COMM+I.PCI Page 9... -
Page 13: Specifications
Non-Condensing Non-Condensing Manufacturing • All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption Supply line... -
Page 14: Appendixa - Troubleshooting
No two adapters can occupy the same I/O address. 3. Make sure the Sealevel Systems adapter is using a unique IRQ. While the Sealevel Systems adapter does allow the sharing of IRQs, many other adapters (i.e. SCSI adapters & on-board serial ports) do not. The IRQ is typically selected via an on-board header block. -
Page 15: Appendixb - How T O Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems maintains a Home page on the Internet. Our home page address is www.sealevel.com. The latest software updates, and newest manuals are available via our FTP site that can be accessed from our home page. -
Page 16: Appendixc - Electrical Interface
RS-422 also defines driver and receiver electrical characteristics that will allow 1 driver and up to 32 receivers on the line at once. RS-422 signal levels range from 0 to +5 volts. RS-422 does not define a physical connector. Sealevel Systems ULTRA COMM+I.PCI Page 13... - Page 17 (Tx+ to Rx+ and Tx- to Rx-). Four wire mode allows full duplex data transfers. RS-485 does not define a connector pin-out or a set of modem control signals. RS-485 does not define a physical connector. Sealevel Systems ULTRA COMM+I.PCI Page 14...
-
Page 18: Appendixd - Ground Loop Phenomenon
This condition will cause data errors and possibly destruction of the receiver circuit. DATA+ DATA- Isolated Isolated Adapter Ground Adapter Isolation Barrier Figure 8 – ULTRA COMM+I.PCI cabling example Sealevel Systems ULTRA COMM+I.PCI Page 15... -
Page 19: Appendixe - Asynchronous Communications
The data rate and communication parameters for asynchronous communications have to be the same at both the transmitting and receiving ends. The communication parameters are baud rate, parity, number of data bits character, stop bits (i.e. 9600,N,8,1). Sealevel Systems ULTRA COMM+I.PCI Page 16... -
Page 20: Appendixf - Silk -Screen
Appendix F - Silk-Screen Appendix F - Silk-Screen 3.5" 4.9" Sealevel Systems ULTRA COMM+I.PCI Page 17... -
Page 21: Appendixg - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. Sealevel Systems ULTRA COMM+I.PCI Page 18... -
Page 22: Warranty
Sealevel Systems, Inc. provides a lifetime warranty for this product. Should this product fail to be in good working order at any time during this period, Sealevel Systems will, at it's option, replace or repair it at no additional charge except as set forth in the following terms.
