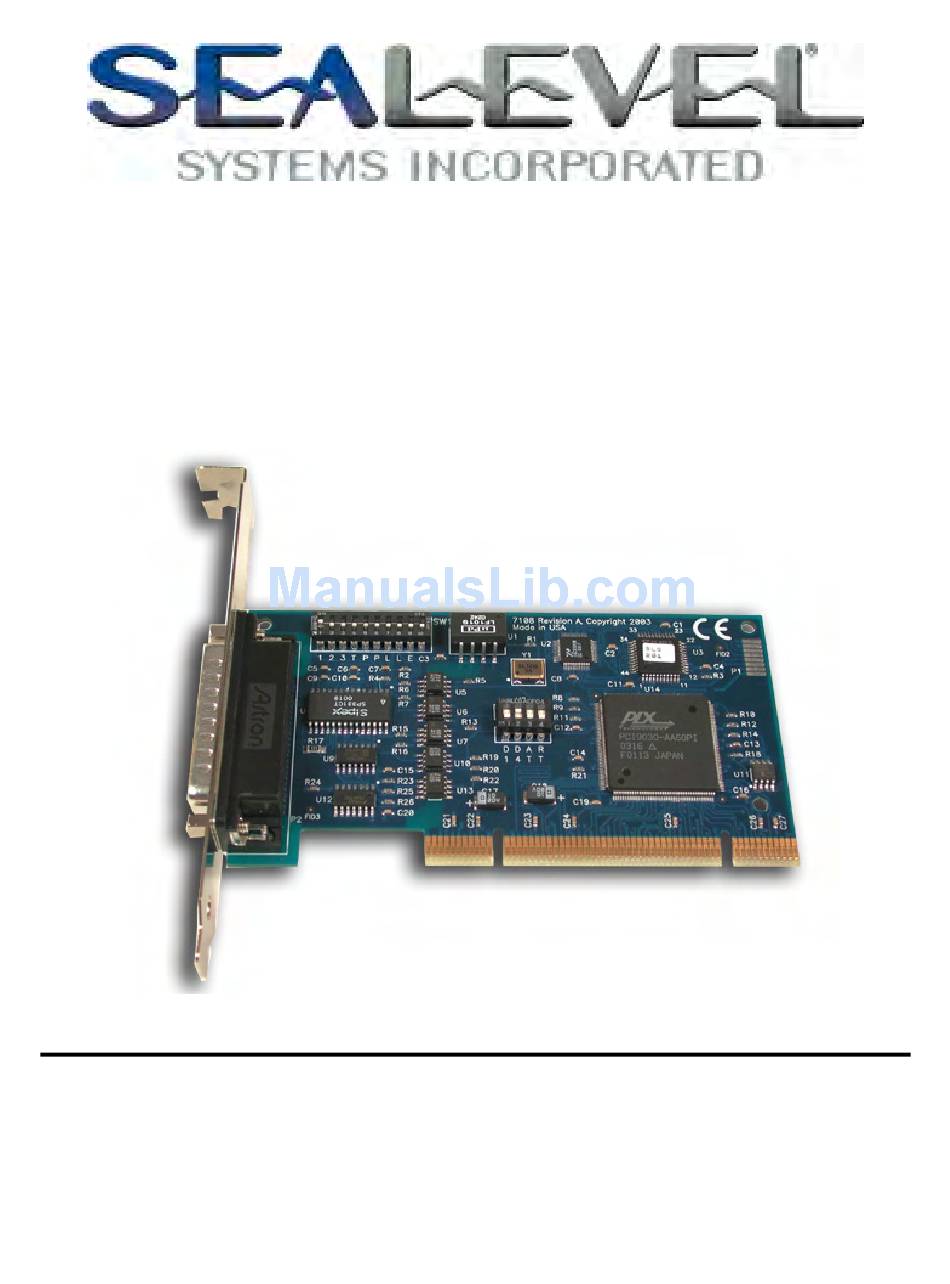

- Page 1 ULTRA COMM+I.LPCI Users Manual Part # 7108 Sealevel Systems, Inc. Telephone: 864.843.4343 PO Box 830 Fax: 864.843.3067 Liberty, SC 29657 USA www.sealevel.com...
-
Page 2: Table Of Contents
....................15 PPENDIX CREEN G - C ................. 16 PPENDIX OMPLIANCE OTICES ............... 16 EDERAL OMMUNICATIONS OMMISSION TATEMENT EMC D ....................... 16 IRECTIVE TATEMENT ..........................17 ARRANTY © Sealevel Systems, Inc. SL9056 Revision 7/2006 Sealevel Systems, Incorporated. All rights reserved. -
Page 3: Introduction
COM: port. This allows the standard COM: driver to be utilized for RS-485 communications. Our on-board hardware automatically handles the RS-485 driver enable. The ULTRA COMM+I.LPCI ships with a Low Profile PCI bracket that will only work in a Low Profile PCI slot. If you need a standard size PCI bracket, please order Item# 7108S. -
Page 4: Card Setup
Card Setup Card Setup Electrical Interface Selection The ULTRA COMM+I.LPCI has the ability to be used as RS-232, RS-422 or RS-485. This is selectable via DIP-switch SW1. Please use the following examples to configure your adapter. RS-232 1 2 3 4 5 6 7... -
Page 5: Line Termination
RS-485 as RTS enable or RTS block mode transfer. One of the unique features of the ULTRA COMM+I.LPCI is the ability to be RS-485 compatible without the need for special software or drivers. This ability is especially useful in Operating Systems where the lower level I/O control is abstracted from the application program. -
Page 6: Clock Modes
Card Setup Clock Modes The ULTRA COMM+I.LPCI employs a unique clocking option that allows the end user to select from divide by 4 and divide by 1 clocking modes. These modes are selected at switches SW-2. To select the Baud rates commonly associated with COM: ports (i.e. 2400, 4800, 9600, 19.2, … 115.2K Bps) set switch position 2 to the ‘On’... - Page 7 The following table shows some common data rates and the rates you should choose to achieve them when using the ULTRA COMM+I.LPCI in the D1 mode. If the O/S of choice is Windows 95/98/ME/2000/NT/XP, the oscillator value (14.7456 MHz) should entered into the ‘Advanced Tab’ on 95/98/Me/2000/XP Device Manager applet. When using Windows NT, the ‘Advanced Ports’...
-
Page 8: Installation
Sealevel Systems CD. This file contains valuable information on installing your adapter in the QNX6 Neutrino OS, as well as the files required to ensure a flawless implementation. Also provided on the Sealevel Systems CD are implementation instructions for QNX4. These are found in D:\software\seacom\Other\QNX4\QNX_COM.txt. -
Page 9: Physical Installation
Gently insert the PCI adapter into the slot. Make sure that the adapter is seated properly. Replace the screw. (This is required to ensure FCC Part 15 compliance.) Replace the cover. Connect the power cord Installation is finished. Sealevel Systems ULTRA COMM+I.LPCI Page 7... -
Page 10: Technical Description
Technical Description Technical Description The Sealevel Systems ULTRA COMM+I.LPCI provides a PCI interface adapter with an isolated asynchronous serial port providing a versatile interface, field selectable as RS-232 for modems, printers and plotters, as well as RS-422/485 for industrial automation and control applications. Isolation is important in installations where the equipment being connected to the PC is either far from the PC, or on a different power transformer circuit. -
Page 11: Specifications
Non-Condensing Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption Supply line... -
Page 12: Appendixa - Troubleshooting
I/O address. 3. Make sure the Sealevel Systems adapter is using a unique IRQ. While the Sealevel Systems adapter does allow the sharing of IRQs, many other adapters (i.e. SCSI adapters & on-board serial ports) do not. The IRQ is typically selected by the BIOS or Operating system. -
Page 13: Appendixb - How T O Get Assistance
3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp. -
Page 14: Appendixc - Electrical Interface
(ground) to determine binary logic states. The RS-232 and the EIA/TIA-574 specification define two types of interface circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The ULTRA COMM+I.LPCI is a DTE device. RS-422 The RS-422 specification defines the electrical characteristics of balanced voltage digital interface circuits. RS-422 is a differential interface that defines voltage levels and driver/receiver electrical specifications. -
Page 15: Appendixd - Ground Loop Phenomenon
Cabling Recommendations When connecting the ULTRA COMM+I.LPCI in a RS-485 network, care should be taken that both ends of the network are not isolated from ground (see Figure 8). This “floating” ground condition could cause the capacitive or inductive coupling of voltages that will cause a break down in the DC to DC converter circuit or in the opto-isolator circuit. -
Page 16: Appendixe - Asynchronous Communications
The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e. 9600,N,8,1). Sealevel Systems ULTRA COMM+I.LPCI Page 14... -
Page 17: Appendixf - Silk -Screen
Appendix F - Silk-Screen Appendix F - Silk-Screen 2.536" 4.721" Sealevel Systems ULTRA COMM+I.LPCI Page 15... -
Page 18: Appendixg - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. Sealevel Systems ULTRA COMM+I.LPCI Page 16... -
Page 19: Warranty
Sealevel Systems assumes no liability for any damages, lost profits, lost savings or any other incidental or consequential damage resulting from the use, misuse of, or inability to use this product. Sealevel Systems will not be liable for any claim made by any other related party.
