CLAWBOT BUILDING INSTRUCTIONS
6

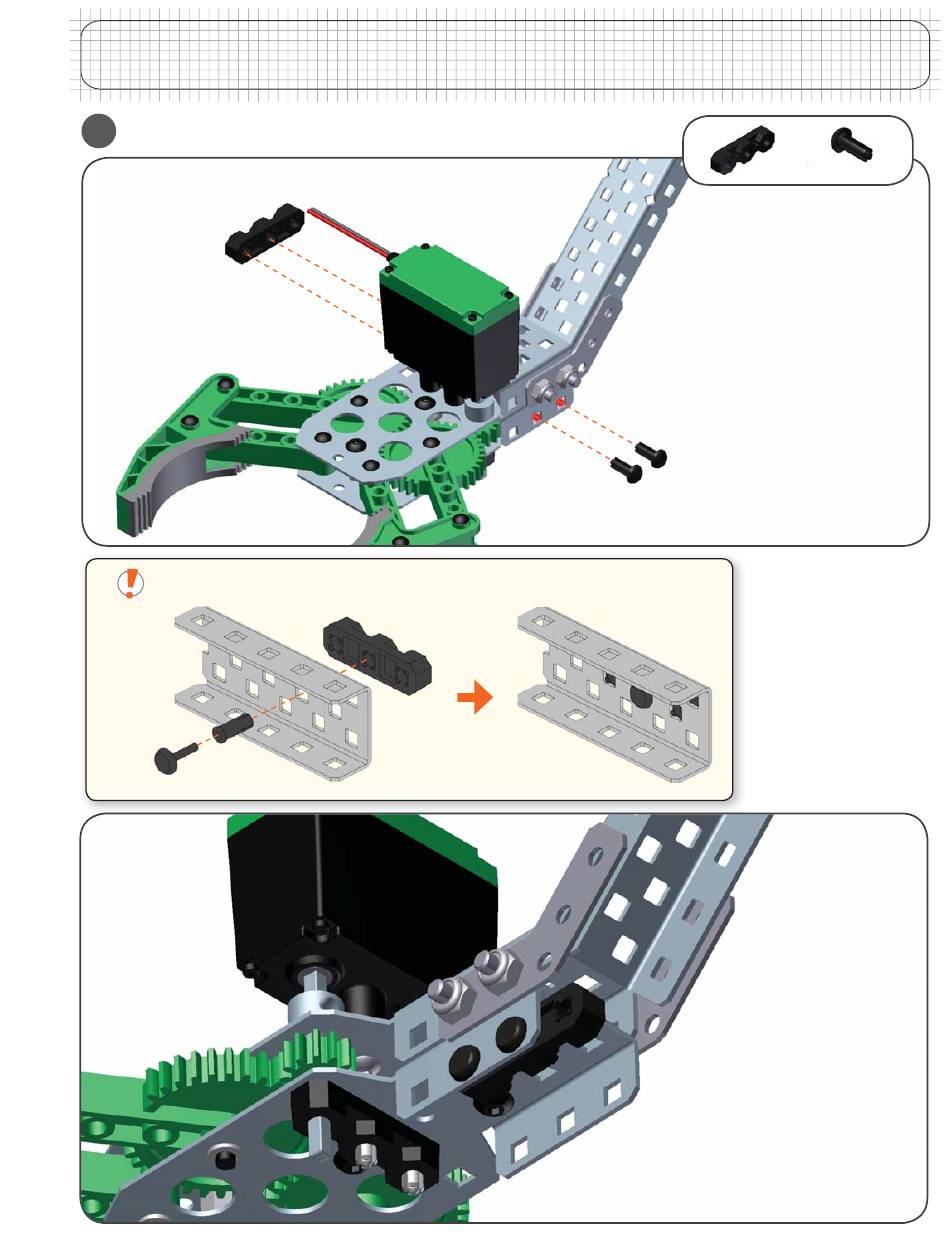

Attaching the Limit Switch
Building Tip - Using Pop Rivets
© 2013 Carnegie Mellon Robotics Academy / For use with VEX
(continued)
Robotics Systems
®
R BOT T
RO O
B
O
C C C
x1
x2
Recover the bearing
block you saved
earlier from the
potentiometer build.
Place it underneath
the claw as shown
below. This will help
the claw activate
the limit switch
100% of the time
Clawbot 1.0
•
20
