CLAWBOT BUILDING INSTRUCTIONS
6

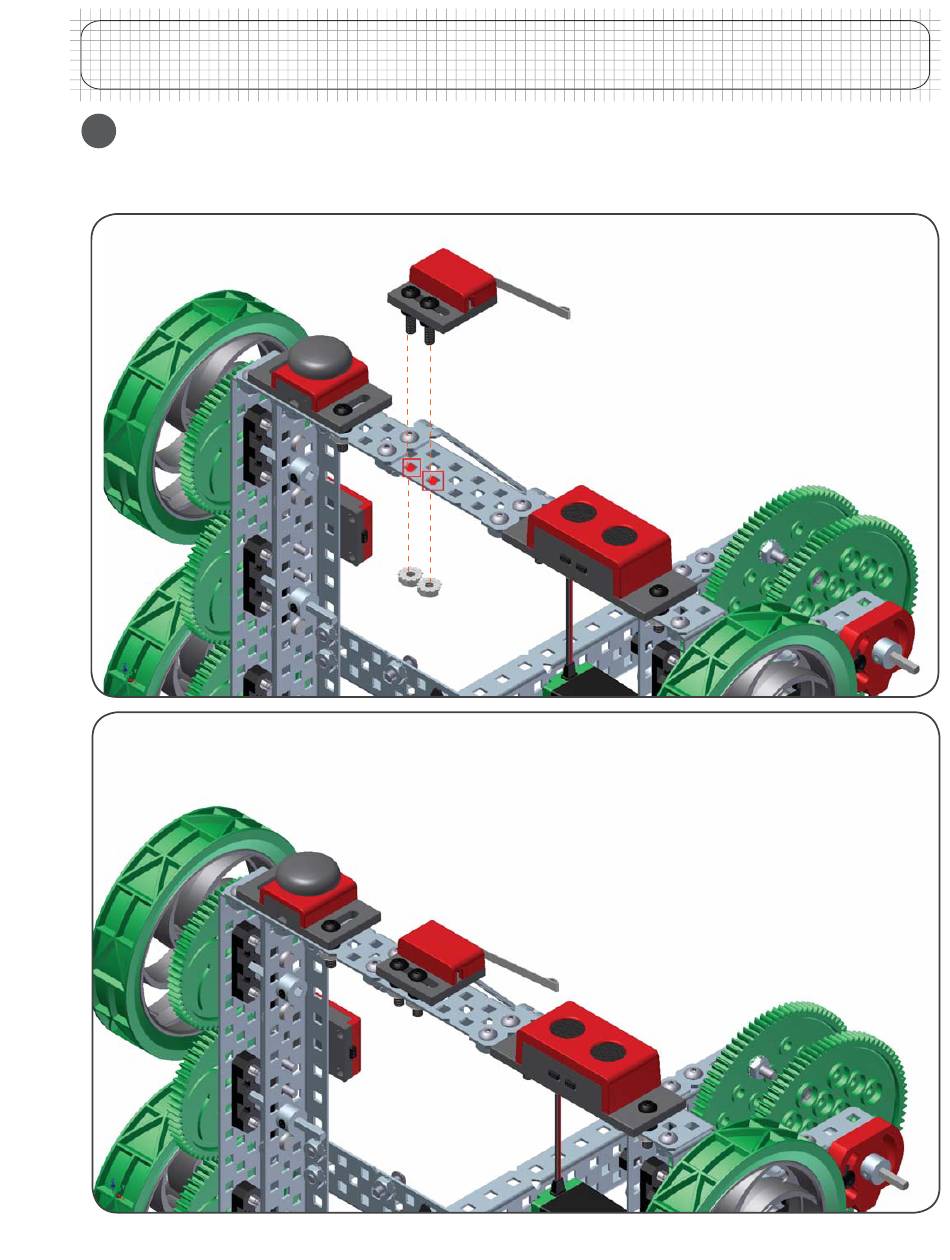

Attaching the Limit Switch
(continued)
Place the sensor in between the bent bars on the front of the robot like such
Front view from a bottom perspective
Clawbot 1.0
•
19
© 2013 Carnegie Mellon Robotics Academy / For use with VEX
Robotics Systems
®
