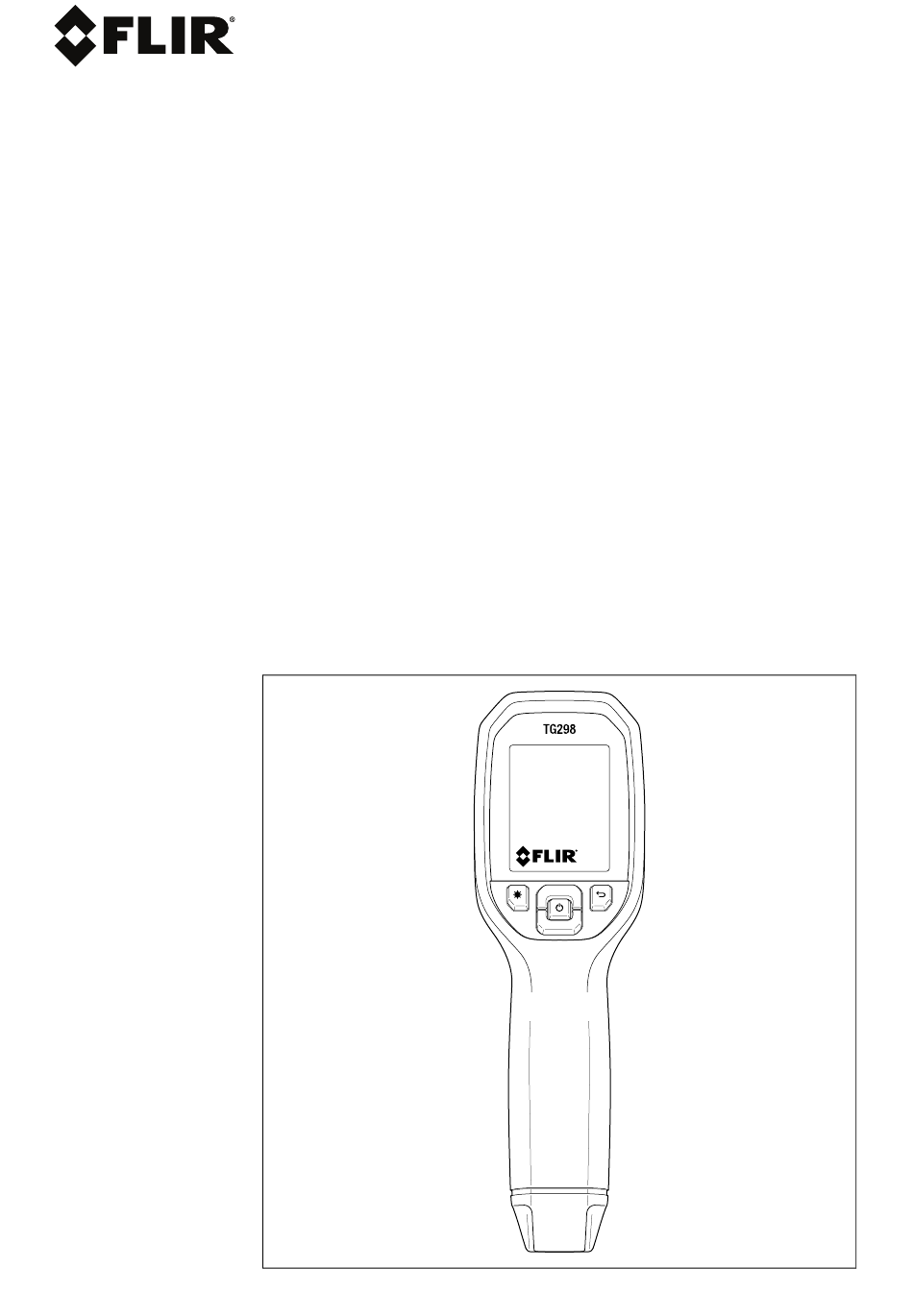

- Page 1 Quick Start Spot Thermal Camera MODELS TG298 and TG268...
-
Page 2: Quick Steps
Introduction The FLIR TG298 and TG268 combine condition monitoring, non- contact spot temperature measurements, and thermal imaging in one troubleshooting tool to help quickly locate sources of heat and detect potential faults. The camera offers four display modes: IR-only, visual, high resolu- tion visual, and MSX®... -
Page 3: Camera Description
TFT color display Return button Laser button Up/Down and Power/Menu buttons Lanyard post Accessory mount High temperature switch (TG298) IR camera lens Laser lens 10. USB-C and thermocouple (TG268) compartment 11. Spot thermal sensor 12. Worklight 13. Visual spectrum camera lens 14. -
Page 4: Image Adjustments
MAIN MENU SUB MENU 1 SUB MENU 2 ACTION View and manage im- GALLERY IMAGE FILES ages captured manually. See the Log Results submenu for images captured in logging mode. View and manage data RESULTS log files, time lapse im- ages, and videos cap- tured in logging mode. - Page 5 LOGGING TEMP SPOT Set to ON to start log- ging temperature read- ings. Specify time between readings. TIME LAPSE Set to ON to start captur- IMAGING ing camera images and simultaneously logging readings. Specify time between captures. VIDEO Set to ON to start re- cording video and simul- taneously logging readings.
-
Page 6: Device Settings
SETTINGS DEVICE BLUETOOTH Toggle ON and OFF. SETTINGS LASER Toggle ON and OFF. SCREEN Select Low, Medium, or BRIGHT- High. NESS AUTO Set to 5, 15, 30 minutes POWER OFF or disable. GENERAL TEMPERA- Select C or F. TURE UNIT SETTINGS TIME &... -
Page 7: Basic Specifications
Operating temperature 32 to 113℉ (0 to 45℃) Storage temperature -22 to 131℉ (-30 to 55℃) Limited 10-Year Warranty This product is protected by FLIR’s Limited 10-Year Warranty. Visit www.flir.com/testwarranty to read the Limited 10-Year Warranty document. Customer Support Customer Support Telephone List https://support.flir.com/contact... - Page 8 #NAS100226; r. AF/104198/104206; en-US...
-
