Summary of Contents for Ergotron Zip12

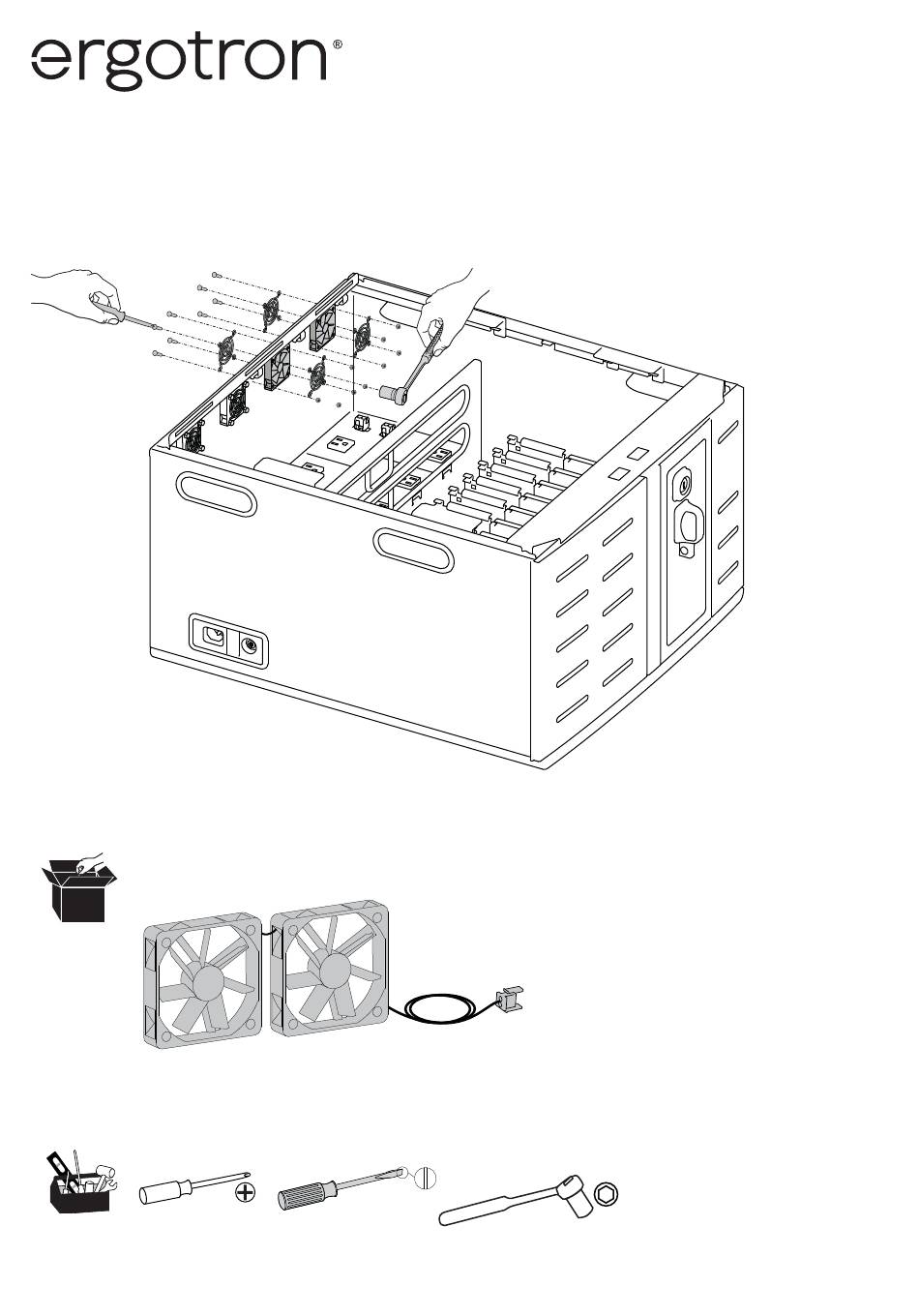

- Page 1 Service Manual Zip12, Two Fan Assembly Components Tools Needed 888-06-017-G-00 rev. B • 03/20 1 of 6...
-
Page 2: Hazard Symbols
Hazard Symbols Symbol Signal Word Level of Hazard Review A NOTE indicates important information that helps you NOTE make better use of this product. These symbols alert users of a safety condi- tion that demands attention. All users should A CAUTION indicates either potential damage to be able to recognize and understand the CAUTION hardware or loss of data and tells you how to avoid the... - Page 3 Remove Top Unplug fan from outlet box and remove cables from retaining clips. 888-06-017-G-00 rev. B • 03/20 3 of 6...
- Page 4 Remove all fasteners from the fans attached to the unit. Remove fans from unit. Install new fans into unit. 888-06-017-G-00 rev. B • 03/20 4 of 6...
- Page 5 Reattach and tighten all fasteners. Plug the fan into the outlet box and insert cables into retaining clip. 888-06-017-G-00 rev. B • 03/20 5 of 6...
- Page 6 Attach Top. www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com 888-06-017-G-00 rev. B • 03/20 6 of 6...
