KIHLBERG MANUAL

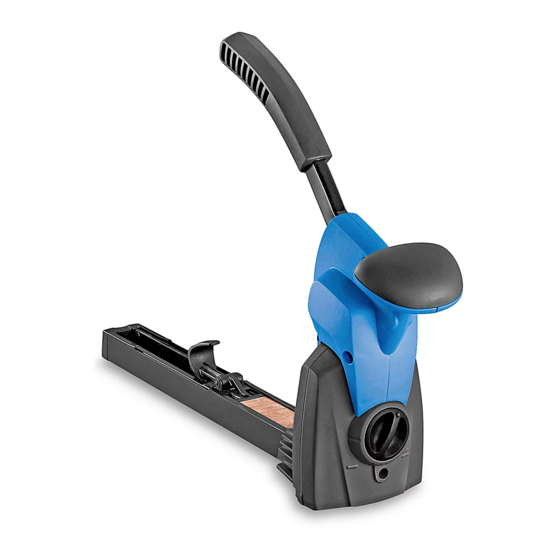

CARTON STAPLER
TOOL NEEDED
Allen Wrench
(Included)

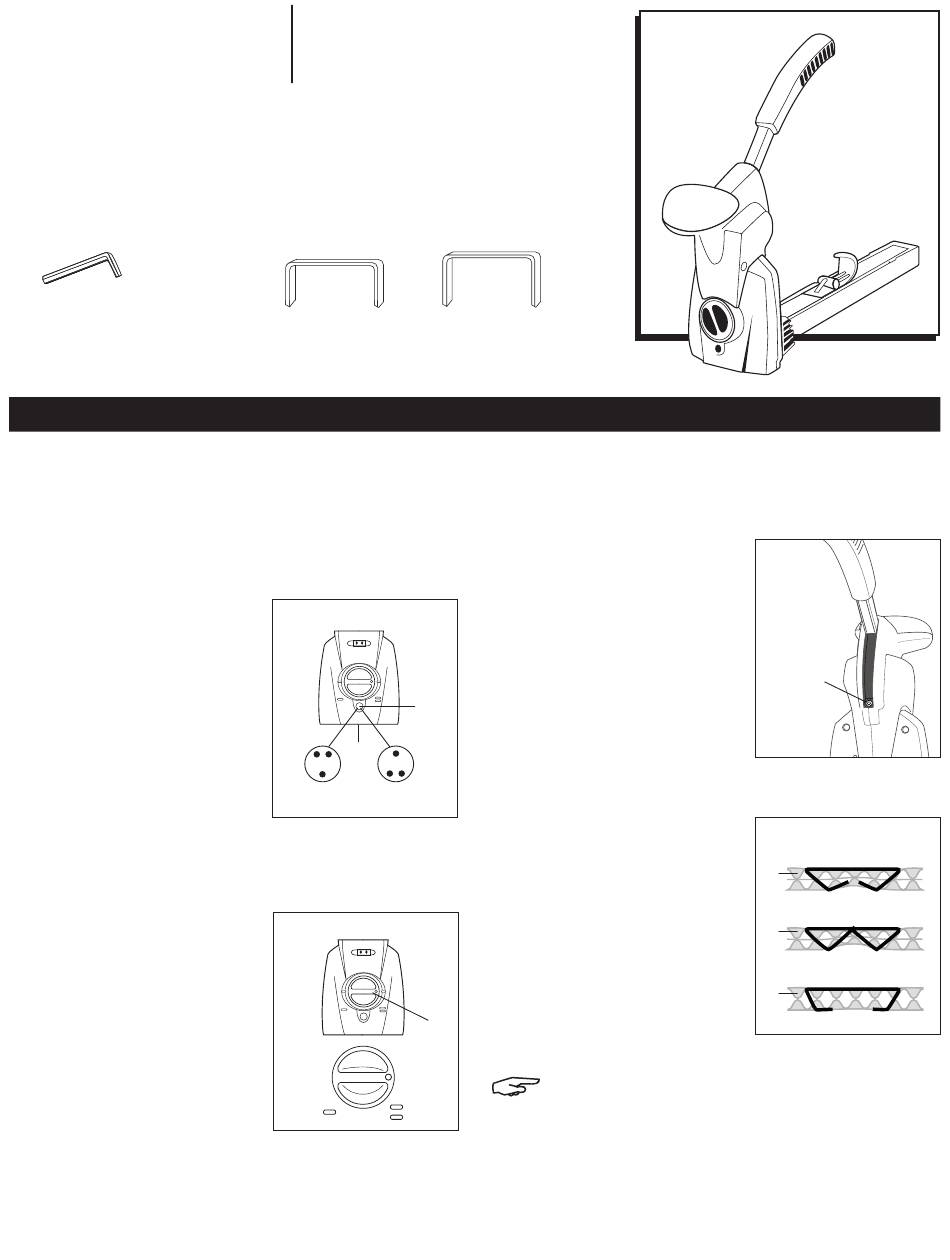

ADJUSTING THE STAPLE LEG LENGTH

The stapler is adjustable for 5/8"-3/4" staples. The stapler
setting for a different staple leg length is altered as
follows. Start by adjusting the depth of stapling for deep
clinching (=). (See Figure 2)
1. With the allen wrench,
unscrew locking screw (A)
two turns. (See Figure 1)
2. With a screwdriver, adjust
screw (B) to 5/8" or 3/4" leg
length. (See Figure 1)
3. Tighten the locking
screw (A). (See Figure 1)

ADJUSTING THE PENETRATION DEPTH

The depth of stapling is
easily adjusted by using the
setting knob (1). Press the
knob in and turn it to the
desired position.
(See Figure 2)
• Use "–" for shallow
stapling penetration.
• Use "=" for deep stapling
penetration.
PAGE 1 OF 3
1-800-295-5510
uline.com
COMPATIBLE STAPLES
S-10720
C58
1⁄ x 5/8"
LOADING
Figure 1
B
A
3/4" 5/8"
Figure 2
1
S-10721
C34
1⁄ x 3/4"

ADJUSTING STAPLE CLINCH

It is possible to adjust how tightly the staples are closing:
1. With the allen wrench,
turn the adjusting screw
clockwise for a stronger
clinch. (See Figure 3)
2. Turn the adjusting screw
counterclockwise to
open the clinch more.

CONTROLLING THE CLINCH

A. Good clinch.
B. Leg length of the
staple too long or
bent too much.
C. Leg length of staple
too short or not bent
enough.
If necessary, adjust
staple clinch.
NOTE: Always use Josef Kihlberg original
staples – S-10720 (5/8") or S-10721 (3/4").
Figure 3
Adjusting
Screw
(See Figure 4)
Figure 4
A
B
C
0714 IH-1993
