H-1024, H-1025
H-1026
MANUAL

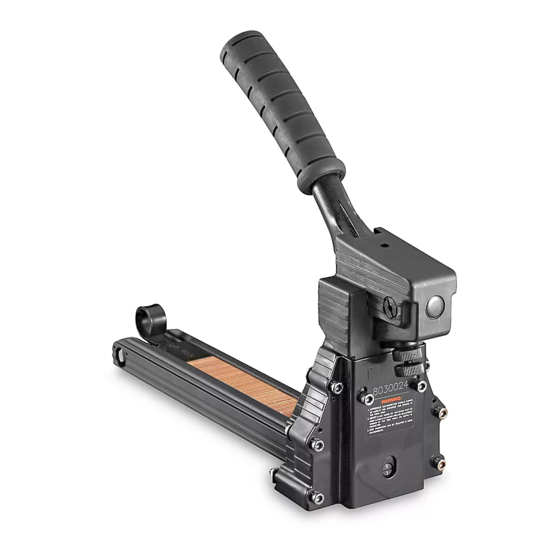

CARTON STAPLER
dimensions (L x H x W)
Weight (Without Fasteners)
H-1025/H-1026 staple specification
H-1024 staple specification
staple Capacity
Before operating this stapler familiarize yourself with the safety warnings and
instructions in this manual. Keep these instructions with the stapler for future
PAGE 1 OF 7
STAPLER SPECifiCATiONS
reference. if you have any questions, contact Uline at 1-800-295-5510.
15 x 11½ x 4½"
3.75 lb.
s-289 C58 stick and/or s-1396 C34 stick
s-1397 A58 stick
100 staples
WArninG
0812 IH-1024
