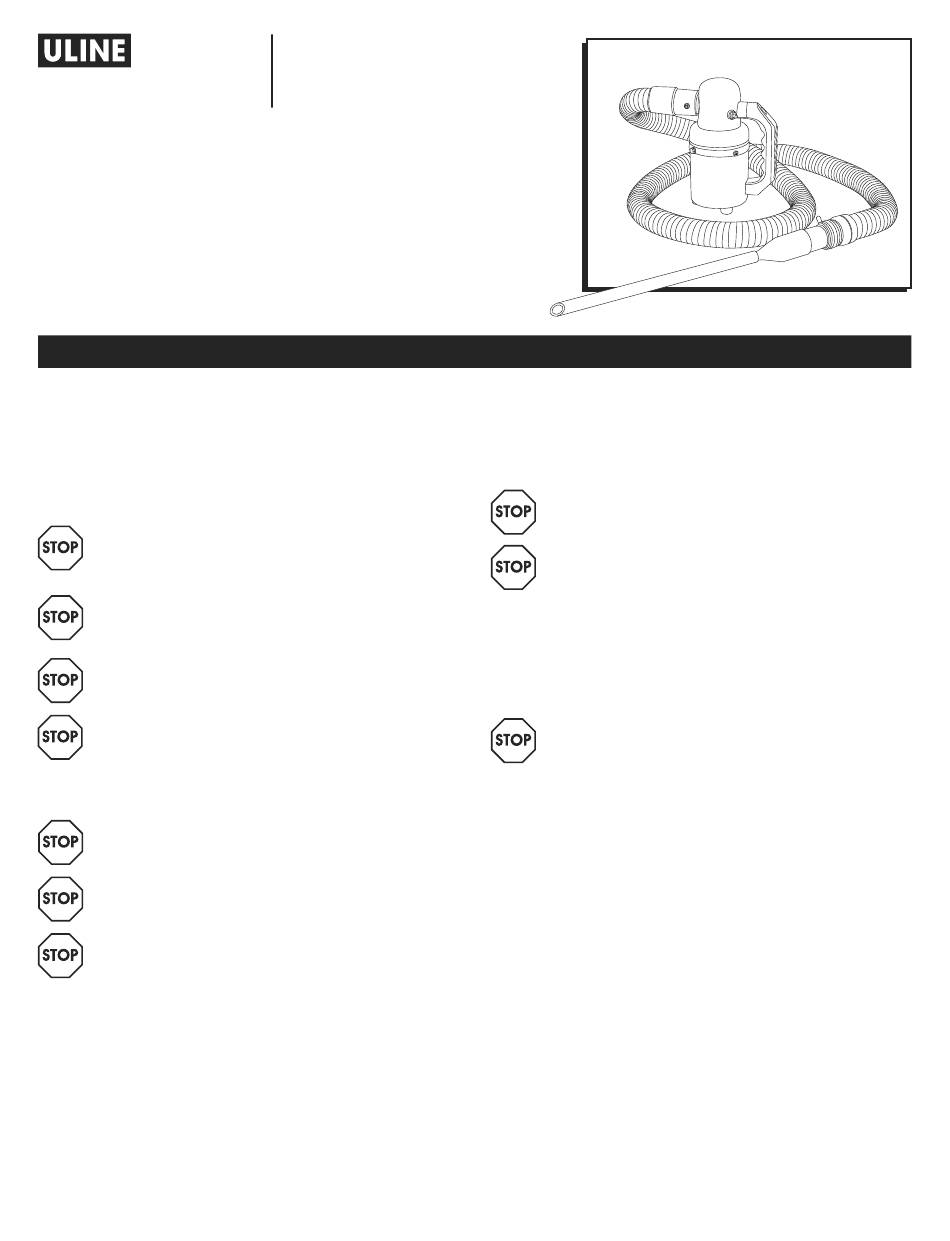

H-10157
PORTABLE
INFLATOR
1. Read and thoroughly understand this guide and
the safety labels attached to the system.
2. Before operating, be sure of the following:
• The system is plugged into a properly rated,
grounded outlet.
WARNING! Failure to properly ground the
system could create an electrical shock
hazard.
WARNING! Do not open the unit. Opening the
covers exposes dangerous electrical shock
hazards.
WARNING! Use protective goggles as indicated
when operating the system.
WARNING! Use ear protection as indicated
when operating the system.
3. Fill-Air™ RF Bags are intended only as packaging
material:
WARNING! Do not use the bags as a flotation
device.
WARNING! Do not use the bags as a child's toy.
WARNING! Do not use the bags as a child's
pillow.
PAGE 1 OF 12
1-800-295-5510
uline.com
SAFETY
Pour le français, consulter les pages 9-12.
4. The system has no customer serviceable parts. If
the system is not functioning properly:
• Be sure to turn the system off and unplug the
power cord.
WARNING! Do not attempt to repair or modify
the portable air pump.
WARNING! Do not open the unit.
5. Inspect at regular intervals to ensure that:
• Component hoses and cables are not cut,
broken or damaged.
• All controls function properly.
WARNING! If operation of the system differs from
the descriptions in this guide, turn the system off,
disconnect the main power and contact Uline
customer service at 1-800-295-5510.
6. Operating conditions:
• The portable air pump is designed to work at
room temperature (68 º – 72 º F). Performance
may vary in warmer or colder conditions.
Para Español, vea páginas 5-8.
0722 IH-10157
