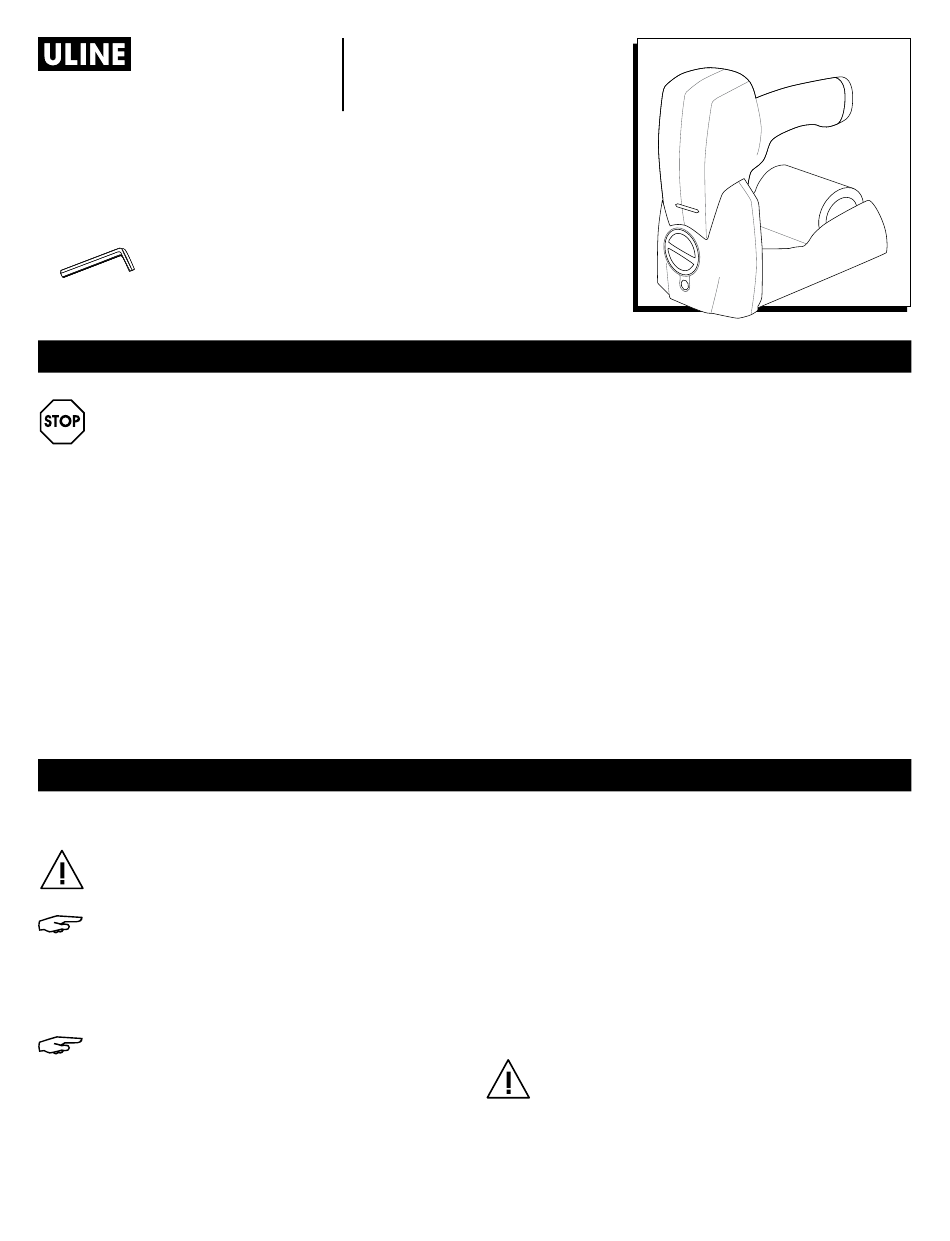

H-1335

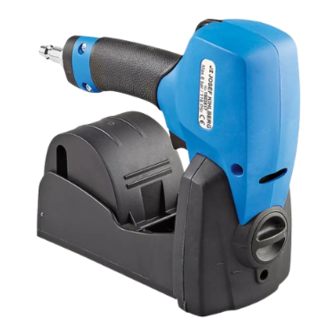

KIHLBERG PNEUMATIC
ROLL FEED STAPLER
TOOL NEEDED
2.5 mm Allen Wrench
WARNING! Read all warnings and instructions to
prevent injuries to yourself and to others.
• Use only original Kihlberg R555, R556 or R557 roll
staples with 15 or 18 mm leg length.
• Wear eye protection when using tool. Always use
other personal protection equipment as required,
such as ear protection, hard hats, etc.
• Never use oxygen, combustible gases, CO
or high pressure gas tanks as power sources for the
PN-version of this tool; the tool may explode and
cause serious injury. Use only dry, clean, pressure
regulated compressed air to drive the tool.
• Always assume stapler is loaded. Never point at
yourself or anyone else. Always remove finger from
trigger when not stapling.
ATTACH COMPRESSED AIR
CAUTION! Ensure the tool is not pointed at
you or anyone else when connecting it to the
compressed air line.
NOTE: The maximum permitted air pressure for
the tool is 8 bar (116 psi). The maximum supply
pressure is 8.78 bar (127 psi).
Connect the tool to the compressed air system before
the fastener unit is loaded.
NOTE: The tool and its hose can be equipped
with a connection nipple (not included) that
automatically exhausts air from the tool after it
has been disconnected.
PAGE 1 OF 9
1-800-295-5510
uline.com
SAFETY
• Always disconnect the tool from the air supply and
empty the magazine when taking a break or ending
work, when servicing the tool, troubleshooting or
repairing. Never leave a loaded tool unattended.
• Always check tool before every use.
• Never hold your hand or another part of your body
under the tool.
• Position yourself in a firmly balanced position when
, steam
2
using or handling the tool.
• Do not modify the tool or set it up in a jig without
manufacturer's approval.
• Use stapler with cardboard only. No other use is
permitted without the approval of the manufacturer.
OPERATION
Ensure the minimum internal diameter of the air hose is
10 mm (3/8") and that of the nipple is a minimum of
5 mm (6/32"). This prevents incorrect operation due to
excessive pressure drop.
AIR PRESSURE
Adjust the air pressure to the lowest setting that will bend
the staples correctly.
1. Start at 5.0 bar (72 psi).
2. Raise pressure by 0.5 bar (7 psi) increments until
correct pressure for the job is found.
CAUTION! Never exceed 8 bar (116 psi).
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
