Components:
• Front Panel
• Paper Slots
• Post and Cam (Qty varies by size)
• Cam Covers (Qty varies by size)
Note: Corner Transaction Kits will also include an End Panel,
additional Spacers, and Screws for attachment.
1

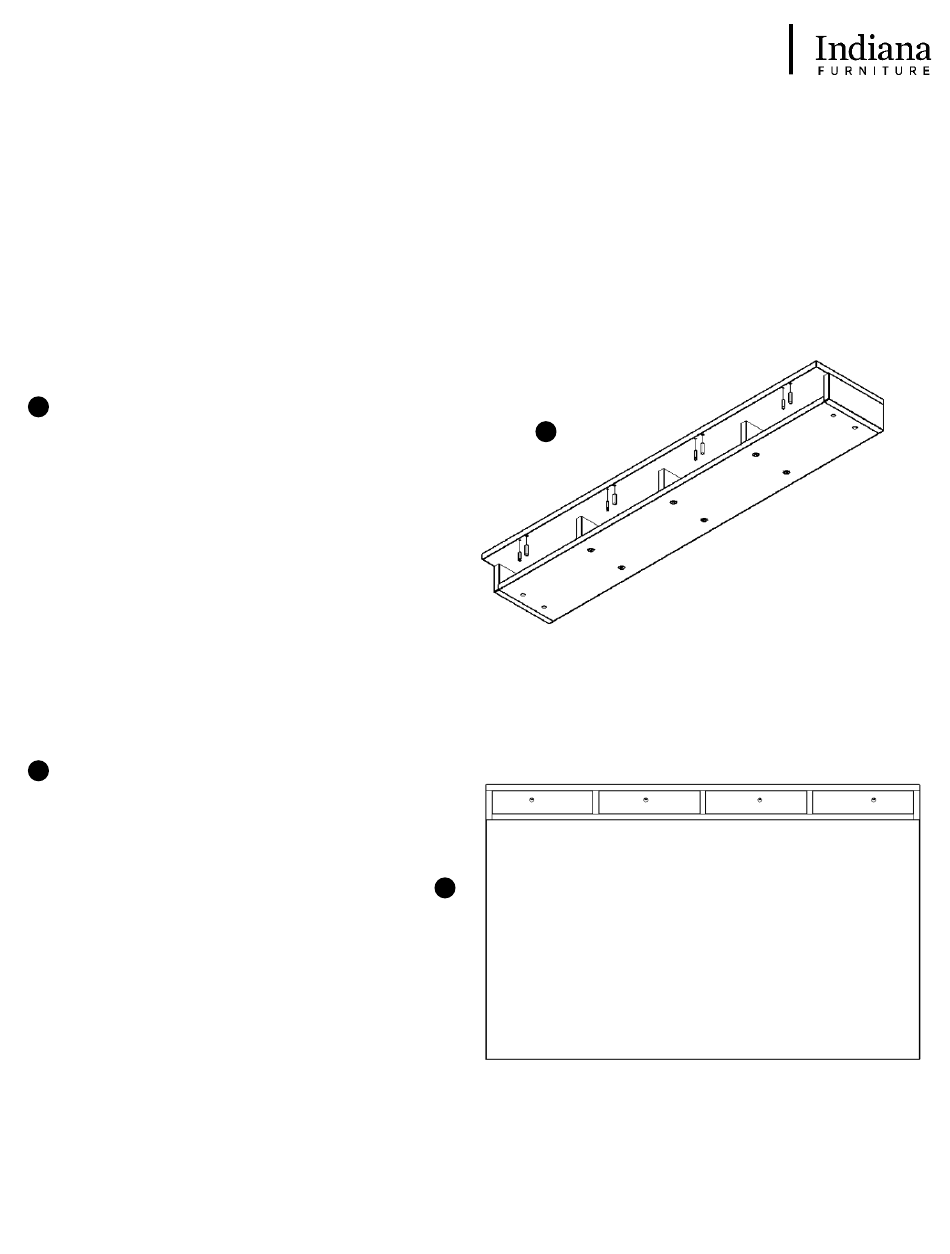

Insert Dowels and Posts to Paper Slot Assembly.
Slide Panel onto posts and tighten Cams, access thru
2
paper slot opening, as shown.
2298-64001
Waterfall Transaction Kit
Assembly Instructions
• Dowels (Qty 4)
• #8 x 1 5/8" Screws (Qty 6)
• 1/2" Standoff Spacers (Qty 6)
1
2
800.422.5727
www.IndianaFurniture.com
Advertisement
Table of Contents
Related Manuals for Indiana Furniture Waterfall Transaction Kit
Summary of Contents for Indiana Furniture Waterfall Transaction Kit
- Page 1 Waterfall Transaction Kit Assembly Instructions Components: • Dowels (Qty 4) • Front Panel • #8 x 1 5/8” Screws (Qty 6) • Paper Slots • 1/2” Standoff Spacers (Qty 6) • Post and Cam (Qty varies by size) • Cam Covers (Qty varies by size) Note: Corner Transaction Kits will also include an End Panel, additional Spacers, and Screws for attachment.
- Page 2 Waterfall Transaction Kit Assembly Instructions (continued) There are six locating holes on the inside of the desk unit. Drill 1/8” thru holes as necessary to attach paper slot overlay. Please note that there are many size options available. Be sure, before drilling, the Paper Slot assembly will cover these thru holes.
