Note: 15-INSERT is designed to be used with 15-11ECR or 15-12ECR.
15-11ECR or 15-12ECR must be ganged in an octagonal shape prior
to installation of 15-INSERT.
Gang together 4 seats. See Ganging
1
Bracket instructions.

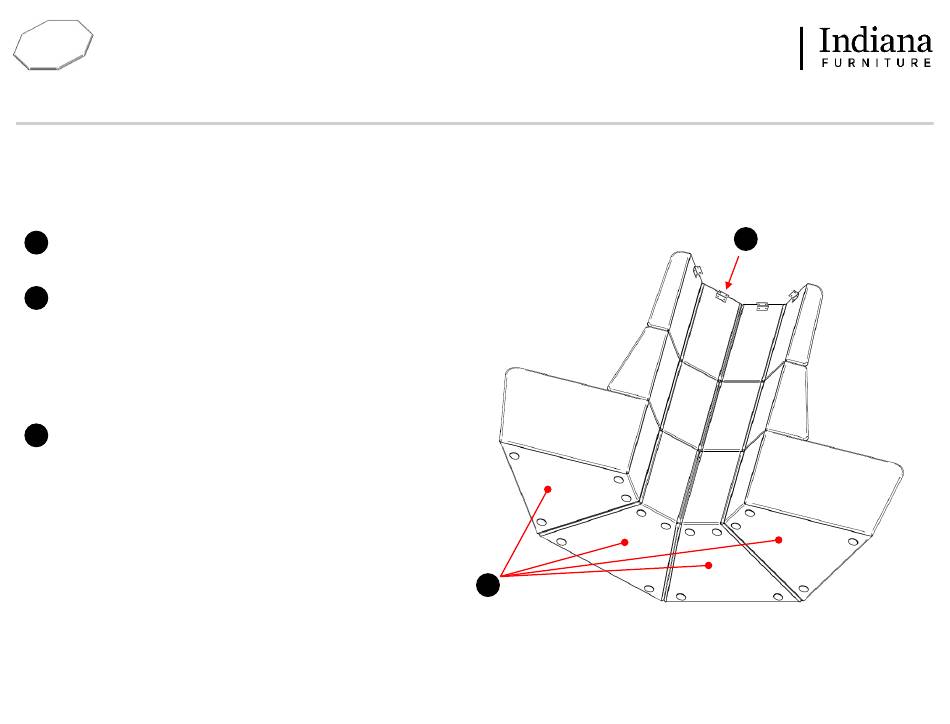

Attach the 2209-00211 L bracket to the back of the
2
15-11ECR or 15-12ECR using the 2202-00896B32 - #8
x 5/8" PPH screws.
Note: Use supplied gauge to locate bracket install
location.
Repeat step 1 & 2 twice. You should have
3
2 separate 4 seat sections.
Page 1 of 4
Proper product assembly is the responsibility of the installing agent. If you have any questions concerning these instructions, please contact Customer Service.
Fifteen Lounge
15-INSERT Assembly Instructions
1
Note: Ganging brackets not shown for clarity
2
800-422-5727
www.IndianaFurniture.com
Advertisement
Table of Contents
Related Manuals for Indiana Furniture Fifteen Lounge 15-INSERT
Summary of Contents for Indiana Furniture Fifteen Lounge 15-INSERT
- Page 1 Fifteen Lounge 15-INSERT Assembly Instructions Note: 15-INSERT is designed to be used with 15-11ECR or 15-12ECR. 15-11ECR or 15-12ECR must be ganged in an octagonal shape prior to installation of 15-INSERT. Gang together 4 seats. See Ganging Bracket instructions. Attach the 2209-00211 L bracket to the back of the 15-11ECR or 15-12ECR using the 2202-00896B32 - #8 x 5/8”...
- Page 2 Fifteen Lounge 15-INSERT Assembly Instructions Cut 2 pieces of Velcro (Hook side) and attach to L Insert the 15-INSERT into the opening, it will sit on top Bracket. of the brackets. Repeat for other section. 800-422-5727 Page 2 of 4 Proper product assembly is the responsibility of the installing agent.
- Page 3 Fifteen Lounge 15-INSERT Assembly Instructions Insert the 15-INSERT into the opening, it sill sit on top of the brackets. 15-INSERT is now installed. Note: Once installed, the 15-INSERT is not intended to be a seat. 800-422-5727 Page 2 of 4 Proper product assembly is the responsibility of the installing agent.
- Page 4 Fifteen Lounge 15-INSERT Disassembly Instructions Separating/Disassembly Push down on one corner of 15-INSERT, the opposite corner will rise. Remove the 15- INSERT. 800-422-5727 Page 1 of 4 Proper product assembly is the responsibility of the installing agent. If you have any questions concerning these instructions, please contact Customer Service. www.IndianaFurniture.com...
