Indiana Furniture Blade One 10 Assembly Instructions Manual
Conference table
Hide thumbs
Also See for Blade One 10:
- Assembly instructions manual (7 pages) ,
- Assembly instructions manual (9 pages)
Advertisement
Quick Links

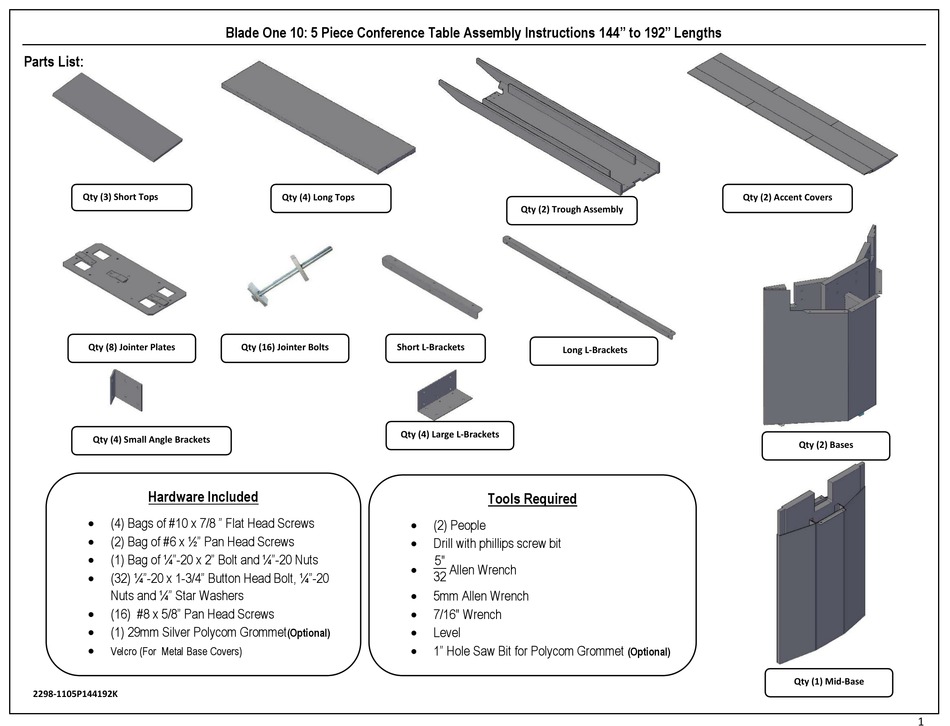

Parts List:
Qty (3) Short Tops
Qty (8) Jointer Plates
Qty (4) Small Angle Brackets
Hardware Included
(4) Bags of #10 x 7/8 " Flat Head Screws
(2) Bag of #6 x ½" Pan Head Screws
(1) Bag of ¼"-20 x 2" Bolt and ¼"-20 Nuts
(32) ¼"-20 x 1-3/4" Button Head Bolt, ¼"-20
Nuts and ¼" Star Washers
(16) #8 x 5/8" Pan Head Screws
(1) 29mm Silver Polycom Grommet
Velcro (For Metal Base Covers)
2298-1105P144192K
Blade One 10: 5 Piece Conference Table Assembly Instructions 144" to 192" Lengths
Qty (4) Long Tops
Qty (16) Jointer Bolts
Short L-Brackets
Qty (4) Large L-Brackets
(Optional)
Qty (2) Trough Assembly
Long L-Brackets
Tools Required
(2) People
Drill with phillips screw bit
5"
32 Allen Wrench
5mm Allen Wrench
7/16" Wrench
Level
1" Hole Saw Bit for Polycom Grommet
Qty (2) Accent Covers
Qty (2) Bases
(Optional)
Qty (1) Mid-Base
1
Advertisement
Related Manuals for Indiana Furniture Blade One 10
Summary of Contents for Indiana Furniture Blade One 10
- Page 1 Blade One 10: 5 Piece Conference Table Assembly Instructions 144” to 192” Lengths Parts List: Qty (3) Short Tops Qty (4) Long Tops Qty (2) Accent Covers Qty (2) Trough Assembly Qty (8) Jointer Plates Qty (16) Jointer Bolts Short L-Brackets...
- Page 2 Step 1: Remove the accent cover off of the bases by pulling it off. Next, Using the supplied Velcro with Self-Stick Adhesive on it, Place the Velcro on the outside of the base and on the inside of the accent cover along the length of the vertical edge Base with Accent Cover Removed Base with Accent Cover Attach Velcro here...
- Page 3 Step 2: Bolt together the (2) Bases to the Trough assembly using the ¼”-20 x 2” Bolts , ¼” -20 x 1-3/4” Bolts, ¼”-20 Nuts, Large L-Brackets, Small Angle Brackets, and #8 x 5/8” Pan Head Screws Fasten Vertical Edge of Large L- Fasten Small angle Brackets with Bracket with ¼”-20x 2”...
- Page 4 Step 4: Bolt together the remaining trough section to the Mid base along with the remaining Base. Also, install the Short L-Brackets and the Long L-Brackets to the trough section using the #6 x ½” Pan Head Screws Short L-Brackets Long L-Brackets...
- Page 5 Step 5: Place one short end on the end of the Trough Assembly and fasten it to the Short L-Brackets using the Silver #6 x ½” Pan Head Screws. Center the Top from left to right and align the Top flush with the outside of the base. Center Top with the Trough Assembly Make Top Flush with the outside of the base as shown.
- Page 6 Step6: While keeping the outside and top surfaces flush, connect the remaining tops using the 7/16" wrench and the provided Jointer Bolts. Next fasten the Jointer Plates to the 5" Tops using #10 x 7/8” Flat Head Screws. Now, Fine tune adjust the worksurfaces using the adjustment set screws in the Jointer Plates with the 32 Allen Wrench Note: The metal tabs go to the inside of the top where the top is routed out to accept them.
- Page 7 Step 7: Once the tops are fine tune adjusted, fasten the tops to the L-Brackets with the #6 x ½” Pan Head Screws. Fasten Tops to Trough Step 8: Level the table using the 5mm Allen Wrench. Next (If Applicable) install all power ports and route wires down the base. Levelers Are Here...
- Page 8 Step 8: When the Table is completely wired, set the Accent cover on the top and install the Base Covers. Once the base covers are installed, using the Silver #6 x ½” screws, fasten the covers to the underside of the trough. Step 9 (Optional): If you are using a Polycom in your application and need to pass a phone cable through the table proceed with the following steps: Using a 1”...
