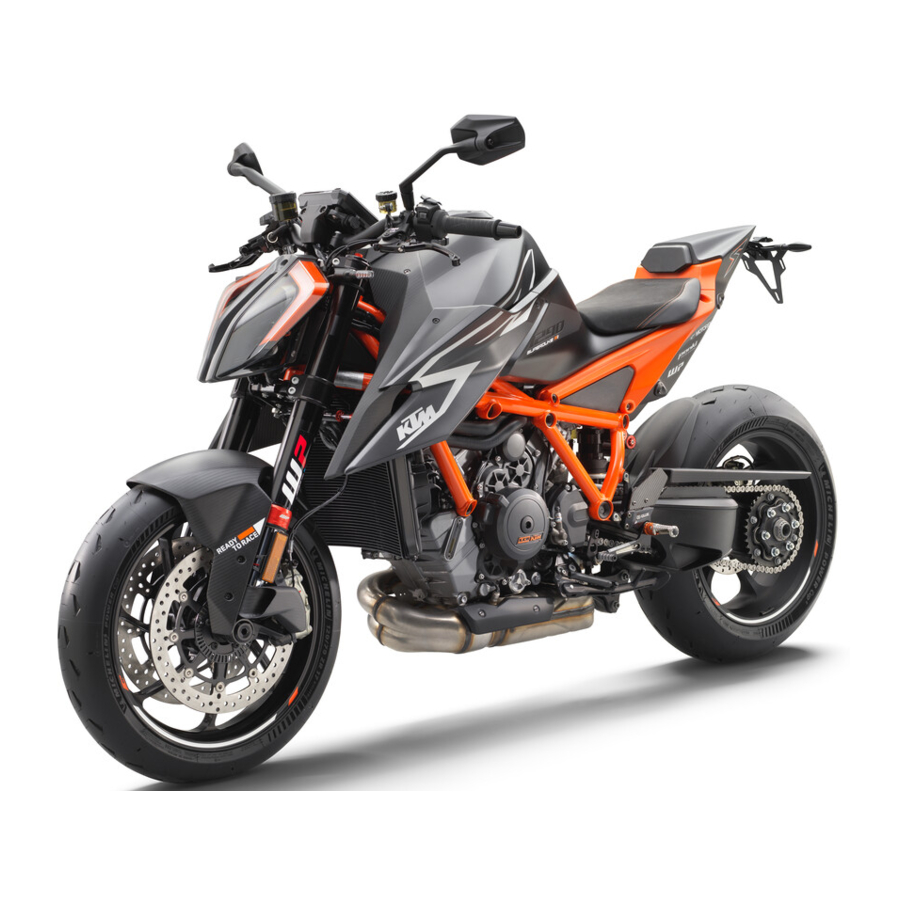

KTM 1290 SUPER DUKE R 2023, 1290 SUPER DUKE RR 2023 Manual

KTM 1290 SUPER DUKE R 2023, 1290 SUPER DUKE RR 2023 Manual

Also See for 1290 SUPER DUKE R 2023:

Advertisement

KTM 1290 SUPER DUKE R 2023, 1290 SUPER DUKE RR 2023 Manual

INTRODUCTION

Perform the work described in these setup instructions before the vehicle is delivered to the customer. Read the setup instructions in their entirety before beginning work.

These setup instructions were written to correspond to the latest state of this model series. We reserve the right to make modifications in the interest of technical advancement without at the same time updating these setup instructions.

We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop are not specified here. It is assumed that the work will be performed by a fully trained mechanic.

All specifications contained herein are non-binding. KTM Sportmotorcycle GmbH specifically reserves the right to modify or delete technical specifications, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery options, deviations from figures and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.

KTM applies quality assurance processes that lead to the highest possible product quality as defined in the ISO 9001 international quality management standard.

Issued by: TÜV Management Service
KTM Sportmotorcycle GmbH
Stallhofnerstraße 3
5230 Mattighofen, Austria

This document is valid for the following models:
1290 SUPER DUKE R EU (F9903W9, F9903W2)
1290 SUPER DUKE R JP (F9986W2)
1290 SUPER DUKE R CN (F9987W9)
1290 SUPER DUKE RR EU (F9903WR)
1290 SUPER DUKE RR CN (F9987WR)

MEANS OF REPRESENTATION

Symbols used

The meaning of specific symbols is described below.


Indicates an expected reaction (e.g. of a work step or a function).


Indicates an unexpected reaction (e.g. of a work step or a function).


Indicates a page reference (more information is provided on the specified page).

information Indicates information with more details or tips.

Indicates the result of a testing step.

Indicates a voltage measurement.

Indicates a current measurement.

Indicates a resistance measurement.

Indicates the end of an activity including potential rework.

Formats used

The typographical formats used in this document are explained below.

Proprietary name Indicates a proprietary name.
Name® Indicates a protected name.
Brand™ Indicates a brand available on the open market.
Underlined terms Refer to technical details of the vehicle or indicate technical terms, which are explained in the glossary.

SETUP

Transport mode


This vehicle was blocked for transport in the software.

To operate the vehicle, the vehicle electronics must be enabled.

This process is conducted during initial setup in KTM Dealer.net.

Enabling ensures that the initial setup in KTM Dealer.net is documented.

Enabling can be performed either temporarily, e.g. for a test ride, or permanently for vehicle handover.

information Info
Make sure that the vehicle is permanently enabled before handing it over to the customer.

Diagnostics connector


Diagnostics connector 1 is located under the front rider's seat.

Unpacking and setting up the vehicle

Preliminary work

  • Remove the box.

Main work

  • Remove the adhesive tape in the upper area of the motorcycle.
  • Roll down the film at the sides.

information Info
To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have finished work on the vehicle.

  • Remove the separate enclosure and unpack it. Check that the scope of supply is complete using the enclosed packing list.

information Info
The procedure for missing components is described in the Customer Service Manual.

  • Check the vehicle for transport damage.

information Info
The procedure in the event of transport damage is described in the Customer Service Manual.

  • Position the handlebar.

    The markings of the handlebar scale are located centrally between the handlebar clamp.
  • Position the handlebar clamp. Mount and tighten the screws evenly.

Guideline

Screw, handlebar clamp M8 20 Nm (14.8 lbf ft)
  • Position the brake assembly on the handlebar.
  • Position brake assembly clamp on the handlebar.
    The holding lug of the clamp engages in the combination switch.
  • Mount and tighten screws 1.

Guideline

Screw, brake assembly 5 Nm (3.7 lbf ft)
  • Position the clutch assembly on the handlebar.
  • Mount and tighten screw 2.

Guideline

Screw, clutch assembly M6 5 Nm (3.7 lbf ft) Loctite®243™
  • Unplug connector 3.
  • Position the combination instrument rack on the handlebar.
  • Mount screw 4, but do not tighten it yet.
  • Move the combination instrument into the desired position.
  • Tighten screw 4.

Guideline

Screw, combination instrument clamping M6 2 Nm (1.5 lbf ft)
  • Plug in connector 3 with sleeve.

(SUPER DUKE RR)

  • Remove the mounted clutch and hand brake lever.
  • Unpack and mount the KTM PowerParts levers included in the delivery.

Guideline

Screw, hand brake lever 5 Nm (3.7 lbf ft)
Screw, clutch lever 5 Nm (3.7 lbf ft)
  • Install the break lever protection.

    information Info
    Observe the KTM PowerParts instructions.
  • Check the throttle grip for smooth operation.
  • Mount and tighten the rear mirror on both sides.

(SUPER DUKE R)

  • Remove the passenger seat.
  • Secure tool set with the rubber strap.
  • Carefully loosen and remove the tension belts around the fork legs.

    The vehicle is released at the front.
    informationInfo
    An assistant prevents the motorcycle from falling over.
  • Remove the cable ties on either side of the footrest.
  • Together with an assistant, take the vehicle off the pallet.
  • Remove the radiator shield.

(SUPER DUKE RR)

  • Remove the footrest unit.
  • Install footrest unit KTM PowerParts (included).
    information Info
    Observe the KTM PowerParts instructions.
  • Remove the front rider's seat.
  • Remove the black ignition key and KEYCODECARD and keep in a safe place for the handover.
  • Remove cover 5.
  • Plug in the connector of starter relay 6.
  • Mount the cover.
  • Charge the 12-V battery.

Guideline
The 12-V battery must be fully charged before it is handed over to the customer.

information Info
The first charging process may take longer with a new 12-V battery.

  • Remove the protective film.
  • Refuel.
  • Prepare the vehicle according to the specifications in KTMDealer.net for handover to the customer.

WORK

Removing the passenger seat (SUPER DUKE R)

  • Insert the RACE ON key or the black ignition key into seat lock 1 and turn it clockwise.
  • Lift passenger seat at the front and pull it out of the bracket toward the front.
  • Remove the passenger seat.
  • Remove the ignition key.

Mounting the passenger seat (SUPER DUKE R)

  • Hook recesses 1 of the passenger seat in guides 2 and lower the front seat while pushing it back.
  • Position the locking pin in the lock housing and push the passenger seat down at the front.
    The locking pin engages with an audible click.
  • Check that the passenger seat is mounted correctly.

Removing the front rider's seat

Preparatory work
(SUPER DUKE R)

  • Remove the passenger seat.

Main work

  • Unlock the front rider's seat with loop 1 underneath the passenger seat.
  • Raise the front rider's seat at the rear and remove it.

(SUPER DUKE RR)

  • Pull the back cushion 1 off toward the front.
  • Unlock the front rider's seat with loop 2.
  • Raise the front rider's seat at the rear and remove it.

Mounting the front rider's seat

Main work
(SUPER DUKE R)

  • Hook recess 1 of the front rider's seat into guide 2, lower it at the rear and push it forward.
  • Position the locking pin in the lock housing and push down the front rider's seat at the rear.
    The locking pin engages with an audible click.
  • Check that the front rider's seat is mounted correctly.

(SUPER DUKE RR)

  • Hook recess 1 of the front rider's seat into guide 2, lower it at the rear and push it forward.
  • Position the locking pin in the lock housing and push down the front rider's seat at the rear.
    The locking pin engages with an audible click.
  • Check that the front rider's seat is mounted correctly.
  • Position back cushion 3 and push it into holding lugs.

Finishing work
(SUPER DUKE R)

  • Mount the passenger seat.

Removing the 12-V battery


Risk of injury
Battery acid and battery gases cause serious chemical burns.

  • Keep 12 V batteries out of the reach of children.
  • Wear suitable protective clothing and safety glasses.
  • Avoid contact with battery acid and battery gases.
  • Keep sparks or open flames away from the 12 V battery.
  • Only charge 12 V batteries in well-ventilated rooms.
  • Rinse the affected area immediately with plenty of water in the event of contact with the skin.
  • Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and battery gases get into the eyes.


Danger of accidents Electronic components and safety devices will be damaged if the 12-V battery is discharged or missing.

If the 12-V battery is discharged or defective, malfunctions in the vehicle electronics can occur, especially when starting.

  • Never operate the vehicle with a discharged 12-V battery or without a 12-V battery.

Preparatory work
(SUPER DUKE R)

  • Remove the passenger seat.
  • Remove the front rider's seat.

Main work
(SUPER DUKE R)

  • Remove control unit 1 and hang to the side.
  • Disconnect negative cable 2 from the 12-V battery.
  • Remove positive terminal cover 3 and disconnect the positive cable from the 12-V battery.

  • Disconnect plug-in connector 4.
  • Remove screw 5 and take off the battery cover.
  • Take the 12-V battery 6 out of the battery compartment.

(SUPER DUKE RR)

  • Remove control unit 1 and hang to the side.
  • Disconnect negative cable 2 from the 12-V battery.
  • Pull back positive terminal cover 3 and disconnect the positive cable from the 12-V battery.
  • Disconnect plug-in connector 4.
  • Remove screw 5 and take off the battery cover.
  • Take the 12-V battery 6 out of the battery compartment.

Installing the 12-V battery


Risk of injury Battery acid and battery gases cause serious chemical burns.

  • Keep 12 V batteries out of the reach of children.
  • Wear suitable protective clothing and safety glasses.
  • Avoid contact with battery acid and battery gases.
  • Keep sparks or open flames away from the 12 V battery.
  • Only charge 12 V batteries in well-ventilated rooms.
  • Rinse the affected area immediately with plenty of water in the event of contact with the skin.
  • Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and battery gases get into the eyes.


Danger of accidents Electronic components and safety devices will be damaged if the 12-V battery is discharged or missing.

If the 12-V battery is discharged or defective, malfunctions in the vehicle electronics can occur, especially when starting.

  • Never operate the vehicle with a discharged 12-V battery or without a 12-V battery.

Main work
(SUPER DUKE R)

  • Insert 12-V battery 1 into the battery compartment.
12-V battery (YTZ14S)
  • Position the battery cover, mount screw 2, and tighten.

Guideline

Remaining screws, chassis M5 5 Nm
(3.7 lbf ft)
  • Join plug-in connector 3
  • Position the positive cable and mount and tighten the screw.

Guideline

Screw, battery terminal M6 4.5 Nm
(3.32 lbf ft)
  • Mount positive terminal cover 4
  • Position negative cable 5 and mount and tighten the screw.

Guideline

Screw, battery terminal M6 4.5 Nm
(3.32 lbf ft)
  • Position control unit 6.

(SUPER DUKE RR)

  • Insert 12-V battery 1 into the battery compartment.
12-V battery (HJTZ14S-FPI)
  • Position the battery cover, mount screw 2, and tighten.

Guideline

Remaining screws, chassis M5 5 Nm
(3.7 lbf ft)
  • Join plug-in connector 3
  • Position the positive cable and mount and tighten the screw.

Guideline

Screw, battery terminal M6 4.5 Nm
(3.32 lbf ft)
  • Position positive terminal cover 4.
  • Position negative cable 5 and mount and tighten the screw.

Guideline

Screw, battery terminal M6 4.5 Nm
(3.32 lbf ft)
  • Position control unit 6.

Finishing work

  • Mount the front rider's seat.

(SUPER DUKE R)

  • Mount the passenger seat.
  • Set time and date.

Disconnecting the negative cable of the 12-V battery


Risk of injury
Battery acid and battery gases cause serious chemical burns.

  • Keep 12 V batteries out of the reach of children.
  • Wear suitable protective clothing and safety glasses.
  • Avoid contact with battery acid and battery gases.
  • Keep sparks or open flames away from the 12 V battery.
  • Only charge 12 V batteries in well-ventilated rooms.
  • Rinse the affected area immediately with plenty of water in the event of contact with the skin.
  • Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and battery gases get into the eyes.


Danger of accidents Electronic components and safety devices will be damaged if the 12-V battery is discharged or missing.

If the 12-V battery is discharged or defective, malfunctions in the vehicle electronics can occur, especially when starting.

  • Never operate the vehicle with a discharged 12-V battery or without a 12-V battery.

Preparatory work
(SUPER DUKE R)

  • Remove the passenger seat.
  • Remove the front rider's seat.

Main work

  • Remove control unit 1 and hang to the side.
  • Disconnect negative cable 2 from the 12-V battery.

Connecting the negative cable of the 12-V battery


Risk of injury Battery acid and battery gases cause serious chemical burns.

  • Keep 12 V batteries out of the reach of children.
  • Wear suitable protective clothing and safety glasses.
  • Avoid contact with battery acid and battery gases.
  • Keep sparks or open flames away from the 12 V battery.
  • Only charge 12 V batteries in well-ventilated rooms.
  • Rinse the affected area immediately with plenty of water in the event of contact with the skin.
  • Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and battery gases get into the eyes.


Danger of accidents Electronic components and safety devices will be damaged if the 12-V battery is discharged or missing.

If the 12-V battery is discharged or defective, malfunctions in the vehicle electronics can occur, especially when starting.

  • Never operate the vehicle with a discharged 12-V battery or without a 12-V battery.

Main work

  • Position negative cable 1 and mount and tighten the screw.

Guideline

Screw, battery terminal M6 4.5 Nm
(3.32 lbf ft)
  • Position control unit 2

Finishing work

  • Mount the front rider's seat.

(SUPER DUKE R)

  • Mount the passenger seat.
  • Set time and date.

Charging the 12-V battery


Risk of injury Battery acid and battery gases cause serious chemical burns.

  • Keep 12 V batteries out of the reach of children.
  • Wear suitable protective clothing and safety glasses.
  • Avoid contact with battery acid and battery gases.
  • Keep sparks or open flames away from the 12 V battery.
  • Only charge 12 V batteries in well-ventilated rooms.
  • Rinse the affected area immediately with plenty of water in the event of contact with the skin.
  • Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and battery gases get into the eyes.


Risk of injury 12 V batteries contain harmful substances.

  • Keep 12 V batteries out of the reach of children.
  • Keep sparks and open flames away from 12 V batteries.
  • Only charge 12 V batteries in well-ventilated rooms.
  • Maintain a minimum clearance from inflammable materials when charging 12 V batteries.

Minimum clearance 1 m (3 ft)

information Note
Danger of damage
An incorrectly selected charging mode will damage the 12-V battery.

  • Always select a charging mode that is compatible with the type of battery.

Note
Environmental hazard
12 V batteries contain environmentally hazardous materials.

  • Do not dispose of 12 V batteries as household waste.
  • Dispose of 12 V batteries at a collection point for used batteries.

Note
Environmental hazard
Hazardous substances cause environmental damage.

  • Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regulations.

information Info
Even when there is no load on the 12-V battery, it discharges steadily each day.
The charging level and the method of charging are very important for the service life of the 12-V battery.
Rapid recharging with a high charging current shortens the service life of the battery.
If the charging current, charging voltage, or charging time is exceeded, the 12 V battery will be destroyed.
If the 12-V battery is discharged by repeated starting, charge the 12-V battery immediately.
If the 12-V battery is left in a discharged state for an extended period, it will become deeply discharged and suffer a loss of capacity, destroying the battery.
The 12-V battery is maintenance-free.

Preparatory work
(SUPER DUKE R)

  • Remove the passenger seat.
  • Remove the front rider's seat.
  • Disconnect the negative cable of the 12-V battery.

Main work

  • Connect a battery charger to the 12-V battery. Adjust the battery charger.
    EU battery charger XCharge‑professional (00029095050)

Alternative 1
US battery charger XCharge‑professional (00029095051)

Alternative 2
UK battery charger XChargeprofessional
(00029095052)

information Info Follow the instructions of the charger and the manual.

  • Disconnect the battery charger after charging the 12-V battery.

Guideline

The charging current, charging voltage, and charging time must not be exceeded.
Recharge the 12-V battery regularly when the motorcycle is not being used 6 months

Finishing work

  • Connect the negative cable of the 12-V battery.
  • Mount the front rider's seat.

(SUPER DUKE R)

  • Mount the passenger seat.
  • Set time and date.

Refueling


Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.

  • Do not fuel the vehicle in the vicinity of open flames or lit cigarettes.
  • Switch off the engine for refueling.
  • Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
  • If any fuel is spilled, wipe it off immediately.
  • Observe the specifications for refueling.


Danger of poisoning Fuel is harmful to health.

  • Avoid skin, eye and clothing contact with fuel.
  • Immediately consult a doctor if you swallow fuel.
  • Do not inhale fuel vapors.
  • Rinse the affected area immediately with plenty of water in the event of contact with the skin.
  • Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
  • Change your clothing if fuel spills on them.

information Note
Material damage
Inadequate fuel quality causes the fuel filter to quickly become clogged.
In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with the fuel system.

  • Refuel only with clean fuel that meets the specified standards.

Note
Environmental hazard
Improper handling of fuel is a danger to the environment.

  • Do not allow fuel to enter the groundwater, the soil, or the sewage system.
Total fuel tank capacity, approx. 16 l (4.2 US gal) Super unleaded
(ROZ 95)
  • Switch off the engine.
  • Open fuel tank filler cap.
  • Fill the fuel tank with fuel up to the lower edge A of the filler neck.
  • Close the fuel tank filler cap.

Opening fuel tank filler cap


Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.

  • Do not fuel the vehicle in the vicinity of open flames or lit cigarettes.
  • Switch off the engine for refueling.
  • Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
  • If any fuel is spilled, wipe it off immediately.
  • Observe the specifications for refueling.


Danger of poisoning Fuel is harmful to health.

  • Avoid skin, eye and clothing contact with fuel.
  • Immediately consult a doctor if you swallow fuel.
  • Do not inhale fuel vapors.
  • Rinse the affected area immediately with plenty of water in the event of contact with the skin.
  • Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
  • Change your clothing if fuel spills on them.
  • Keep fuels correctly in a suitable canister, and out of the reach of children.

Note
Environmental hazard
Improper handling of fuel is a danger to the environment.

  • Do not allow fuel to enter the groundwater, the soil, or the sewage system.

Condition
The motorcycle is stationary.
The engine is switched off.
The ignition has been switched on or off for less than 1 minute.

  • Fold up cover 1 slowly.

    The fuel tank filler cap is unlocked.
  • Fold up fuel tank filler cap 2.

Closing the fuel tank filler cap


Fire hazard Fuel is highly flammable and a health hazard.

  • Check that the fuel tank filler cap is locked correctly after closing.
  • Change your clothing if fuel spills on them.
  • Rinse the affected area immediately with plenty of water in the event of contact with the skin.

  • Fold down fuel tank filler cap 1 and push it down.
    The fuel tank filler cap locks audibly in place.

Setting the time and date

Condition
The motorcycle is stationary.

  • Press RIGHT button when the menu is closed.
  • Press the UP or DOWN button until Settings is marked.
    Press the RIGHT button to open the menu.
  • Press the UP or DOWN button until Clock/Date is marked.
    Press the RIGHT button to open the menu.

Setting the clock

  • Press the UP or DOWN button until the time is marked.
  • Press the SET button.
    The hour next to Clock flashes.
  • Press the UP or DOWN button until the current hour is set.
  • Press the RIGHT button.
    The minute next to Clock flashes.
  • Press the UP or DOWN button until the current minute is set.
  • Press the SET button.
    The time is stored.

Setting the date

  • Press the UP or DOWN button until the date is marked.
  • Press the SET button.
    The day next to Date flashes.
  • Press the UP or DOWN button until the current day is set.
  • Press the RIGHT button.
    The month next to Date flashes.
  • Press the UP or DOWN button until the current month is set.
  • Press the RIGHT button.
    The year next to Date flashes.
  • Press the UP or DOWN button until the current year is set.
  • Press the SET button.
    The date is stored.

TECHNICAL SPECIFICATIONS

chassis tightening torques

Remaining screws, chassis EJOT PT® K50x12 1.2 Nm (0.89 lbf ft)
Remaining screws, chassis EJOT PT® K50x14 1.5 Nm (1.11 lbf ft)
Remaining screws, chassis EJOT PT® K50x16 2.2 Nm (1.62 lbf ft)
Remaining screws, chassis EJOT PT® K50x18 2.2 Nm (1.62 lbf ft)
Remaining screws, chassis EJOT PT® K45x12 1.2 Nm (0.89 lbf ft)
Screw, air filter box cover EJOT PT® K60x30 2.5 Nm (1.84 lbf ft)
Screw, clutch lever 5 Nm (3.7 lbf ft)
Screw, hand brake lever 5 Nm (3.7 lbf ft)
Screw, tail light (SUPER DUKE R) EJOT PT® K50x14 1.5 Nm (1.11 lbf ft)
Screw, fixed grip, left M4 3 Nm (2.2 lbf ft)
Screw, side stand sensor M4 2 Nm (1.5 lbf ft)
Remaining nuts, chassis M5 5 Nm (3.7 lbf ft)
Remaining screws, chassis M5 5 Nm (3.7 lbf ft)
screw, absorbing element, combination instrument M5 2 Nm (1.5 lbf ft) Loctite®243™
Screw, cable channel M5 5 Nm (3.7 lbf ft)
Screw, chain sliding guard M5 5 Nm (3.7 lbf ft)
Screw, combination instrument M5 1 Nm (0.7 lbf ft)
Screw, combination switch, left M5 5 Nm (3.7 lbf ft)
Screw, combination switch, right M5 5 Nm (3.7 lbf ft)
Screw, Denso throttle grip M5 3.5 Nm (2.58 lbf ft)
Screw, exhaust valve cover fastening EJOT SF® M5 4 Nm (3 lbf ft)
Screw, front turn signal bracket M5 3.5 Nm (2.58 lbf ft)
Screw, fuel level sensor M5 3 Nm (2.2 lbf ft)
Screw, fuel tank filler cap M5 3 Nm (2.2 lbf ft)
Screw, rear turn signal bracket M5 3.5 Nm (2.58 lbf ft)
Screw, trim M5 3.5 Nm (2.58 lbf ft)
Cable disk nut, exhaust valve control unit M6 14 Nm (10.3 lbf ft)
Ground fitting on frame M6 10 Nm (7.4 lbf ft)
Nut, cable on starter motor M6 4 Nm (3 lbf ft)
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Screw, 6-D sensor cover M6 6 Nm (4.4 lbf ft) Loctite®243™
Screw, ABS module fastening M6 8 Nm (5.9 lbf ft)
Screw, ball joint of push rod on brake cylinder (SUPER DUKE R) M6 5 Nm (3.7 lbf ft) Loctite®243™
Screw, battery terminal M6 4.5 Nm (3.32 lbf ft)
Screw, brake cylinder (SUPER DUKE R) M6 10 Nm (7.4 lbf ft) Loctite®243™
Screw, clutch assembly M6 5 Nm (3.7 lbf ft) Loctite®243™
Screw, connecting piece, rear brake line M6 10 Nm (7.4 lbf ft) Loctite®243™
Screw, cooler retaining bracket M6 7 Nm (5.2 lbf ft)
Screw, front wheel speed sensor M6 4 Nm (3 lbf ft)
Screw, fuel pump M6 6 Nm (4.4 lbf ft)
Screw, fuel tank cover M6 5 Nm (3.7 lbf ft)
Screw, instrument support clamp M6 2 Nm (1.5 lbf ft)
Screw, license plate holder on lower rear panel (SUPER DUKE R) M6 8 Nm (5.9 lbf ft)
Screw, presilencer exhaust clamp M6 10 Nm (7.4 lbf ft)
Screw, radiator hose clip M6 3 Nm (2.2 lbf ft)
Screw, rear wheel speed sensor M6 4 Nm (3 lbf ft)
Screw, shift lever stub (SUPER DUKE R) M6 10 Nm (7.4 lbf ft)
Screw, shift rod (SUPER DUKE R) M6 5 Nm (3.7 lbf ft) Loctite®243™
Screw, shift shaft deflector on shift shaft M6 18 Nm (13.3 lbf ft) Loctite®243™
Screw, side stand stub M6 6 Nm (4.4 lbf ft) Loctite®243™
Screw, steering damper bracket on frame M6 8 Nm (5.9 lbf ft) Loctite®243™
Screw, step plate for foot brake lever (SUPER DUKE R) M6 10 Nm (7.4 lbf ft)
Nut, exhaust valve throttle cable M6x1 5 Nm (3.7 lbf ft)
Cable disk nut, exhaust valve M8 7 Nm (5.2 lbf ft)
Nut, rear sprocket M8 36 Nm (26.6 lbf ft) Loctite®243™
Nut, shift rod M8 12 Nm (8.9 lbf ft)
Nut, valve (JP) M8 4 Nm (3 lbf ft)
Nut, valve (EU/CN) M8 6 Nm (4.4 lbf ft) Loctite®243™
Remaining nuts, chassis M8 25 Nm (18.4 lbf ft)
Remaining screws, chassis M8 25 Nm (18.4 lbf ft)
Screw, axle clamp M8 15 Nm (11.1 lbf ft)
Screw, bottom triple clamp M8 15 Nm (11.1 lbf ft)
Screw, exhaust clamp on main silencer M8 12 Nm (8.9 lbf ft)
Screw, foot brake lever (SUPER DUKE R) M8 20 Nm (14.8 lbf ft) Loctite®243™
Screw, front brake disc M8 28 Nm (20.7 lbf ft) Loctite®2701™
Screw, front rider footrest bracket M8 25 Nm (18.4 lbf ft) Loctite®243™
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft)
Screw, ignition lock (tamper-proof screw) M8 25 Nm (18.4 lbf ft)
Screw, rear brake caliper M8 25 Nm (18.4 lbf ft) Loctite®2701™
Screw, rear brake disc M8 28 Nm (20.7 lbf ft) Loctite®243™
Screw, shift lever on footrest support (SUPER DUKE R) M8 20 Nm (14.8 lbf ft) Loctite®243™
Screw, shift shaft deflector on frame M8 10 Nm (7.4 lbf ft) Loctite®243™
Screw, side stand bracket M8 25 Nm (18.4 lbf ft) Loctite®243™
Screw, side stand spring M8 15 Nm (11.1 lbf ft) Loctite®2701™
Screw, steering damper on holder M8 25 Nm (18.4 lbf ft) Loctite®2701™
Screw, steering damper on triple clamp M8 8 Nm (5.9 lbf ft) Loctite®243™
Screw, steering stem clamp M8 20 Nm (14.8 lbf ft) Loctite®243™
Screw, top triple clamp M8 18 Nm (13.3 lbf ft)
Remaining nuts, chassis M10 45 Nm (33.2 lbf ft)
Remaining screws, chassis M10 45 Nm (33.2 lbf ft)
Screw, engine bearer M10 45 Nm (33.2 lbf ft) Loctite®243™
Screw, front brake caliper M10 45 Nm (33.2 lbf ft) Loctite®243™
Screw, handlebar support M10 40 Nm (29.5 lbf ft) Loctite®243™
Screw, side stand M10 40 Nm (29.5 lbf ft) Loctite®243™
Screw, side stand bracket M10 55 Nm (40.6 lbf ft) Loctite®243™
Banjo bolt, brake line M10x1 25 Nm (18.4 lbf ft)
Banjo bolt, brake line, connecting piece, rear M10x1 25 Nm (18.4 lbf ft)
Nut, rear hub shock absorber carrier M10x1.25 45 Nm (33.2 lbf ft) Loctite®243™
Screw, bottom shock absorber M12 80 Nm (59 lbf ft) Loctite®243™
Screw, side stand bracket M12 80 Nm (59 lbf ft) Loctite®243™
Screw, top shock absorber M12 80 Nm (59 lbf ft) Loctite®243™
Lambda sensor M12x1.25 24.5 Nm (18.07 lbf ft)
Screw, eccentric M16 70 Nm (51.6 lbf ft)
Nut, fork pivot M19x1.5 130 Nm (95.9 lbf ft) Thread greased
Screw, steering head, top M20x1.5 12 Nm (8.9 lbf ft)
Nut, seat lock (SUPER DUKE R) M22x1.5 3 Nm (2.2 lbf ft)
Screw, front wheel spindle M25x1.5 45 Nm (33.2 lbf ft) Thread greased
Nut, rear axle, shock absorber side M35x1.5 200 Nm (147.5 lbf ft) Loctite® 262™/lock the locking wire with locking varnish
Nut, rear axle M50x1.5 250 Nm (184.4 lbf ft) Thread greased/lock locking wire with locking varnish

SUBSTANCES

Super unleaded (ROZ 95)
Standard/classification

  • DIN EN 228 (ROZ 95)

Guideline

  • Only use super unleaded fuel that matches or is equivalent to the specified standard.
  • Fuel with an ethanol content of up to 10% (E10 fuel) is safe to use.

information Info
Do not use fuel containing methanol (e.g., M15, M85, M100) or more than 10% ethanol (e.g., E15, E25, E85, E100).

KTM Sportmotorcycle GmbH
5230 Mattighofen/Austria
KTM.COM

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download KTM 1290 SUPER DUKE R 2023, 1290 SUPER DUKE RR 2023 Manual

Advertisement

Need help?

Need help?

Do you have a question about the 1290 SUPER DUKE R 2023 and is the answer not in the manual?

Questions and answers

Table of Contents
