MIMAKI Tx400 Daily Care Manual

Tx400 Daily Care
With a view to using this machine in a better condition, please be sure to the following daily care
daily work. Please refer to "Daily care manual" for the detail.

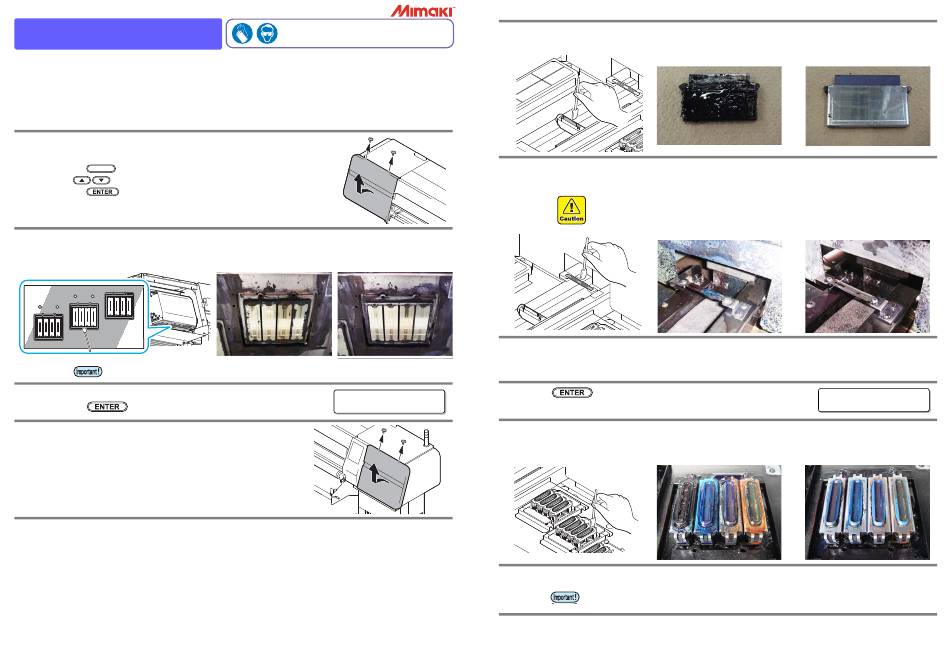

Maintenance of the head nozzle surface
1. Perform [HEAD MAINT.], move the carriage to the
maintenance position and open the maintenance cover L.
(1) Press the key in LOCAL.
MAINT.
(2) Press to select [Nozzle Clean2].
(3) Press the key.
(4) Open the maintenance cover L.
2. Soak the clean stick or the waste cloth in the maintenance cleaning solution and wipe off
an accumulated ink on the side of the head and on the bottom surface of the slider.
• Never rub the nozzles.
3. After cleaning is completed, close the maintenance cover L
and press .
4. Open the maintenance cover R.
Make sure to wear the attached
goggles and glove when you work.
after at the end of the
[Before cleaning] [After cleaning]
C l e a n Wi p e r
C o mp l e t e d : e n t
5. Clean the wiper.
Wipe off the ink sticking to the wiper with a clean stick dipped in cleaning solution for maintenance.
6. Clean the wiper cleaner.
Wipe off the ink sticking to the wiper cleaner with a clean stick dipped in cleaning solution for maintenance.
• Be careful so that you may not get injured with the edge of the wiper cleaner.
7. Wash the sponge under the wiper.
(1) Remove the sponge in the wiper frame and wash it with water.
(2) Dry the sponge and put it into the wiper frame again.
8. Press .
9. Clean the cap rubber.
Wipe off the ink sticking to the cap rubber with a clean stick dipped in cleaning solution for maintenance.
10. Remove hardened ink etc. remaining in the cap with a pair of tweezers.
• If the sponge is misaligned or floats, return it to the original position. Leaving it with being
misaligned may damage the nozzle surface.
[Before cleaning] [After cleaning]
[Before cleaning] [After cleaning]
C a p C l e a n i n g
C o mp l e t e d
[Before cleaning] [After cleaning]
: e n t
