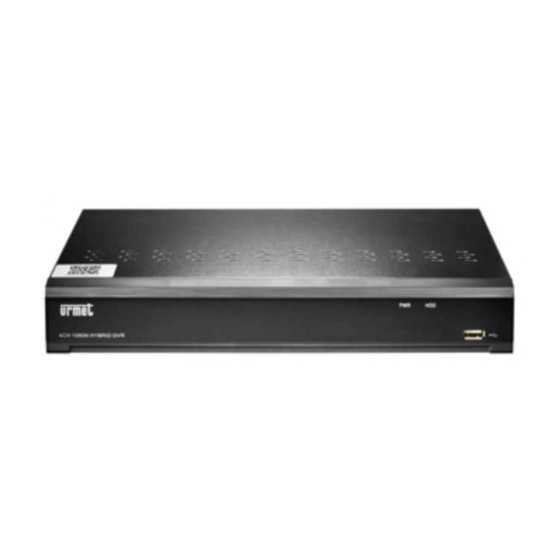

- Page 1 Mod. 1093 DS1093-520 H.264 WITH HDMI DVR Hybrid DVR 1080N Series 4 CH Ref. 1093/504N 8 CH Ref. 1093/508N 16 CH Ref. 1093/516N USER MANUAL INSTRUCTIONS...
-
Page 2: Table Of Contents
ENGLISH TABLE OF CONTENTS General information ..........................5 Product description ........................5 1.1.1 General features ............................5 Opening the box ........................6 1.2.1 Contents of the box ............................6 Warnings ...........................7 1.3.1 Power................................7 1.3.2 Safety precautions ............................7 1.3.3 Installation precautions ..........................7 1.3.4 Cleaning the device ............................ - Page 3 3.6.1.1 HDD Set ..............................45 3.6.1.2 HDD ................................. 45 3.6.1.3 Disk Group Set ............................46 3.6.1.4 S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) information ......... 47 3.6.2 PTZ Set ............................... 48 3.6.2.1 Cloud Storage ............................48 System ............................ 49 3.7.1 General set ..............................49 3.7.1.1 General ..............................
- Page 4 Maximum recording time with 1000GB Hard Disk ................96 Ref. 1093/504N – 1093/508N – 1093/516N ................96 Record Alarm setting ........................... 100 Troubleshooting ........................... 100 Usage Maintenance ..........................101 Appendix: Active X installation ........................102 GLOSSARY ..............................105 DS1093-520...
-
Page 5: General Information
GENERAL INFORMATION This document describes how to install and use the URMET Hybrid DVR Series Ref. 1093/504N – Ref. 1093/508N - Ref. 1093/516N. Read this manual which contains information for correct, safe use carefully. Keep this manual at hand so that you can refer to it when needed. PRODUCT DESCRIPTION The URMET S.p.A. -
Page 6: Opening The Box
Here follow a Summarize about the most Features: Function Brief and Description Double video output with monitor, VGA virtual output port or HDMI Output; Support Real time URMET UVS Client Software and MP live surveillance and also support zoom in/out, monitoring auto sequence and PIP display. -
Page 7: Warnings
WARNINGS 1.3.1 POWER Only use the power unit provided to power the device. Check mains rating before plugging the power unit in. Do not pull the cable to unplug the device. Switch the device off before unplugging power unit. This operation must not be performed when the DVR is recording, playing or from the configuration menu. -
Page 8: Description
DESCRIPTION FRONT PANEL Please note that DVR stands for Digital Video Recorder Equipment (digital video recording device). 2.1.1 REF. 1093/504N-508N-516N DVR FRONT PANEL Key title or Item Remark Function & Description Indicator If the “Green” indicator is on the system is getting power Power Indicator normally. -
Page 9: Rear Panel
REAR PANEL 2.2.1 REF. 1093/504N DVR BACK PANEL Item Physical port Connection method Video inputs Connect CH1-CH4 video input device (BNC interface) Audio Inputs 4CH audio input (RCA interface) Audio Output Audio output (RCA interface); Connect USB mouse USB Port Connect to HDMI monitor HDMI Port Connect to VGA monitor, such as PC monitor... -
Page 10: Ref. 1093/516N Dvr Back Panel
2.2.3 REF. 1093/516N DVR BACK PANEL Item Physical port Connection method Video inputs Connect CH1-CH16 video input device (BNC interface) Audio Inputs 4CH audio input CH1-CH8 (RCA interface) Audio Output Audio output (RCA interface); Connect USB mouse USB Port Connect to HDMI monitor HDMI Port Connect to VGA monitor, such as PC monitor VGA Port... -
Page 11: Remote Controller
REMOTE CONTROLLER Item Key title Key function Channel 1-9 selection; channel selection number keys. Enabled channels: DVR 4 ch: • DVR 8 ch: • DVR 16 ch: Channel selection key. For use on DVR 16 ch only Multiple display mode Menu Enter into Main menu/Exit ▲... -
Page 12: Mouse Operation
MOUSE OPERATION The mouse can be used to operate the system in addition to the remote control. The following table shows the possible actions which may differ according to the state and the current system screen. ACTION MODE FUNCTION This activates the Main Menu (pop-up menu) on the lower part of the screen Live display Right click Main Menu or... -
Page 13: System Initialization
SYSTEM INITIALIZATION After having plugged in the DVR, the system will run the initialisation procedures during which the following image will appear: At the end of the boot-up, the DVR will switch to Live view. LIVE INTERFACE AND POP-UP MENU After finishing initialization, the system will enter into <Live>... - Page 14 Left-click on the image of a channel to which an IP camera is connected to open a menu underneath it containing the following functions: Manual Capture - manual image acquisition (if enabled for the specific channel). • Stream Switch (i.e. Main Stream, Sub Stream) •...
-
Page 15: Main Menu Guide
MAIN MENU GUIDE After finishing system initialization, click right key of mouse on main interface mode to enter into Pop-up Menu which will appear in the lower part of the screen. The DVR functions are organised by type following the order shown in the following diagram: Main Menu Parameter... - Page 16 Record Search General Events Pictures Device Disk Group S.M.A.R.T. Cloud System General General Users Info Info Channel Info Record Info Users Advanced Mantain Events Shutdown Shutdown Reboot DS1093-520...
-
Page 17: Main Menu
MAIN MENU All the DVR functions can be accessed from the Main Menu. If you have not logged in (Main Menu Locked mode), you will need to enter Username and Password as shown in the following figure: In <Live> mode, press the [Menu] button on the remote control to access the Main Menu interface. You can also access the Main Menu by left-clicking on the menu pop-up which appears in the lower part of the screen. -
Page 18: Display
3.4.1 DISPLAY The first subsection in the Parameters section concerns screen configuration, i.e. all the settings referred to the DVR camera image display. They will be described in detail in the following paragraphs. 3.4.1.1 Analog Channels Use this menu page to enable/exclude the available analogue channels (four for model 1093/504N, eight for model 1093/508N and 16 for model 1093/516N). - Page 19 The meaning of each column of the IP channel list is described in the following list: Channel: IPC camera channel number Edit: Modify the name and channel name position of channels, change other Channel connection parameters as shown in following Picture. State: Display IPC on-line state (Green colour) IP Address/Domain: IP address of the IPC connected of the channel Subnet Mask: IPC camera subnet mask...
- Page 20 Adding a user-defined camera Press this button to access the page for manually selecting and configuring the IP cameras present in the local area network (LAN); the DVR will run an automatic search and show the list of cameras in the list on the upper part of the page (the search can be run manually at any time by pressing the Search button).
-
Page 21: Live
3.4.1.3 Live This page of the Display menu can be used to configure the parameters related to the <Live> screen of the DVR. As shown in the following figures, the available options may be different if an analogue channel is being configured (figure on the left) or an IP camera (figure on the right). - Page 22 Color Press the [Color] button to open a window on the screen for adjusting the brightness, saturation, contrast, hue and sharpness of each channel (see figure below): Explanation The modifications will be available after clicking [Save] button on the bottom of the sub-menu windows and then clicking [ok] button.
-
Page 23: Output
3.4.1.4 Output On this page of the Display menu you can configure the main video output parameters of the DVR. Video output: Select the video output used by the DVR; possible values: LIVE-OUT. Seq Mode: It is possible to set the Layout for the cycle function; possible values are: Layout1, Layout4, Layout9, Layout10, Layout10-1, Layout12, Layout13, Layout13-1, Layout14, Layout16, Layout19, Layout20, Layout22. -
Page 24: Privacy Zone
3D Noise Reduction: this is used to select the method to be employed by the camera to reduce multi- dimensional noise reduction is poor light conditions; there are three available states: Auto, Manual and Off. Level: the 3D noise reduction level. WDR (Wide Dynamic Range): this activates the dynamic compensation function between light and dark areas to increase image quality. -
Page 25: Record Set
3.4.2 RECORD SET This subsection describes the configuration of the recording options made available by the DVR. 3.4.2.1 Record This menu can be opened by clicking on “Record” and used to set the DVR recording parameters: Channel: allow you setup the channel you desired. •... -
Page 26: Main Stream
3.4.2.3 Main Stream This menu can be used to set the main video stream configuration parameters of the DVR which is used for playback and recording on high-quality HDDs. Channel: This option allows you select one channel you desired. • Resolution: supports Video resolution, available value: 1080N, 720P resolutions WD1. -
Page 27: Sub Stream
3.4.2.4 Sub Stream This page of the menu can be used to set the Sub Stream making it possible to reduce the bandwidth used for recording and playing the images. It may be used by the DVR for remote monitoring of the system. Channel: This option allows you select one channel you desired. -
Page 28: Mobile Stream
3.4.2.5 Mobile Stream Select Mobile Stream in the left menu to configure the parameters of the third video stream which is used for playing back on mobile devices, e.g. smartphones or tablets. The resolution in this case will be lower but on the other hand less bandwidth will be occupied on the data channel. -
Page 29: Capture
3.4.3 CAPTURE This subsection of the Parameters menu can be used to configure the parameters dedicated to the acquisition of images in alarm conditions and to the programming of the times during which the function must be active. 3.4.3.1 Capture (Cattura) The Capture item is used to configure the parameters for recording the images in alarm condition, the possible options are shown in the following table Channel: This is used to select the channel to be configured. -
Page 30: Network
3.4.4 NETWORK The Network section of the Parameters menu can be used to access all the DVR settings for accessing the Internet and the local area network (LAN), the e-mail notification functions, the use of a DDNS (Dynamic DNS) service, and so on. 3.4.4.1 Network set The first time concerns the settings for configuring access to the IP network by the DVR;... - Page 31 Press [Save] button to save the changes. The parameters must be allocated manually if the network does not support DHCP, or to attribute a static IP address to the DVR. Then select the Static option and fill in the following fields: IP address Subnet Mask Gateway...
- Page 32 IP Port setup To be able to access the DVR remotely via the Internet, it is necessary to configure the function for forwarding in external router ports to the DVR. The function is usually called “Port-forwarding” or “Virtual Server” in the router configuration menu.
-
Page 33: Email Set
3.4.4.2 Email set The Email menu can be used to access the parameter configuration for notifying alarms via email. Email: this is used to enable or disable email parameter configuration. • Encryption: this is used to specify whether communication with the email servers is encrypted or not; the use of a •... -
Page 34: Email Schedule
3.4.4.3 Email Schedule This configuration page can be used, as seen in the other cases, to select on which times and days of the week the DVR must send an email in case of a given event. Channel: this is used to select the channel to be configured. •... - Page 35 Check that the DDNS function is enabled and that the URMETDDNS server is selected. Click on the Get button and wait for ten seconds or so for the DVR ID to be generated. This is needed for remote access via the URMET web portal (see figure below).
-
Page 36: Rtsp
3.4.4.5 RTSP This menu can be used to configure the parameters to access the video streams of the camera connected to the DVR, via the RTSP protocol. The options to be configured as shown under the following figure: RTSP Enable: this is used to enable or disable the RTSP function. •... -
Page 37: Ftp
3.4.4.6 The last available item in the Network section concerns the configuration parameters to access a FTP server on which to load the images and the recordings acquired following an alarm detected by the DVR. The options are shown under the following figure: FTP Enable: select the required option to enable or disable operation. -
Page 38: Alarm
3.4.5 ALARM This section is dedicated to the configuration parameters used by the DVR for recording and notifying alarms. 3.4.5.1 Motion Select Motion in the side menu to open a page where to define the methods and actions to be taken in case of motion alarm detection. -
Page 39: Record Search
RECORD SEARCH This section can be used to access the image search functions. Click on “Record Search” on the top of the screen to open the following subsections, which are: General Events Picture 3.5.1 GENERAL Select this item to open the DVR recording search page (see the figure below). Channel: allows you select the channel(s) you desire to search. -
Page 40: Event Search
3.5.2 EVENT SEARCH This menu item can be used to search the video recordings made by DVR following an alarm event, such as for example motion detection. After having opened the search page, similar to that shown in the figure below, the search fields can be narrowed by setting the following filters: Date: select the date from which to run the search. -
Page 41: File Backup
3.5.3 FILE BACKUP There are three backup modes for saving the DVR recordings to file. The first is based on the date and time search and can be accessed by pressing the “Backup” button to left of the Search button. In this case, the recordings found in selected time range are saved. -
Page 42: Back-Up File Based On Event
Select the backup device (e.g. USB flash drive, eSATA disc or USB DVD) and the destination folder, press [OK] to start the backup, a progress bar appears in the lower part of the window to monitor the backup completion state. 3.5.3.3 Back-up file based on event In the image below, press [Search] to start searching from the video recordings available on the HDD by filters (Date, Start,... -
Page 43: Picture Search
At the end of the backup, click on the [OK] button as shown above. Note: The file will be saved in *.264, AVI or mp4 format. • Recording files can be played by the DVR Client player. When DVRclient is installed, the system will install the •... -
Page 44: Playing Backed Up Recordings On Media Player
3.5.5 PLAYING BACKED UP RECORDINGS ON MEDIA PLAYER Copy one backup file to your PC. Open Playback player and click “+” icon or button to find/select the backup file, and then click [open] button. Highlight the file you have selected and click [Play] button. ：Play button: click the icon to playback the backup record;... -
Page 45: Hdd Set
3.6.1.1 HDD Set Select the item to access the settings of the Hard Disk connected to the DVR. 3.6.1.2 The page listing the main parameters can be accessed using this side menu item. When DVR is connected to a HDD, the system will automatically detect if HDD is normal or not; If the cable connected to HDD is loosen or HDD is not working correctly, HDD status will be shown as “No Disk”, or, If HDD need to be formatted, status will be shown as “no format”, otherwise, the HDD status will be shown as “Normal”. -
Page 46: Disk Group Set
ID Hard Disk: Identification of the HDD (set by system). • Disk Type: this indicates the disc type, possible values: Read Write Disk, Redundant Disk, Read Only Disk • Disk Group: Group with which to associate the HDD; up to 16 different groups are available •... -
Page 47: Self-Monitoring, Analysis And Reporting Technology) Information
3.6.1.4 S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) information This page can be used to control the S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) functions of the hard disks connected to the DVR. Self-Monitoring, Analysis, and Reporting Technology or S.M.A.R.T. is a hard drive and SSD monitoring system for detecting and providing reliability indicators with the goal of anticipating faults. -
Page 48: Ptz Set
3.6.2 PTZ SET To control PTZ cameras, click on PTZ (which stands for Pan Tilt and Zoom) to open the page shown in the following figure. On each channel, you can set the communication protocol, the speed and other information, as shown below: Channel: this is used to select the channel to be configured. -
Page 49: System
SYSTEM This section can be used to configure the functional parameters of system. To access, press “System” on the upper part of the screen. The following subsections will appear in the menu underneath: General Users Info 3.7.1 GENERAL SET This area contains all the general settings of the DVR. 3.7.1.1 General Select the first item in the side menu to access the general settings of the system as shown in the figure. -
Page 50: Dst Set
3.7.1.2 DST Set This function allows the daylights saving time settings. DST: this enables and disables the automatic switch to daylight saving time and vice versa. • Time Offset: number of hours to add/remove when switching to daylight saving time: the possible values are: 1 hour, •... -
Page 51: Users
3.7.1.4 Users The second item in the system settings menu can be used to confirm the users who can access the DVR functions. The figure above shows the list of available users. For this model, there can be up to seven normal users and one administrator. -
Page 52: Information
Permission Unlike the Administrator who has complete control of all system functions, permission can be assigned to other users or revoked to access DVR functions. To modify permission, select the required user from the list, press [Permission] to open the following page: [Admin] is authorized to set common user’s authority. -
Page 53: Channel Info
3.7.2.1 Channel Info Select the second item (Channel Info) to see the main information for each analogue or IP channel. User may view the information of various connected IP cameras, including state, mainstream, substream, motion detection, privacy zone, cruise, etc 3.7.2.2 Record Info In the same way, this time can be used to see the settings which refer to the recording parameters of the analogue or IP... -
Page 54: Advanced
ADVANCED Two functions are available in the Advanced section. These are: Maintain Events 3.8.1.1 Maintain Click on Maintain in the side menu to open the page shown in the following figure on which you can set some operating modes of the DVR and perform system maintenance operations. Default User: If this setting is set to “Admin”... - Page 55 Load Default: If [Load Default] is selected, you can initialize the system to the ex-factory default. Click “Load • Default” and select items to be restored. IPC Upgrade： ： ： ： IPC can be upgraded by the connected DVR. Decompress IPC upgrading file and copy *.sw file •...
-
Page 56: Events
Reboot IPC: Reboot the IP Camera (IP Camera with ONVIF Protocol cannot be rebooted). • IMPORTANT NOTE: It is strongly recommended to Backup the record files stored in the Hard Disk before Upgrade Firmware Version. After Backup Process, the files shall be played using the Player Software present in the old Firmware Release. -
Page 57: Shutdown
SHUTDOWN The last item in the upper system menu can be used to shut down and reboot the system safely. All operations are protected by the DVR administrator password. Click on the menu item and in the window that opens enter user and password and click on the required operation: Shutdown: to stop recordings and shut down the system. -
Page 58: Multi-Screen Display Mode
3.9.2 MULTI-SCREEN DISPLAY MODE Click icons on the toolbar in order to split the LIVE screen. There are many display modes in video channel, including single channel display, SEQ display and split mode. 3.9.3 STREAM SWITCH Click icon on the toolbar in order to switch the Stream Type. It is possible to select “Main Stream” and “Sub Stream” for Live/Recording settings. -
Page 59: 3.10 Pop-Up Menu Analog And Ip Channel
3.10 POP-UP MENU ANALOG AND IP CHANNEL 3.10.1 MANUAL CAPTURE It is possible to capture the pictures. Stream Switch It is possible to click on [HD] o [SD] icon to select “Main Stream” and “Sub Stream” for Live Video settings. 3.10.2 MANUAL RECORD It is possible to start/stop the manual record. -
Page 60: Cruise Set
3.10.8 CRUISE SET Open auto cruise function on PTZ setting menu if you want to setup cruise function (system default: off), and set up cruise channel, cur point and total quantity and stop time etc How to set pre-set point Total: set up pre-set point quantity •... -
Page 61: Plug-In Download And Installation Web Interface
PLUG-IN DOWNLOAD AND INSTALLATION WEB INTERFACE Open your web browser and input the IP address and web port of DVR, such as: http://IP Address:Web Port/. If your computer is connected to internet, it will download and install “ActiveX” Plug-in automatically. If your computer system is Vista, you may need to setup the user authority. -
Page 62: Web Interface Dvr Accessing Via Ip Address, Url Or Urmet Ddns Account
WEB INTERFACE DVR ACCESSING VIA IP ADDRESS, URL OR URMET DDNS ACCOUNT Follow the instructions for configuring and accessing the web pages of the device on Internet Explorer. The web can be accessed in three ways: Direct access via LAN: start Internet Explorer and enter the IP address of the DVR and the HTTP port of the DVR on the address bar as follows: http://IP Address:HTTP Port (e.g. -
Page 63: Live Interface
LIVE INTERFACE After successful logging-in web manager, you will enter into the Live interface shown below 4.2.1 MENU BAR Menu bar include [Live], [Replay], [Configuration], [Path Configuration] and [Logout] options 4.2.2 LIVE DISPLAY After running the Web Application Manager on your local PC, system will be defaulted to enter into <Live> interface shown as above. -
Page 64: Ptz Control
: Display previous channels : Display next channels : Click the icon to enlarge current window to full screen; right-click to pop-up menu options, now allow you select <Exit full screen> 4.2.3 PTZ CONTROL PTZ moving Direction control: allow you control PTZ camera’s direction. And the middle button is called [Auto-cruise] button. -
Page 65: Playback
PLAYBACK Click [ ] icon to enter into <playback> interface shown below. The Web Application Manager supports up to 4 channels playback simultaneously. 4.3.1 RECORD SEARCH Firstly, select one day you want to check and tick-select <synchronous Playback> and the channels you desire to playback shown as below You can also decide which video stream to search: MainStream or SubStream. -
Page 66: Playback Control
If you tick-select < > option, that means the selected channel will playback synchronously; otherwise, you could separately control the channels playback. Thirdly, click [ ] icon to start record playback. When mouse curse is moving on the time axis, the current time will appear in the screen. -
Page 67: Snapshot Function
4.3.4 SNAPSHOT FUNCTION Move the mouse curse to the channel you want to capture, and click [ ] icon to capture the live images remotely. After capturing the images successfully, you are allowed to save it to a specified path shown as below. The captured file will be saved as *.bmp format 4.3.5 RECORD FILE DOWNLOAD... -
Page 68: Configuration
CONFIGURATION Click [Configuration] option to enter into the [Config] interface shown as below and allow you set Display configuration, Record, Network, Alarm, Device, System parameters and Advance according to your actual request. 4.4.1 DISPLAY CONFIGURATION Unfold [Display] option to find its sub-options: Live and Privacy zone Analog channels: you can enable/disable the AHD/ Analog Channels and increase/decrease the IP channels number. - Page 69 Image Control (if supported by IP Camera Model): it is possible to set the IP Camera Parameters where possible. Privacy zone: Each channel could set up to four privacy zones shown as below. Details parameters please refer to section 2.4.1.3. If you want to delete one privacy zone, please firstly select one zone, and then click <Clear> button and click <Save>...
-
Page 70: Record
4.4.2 RECORD Click <Record> option to unfold its sub-options: Record parameter, Schedule and Main stream. Record Parameters: Under [Record parameters] option, allow you set channel, record enable, pack time and Pre-record status shown as below. Schedule: Detailed parameters please refer to DVR local setting. Green stand for Normal record; Yellow stands for Motion detection;... -
Page 71: Capture
3. Stream setting: User may set Mainstream, Substream and Mobile Stream as shown in Pictures below. The relevant parameters should be consistent with DVR local setting. 4.4.3 CAPTURE You can capture the pictures automatically complaint with schedule or manually set the parameters as shown in pictures below: DS1093-520... -
Page 72: Network Parameters
4.4.4 NETWORK PARAMETERS Unfold <Network> option to enter into its sub-options: Network, sub stream, Email and DDNS configuration. The model support three network type, including Static, DHCP and PPPoE Static: User could allocate IP and perform Port forwarding for DVR according to different router. When set <UPNP>... - Page 73 Email setting: Click [Email setting] option to allow you set alarm email configuration parameters shown as below. Detailed parameters should be consistent with DVR local setting. DDNS Setting: After user applies for DDNS service shown below, you could enable <DDNS> function under any one network type mode (Static, DHCP and PPPoE).
- Page 74 Save the changes clicking [Save] button and reboot the DVR. Launch VLC Player from Media -> Open Network Stream and digit the following String: rtsp://Indirizzo IP:RTSP Port/live/chA_B_C where: RTSP Port is 554 (default value) • A means ch1(00), ch2(01) and so on •...
-
Page 75: Alarm Set
4.4.5 ALARM SET Click on <Alarm> to access the Motion option, as shown below Motion Detection: allow you configure its <Sensitivity>, <Alarm record> and <Alarm Capture> etc. Details setting should be consistent with DVR local setting. 4.4.6 DEVICE Click <Device> to unfold its sub-options: HDD and PTZ. HDD: allow you check out HDD status and overwritten time shown below, the overwrite time and recording enabling on ESATA interface as shown here. - Page 76 PTZ Configuration: details setting should be consistent with DVR local setting. Cloud Storage (available in the future) DS1093-520...
-
Page 77: System
4.4.7 SYSTEM Click <System> option to unfold its sub-options: General, Users and information. General: User could check DVR’s language and video system, and also set system time, date format, DST and NTP shown below. Details setting should be consistent with DVR local setting. Users: Allow you configure user name and password shown below. - Page 78 Information: Allow you check out device name, number, type, MAC address, software version, IE version and hardware version shown below. Channel Info: It is possible to read all Channels info: Set Stream, Enable or disable Status, Motion supported etc. DS1093-520...
-
Page 79: Advanced
Record Info: It is possible to read all Record Bit Rate values, Frame Rate values and Resolution values for each channel recording. 4.4.8 ADVANCED Click <Advanced> to unfold its sub-options: System update, Load default, Events and system maintain etc. Firmware update: allow you upgrade DVR system and IP Camera connected to DVR (Firmware Upgrade not available for IP camera with ONVIF Protocol) remotely shown below. - Page 80 Please follow below steps to upgrade the system: Select the upgrade file’s path shown as below. Please note that the format of upgrade file is *.sw. Click <Start update>, now processing bar will display current upgrade status shown as below. Load Default: User may remotely restore default parameters of DVR and IPC ( Load Default Function is not available for IP camera with ONVIF Protocol), with same setting method as that of DVR, shown as Picture below.
- Page 81 Exception: allow you configure Event type, Enable Exception, Buzzer output time, Send email and Show icons, shown as below. Details setting should be consistent with DVR local setting. Maintain: allow you set auto system maintain for DVR remotely shown as below. Detail setting should be consistent with DVR local setting and Reboot DVR and IPC (Reboot function is not available for IP camera with ONVIF Protocol).
-
Page 82: Local Setting
LOCAL SETTING Under <Local setting> option, user could set record path of record file (Live record and Playback clip file), download path of remote file, Snapshot path, File type (H.264 and AVI) and Internal shown as below. LOGOUT Click the [ ] icon to return back the log-in interface. -
Page 83: Mobile Software
MOBILE SOFTWARE Mobile Software is used for iOS Platform (iPhone, iPad) and Android Platform (Android Smartphone, Tablet). Here follow the Mobile Software Client description. SMARTPHONE DEVICE 5.1.1 URMET IUVS SOFTWARE MOBILE Urmet iUVS is a mobile phone CCTV application developed for iPhone OS. It's compatible with Hybrid DVR Series. Features Here follow the main features of the application: Live audio/video streaming of up to 16 channels... - Page 84 Add and delete device Device manager allow you add or delete device, and also modify device properties. Tab "Device Manager" on Main Menu to open this interface as below To add a new device, click "Add" button at the top right, then you can input the device name, address(IP, domain name or Device ID for Urmet DDNS Account), port, user name and password etc.
- Page 85 2. Open a channel Tab Cross button on one of the view window will enter channel list window, then select one channel to open on the previous window. Remote Playback Tab Remote Playback on Main Menu will show the playback entry. you will be able to play one channel of remote device after 2 steps.
- Page 86 Recording streaming You can record streaming when viewing live video. Tap and then tap channel label on the bottom panel to start recording. It will keep recording on live page after start record, and can only record the channels which are viewing. Recording will stop if you close the channel or leave live page.
-
Page 87: Tablet Device
TABLET DEVICE About Tablet Devices two apps are available: iUVSpad for iPad and iUVStab for Android tablet that use Data Port (Default: 9000). Here follow the description for these Apps. 5.2.1 URMET IUVSPAD AND IUVSTAB MOBILE Urmet iUVSpad and iUVStab are a mobile phone CCTV application developed for iPad and Android Tablet. It's compatible with Hybrid DVR Series. - Page 88 Getting Start Download iUVSpad App from Apple Store and iUVStab App from Play Store and install it. • Connect your iPad or Tablet to the internet using 3G or WiFi. • Launch application you will brought to iUVSpad or iUVStab. •...
- Page 89 NOTE: In order to allow the correct working of iUVS Software Mobile it is needed to set the Data Port on the router in the Virtual Server Table (9000 for example). If the user doesn’t set the Data Port on router, iUVS Software Mobile could not work correctly.
- Page 90 In order to remove the device from the list devices for iOS Platform drag on the left the device name and select the “Delete” button shown on the right (in Android Platform for deleting the device, select the trash icon on the right and confirm).
- Page 91 Select the device on the Device list in order to display the video input available: Drag and Drop each channel (or Device in order to display all channels contemporaneously) in the grid of LIVE Preview. DS1093-520...
-
Page 92: P2P Function
P2P FUNCTION Make sure that the DVR has a valid network configuration in its “Network” menu to guarantee local and remote (internet) connection if available. For further details about the network menu please refer to the paragraph 4.1. In the Hybrid DVR menu, select “System” -> “Users” in order to check if the password is enabled and it is possible to customise the password for the “admin”... - Page 93 Type in the “Password” field previously inserted on the Hybrid DVR and select “Save”. Wait for approximately ten seconds to load the Hybrid DVR live feed. DS1093-520...
-
Page 94: 1093/504N 1093/508N And 1093/516N Specifications (Pal Format)
1093/504N 1093/508N AND 1093/516N SPECIFICATIONS (PAL FORMAT) Characteristics Feature 1093/504N 1093/508N 1093/516N Compression formats Video: H.264 / Audio: 8kHz*16bit ADPCM 16-CH with BNC video 4-CH with BNC video input 8-CH with BNC video input input / 8-CH with IP video / 2-CH with IP video input / 4-CH with IP video input input... - Page 95 IMPORTANT NOTES Product specifications may be subject to change without prior notice. In the event of HDD replacement/addition, the operation must be carried out by qualified technical staff only or after contacting the nearest technical office. Hard Disk capacity can reach max. 6TB. Please contact the nearest technical office to get the full list of compatible HDDs.
-
Page 96: Maximum Recording Time With 1000Gb Hard Disk
MAXIMUM RECORDING TIME WITH 1000GB HARD DISK REF. 1093/504N – 1093/508N – 1093/516N The following resolution options can be selected on Urmet Hybrid 1080N DVR Series: “1080N”, “720P” and “WD1” on 1/4/8/16 analogue channels “1080P”, “960P” and “720P” on 1/4/8/16 IP channels IMPORTANT NOTES Bandwidth and HDD Duration can be highly variable depending on the scene recorded. - Page 97 8 recording channel with 720P resolution (1280x720) 16 recording channel with 720P resolution (1280x720) Variables to be set Results Variables to be set Results Bitrate Frame rate Time Time Bitrate Frame rate Time Time (in Kbps) (in fps) HD (hours) HD (days) (in Kbps) (in fps)
- Page 98 8 recording channels with 1080P resolution 16 recording channels with 1080P resolution (1920×1080) (1920×1080) Variables to be set Results Variables to be set Results Bitrate Frame rate HD time HD time Bitrate Frame rate HD time HD time (in Kbps) (in fps) (hours) (days)
- Page 99 IP channels with Urmet protocol 1 recording channel with 720P resolution (1280×720) 4 recording channels with 720P resolution (1280×720) Variables to be set Results Variables to be set Results Bitrate Frame rate HD time HD time Bitrate Frame rate HD time HD time (in Kbps) (in fps)
-
Page 100: Record Alarm Setting
RECORD ALARM SETTING Please refer the below matrix: “⊥” stand for “only alarm but no record”; “AMR” stand for “alarm record”; “NLR” stand for “normal record”; and “NOR” stand for “ no record”. Once alarm is triggered, alarm icon will occur, and when many alarms are triggered, alarm remarks will occur on the screen. -
Page 101: 10 Usage Maintenance
13. Q: Why DVR cannot control PTZ? A: Please check if: 1. PTZ in the front side is malfunctioned. 2. Setting, connection and installation of PTZ decoder are not correct. 3. PTZ setting of DVR is not correct. 4. Protocol of PTZ decoder does not match that of DVR. 5. -
Page 102: Appendix: Active X Installation
APPENDIX: ACTIVE X INSTALLATION If the installation of an ActiveX component is required, follow the procedure below. Before performing the connection to the PC, activate IE protection configuration, following the procedure below: Double click the icon to open Internet Explorer browser. The following display will appear (or, however, the default page). - Page 103 Select the area “Trusted sites”. Click on “Custom Level” and check if the following items: “Initialize and script Active X controls not marked as safe” is selected as “Enable” or “ • Prompt” “Download insigne Active X controls” is selected as “Enable” or “Prompt” •...
- Page 104 The following screen will appear. It will be needed to add the Device IP Address(Example: http://192.168.36.40) in the filed “Add Web Site to the Zone”. Add the device IP address in the field click on “Add”. NOTE Do not select the item: “Require server (https:) verification for all sites in this zone”. Close the window selecting “Exit”...
-
Page 105: Glossary
GLOSSARY ADPCM Acronym of Adaptive Delta Pulse Code Modulation, a digital audio compression technique. Automatic Gain Control is a function to improve viewing in poor light conditions. Acronym of Analog High Definition, a protocol used for high-resolution transmissions on video coaxial cable. Automatic Motion Recording is the capability of starting a video recording when the system identifies motion in the image framed by the camera. - Page 106 Port In IT networks, port forwarding is the operation for transferring (forwarding) data from one Forwarding computer to another via a specific communication port. This technique may be used to allow an external user to reach a host with a private IP address (in a LAN) by means of a port of the public IP of the same.
- Page 107 DS1093-520...
- Page 108 DS1093-520 Area tecnica URMET S.p.A. servizio clienti +39 011.23.39.810 10154 TORINO (ITALY) http://www.urmet.com VIA BOLOGNA 188/C e-mail: info@urmet.com Telef. +39 011.24.00.000 (RIC.AUT.) MADE IN CHINA +39 011.24.00.300 - 323 DS1093-520...
