Page 1

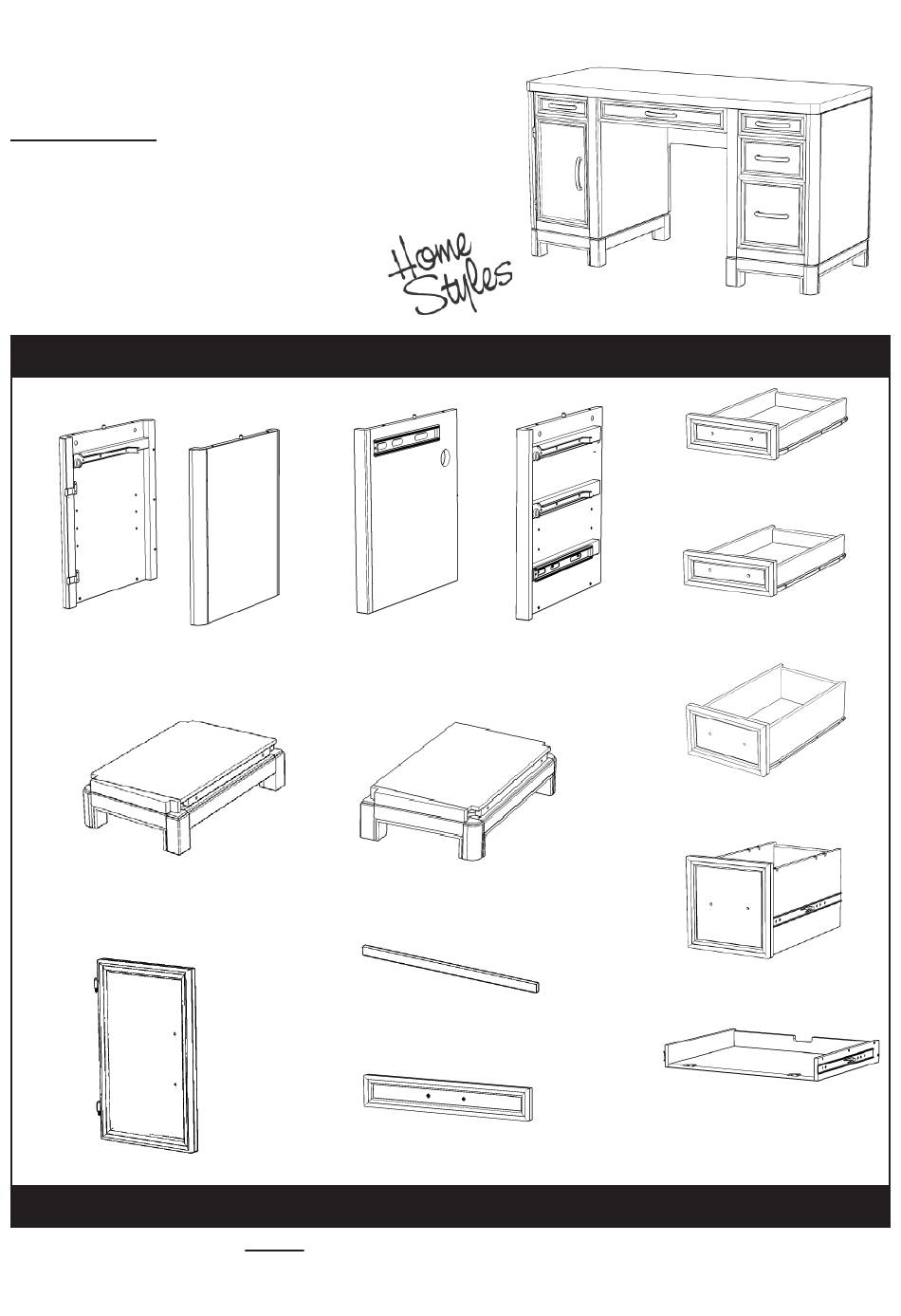

Keyboard Front instructions for drawer assembly steps.) 1 Pc. Also need the following from carton 88 5549 181 : Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
Page 2
Assembly Instructions 3 2/10 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the fl...
Page 3
Assembly Instructions 4 3/10 STEP 3 Attach Middle Panel (D) to Base (M) and Middle Panel (E) to Base (N) with Head Cap Bolts. (See Figure 3) Head Cap Bolt Figure 3 STEP 4 Attach units to Back Panel (F) with Cam Locks. (See Figure 4) Figure 4 Cam Lock...
Page 4
Assembly Instructions 5 4/10 Cam Lock STEP 6 Turn the unit over to its’ upright position. Attach Top (A) to the unit with Cam Locks. Wood Screw for Hinge Figure 5 STEP 7 Attach Keyboard Front (L) to Keyboard (K) with Wood Screws for Hinge. Attach Pull Handle to Keyboard Front (L) with Machine Screws.
Page 5
Assembly Instructions 6 5/10 Adjustable Pin Figure 7 Figure 8 Figure 9 Figure 6 STEP 8 Insert Adjustable Pins into the side panel and middle panel at the desired level. Place Shelf (Q) into position. Attach Pull Handle to Door (O) with Machine Screws. (See Figure 6) Attach Door (O) by sliding the door lift hinges into the side panel lift hinges.
Page 6
Assembly Instructions 7 6/10 Drawer (G) STEP 1 Attach G1, G2 and G3 using a Phillips screwdriver and long Wood Screws (4X), tighten halfway. Figure 1 Attach G1, G2 and G4 using long Wood MAKE SURE ROLLER IS ON THE BACK Screws (4X), tighten halfway.
Page 7
Assembly Instructions 8 7/10 Drawer (H) STEP 1 Attach H1, H2 and H3 using a Phillips screwdriver and long Wood Screws (4X), tighten halfway. Figure 1 Attach H1, H2 and H4 using long Wood MAKE SURE ROLLER IS ON THE BACK Screws (4X), tighten halfway.
Page 8
Assembly Instructions 9 8/10 Drawer (I) STEP 1 Attach I1, I2 and I3 using a Phillips screwdriver and long Wood Screws (4X), tighten halfway. MAKE SURE ROLLER Figure 1 Attach I1, I2 and I4 using long Wood IS ON THE BACK Screws (4X), tighten halfway.
Page 9
Assembly Instructions 10 9/10 Drawer (J) STEP 1 Attach J1, J2 and J3 using a Phillips screwdriver and long Wood Screws (6X), tighten halfway. Attach J1, J2 and J4 using long Wood Screws (6X), tighten halfway. Figure 1 (See Figure 1) STEP 2 STEP 3 Slide J5 into grooves in J3 and J4.
Page 10
Assembly Instructions 11 10/10 Keyboard (K) STEP 1 Attach K1 to K4, using a Phillips screwdriver and long Wood Screws (3X), tighten halfway. (See Figure 1) Figure 1 STEP 2 Figure 2 Attach K2 and K3 to unit, using a Phillips screwdriver and long Wood Screws (8X), tighten halfway.
